Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-T30-QP6A

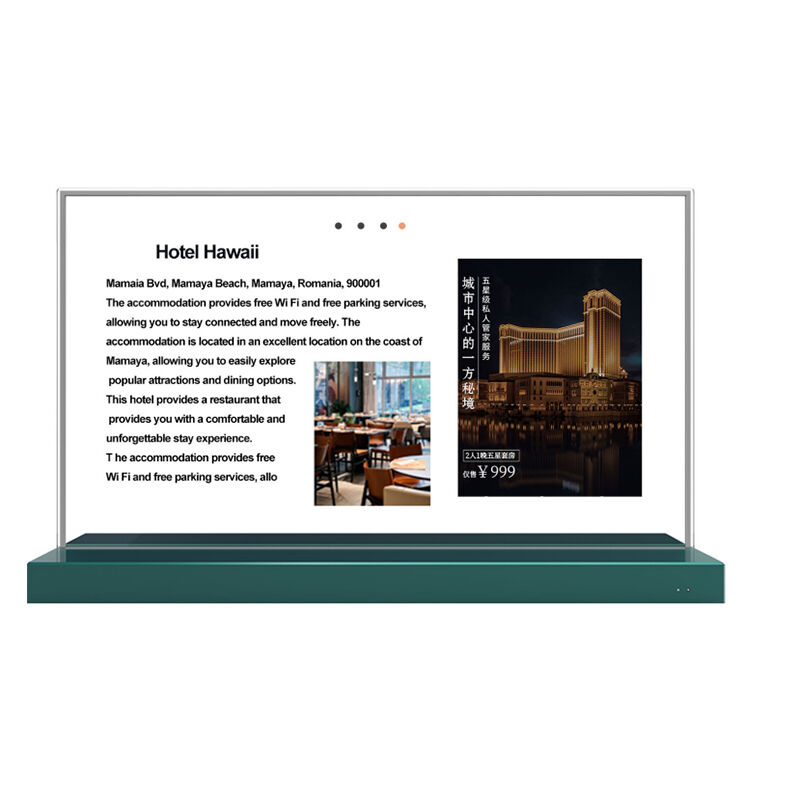

The 30-inch OLED Transparent Screen - Desktop Edition is a monitor featuring transparency and innovative design. Here is a detailed introduction to this product:
Transparency: This OLED transparent screen boasts up to 45% transparency, allowing viewers to see what's behind the screen, adding more layers and depth to the displayed content. This transparency not only provides a unique visual experience but also opens up a whole new creative world that traditional digital displays cannot offer.
Picture Quality: This 30-inch screen uses OLED panel technology. It has a contrast ratio of 135000:1, a resolution of 1366*768, and an aspect ratio of 16:9. It provides enough clarity to read fine details of objects or text behind the display. At the same time, OLED technology provides accurate and stable color, enabling wider viewing angles and faster response times.
Design Features: This OLED transparent screen features a slim and stylish design that blends easily into its surroundings. It can be used alone or in a series, allowing for more flexible design solutions. Whether mounted vertically, horizontally, or ceiling-mounted, it can be adjusted to meet specific needs.
Multifunctionality: This monitor also boasts a variety of features, such as adjustable brightness, touch operation, and an ultra-narrow bezel design. These features allow users to flexibly adjust the display to suit different environments and presentation needs, achieving the best visual effect.
Energy Saving and Environmental Protection: This monitor uses low-power LED chips, effectively reducing energy consumption and environmental pollution. It is also manufactured using environmentally friendly materials, aligning with green environmental protection principles.
In summary, the 30-inch OLED Transparent Screen - Desktop Edition is an innovative and multifunctional monitor. Its high transparency, image quality, slim design, multifunctionality, and energy-saving features make it an ideal choice for commercial displays, art installations, outdoor advertising, and other fields.
| 30-inch desktop splicing transparent device(ZXTLCD-T30-QP6A) | |
| LCD Panel Parameters | |
| Screen Size | 30 inch |
| Panel type | Transparent OLED |
| Resolution | 1366*768 |
| Brightness | 200-600cd/㎡ Automatic adjustment |
| Contrast Ratio | 135000:1 |
| Viewing angle(up/down/left/right) | 178°/178 |
| Onboard interface | |
| Input Interface | USB*1(Touch) + HDMI*1 +TYPE-C(powered by) |
| Output interface | Camera + Microphone |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | DC 20V |
| Total System Power Consumption | ＜40W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Tempered Glass+Metal |
| external dimensions | 682*147*424 (mm) |
| Overall dimensions | 800*260*560mm(Honeycomb box, subject to the actual product) |
| Installation Method | Desktop base |
| Net weight / Gross weight | 8.5KG/12.7KG(Honeycomb box) |
| Accessories | |
| Power cord, HDMI port, USB port, remote control, certificate of conformity and warranty card, instruction manual | |
| other | |
| After-Sales Service | 1-Year Warranty |
