Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED-055-MP6A
I. Why Use Transparent OLED Displays?
Transparent OLED displays, being self-emissive, offer high transparency and superior image quality, providing new value to consumers.
II. Application Scenarios of Transparent OLED Displays?
Transparent OLED displays can be adapted to various fields, creating new markets and providing greater new value to customers.
Application Scenarios of Transparent OLED Displays—Transportation, Retail, Enterprise, Home
Using transparent OLED displays in vehicles will make designs more technologically advanced and save space;
Transparent OLED displays will provide customers with more convenient services;
Transparent OLED displays will provide a sense of openness, save space, and improve work efficiency;
Transparent OLEDs will give home decoration a high-end feel and enhance the value of buildings.
III. The Value of Transparent OLED Displays
1. Displays that integrate seamlessly with interior design
2. Displays that encourage customers to visit stores
3. Displays that provide customers with a comfortable experience

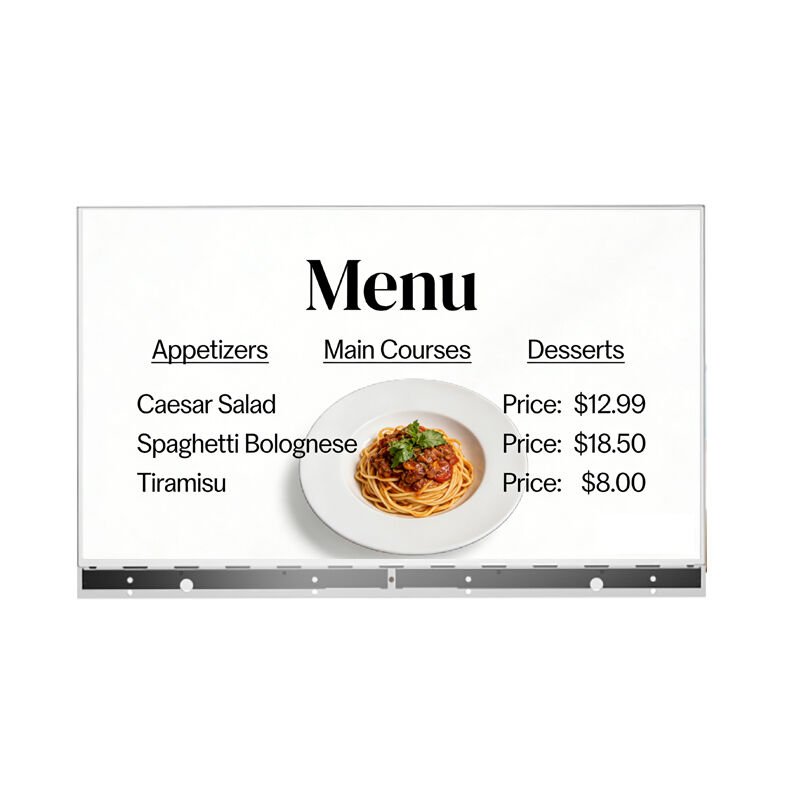

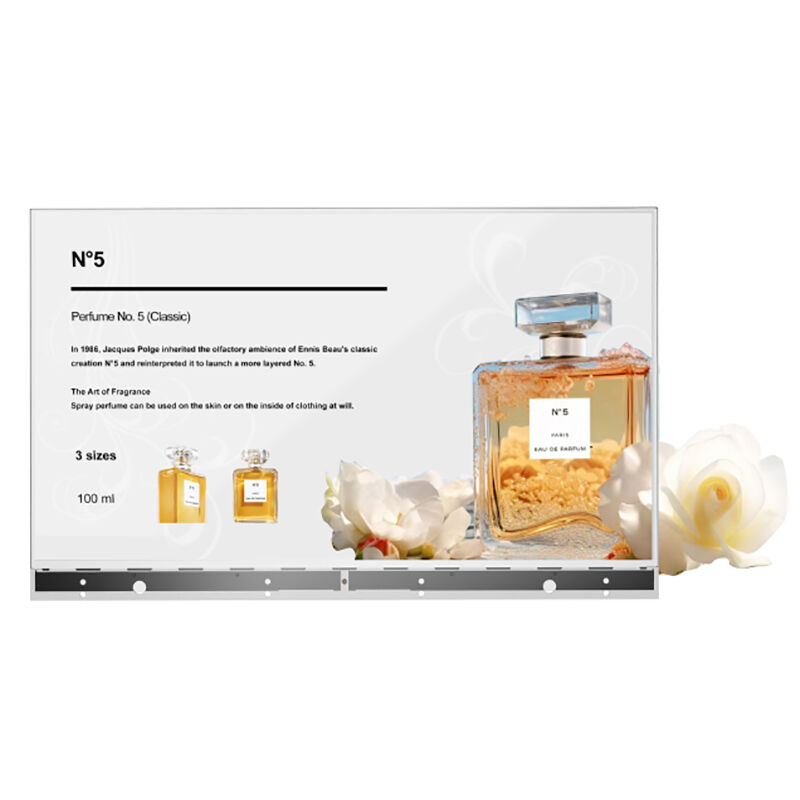

| 55 inch OLED module transparent display(ZXTLCD-055-MP6A) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| Resolution | 1920*1080 |
| Brightness | 200-600cd/㎡ |
| Contrast Ratio | 100000:1 |
| Viewing angle(up/down/left/right) | 178°/178 |
| Onboard interface | |
| Input Interface | USB*1 + HDMI*1+DP*1 + RS232 IN*1 |
| Output interface | RS232 OUT*1 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | AC 100-240V |
| Total System Power Consumption | ＜200W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass |
| external dimensions | 1225.5*765*11.8(mm) |
| Overall dimensions | TBD |
| Installation Method | Optional |
| Net weight | 14KG/17KG |
| Accessories | |
| Adapter, HDMI cable, certificate of conformity and warranty card | |
| other | |
| After-Sales Service | 1-Year Warranty |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
