Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED077F002

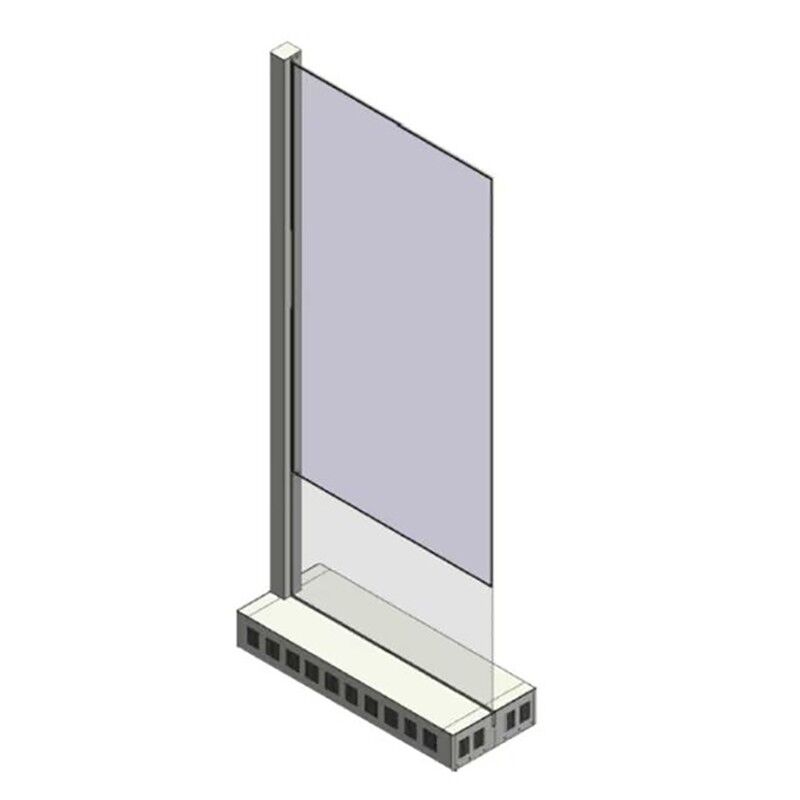

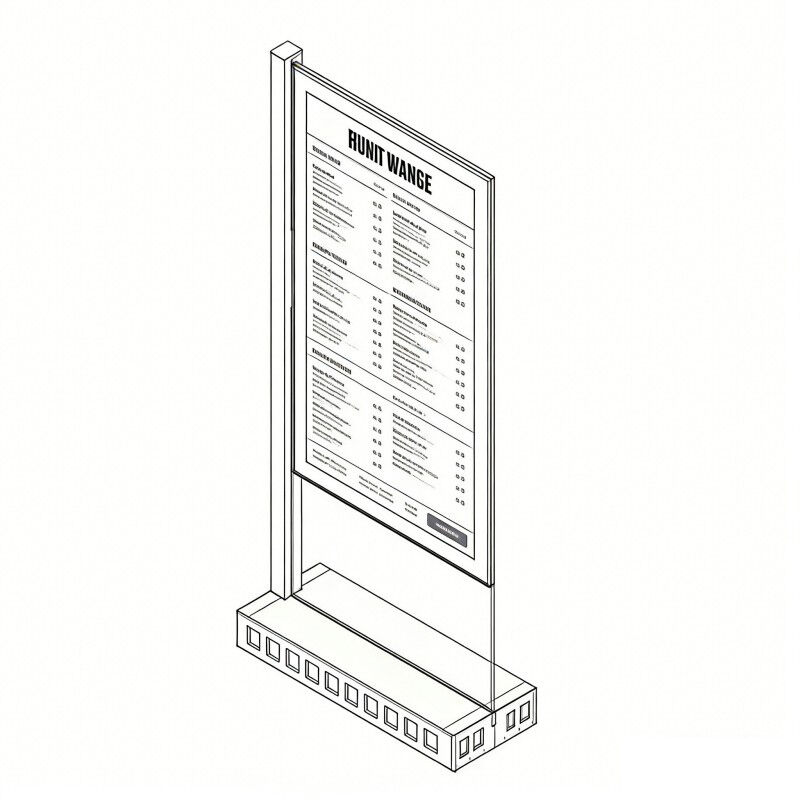

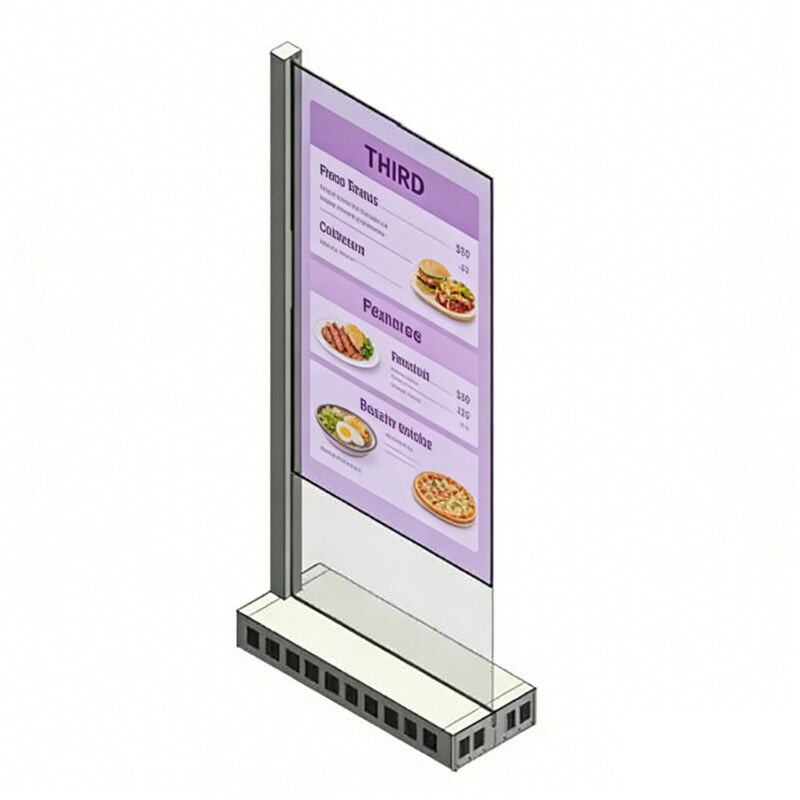

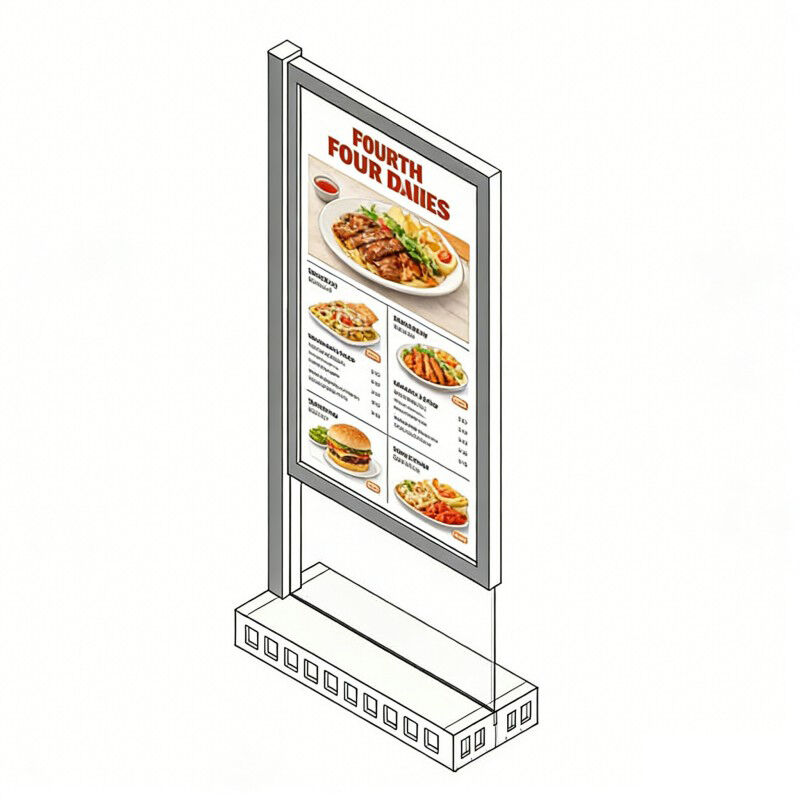

This 77-inch transparent OLED digital signage display boasts a 43% light transmittance, allowing viewers to see objects behind the screen. This enables it to seamlessly blend into its surroundings, displaying content without completely obscuring objects behind it. It is ideal for retail stores, museums, exhibitions, and event venues.
Single-sided Frameless Design: Featuring a single-sided frameless design, its full-screen appearance exudes a modern and stylish feel. This design enhances the elegant ambiance of high-end exhibition spaces.
Bottom Design: The display offers multiple connectivity options (HDMI, DP, USB, RS232) to ensure compatibility with various multimedia sources and exhibition setups. This allows for flexible integration into diverse exhibition environments.
Our digital signage displays utilize optical bonding technology, making them ideal for industries requiring high-quality display solutions. This technology not only reduces reflections but also enhances brightness and clarity. Furthermore, it improves durability and expands viewing angles.
| 77 Inch Transparent OLED Virtual Guide | |
| LCD Panel Parameters | |
| Screen Size | 77 inch |
| Panel type | OLED |
| transmittance | 40%(Typ.) |
| Max Resolution | 3840 X 2160 |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/㎡ |
| Contrast Ratio | 150000:1 |
| Viewing angle(up/down/left/right) | R/L 178°(Min.), U/D 178°(Min.) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 1.07B(10bit) |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1972.96 X 1151.64 X 93.8mm Refer to the structural dimension drawings. |
| Package size | 2088 X 1268 X 265mm |
| Installation Method | Floor-standing |
| Net weight | 62kg |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
![]()
![]()
