Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED077F001

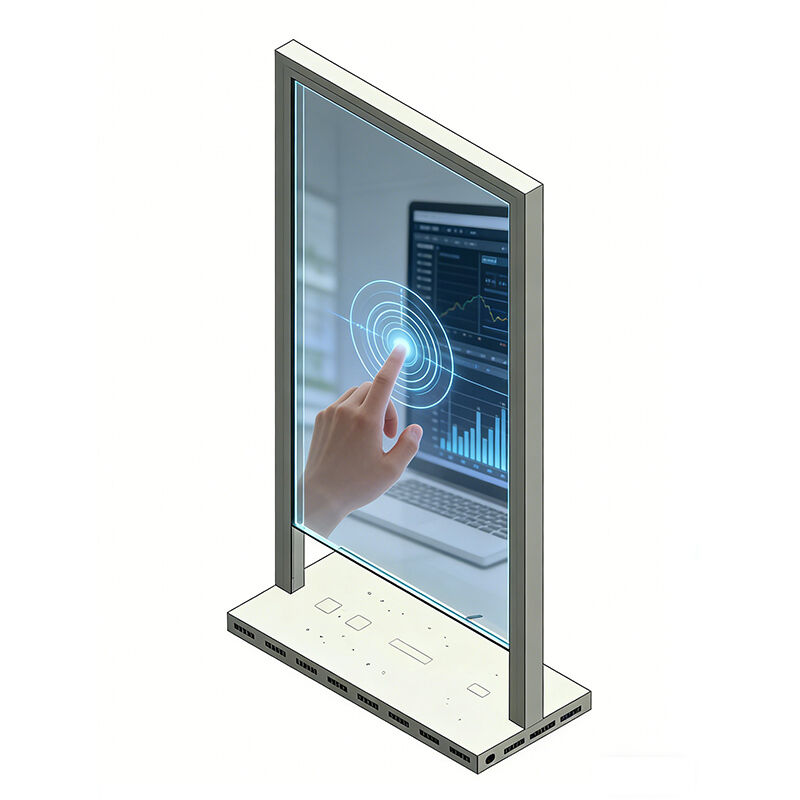

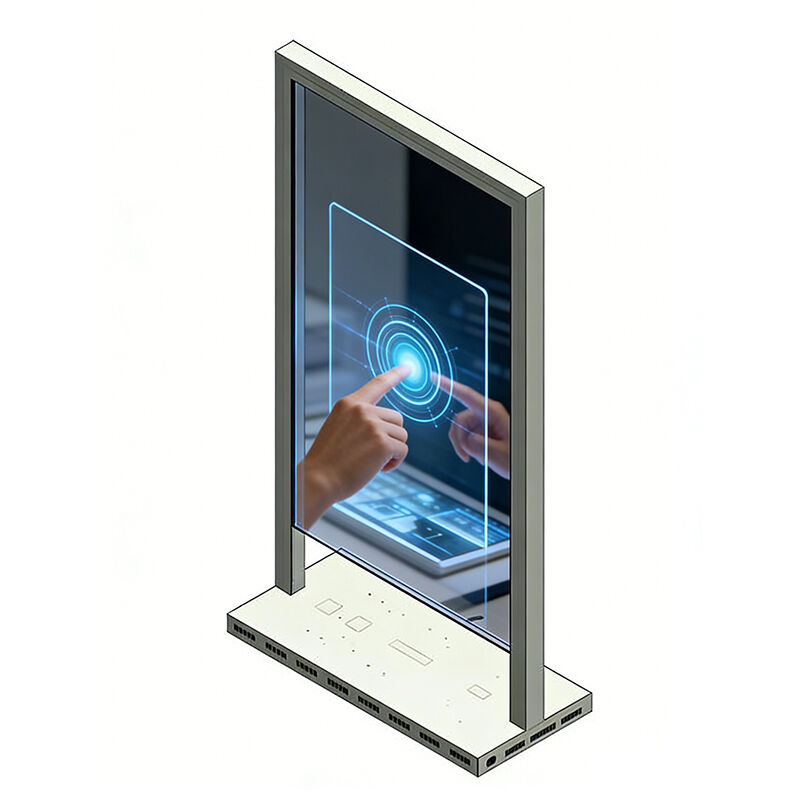

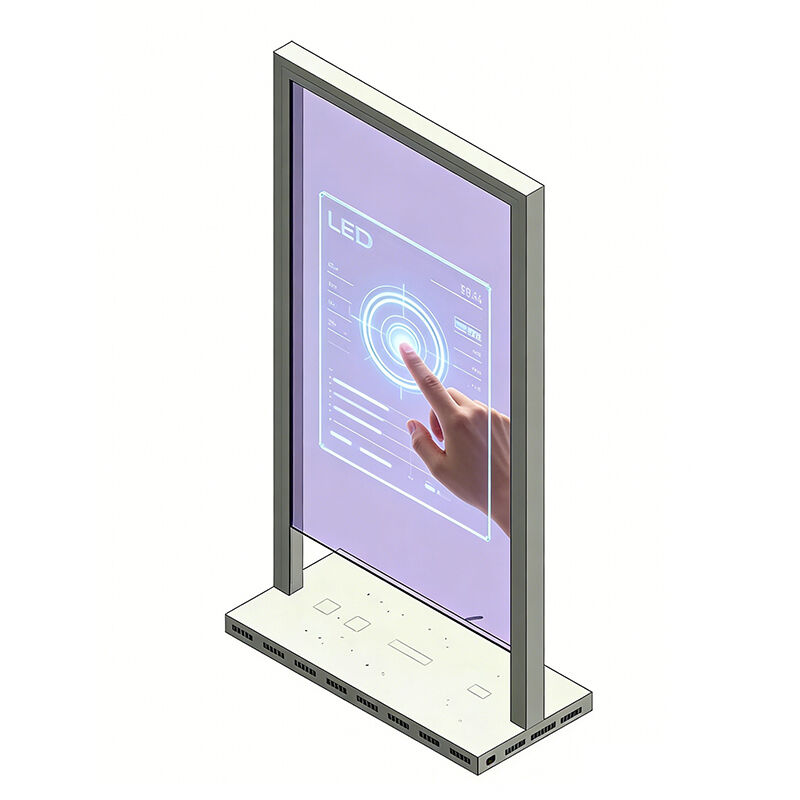

77-inch Transparent OLED Display – A Fusion of Reality and Virtual Reality, A Future Vision
Product Highlights
High Transmittance (40%), Maintains a clear background, allowing for a natural overlay of content onto reality, suitable for window displays, showcases, and other similar applications.
4K Ultra HD Image Quality (3840×2160),OLED self-emissive technology delivers vibrant colors (1.07B color) and a contrast ratio of up to 150,000:1, resulting in distinct image layers.
Lightning-Fast Response & Wide Viewing Angle
0.1ms gray-to-gray response time and a 178° ultra-wide viewing angle ensure clear and smooth viewing from any angle.
Capacitive Touch (Optional)
Supports 10-point touch for more intuitive human-computer interaction, enhancing the navigation and interactive experience.
Full-Function Interfaces
HDMI, DP, RS232, USB, and network interfaces, compatible with mainstream control systems for easy integration.
Stable and Durable
7×12 hours of continuous operation with a lifespan of 30,000 hours, meeting the demands of high-intensity commercial use.
| 77 Inch Transparent OLED Virtual Guide | |
| LCD Panel Parameters | |
| Screen Size | 77 inch |
| Panel type | OLED |
| transmittance | 40%(Typ.) |
| Max Resolution | 3840 X 2160 |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/㎡ |
| Contrast Ratio | 150000:1 |
| Viewing angle(up/down/left/right) | R/L 178°(Min.), U/D 178°(Min.) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 1.07B(10bit) |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |

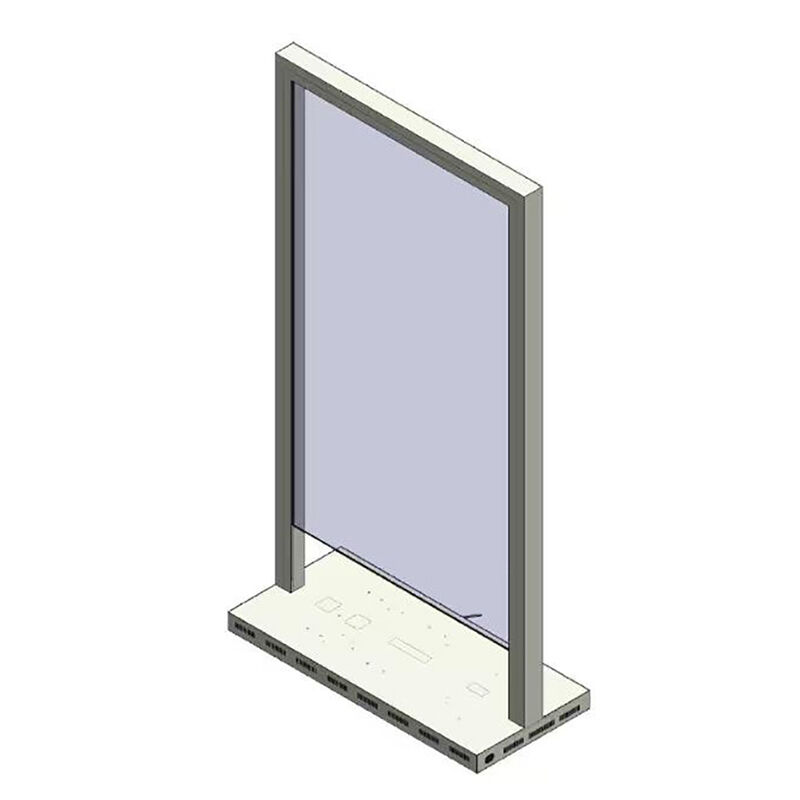

| external dimensions | 1972.96 X 1151.64 X 93.8mm Refer to the structural dimension drawings. |
| Package size | 2088 X 1268 X 265mm |
| Installation Method | Floor-standing |
| Net weight | 62kg |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
Applicable Scenarios
High-end Retail / Brand Flagship Stores
Serving as intelligent showcases, displaying product information and providing virtual shopping guides to attract customers.
Museums / Science and Technology Museums / Corporate Showrooms
Transparent display cases with dynamic explanations bring exhibits to life, enhancing the visitor experience.
Press Conferences / Business Events
Stage backdrops or product display screens, combining virtual and real elements to enhance visual impact.
Airports / Hotels / Office Buildings
Equally emphasizing information guidance and artistic display, enhancing the technological feel of the space and the brand image.
