Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED055F004
Features:
1. High transparency: OLED transparent screens achieve high transparency, allowing users to see through the screen to the background scenery.
2. Ultra-thin design: Using OLED technology, the screen is very thin and can be easily integrated into various designs.
3. High contrast: OLED technology provides high contrast and vibrant colors, resulting in vivid and realistic image quality.
4. Wide viewing angles: The screen maintains clear images from multiple viewing angles.
5. Strong flexibility: Transparent screens can be customized into different shapes and sizes to meet various scene requirements.
Functions:
1. Display content: Can display text, images, videos, and other multimedia content.
2. Touch functionality: Some models support touch operations, enhancing user interaction experience.
3. Multi-screen linkage: Supports multiple transparent screens linked together for expanded display areas.
4. Product Display: Can be used to showcase products, models, artworks, etc., The transparent display effect brings novelty, attracting more viewers.
Advantages:
1. Innovation: Transparent screen technology showcases innovation and progress in technology, attracting users' attention.
2. Communication effectiveness: Transparent screens can be used to display products, information, and enhance communication effectiveness.
3. Aesthetics: The thin, transparent design makes transparent screens more aesthetically pleasing, suitable for commercial displays, retail showcases, etc.
4. Attention-grabbing: Used in commercial displays, event venues, etc., transparent screens can attract more audience attention.

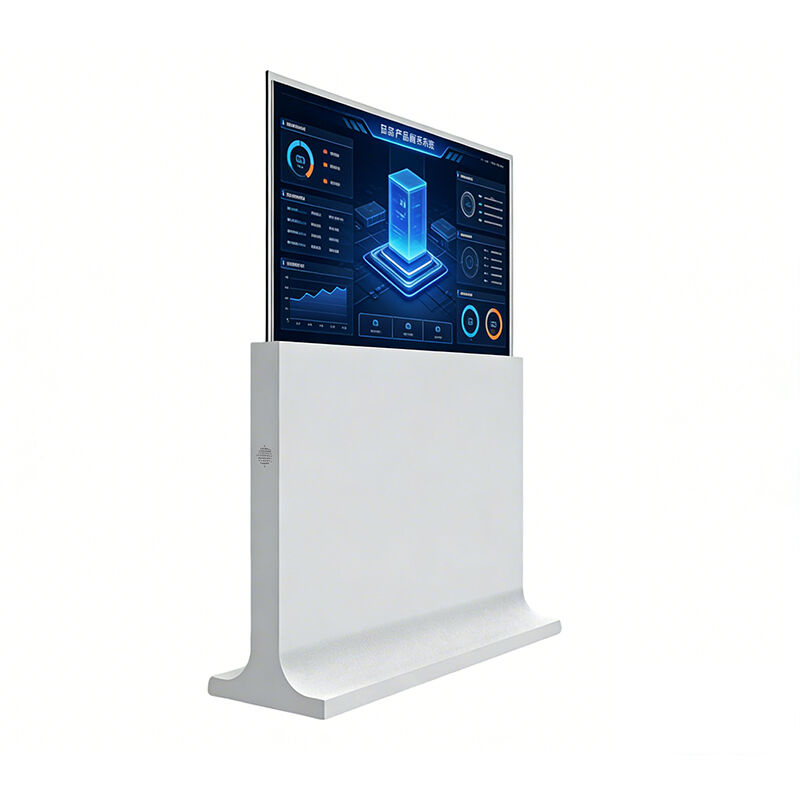

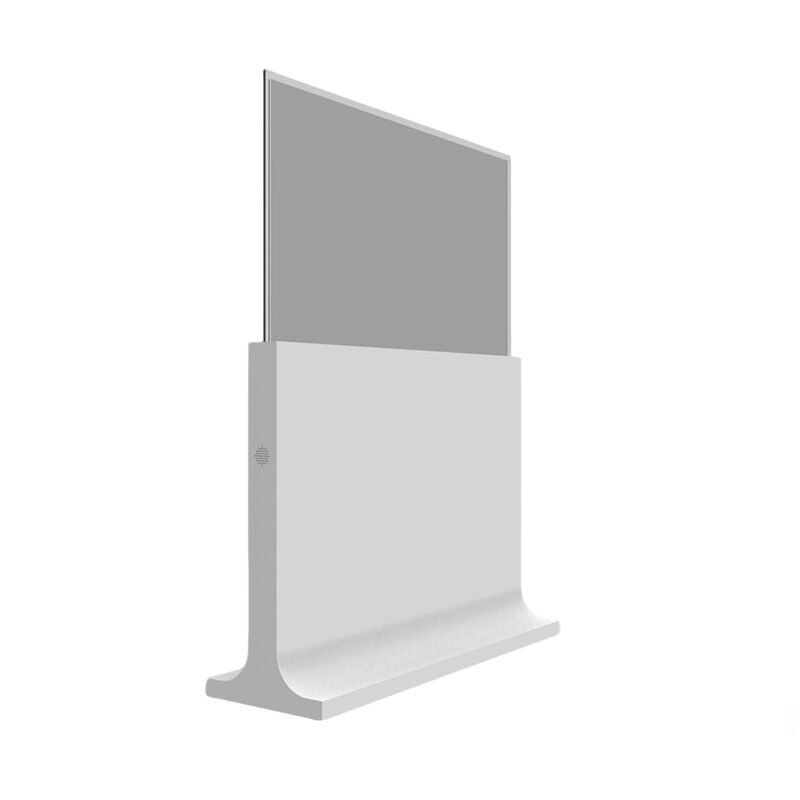

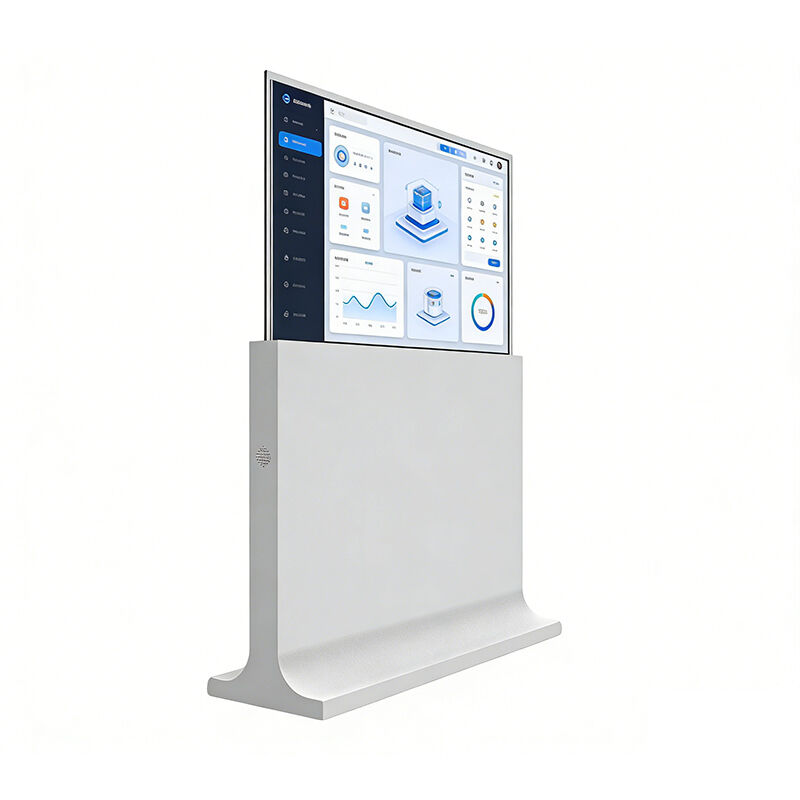

| 55 Inch Transparent OLED Floor-Standing Display | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| transmittance | 40%(Typ.) |
| Max Resolution | 1080×1920 |
| Aspect Ratio | 16:9 |
| Brightness | 600/200 cd/m2 |
| Contrast Ratio | 150000:1 |
| Viewing angle(up/down/left/right) | R/L 178°(Min.), U/D 178°(Min.) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 1.07B(10bit) |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1251mm×400mm×1650mm Refer to the structural dimension drawings. |
| Package size | 1310mm×500mm×1730mm |
| Installation Method | Floor-standing |
| Net weight | 60KG |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
