Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED055S001

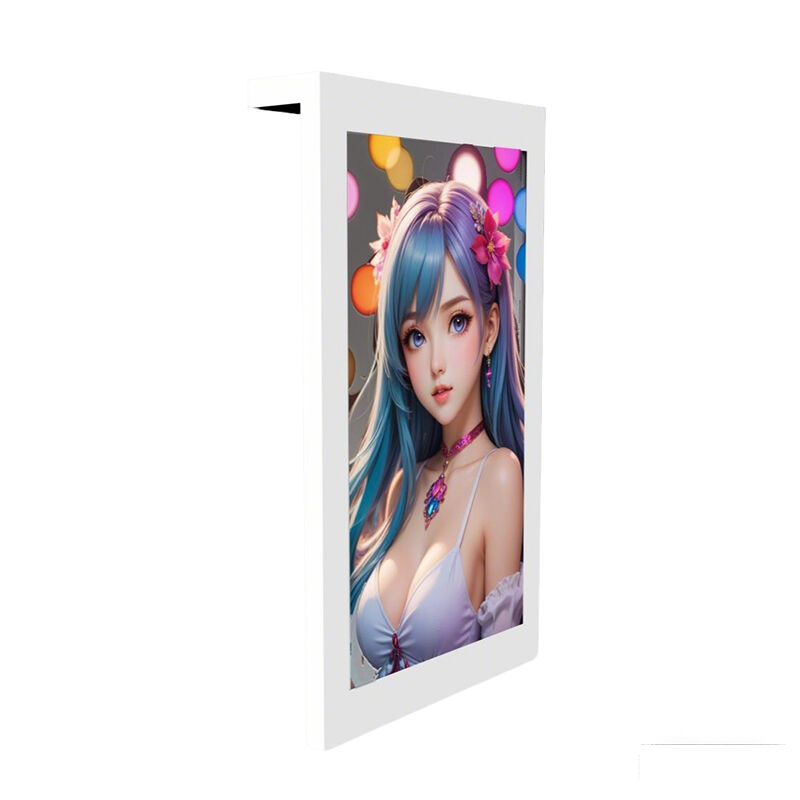

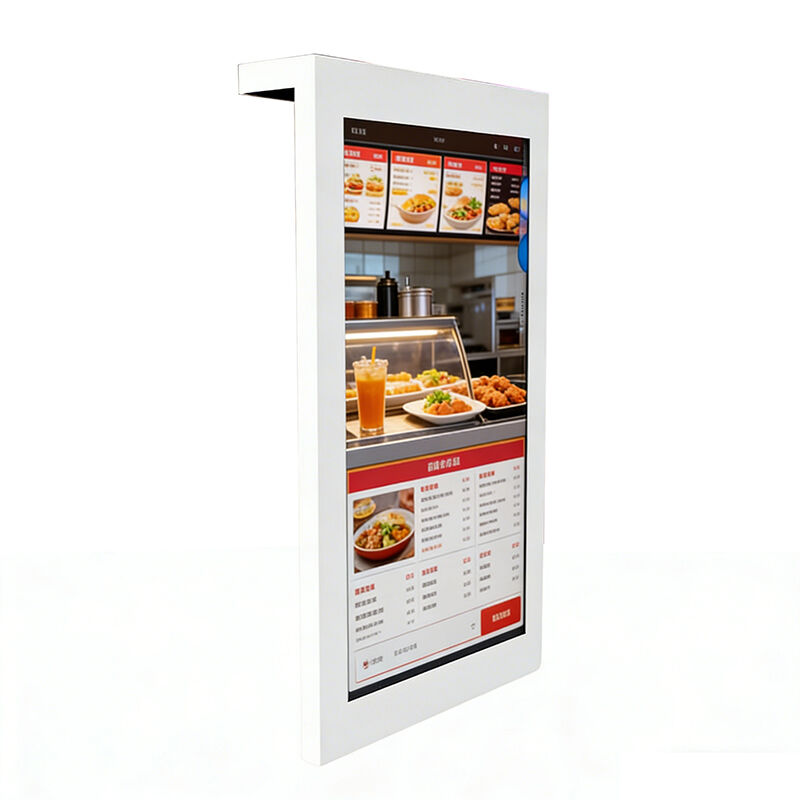

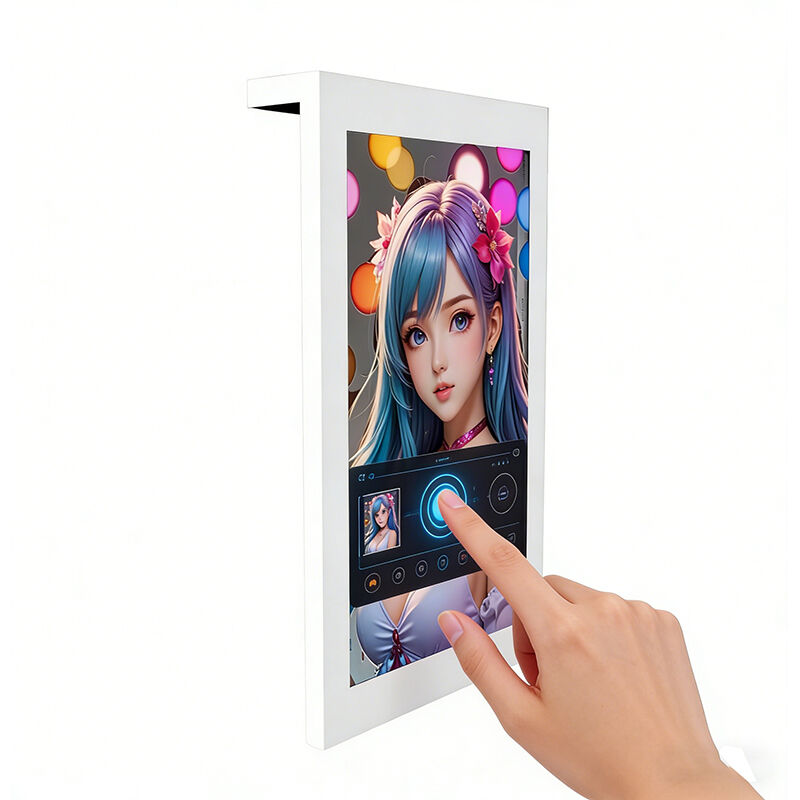

55” Transparent OLED Sliding Display | One Screen, Slide to Tell Stories
It’s not a fixed screen — it’s a “moving transparent picture frame”
The screen slides along a rail. At each stop, it automatically switches content — while the real objects behind it remain fully visible.
The visuals appear to float in front of the physical items. No more imagination needed — real objects meet digital animation directly.
Sliding replaces page-turning
No touch, no remote. Just move the screen to switch content. Perfect for long display walls or multi-point presentations.
Transparent — no blocking
40% transmittance. Models, artifacts, or products behind the screen stay completely visible. The digital content enhances, never replaces.
Slim vertical design
846.5mm (W) × 1440mm (H) × 210mm (D). Wall-mounted rail. Lightweight at 30kg. Fits limited wall spaces.
Turn “page‑turning” into “sliding” — turn a screen into a “transparent guide”.
| 55 Inch Transparent OLED Sliding Display | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| transmittance | 40%(Typ.) |
| Max Resolution | 1080×1920 |
| Aspect Ratio | 16:9 |
| Brightness | 600/200 cd/m2 |
| Contrast Ratio | 150000:1 |
| Viewing angle(up/down/left/right) | R/L 178°(Min.), U/D 178°(Min.) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 1.07B(10bit) |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 846.5mm×1440mm×210mm Refer to the structural dimension drawings. |
| Package size | 940mm×1600mm×270mm |
| Installation Method | Base Installation |
| Net weight | 30KG |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
