Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED030H001

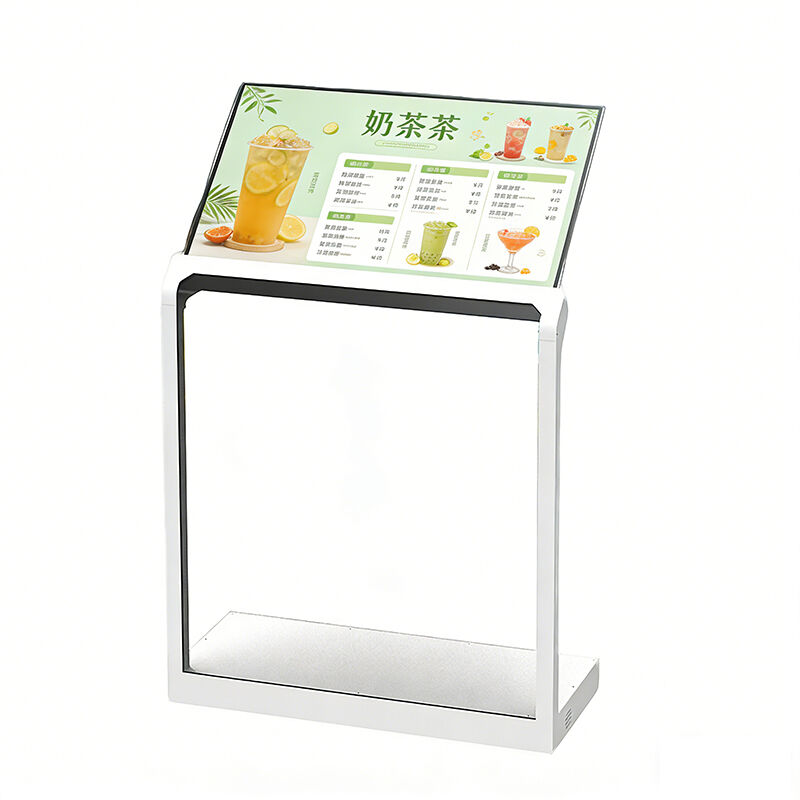

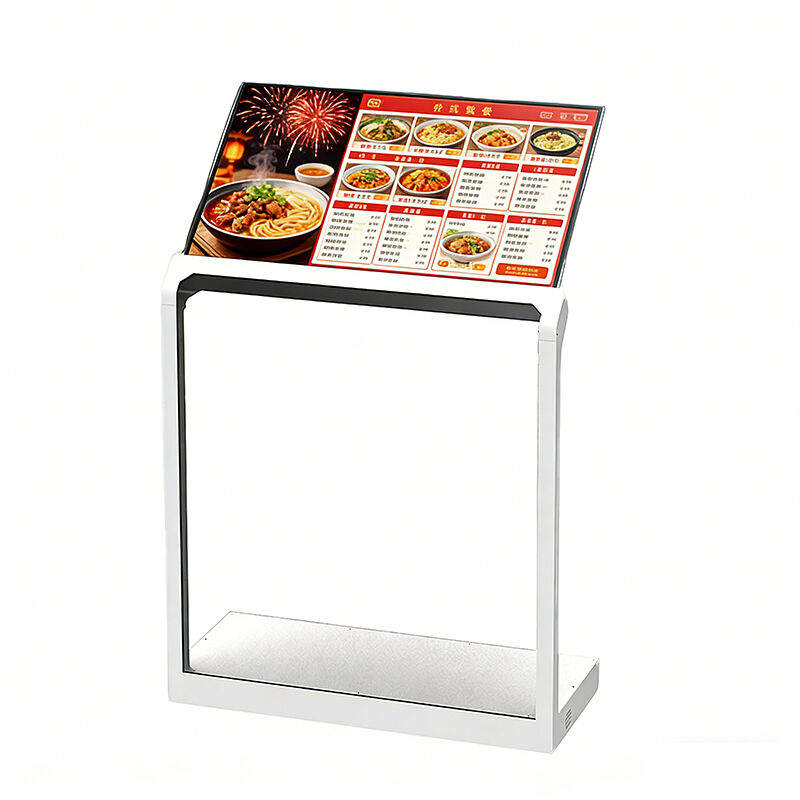

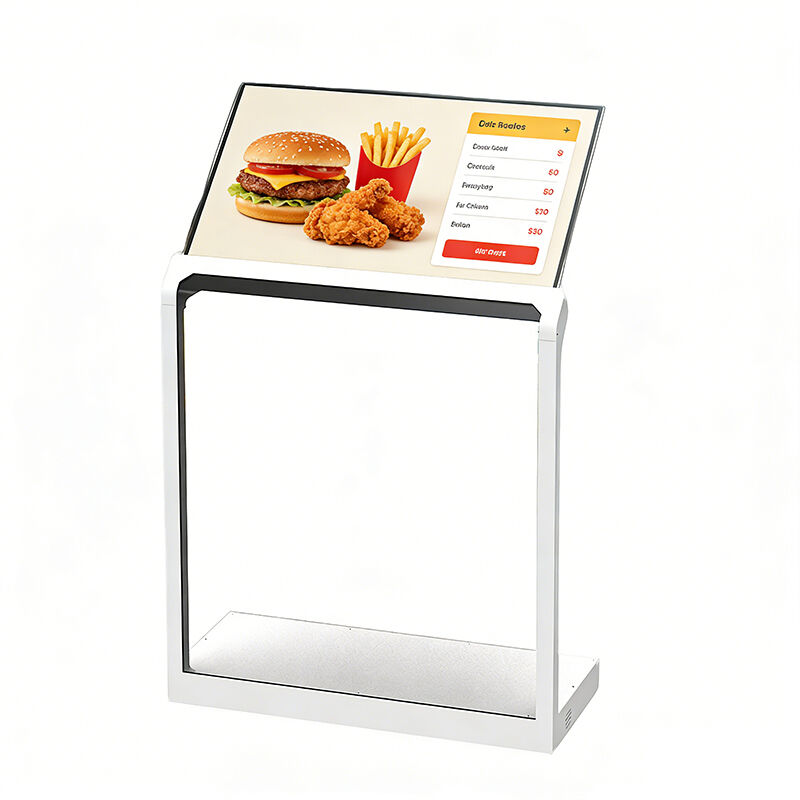

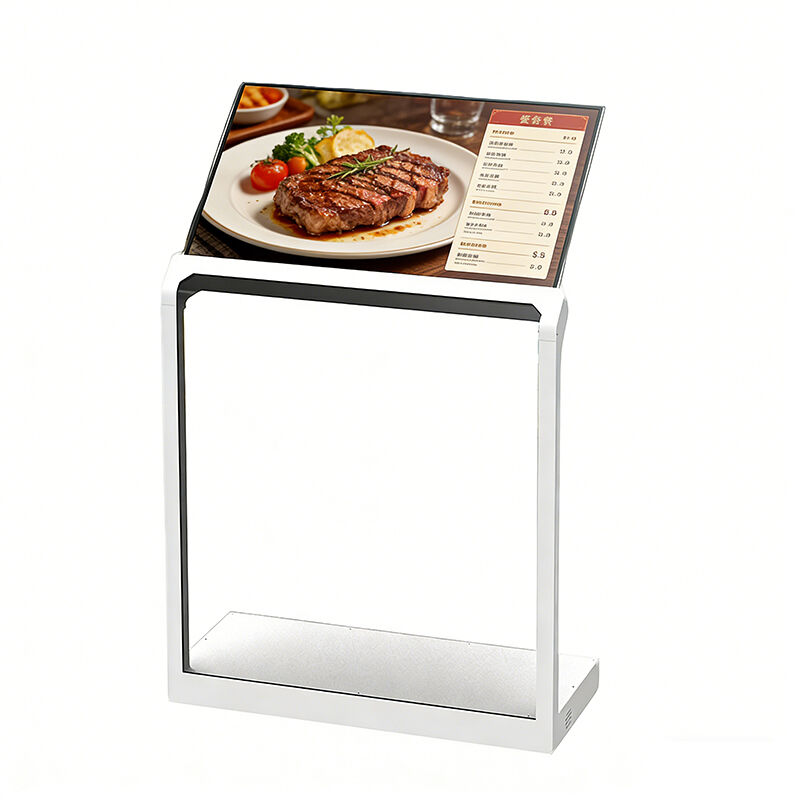

The 30-inch horizontal transparent OLED display integrates "transparency, intelligent display, and interactive inquiry" capabilities; it preserves spatial permeability, delivers high-definition imagery, and ensures seamless human-machine interaction, while simultaneously—in a technology-driven manner—reshaping the paradigms of information inquiry and commercial display.transparency, intelligent display, and interactive inquiry
| 30 inch Transparent Horizontal OLED Display | |
| LCD Panel Parameters | |
| Screen Size | 30 inch |
| Panel type | OLED |
| transmittance | 43%(Typ.) |
| Max Resolution | 1366×768 |
| Aspect Ratio | 16:9 |
| Brightness | 600/200 cd/m2 |
| Contrast Ratio | 150000:1 |
| Viewing angle(up/down/left/right) | R/L 178°(Min.), U/D 178°(Min.) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 1.07B(10bit) |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 714mm×300mm×1067mm Refer to the structural dimension drawings. |
| Package size | 780mm×370mm×1170mm |
| Installation Method | Base Installation |
| Net weight | 30KG |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
