Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED055V006

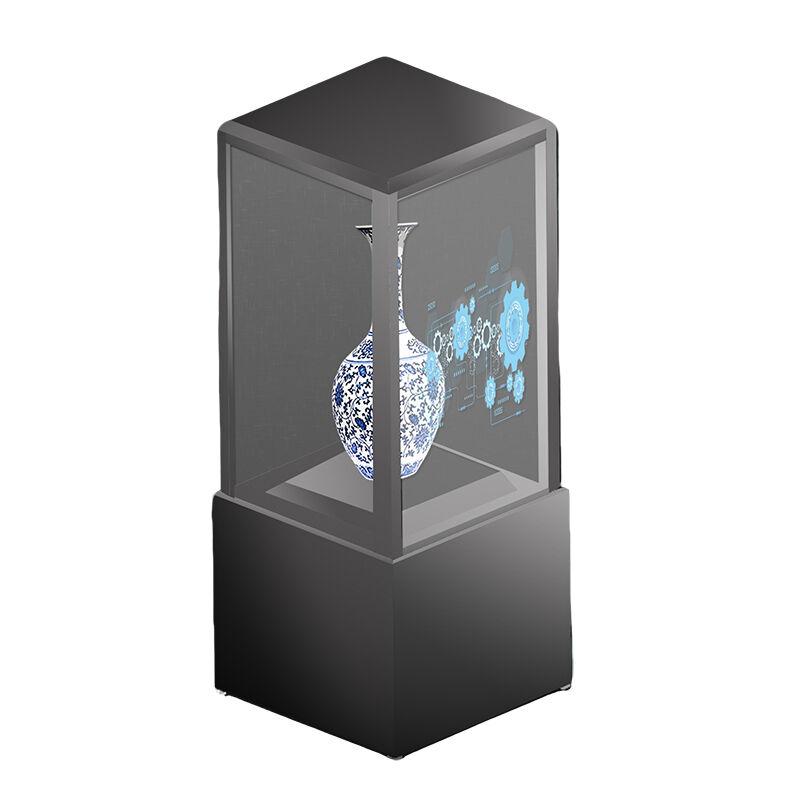

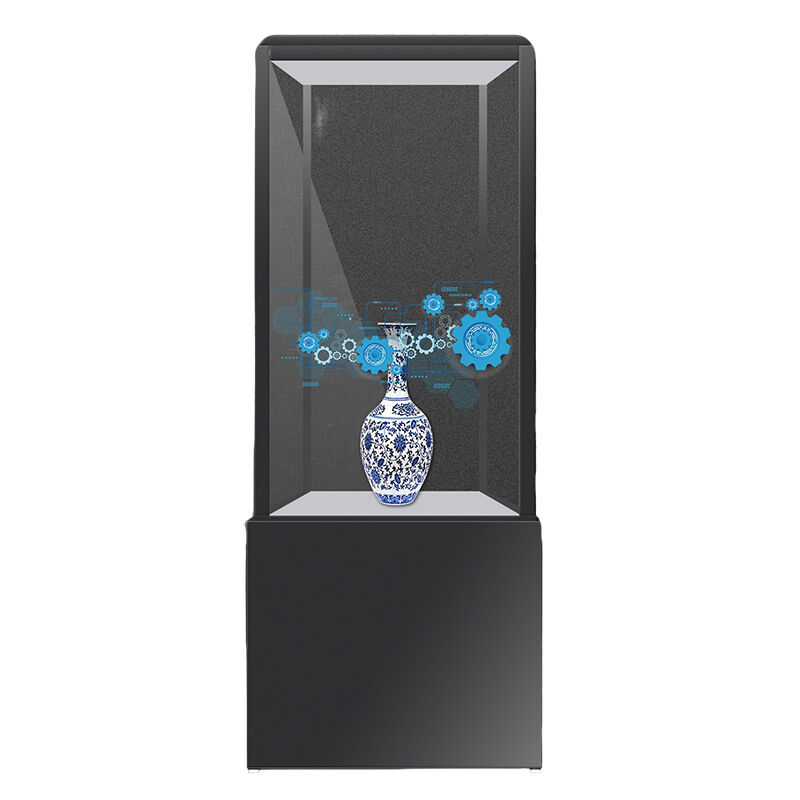

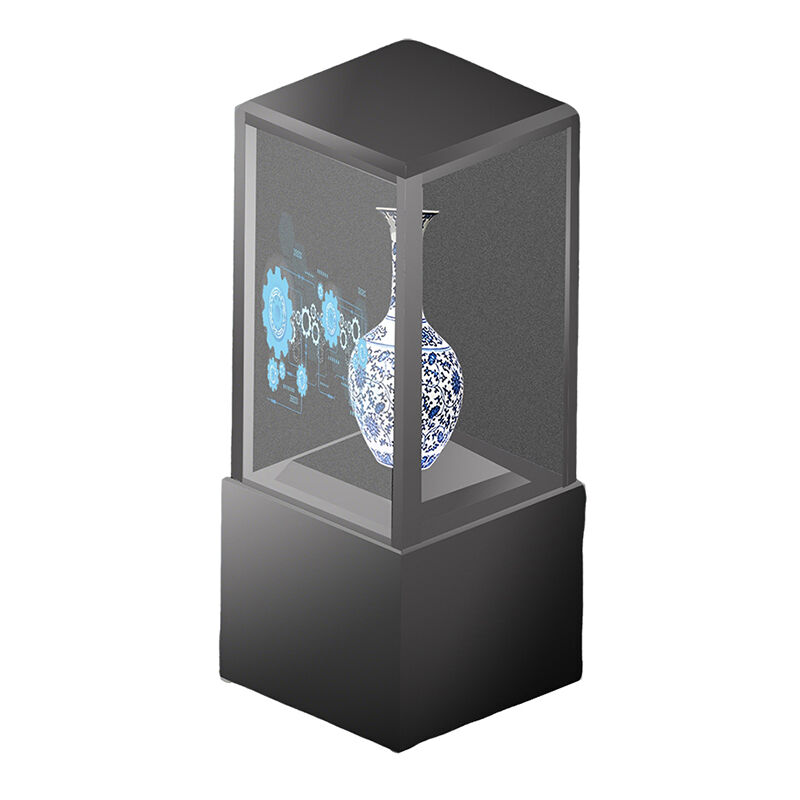

The 55-inch OLED Transparent Display Showcase is an innovative exhibition device designed specifically for the cultural heritage and museum sector. By leveraging transparent Organic Light-Emitting Diode (OLED) technology, it delivers an exceptional visual experience while simultaneously highlighting the artistic aesthetic of the display cabinet itself.
Featuring a simple yet elegant appearance, the showcase utilizes modern metal materials and a streamlined design. This aesthetic not only accentuates the exquisite nature and preciousness of the cultural artifacts on display but also underscores the artistic beauty of the cabinet itself. Furthermore, the integration of a transparent screen allows viewers to see the exhibits clearly, creating an immersive visual experience.
The 55-inch OLED Transparent Display Showcase boasts exceptional transparency, allowing it to blend seamlessly with its surrounding environment and ensure that the exhibits maintain their transparent visual effect under various lighting conditions. Additionally, the showcase is characterized by its robust durability and ease of maintenance, ensuring that its display performance remains stable and consistent over extended periods.
The 55-inch OLED Transparent Display Showcase is suitable for a wide range of indoor and outdoor settings, including museums, art galleries, and commercial exhibition spaces. Beyond static displays, it facilitates dynamic interactive experiences that forge a deeper connection between viewers and the exhibits, thereby significantly enhancing the visitor experience.
Compared to traditional display cabinets, the 55-inch OLED Transparent Display Showcase offers numerous advantages. Its innovative design and the application of high-tech materials create a display effect with greater visual impact. Secondly, the use of a transparent screen provides viewers with a crystal-clear viewing experience, making the exhibits even more captivating. Moreover, the cabinet's interactive capabilities introduce a novel dimension to the visitor experience, adding an element of engagement and fun to the exhibits.
|
55-inch OLED transparent Wenbo cabinet |
||||
|
Panel size |
55 inches. |
Panel type |
OLED |
|
|
display area |
1209.6 X 680.4mm |
external dimensions |
1221.5Mm × 699.35mm × 1.78mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1920*1080 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 190W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 2.4kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0, 1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 85 * 85 * 210CM |
Air box:/ |
||
|
Weight information |
Bare metal weight: 300KG |
Packing weight (OC + honeycomb box): * 4:350KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
55 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
