Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED055V005

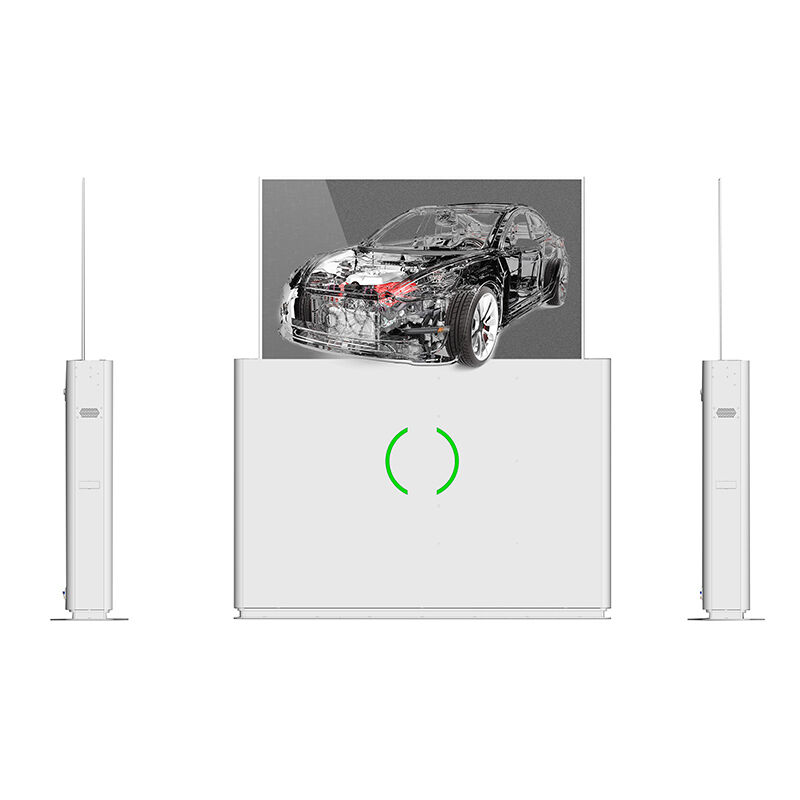

The 55-inch Liftable Transparent OLED Screen: More Than Just a Display—It’s a "Digital Window"
When OLED meets an exceptional 43% transparency, images and physical objects merge to create an unprecedented sense of immersion. With effortless lifting and seamless retraction—when not in use, the tabletop remains pristine; when needed, a single touch raises the screen to unlock a new dimension of interaction between the virtual and the real.
Why Choose the 55-inch Liftable Transparent OLED Screen?
Transparent, Yet Uncompromising on Image Quality
Featuring 43% transmittance, 1920×1080 resolution, and a 100,000:1 contrast ratio, text and visuals appear to float above the background, making information delivery more vivid and engaging.
Lifting Functionality: More Than Just a Gimmick
Powered by a miniature motor and a precision rack-and-pinion guide rail system, the mechanism operates smoothly and silently. It supports multiple control methods—including remote control, RS232, and physical buttons—allowing for seamless integration into centralized control systems.
Touch Interaction: Instant Response for Effortless Writing
Equipped with 10-point capacitive touch technology, the screen boasts a response time of ≤5ms and requires no driver installation for immediate use. Protected by 5–8mm tempered glass, it offers a smooth writing experience, making it perfectly suited for exhibitions, educational settings, and interactive guided tours.
Slim and Sleek: Sophistication in Simplicity
The display panel measures a mere 1.78mm in thickness and features a three-sided narrow-bezel design. With a brushed silver finish on the top and bottom edges, and a matte black finish on the sides, it blends harmoniously into any high-end interior space without looking out of place.
Built to Last: Reliability You Can Trust
Incorporating an intelligent anti-image retention engine, the screen is protected against ghosting and burn-in effects. Designed for continuous operation—running 18 hours a day, 7 days a week—it boasts a service life of over 30,000 hours.
|
screen parameters |
||||
|
Panel size |
55 inches. |
Panel type |
OLED |
|
|
display area |
1209.6 X 680.4mm |
external dimensions |
1221.5Mm × 699.35mm × 1.78mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1920*1080 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 190W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 2.4kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0,1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 148 * 22 * 170CM |
Air box:/ |
||
|
Weight information |
Bare metal weight: 80KG |
Packing weight (bare metal + honeycomb box): 145KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
55 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
