Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED055E001

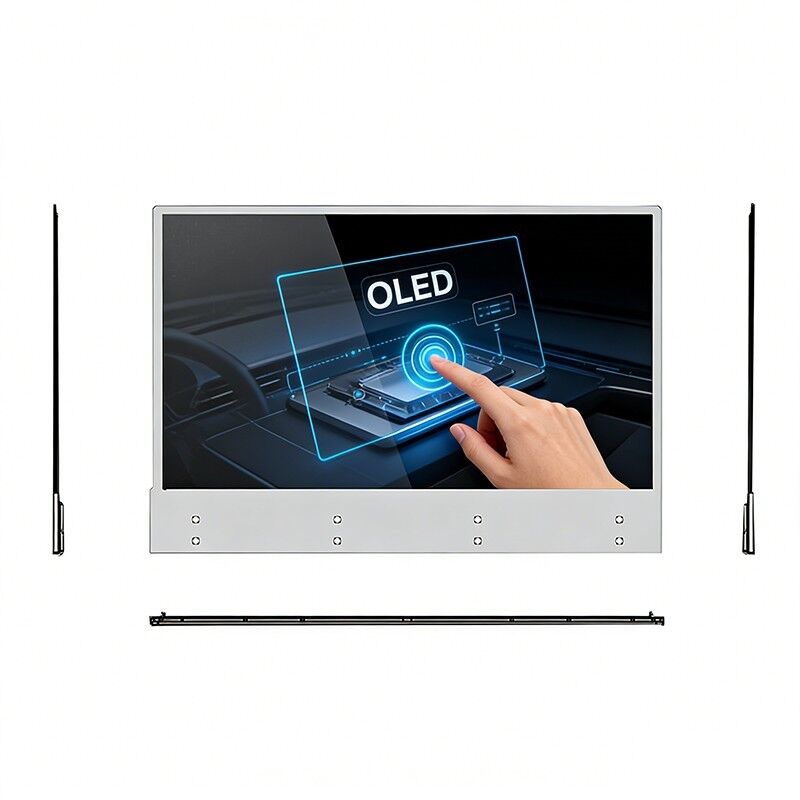

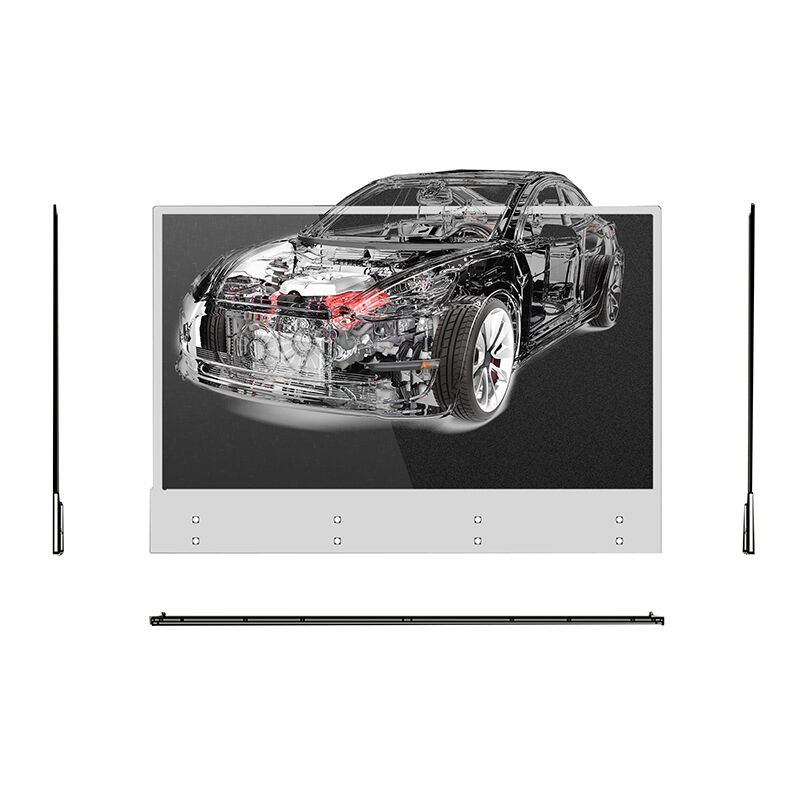

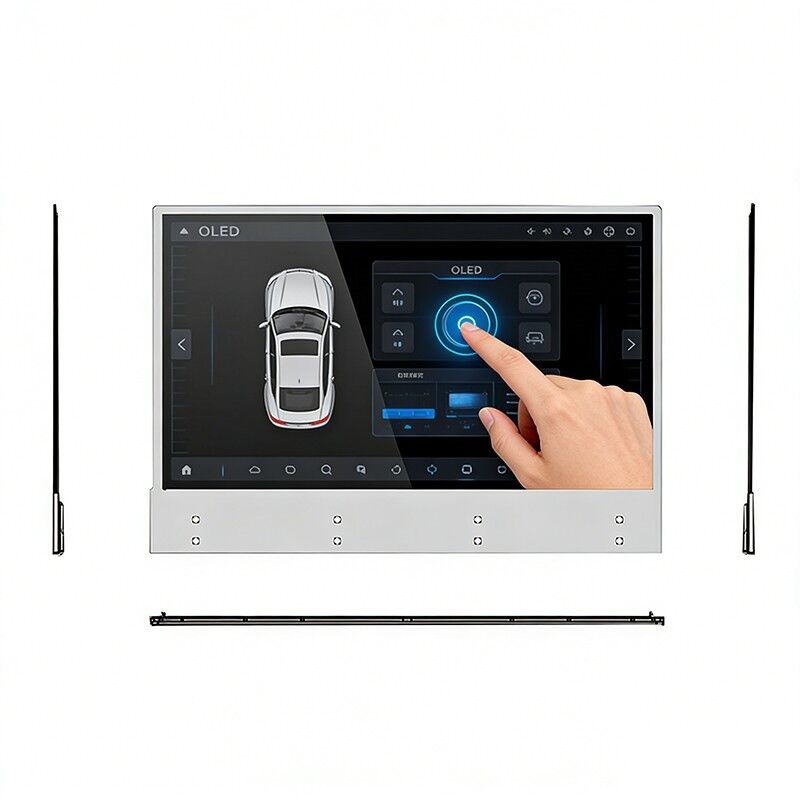

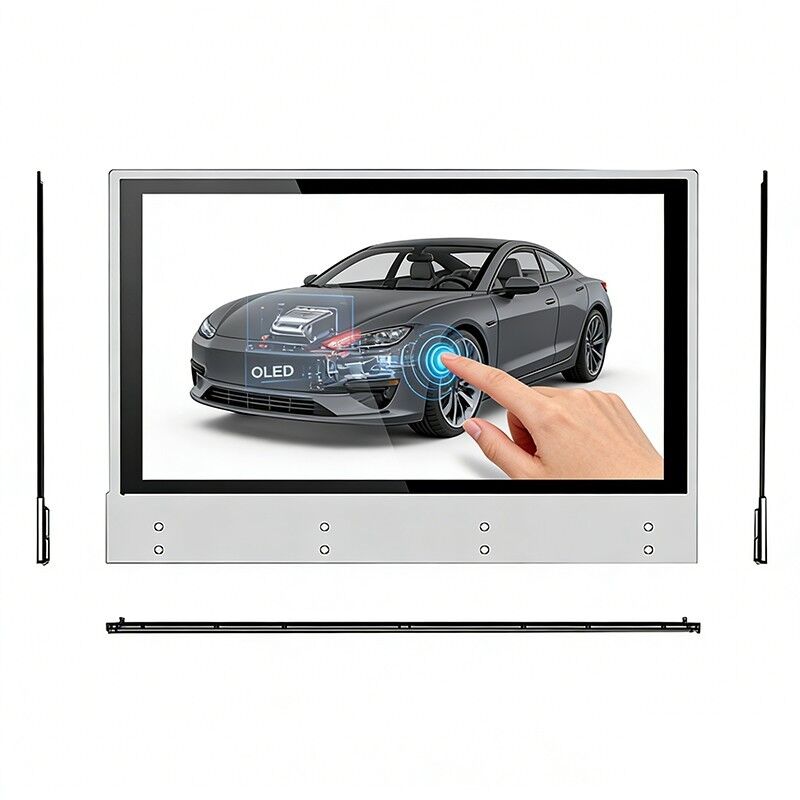

The 55-inch embedded transparent OLED touchscreen is designed for a wide range of industries, including museums, retail, transportation, and corporate environments. Featuring easy installation and customizable dimensions, this transparent OLED module is highly adaptable to diverse settings. It integrates effortlessly into various spaces while delivering an engaging, interactive experience.
Seamless Tiling
The 55-inch embedded transparent OLED touchscreen features an ultra-thin panel and a narrow-bezel design, ensuring minimal gaps when multiple units are combined. This design makes it the ideal choice for creating fluid, seamless video walls.
Rear Protection: Tempered Glass
OLED screens are inherently delicate. Adding a 55-inch tempered glass layer to the transparent OLED module offers numerous benefits. It provides enhanced impact resistance, shielding the screen from damage caused by drops or collisions. It also prevents scratches, cracks, and other forms of physical damage. This high-quality tempered glass is exceptionally clear and transparent; it does not alter the color fidelity or brightness of the OLED display.
Metal Bezel
This 55-inch transparent OLED display features a metal bezel design that enhances its aesthetic appeal, giving it a sleek and modern look. The metal bezel also serves a protective function, shielding the screen edges from daily wear and tear. Furthermore, it aids in heat dissipation, ensuring the display consistently operates at peak performance.
|
55-inch embedded OLED transparent screen |
||||
|
Panel size |
55 inches. |
Panel type |
OLED |
|
|
display area |
1209.6 X 680.4mm |
external dimensions |
1221.5Mm × 699.35mm × 1.78mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1920*1080 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 190W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 2.4kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0, 1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 140 * 37 * 93CM |
Air box:/ |
||
|
Weight information |
Bare metal weight: 40KG |
Packing weight (bare metal + honeycomb box): 53KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
55 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
