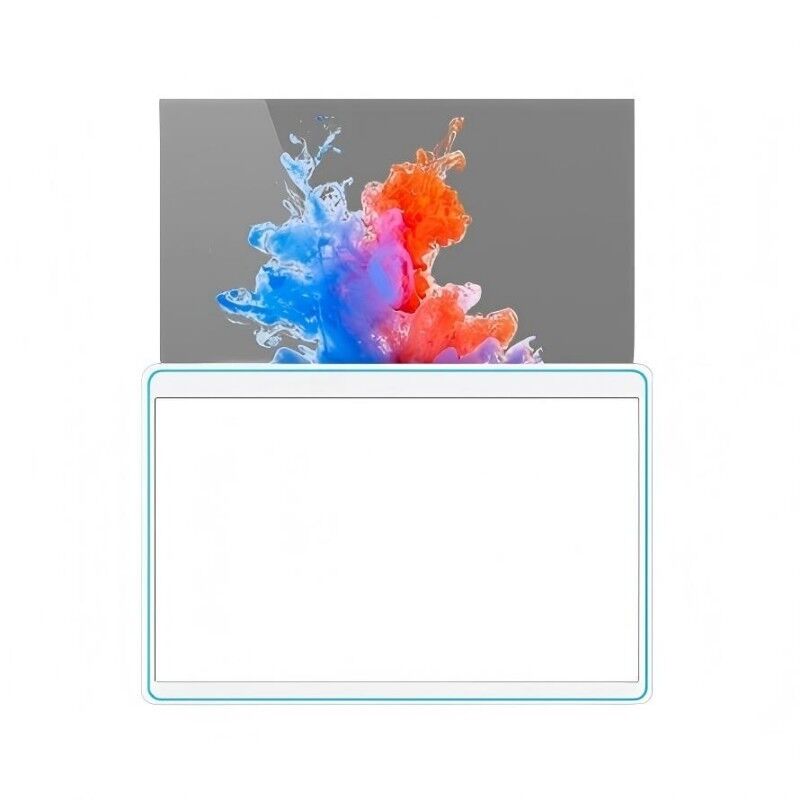

The 55-inch transparent display oled designed for commercial and industrial applications. With 43% transparency and 2K resolution, it delivers floating visuals while keeping background objects clearly visible — ideal for scenarios where both product presentation and digital content need to coexist seamlessly.
Advanced Features
Anti-image retention & anti-burn-in technology – automatically activates to protect OLED pixels during static images, extending service life.
Dynamic contrast enhancement – improves image layering via local intelligent adjustment.
RS232 daisy-chain control – 1 input, 2 outputs for multi-screen matrix control, status monitoring (temperature, brightness, contrast, etc.).
Built-in intelligent temperature control – supports 24/7 continuous operation; protection mode activated above 50°C.
Optional 10-point capacitive touch – ≤5 ms response, driver-free, ≥60 million touches lifespan.
Optional Android (RK3568/3288/3588) or PC (Intel Core i3/i5/i7) – flexible system integration.
Slim bezel design – brushed silver top/bottom, matte black left/right, modern aesthetics.
Why Choose the 55 inch transparent display oled?
True see-through experience – 43% transparency preserves visual connection with the background
Wide landscape orientation – ideal for panoramic content and long display counters
Commercial-grade durability – 30,000h lifespan, anti-burn protection, 24/7-ready thermal management
Flexible interactivity – optional touch and onboard computing (Android/PC)
Global voltage support – 100V–240VAC, 50/60Hz
|

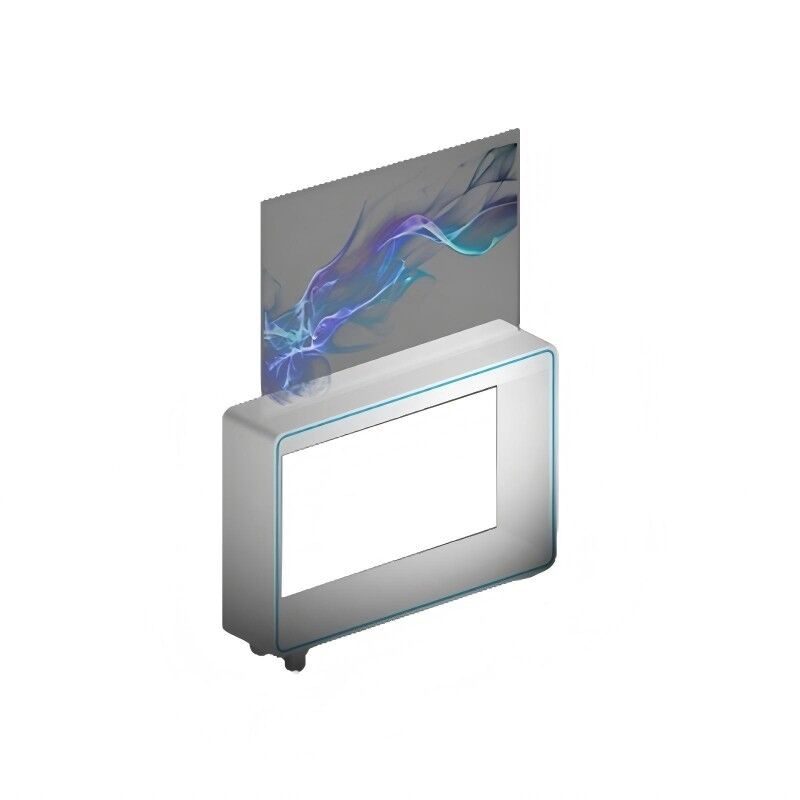

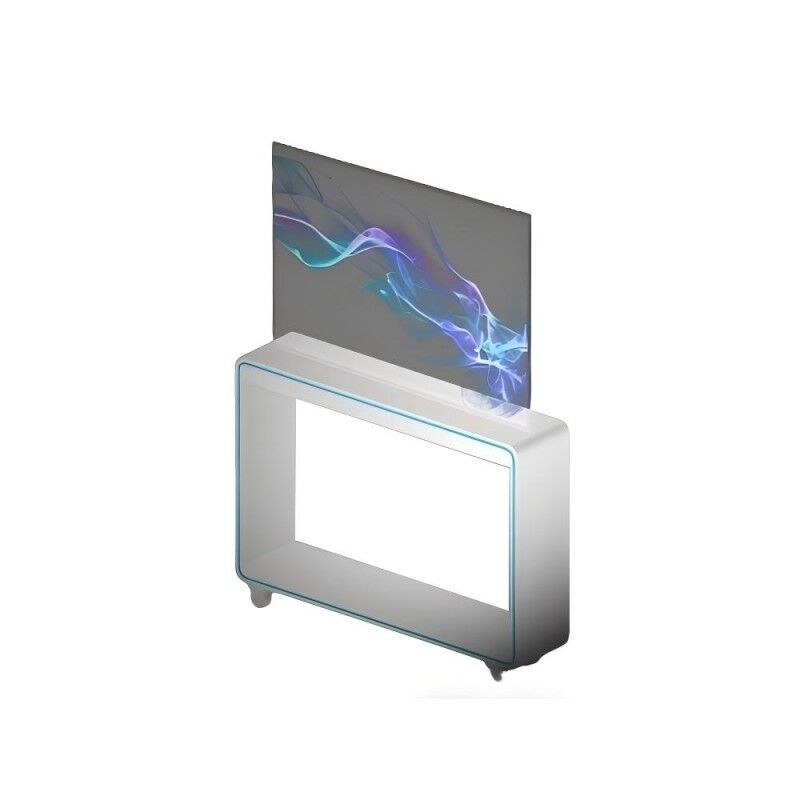

55-inch floor-to-ceiling horizontal OLED transparent screen |
||||
|
Panel size |
55 inches. |
Panel type |
OLED |
|
|
display area |
1209.6 X 680.4mm |
external dimensions |
1221.5Mm × 699.35mm × 1.78mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1920*1080 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 190W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 2.4kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0,1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 138 * 304 * 166CM |
Air box:/ |
||
|
Weight information |
Bare metal weight: 81KG |
Packing weight (bare metal + honeycomb box): 143KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
55 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
