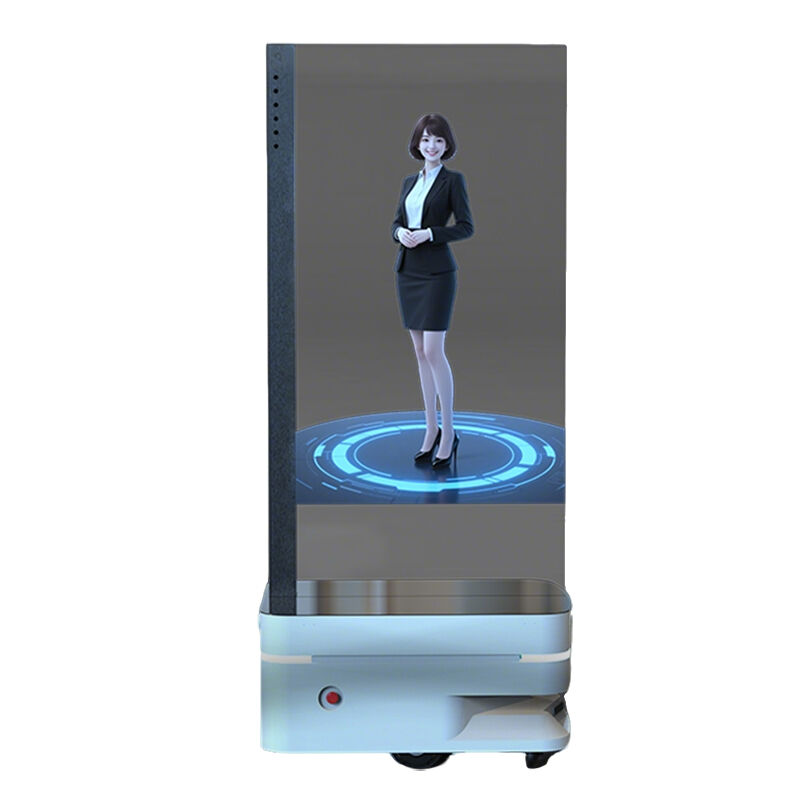

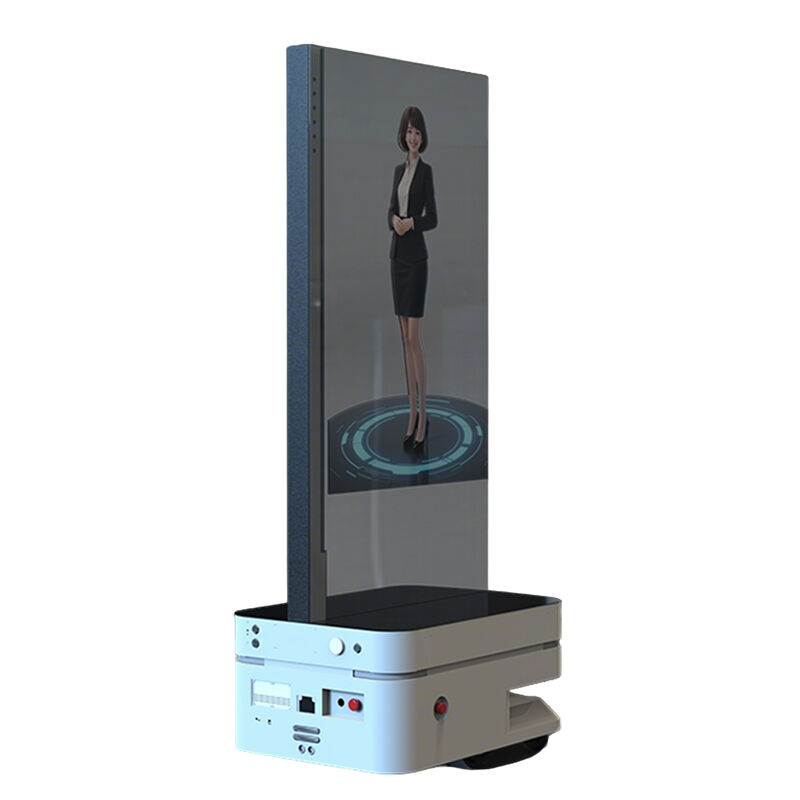

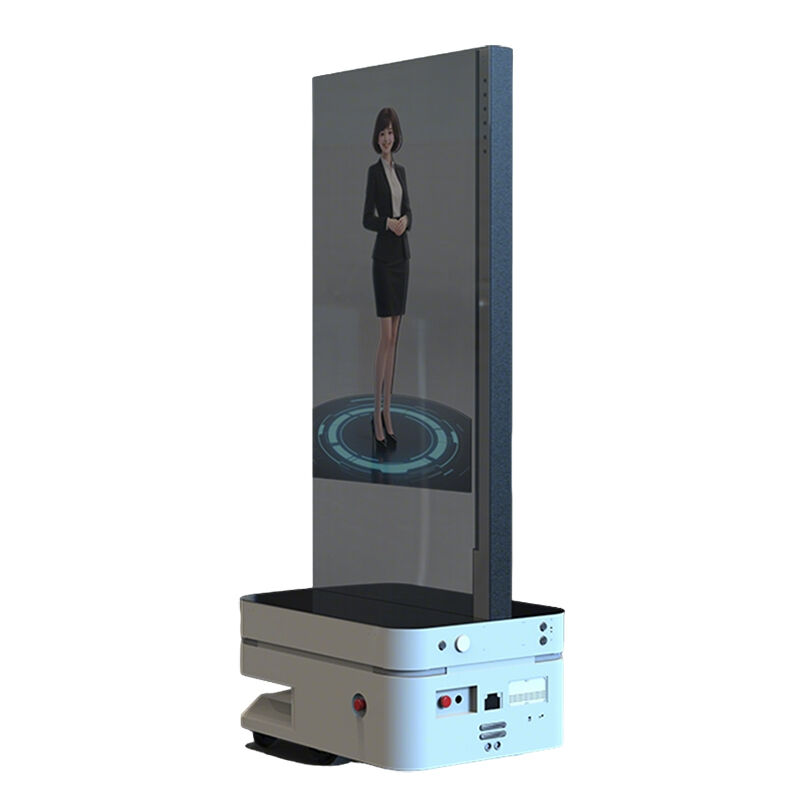

Unlike conventional digital signage, this AI advertising robot features a 55-inch transparent OLED screen that allows customers to view both dynamic digital content and the physical products behind the display simultaneously. The transparent design creates an impressive floating visual effect, enhancing brand presentation and customer engagement.
The robot is equipped with intelligent autonomous navigation, obstacle avoidance, automatic route planning, and self-charging capabilities. It can patrol designated areas, greet visitors, play promotional videos, and automatically return to its charging station when battery power is low, ensuring continuous operation throughout the day.
|
screen parameters
|
|
Panel size
|
55 inches.
|
Panel type
|
OLED
|
|
display area
|
1209.6 X 680.4mm
|
external dimensions
|
1221.5Mm × 699.35mm × 1.78mm (width × height × thickness)
|
|
transmittance
|
43%
|
viewing angle
|
178 °, 178 °
|
|
static contrast
|
100000:1 (Typ.) Transmission
|
Dynamic Contrast
|
200000:1 (Typ.) Transmission
|
|
patchwork
|
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom)
|
screen scale
|
16:9
|
|
brightness
|
200-600 (nits)
|
Best resolution
|
1920*1080
|
|
Screen life
|
≥ 30000 hours
|
power
|
≤ 190W
|
|
Display color
|
10-Bit, 1.07B (1B = 1 billion)
|
Speaker
|
8Ω/5W * 2
|
|
screen gross weight
|
Screen weight 2.4kg
|
Gross weight of the whole machine
|
to be determined
|
|
environment
|
Working temperature 1 ℃~ 45 ℃
|
working humidity
|
30%~80%
|
|
running time
|
18 hours x 7 days
|
Ambient height
|
(Altitude) 0~ 5000m
|
|
response time
|
8ms
|
working voltage
|
100V-240VAC, 50/60Hz
|
|
Fitting method
|
frame sticker
|
Fitting method (optional)
|
Full fit
|
|
Driver Board
|
|
input interface
|
HDMI IN
|
USB
|
USB 2.0
|
|
DP
|
DP IN
|
weight
|
0.4Kg
|
|
Control signal IN
|
RS232 serial port (RJ45)
|
Control signal OUT
|
RS232 serial port (RJ45)
|
|
function
|
With splicing function
|
protect
|
Anti-afterimage, anti-burn, repair function
|
|
Touch screen parameters: capacitance standard
|
|
touch technology
|
Capacitive touch technology
|
positioning accuracy
|
3Mm
|
|
Installation method
|
Built-in integrated
|
writing method
|
Finger ≥ 5mm
|
|
touch points
|
10 touch writing
|
Writing screen medium
|
5-8Mm tempered high transparency glass
|
|
response speed
|
≤ 5ms
|
computer driven
|
drive-free
|
|
mode of communication
|
USB
|
service life
|
≥ 60 million times
|
|
PC configuration (optional)
|
|
main board
|
Intel Core
|
|
CPU
|
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional)
|
|
Memory
|
4G/8G/16G-DDR3 (optional)
|
|
Hard disk
|
SSD120G/240G/480-HDD500G/1T/2T (optional)
|
|
nuclear display
|
Intel HD Graphics 4000
|
|
Backplane I/O
|
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output)
|
|
Operating System
|
Win 7/Win 10 operating system
|
|
Android configuration (standard)
|
|
master control
|
RK3588
|
|
CPU
|
Octa-core (quad-core Cortex-A76, quad-core Cortex-A55) 64-bit, clocked up to 2.4Ghz
|
|
Memory
|
4G
|
|
storage
|
64G
|
|
Operating System
|
Android 11/Android 12.0 system
|
|
Power supply battery parameters
|
|
Power input (charger)
|
AC 220V
|
|
battery life voltage
|
43.2V
|
|
battery life capacity
|
38.4V 25Ah
|
|
Charging method
|
Low battery automatic recharge. You can also manually send back the pile command.
|
|
Time required to fully charge
|
5.5 hours
|
|
Battery life
|
More than 2000 full charge and discharge cycles
|
|
Power consumption of the whole machine
|
< 250W
|
|
Packing and packing list
|
|
Package size
|
Honeycomb box:/
|
Air box (default): 94 * 64 * 203cm
|
|
Weight information
|
Bare metal weight: 100KG
|
Packing weight (bare metal + air box): 188KG
|
|
name
|
With PC/Android
|
|
|
Specifications
|
quantity
|
Remarks
|
|
transparent display
|
55 inch OLED transparent screen
|
1 piece
|
|
|
system
|
Customized according to actual needs (built-in)
|
1 set
|
|
|
remote control
|
Universal version (without battery)
|
1
|
|
|
Power cord
|
National standard 1.5 meters
|
Article 1
|
|
|
Charging pile
|
Wireless charging pile
|
1 set
|
|
|
Warranty card certificate
|
Chinese version
|
1 sheet
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment.
|
Designed for Commercial Applications
The mobile transparent OLED robot is widely used across various industries, including:
- Retail stores and shopping malls
- Luxury brand showrooms
- Museums and science centers
- Hotels and corporate lobbies
- Airports and transportation hubs
- Hospitals and healthcare facilities
- Exhibition halls and trade shows
- Smart city information centers
Its mobility and interactive features significantly increase customer engagement compared to traditional fixed advertising displays.
OEM & ODM Services from an Experienced OLED Display Manufacturer
As an experienced OLED display manufacturer, we offer complete OEM and ODM customization services to meet different project requirements. Customers can customize the robot's appearance, branding, operating system, AI interaction functions, navigation software, touch screen integration, and cloud content management system.
Whether you are a distributor, system integrator, or commercial solution provider, our engineering team can deliver tailored transparent digital signage solutions for global markets.
FAQ
What are the advantages of a transparent OLED display?
A transparent OLED display provides vivid colors, high contrast, and excellent transparency, allowing digital content to appear while maintaining visibility of real objects behind the screen. This creates an engaging and futuristic viewing experience.
Can the AI robot navigate automatically?
Yes. The robot supports autonomous indoor navigation, intelligent obstacle avoidance, route planning, and automatic charging without requiring floor tracks or manual guidance.
Is the transparent OLED screen suitable for commercial use?
Absolutely. The display is designed for long-term commercial operation and is widely used in retail, exhibitions, hospitality, museums, and public information systems.
Do you provide OEM and ODM services?
Yes. We support customized hardware, software, branding, AI functions, operating systems, and complete project integration for international B2B customers.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
