Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED055D002

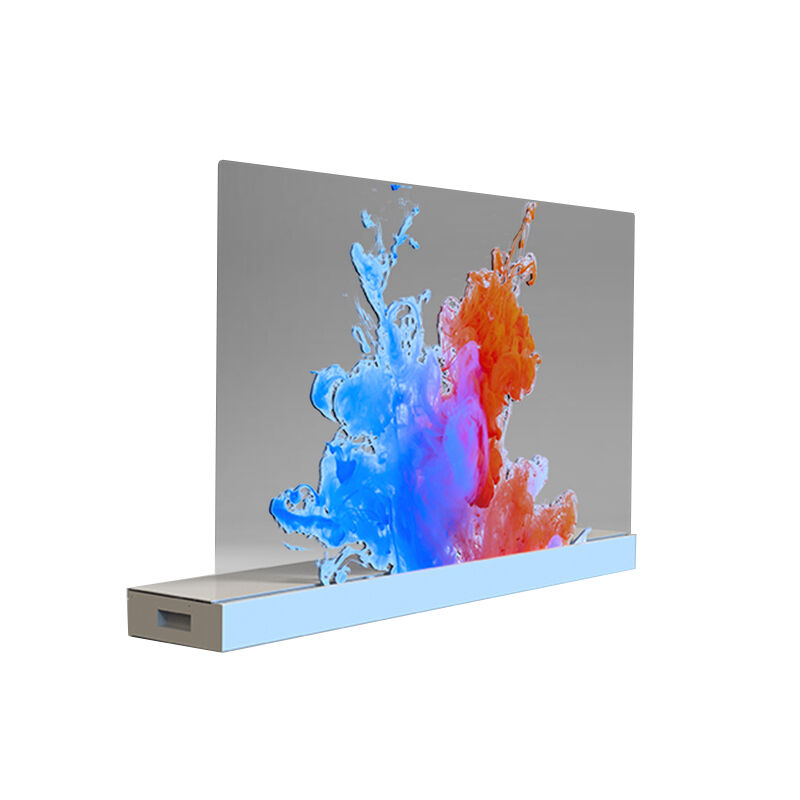

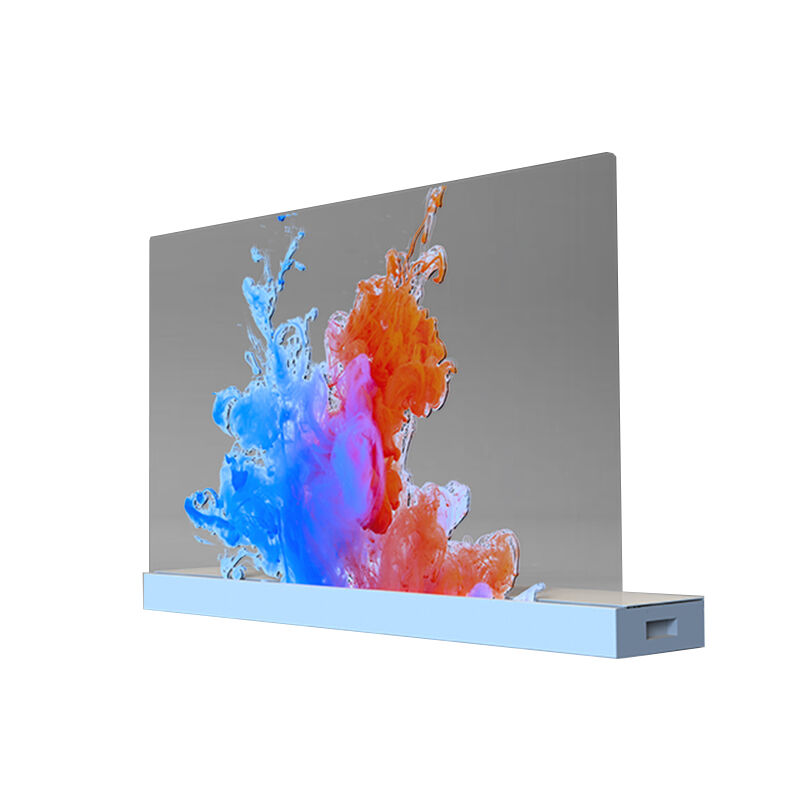

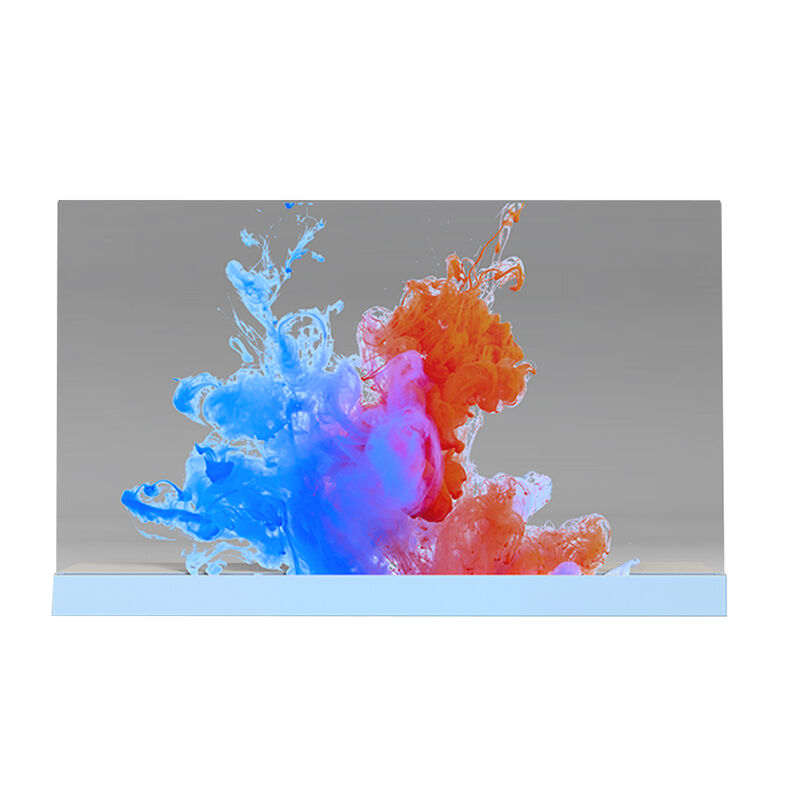

The 55-inch Desktop Transparent OLED Display is a transparent OLED display terminal specifically designed for use in counter, exhibition booth, and desktop environments. Featuring a 55-inch self-emissive OLED panel with a transparency rate of 43%, and paired with an integrated L-shaped metal base, the unit can be placed directly onto any flat surface. When powered off, the device remains highly transparent, allowing the physical objects positioned behind it to remain fully visible; when powered on, it delivers high-quality imagery with 2K resolution and 1.07 billion colors, making it ideally suited for close-range, highly interactive commercial display applications.
|
screen parameters |
||||
|
Panel size |
55 inches. |
Panel type |
OLED |
|
|
display area |
1209.6 X 680.4mm |
external dimensions |
1221.5Mm × 699.35mm × 1.78mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1920*1080 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 190W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 2.4kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0, 1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 140 * 37 * 93CM |
Air box:/ |
||
|
Weight information |
Bare metal weight: 35KG |
Packing weight (bare metal + honeycomb box): 48KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
55 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
