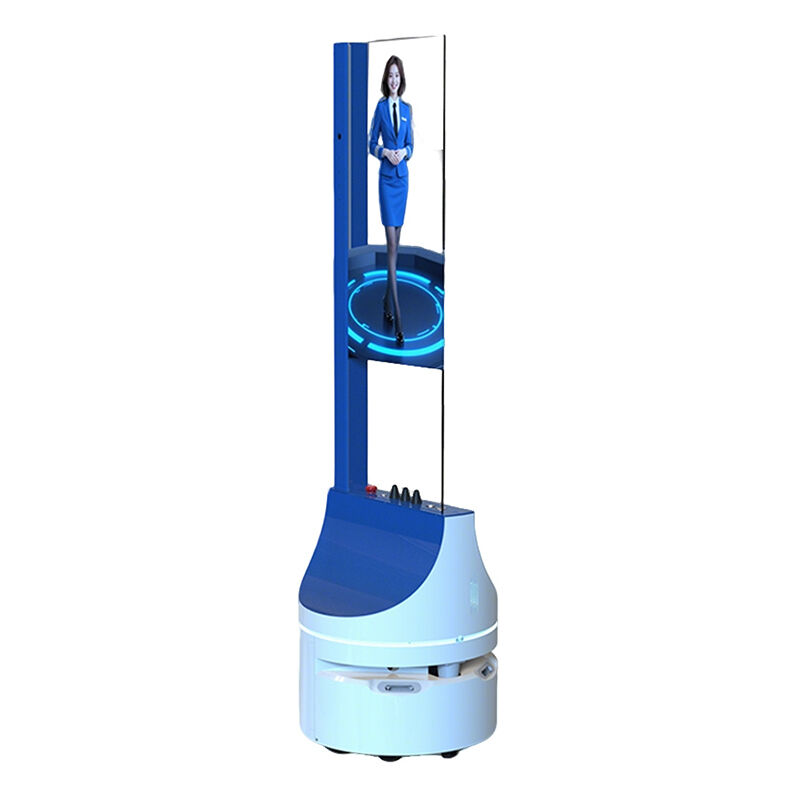

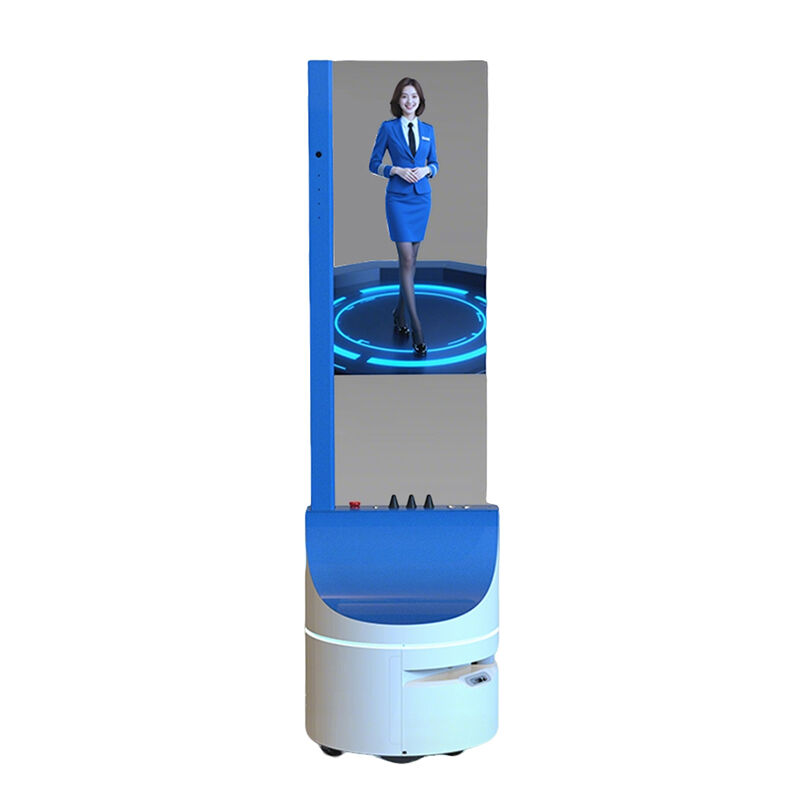

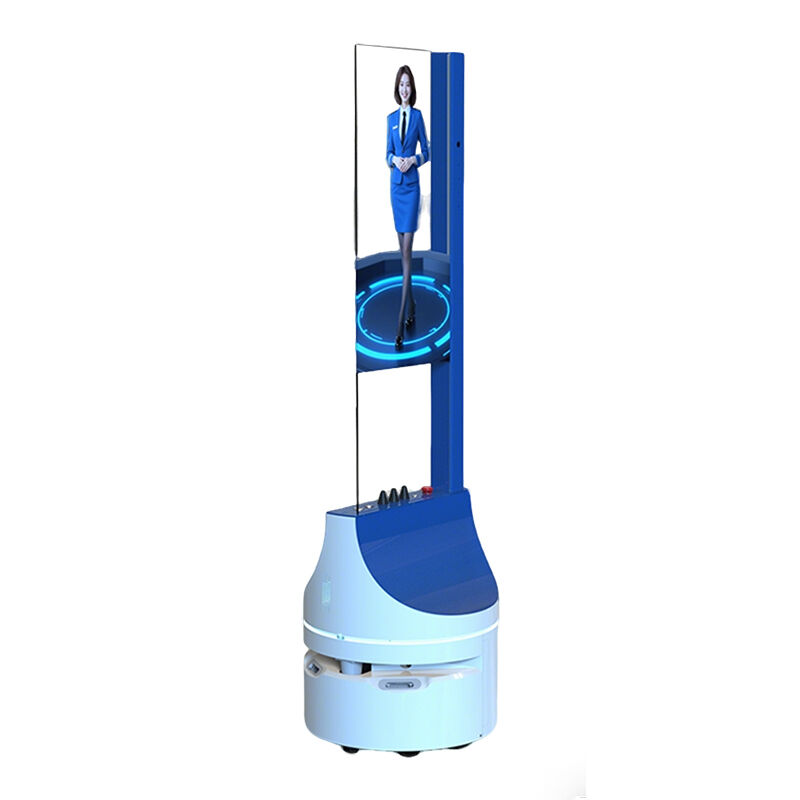

At the intersection of technology and creativity, the 30-inch Transparent OLED Interactive Advertising Robot has emerged—not merely as a display device, but as a pioneer of future intelligent interaction.
Centered around its unique transparent display technology, this device integrates advanced AI algorithms to deliver an unprecedented visual feast and intelligent experience for users.
**Transparent Brilliance, A Vision of the Future:** Utilizing next-generation transparent display technology, the expansive 30-inch screen delivers high-definition image quality while achieving a seamless fusion between the display and its surrounding environment.
Whether for interior décor or exhibition displays, it presents information in a natural and unobtrusive manner, offering audiences a truly immersive visual experience.
**Intelligent Interaction, Effortless Control:** Equipped with a high-performance built-in AI processor, the device supports a variety of interaction methods, including voice recognition and gesture control. Users can effortlessly perform tasks—such as information retrieval and content switching—using simple voice commands or gestures, making interaction more intuitive and convenient than ever before.
**Flexible Mobility, Deploy Anywhere:** Featuring a lightweight design, a detachable battery, and a portable stand, the device can be easily moved and rapidly deployed across a wide range of settings—from commercial exhibitions and retail stores to conference venues—meeting the diverse needs of various application scenarios.
|
screen parameters |
||||
|
Panel size |
30 inches. |
Panel type |
OLED |
|
|
display area |
664.29Mm * 373.48mm |
external dimensions |
676.09Mm × 387.48mm × 1.6mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/8.1 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1366*768 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 130W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 1.04kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance standard |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (standard) |
||||
|
master control |
RK3588 |
|||
|
CPU |
Quad-core Cortex-A55 clocked at up to 1.92 GHz |
|||
|
Memory |
4G |
|||
|
storage |
64G |
|||
|
Operating System |
Android 11 |
|||
|
Power supply battery parameters |
||||
|
Power input (charger) |
AC 220V |
|||
|
battery life voltage |
28.4V--7A |
|||
|
battery life capacity |
Lithium iron phosphate 25.6V/25Ah |
|||
|
Charging method |
Low battery automatic recharge. You can also manually send back the pile command. |
|||
|
Time required to fully charge |
7A (about 4 hours) (can be automatically recharged) |
|||
|
Battery life |
More than 2000 full charge and discharge cycles |
|||
|
Power consumption of the whole machine |
< 200W |
|||
|
packing list |
||||
|
Package size |
Honeycomb box:/ |
Air box (default): 65 * 57 * 198CM |
||
|
Weight information |
Bare metal weight: 75KG |
Packing weight (bare metal + air box): 135KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
30 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
Charging pile |
Wireless charging pile |
1 set |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
