Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED030V005

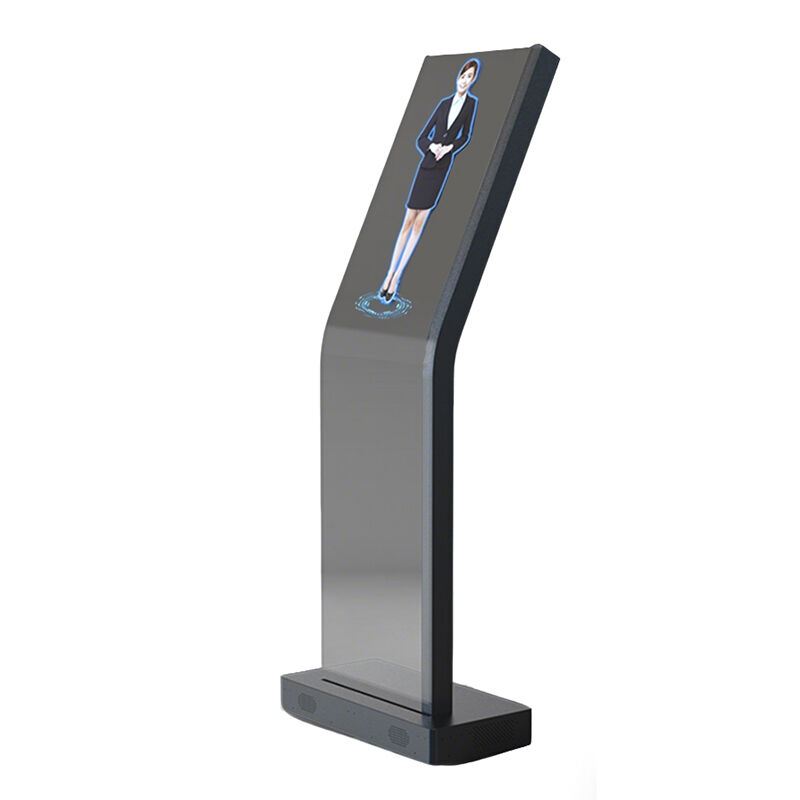

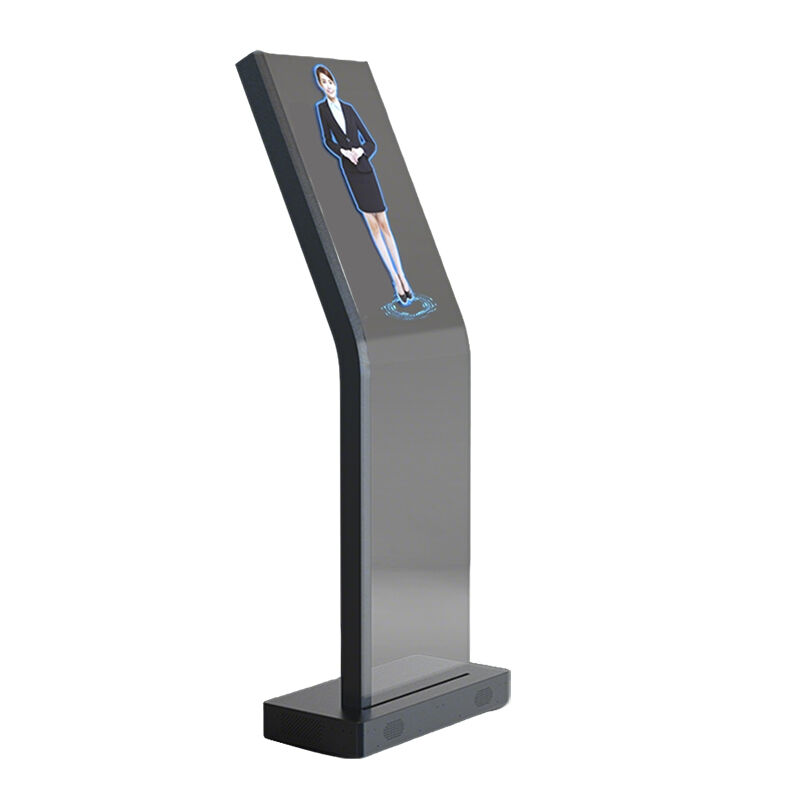

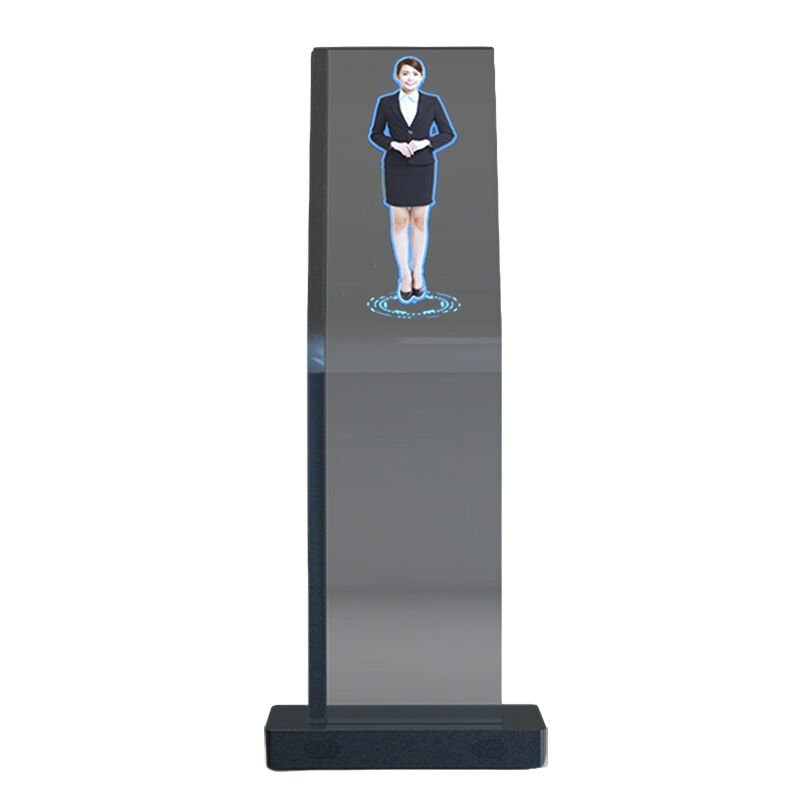

The 30-inch upright transparent interactive kiosk is a common type of touchscreen self-service device, typically deployed in public spaces or automotive dealerships (4S stores) to facilitate information access, data retrieval, and various transactional operations.
Key features of the upright transparent interactive kiosk include:
**Transparent Design:** The display screen utilizes a transparent OLED panel with a light transmittance of 43%, creating a distinct, futuristic aesthetic.
**Upright Configuration:** To accommodate users of varying heights and body types, the kiosk features an upright, freestanding design; this allows users to interact with the device comfortably while standing, offering greater flexibility and convenience.
**User-Friendly Interface:** Featuring a large-format touchscreen interface, the device boasts an intuitive and easy-to-understand design that simplifies navigation and facilitates a wide range of user interactions.
**High Stability:** Equipped with industrial-grade hardware components and software systems, the kiosk offers exceptional stability and is capable of continuous, uninterrupted operation over extended periods.
**Customizability:** The device can be tailored to meet the specific requirements of different industries and environments, allowing for the customization of inquiry content, operational workflows, and other parameters to satisfy unique and personalized needs.
|
display parameters |
||||
|
Panel size |
30 inches. |
Panel type |
OLED |
|
|
display area |
664.29Mm * 373.48mm |
external dimensions |
676.09Mm × 387.48mm × 1.6mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/8.1 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1366*768 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 150W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 1.04kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 93 * 71 * 179CM |
Air box: 65 * 66 * 168CM |
||
|
Weight information |
Bare metal weight: 41KG |
Packaging weight: Bare metal + air box: 84KG Bare metal + honeycomb box: 60KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
30 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
