Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED030D002

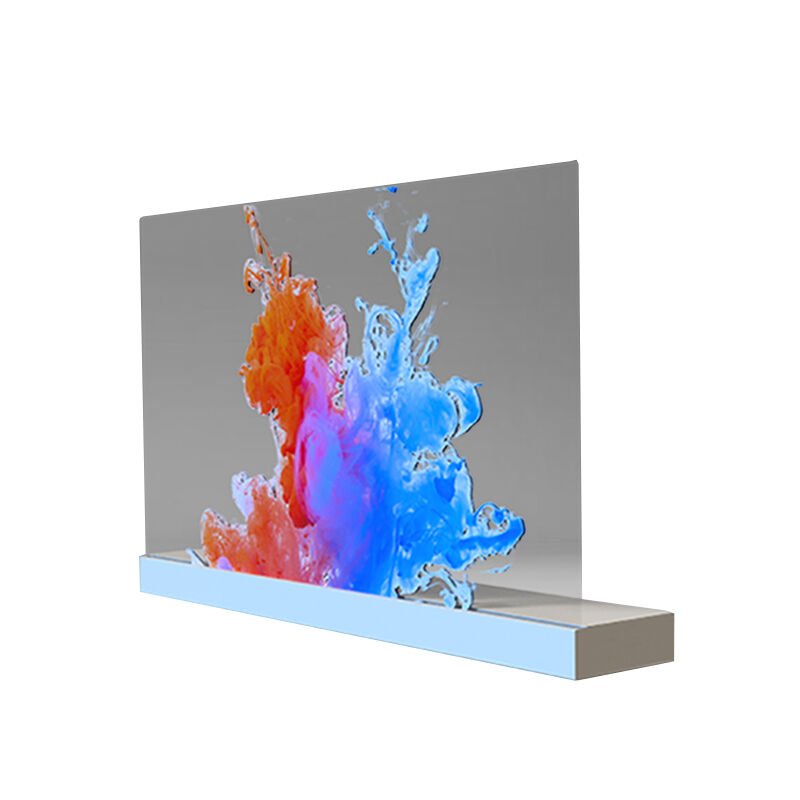

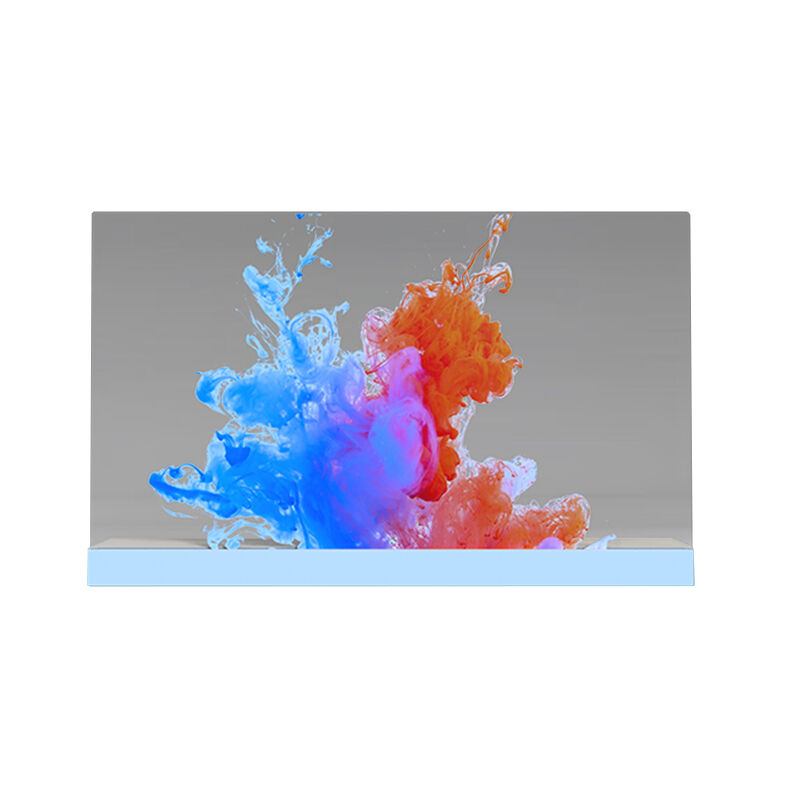

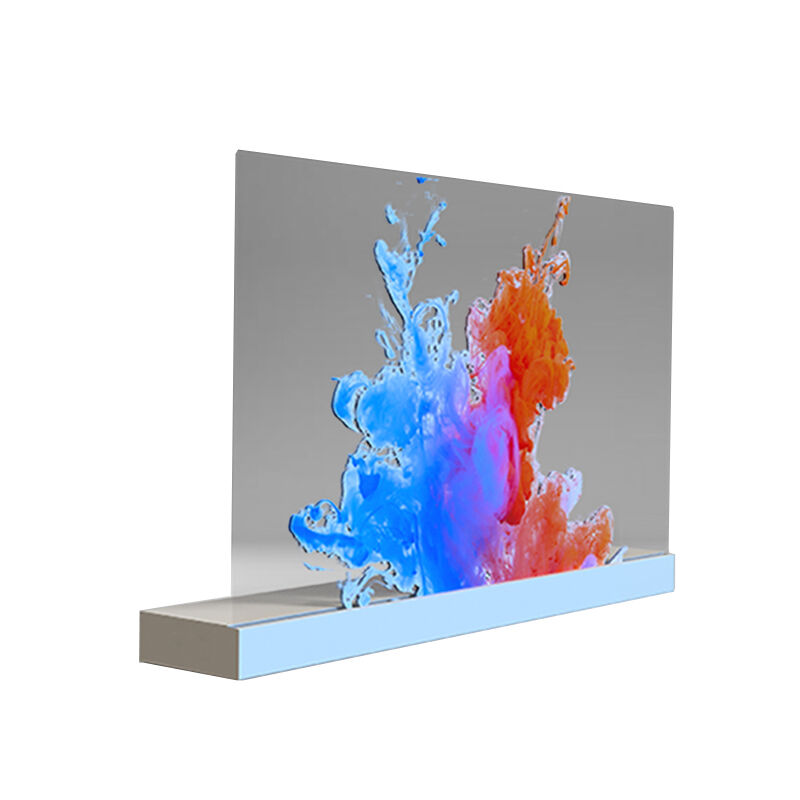

This new 30-inch HD Transparent OLED display (TV-OLED) redefines the boundaries of visual interaction through its groundbreaking desktop design. Seamlessly blending high transparency with Ultra HD resolution, it demonstrates exceptional value across a diverse range of settings—whether facilitating efficient information display on an office desk, serving as a creative showcase in a commercial space, or adding a touch of technological elegance to a home environment, it delivers a truly refreshing user experience.
Its revolutionary transparent design is nothing short of visual magic: the screen achieves a near-total level of transparency, allowing users to clearly perceive the background scenery even while viewing on-screen content. This interplay between the virtual and the real creates a visually striking effect, making digital information appear to float effortlessly within physical space and infusing every interaction with a distinct sense of futurism.
As a pinnacle of OLED technology, its display performance is equally stunning. Ultra-high contrast endows images with deep, pure blacks and crystal-clear whites; combined with a wide color gamut, it not only accurately reproduces the myriad colors found in nature but also renders every minute detail with exquisite precision—from the textural nuances of high-definition images to the fluid transitions of dynamic video, delivering a truly immersive and lifelike visual experience. Furthermore, its lightning-fast response speed completely eliminates motion blur, ensuring sharp, crisp visual clarity during both high-speed dynamic scenes and rapid user interactions, thereby crafting a seamless and fluid experience for the user.
|
display parameters |
||||
|
Panel size |
30 inches. |
Panel type |
OLED |
|
|
display area |
664.29Mm * 373.48mm |
external dimensions |
676.09Mm × 387.48mm × 1.6mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/8.1 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1366*768 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 150W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 1.04kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Windows 7/Windows 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 71 * 44 * 145CM |
Air box:/ |
||
|
Weight information |
Bare metal weight: 45KG |
Packing weight (bare metal + honeycomb box): 95KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
30 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
