Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED030V001

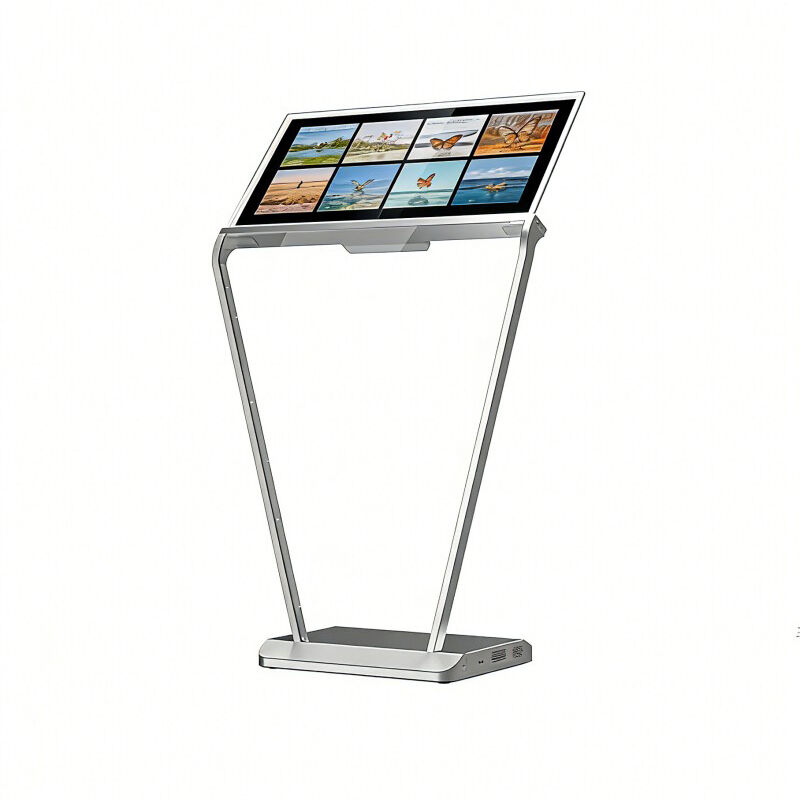

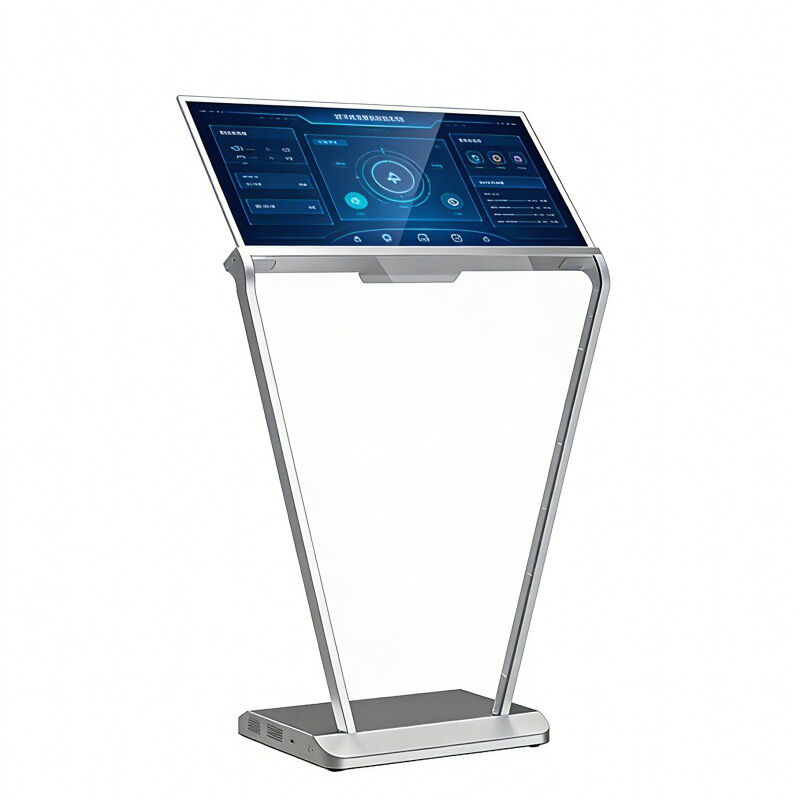

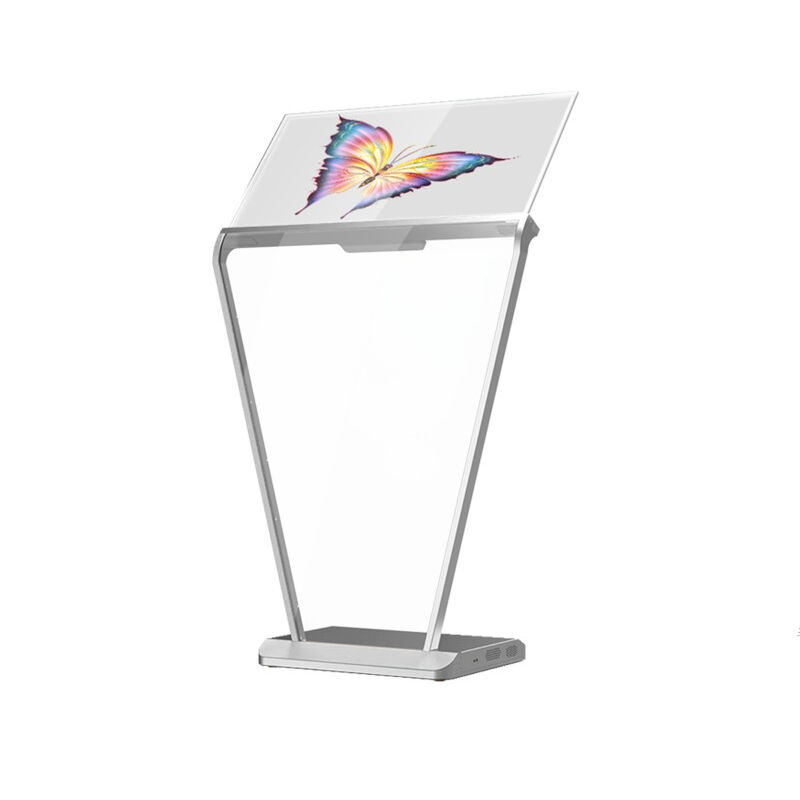

| 30-Inch Transparent OLED Display — Vertical Landscape Orientation | |
| LCD Panel Parameters | |
| Screen Size | 30 inch |
| Panel type | OLED |
| transmittance | 43% |
| Max Resolution | 1366*768 |
| Aspect Ratio | 16:09 |
| Brightness | 200-600cd/㎡ |
| Contrast Ratio | 135000:1 |
| Viewing angle(up/down/left/right) | R/L 120(min) U/D 120(min) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 10bit(R),1.07 billon colors |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1223.1*689*450(mm)Refer to the structural dimension drawings. |
| Package size | Air box 1514*739*610MM |
| Installation Method | Base Installation |
| Net weight | 32KG/79KG |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
