77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display

77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display

77 inch transparent OLED kiosk display

4K self-luminous touchscreen display

vertical commercial intelligent kiosk

Place of Origin:

Guangdong, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-OLED770FS

Contact Us
Request A Quote
Product Details
Screen Size:
77 Inch
Resolution:
2160×3840
Panel Transparency:
43%
Standard Colours:
1.07B 10Bit
Contrast Ratio:
8ms
Audio System:
Built-in 10 W X 2 Speakers
Onboard Interface:
1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype:
Floor Standing / Interactive(Optional)
Type Of Backlight:
OLED Self-luminous
Highlight:

77 inch transparent OLED kiosk display

,

4K self-luminous touchscreen display

,

vertical commercial intelligent kiosk

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
wooden case, carton, flight cases are optional
Delivery Time
15 working days
Payment Terms
T/T,MoneyGram,Western Union
Supply Ability
200 pcs per month
Product Description

77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display


77-Inch 4K Transparent OLED Intelligent Kiosk should be treated as a project tool, not as another screen on a specification list. For architect or project integrator, the useful question is where the transparent layer changes the decision experience. In this case, the answer is Flagship Atrium Installation. The product solves the problem of adding digital information without hiding the object, space, or background that gives the installation its value. That is why 77-Inch Transparent OLED Kiosk belongs in projects where visual depth is part of the buying conversation.


Application Scenarios

In practical use, 77-Inch 4K Transparent OLED Intelligent Kiosk is planned for self-service consultation, guided product discovery, lobby explanation, and visitor-facing information points. The 77-inch format changes the brief because the viewer compares the media layer with a real object, route, fixture, or interior.

Content and Background Planning

For Flagship Atrium Installation, the first mockup should show the background and the content together, not as separate approvals. That discipline helps the architect or project integrator avoid a common mistake: buying a transparent display before deciding what the transparency is meant to reveal.

OLED Display Technology

The technical reason to choose OLED is the way the image is created. Self-emissive pixels allow the display to show color and contrast without the visual weight of a conventional backlit panel. For a 77-inch transparent format, that matters because the panel is often placed close to a product, a visitor, or a designed interior.

Transparency and Visual Context

The screen should not erase the context around it. OLED gives the project team a cleaner way to layer content over real materials, provided the media is designed with transparency in mind. For 77-Inch 4K Transparent OLED Intelligent Kiosk, that technical value should be judged through flagship atrium installation, not as a generic transparent-screen effect.

Installation and Site Preparation

The mounting plan for 77-Inch 4K Transparent OLED Intelligent Kiosk needs to be settled early. The review should cover floor stability, lift or door movement, cable exit, controller location, and safe public placement.

Power, Signal and Ventilation

Although the front view of a 77-inch transparent OLED may look light, the build still needs a path for power, signal, ventilation, and service. For Flagship Atrium Installation, the mounting method should protect the panel, keep the visible area clean, and allow a technician to reach the system without disturbing the surrounding display environment.


77-inch vertical digital human device(ZXTLCD-T77-RPXA)
LCD Panel Parameters
Screen Size 77 inch
Panel type Transparent OLED
Resolution 3840*2160
Brightness 200-600cd/  Automatic adjustment
Contrast Ratio 200000:1
Viewing angle(up/down/left/right) 178°(H)/178°(V)
Response Time 0.1ms(Gray To Gray)
Display color 10bit(R),1.07 billon colors
Onboard interface
Input Interface Type-c*1 USB*2 HDMI*3 RJ45*1  TOUCH USB*1
Output interface RS232
Touch Method
Capacitive Touch screen Default 10 points Capacitive Touch
Power Specifications
Power supply AC 100-240V
Total System Power Consumption <280W
Machine Operating Parameters
running time 7*12h
Screen life 30000h
Operating temperature  0~40
Operating Humidity 20%~80%
structure
Material Aluminum+Tempered Glass+Metal
external dimensions 1045*602*2042(mm),The base is 307mm wide.
Overall dimensions 2098*524*1230mm
Installation Method Base installation
Net weight / Gross weight 150/200KG
Accessories
Power cord, remote control, certificate of conformity and warranty card
other
After-Sales Service 1-Year Warranty


Content Management

Content management for 77-Inch 4K Transparent OLED Intelligent Kiosk should be simple enough for the operating team. The playback method should support home screens, short decision trees, timed media loops, and remote updates for changing programs.

Content Design and Updates

Media should be written with short lines, clear hierarchy, and enough open area for the see-through effect to survive. For 77-Inch Transparent OLED Kiosk, procurement should include questions about update frequency, file formats, remote access, approval rights, and who owns the final content after the installation team leaves.

Brightness and Viewing Environment

For 77-Inch 4K Transparent OLED Intelligent Kiosk, contrast is created by content and environment together. The result depends on atrium light, lobby reflections, viewing angle, and the distance between the visitor and the interface. Transparent OLED is usually most convincing indoors, yet every site has its own reflection pattern and background density.

On-Site Testing

A useful test for Flagship Atrium Installation should include the intended content, the real approach distance, and the surrounding materials. If readability drops, the fix may be content contrast, lighting adjustment, or a better position rather than a different product.

Touch Integration

Touch integration should be planned as a user path, not as an added feature. The interface for 77-Inch 4K Transparent OLED Intelligent Kiosk should match the visitor's expected interaction time: quick selection for public traffic, deeper menus for consultants, and simplified controls for exhibition use.

Touch Performance Checks

The team should check touch accuracy, response time, button size, language switching, cleaning routines, and public-use behavior before the final UI is approved.

Maintenance Plan

The maintenance plan for 77-Inch 4K Transparent OLED Intelligent Kiosk should be written before handover. The recurring work includes surface cleaning, moving-part inspection, system restart access, and service clearance around the unit. The project file should state how the surface is cleaned, where the controller sits, who can restart or update the software, and what access remains if the display is built into a wall, counter, cabinet, or moving structure.

Maintaining the Transparent Effect

For Flagship Atrium Installation, this matters because the transparent effect loses value quickly when fingerprints, inaccessible controls, or unplanned heat become daily problems.

Procurement

Procurement for 77-Inch 4K Transparent OLED Intelligent Kiosk should connect hardware, content, and site responsibility. It is a stronger choice when transparency supports the project story, the site can control the viewing environment, and the team has a clear content owner.

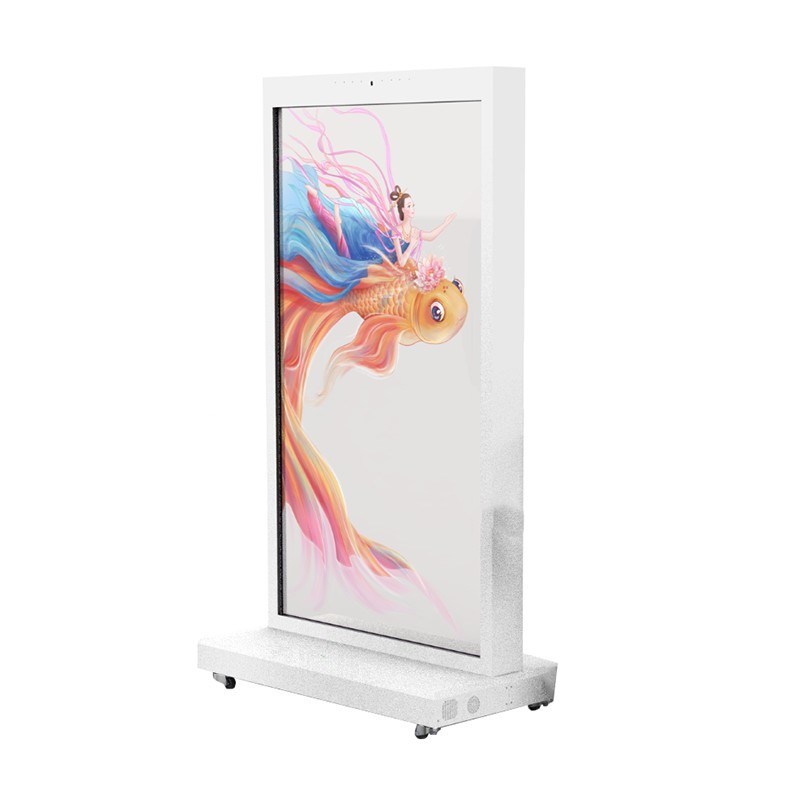

77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display 0

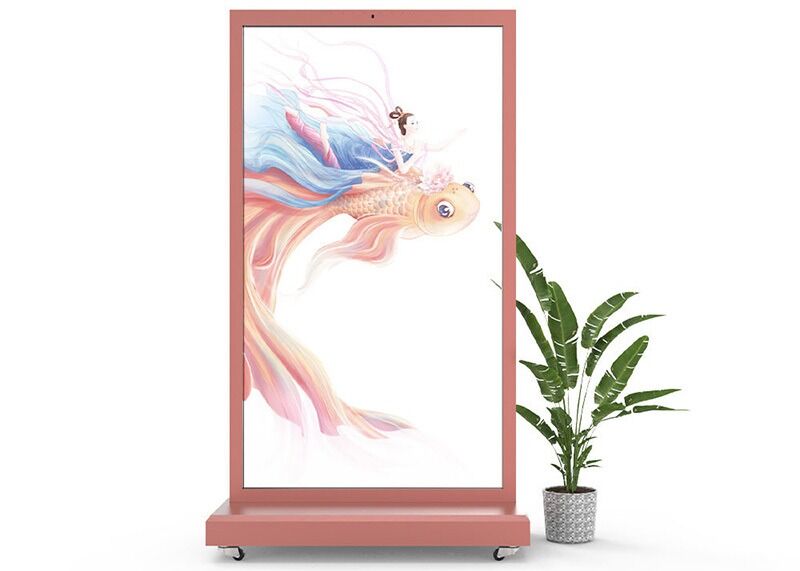

77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display 1


Checks Before Ordering

Before ordering, confirm installation drawings, media workflow, brightness expectations, touch requirements, and service access. If those points are aligned, 77-Inch Transparent OLED Kiosk gives the buyer a display layer that belongs to the space rather than a screen placed in front of it.

Public-Use Routine

For 77-Inch 4K Transparent OLED Intelligent Kiosk, the strongest results usually come from a clear public-use routine. The screen should tell visitors what to do within seconds, the software should return to a safe home state, and staff should know how to clean, restart, and update the unit.

Operational Discipline

That operational discipline matters as much as the visual effect.

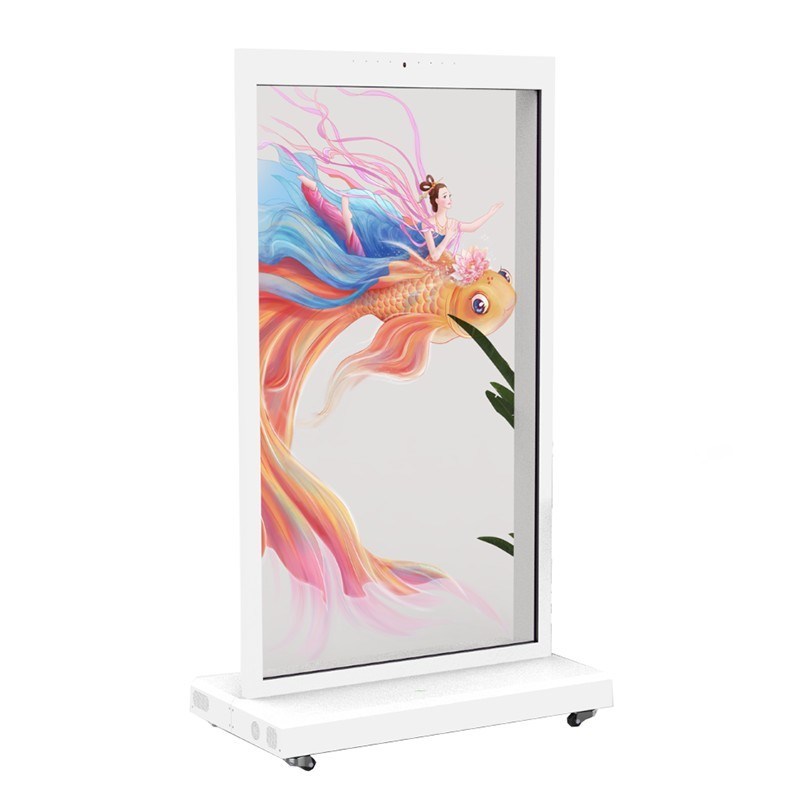

77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display 2

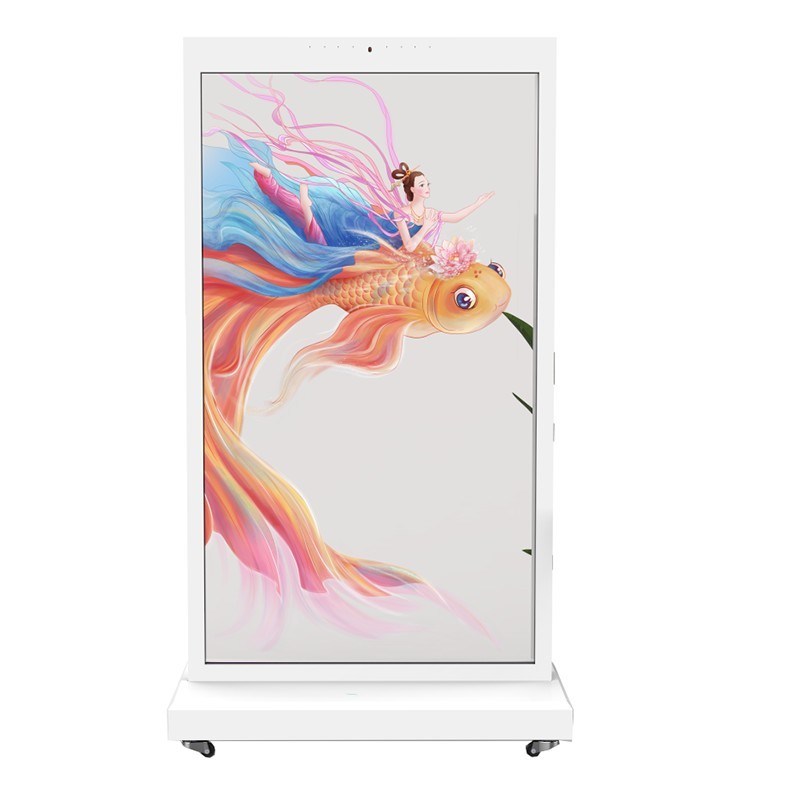

77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display 3

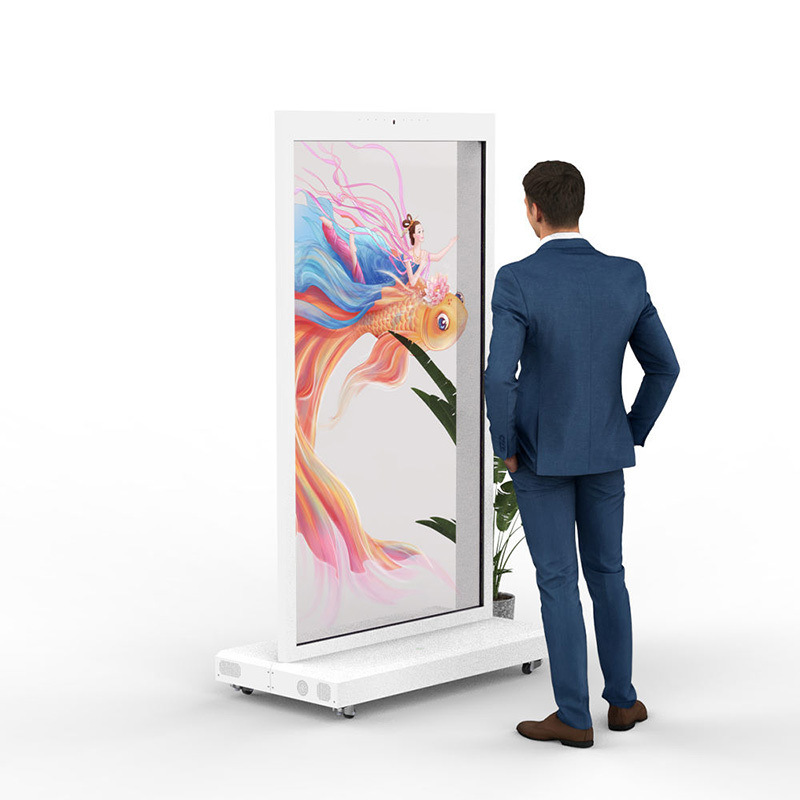

77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display 4



77 inch 4K Self-luminous LG Transparent OLED Monitor Vertical Commercial Intelligent Kiosk Touchscreen Display 5
