Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED550LV

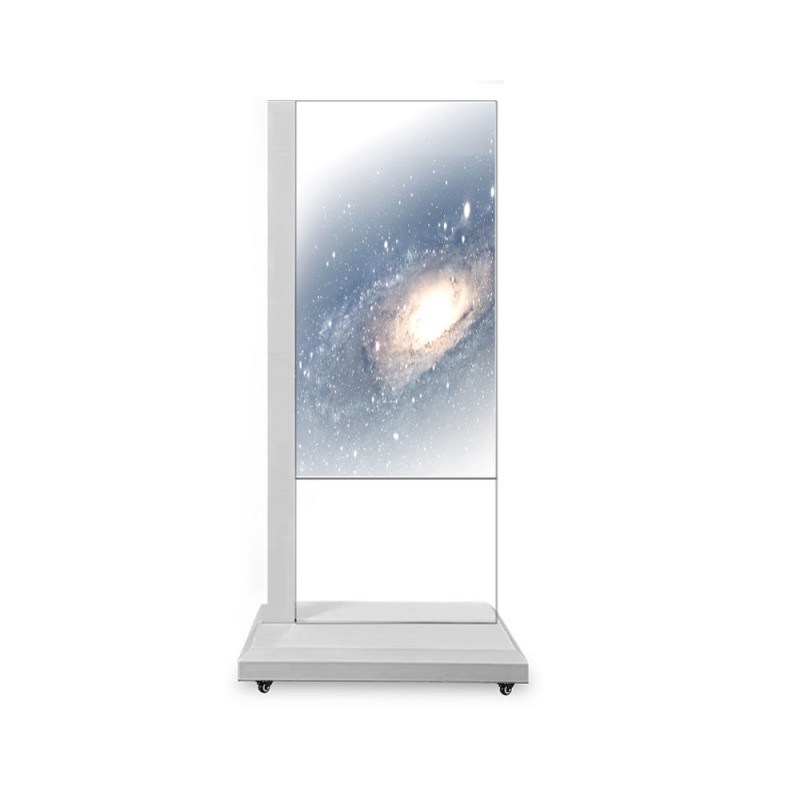

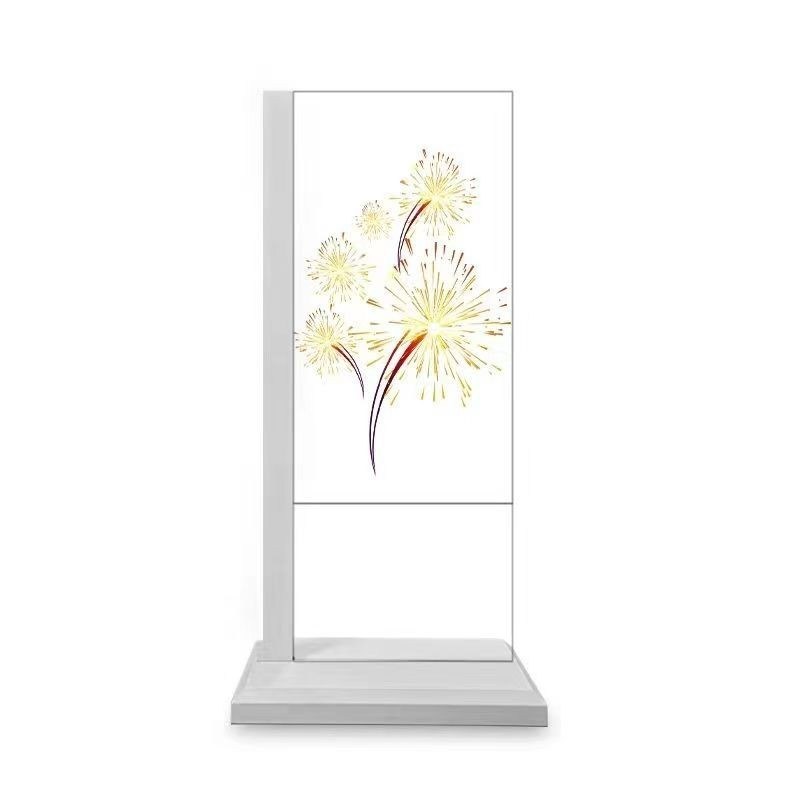

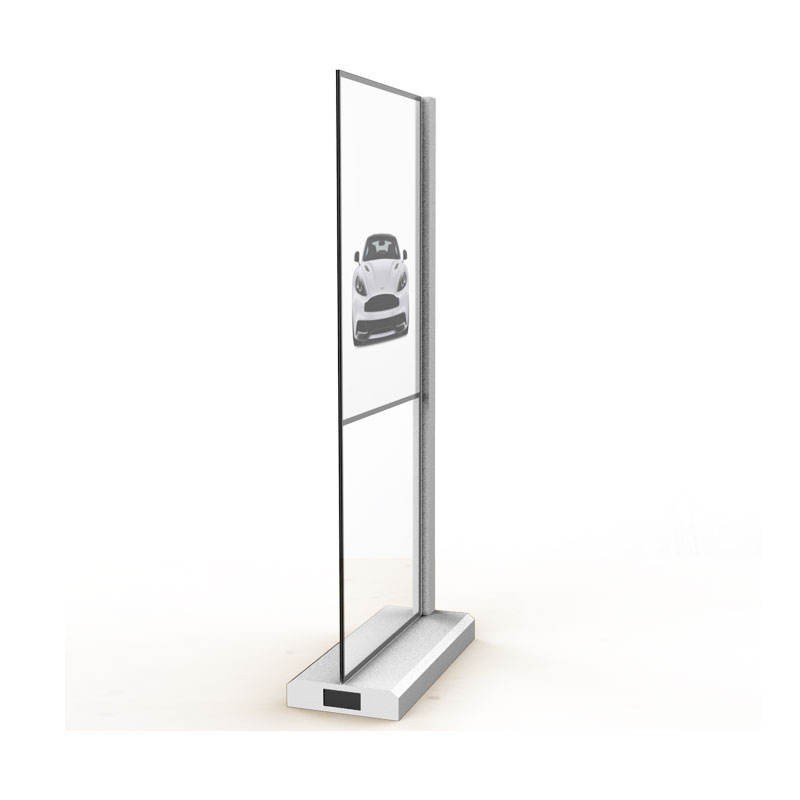

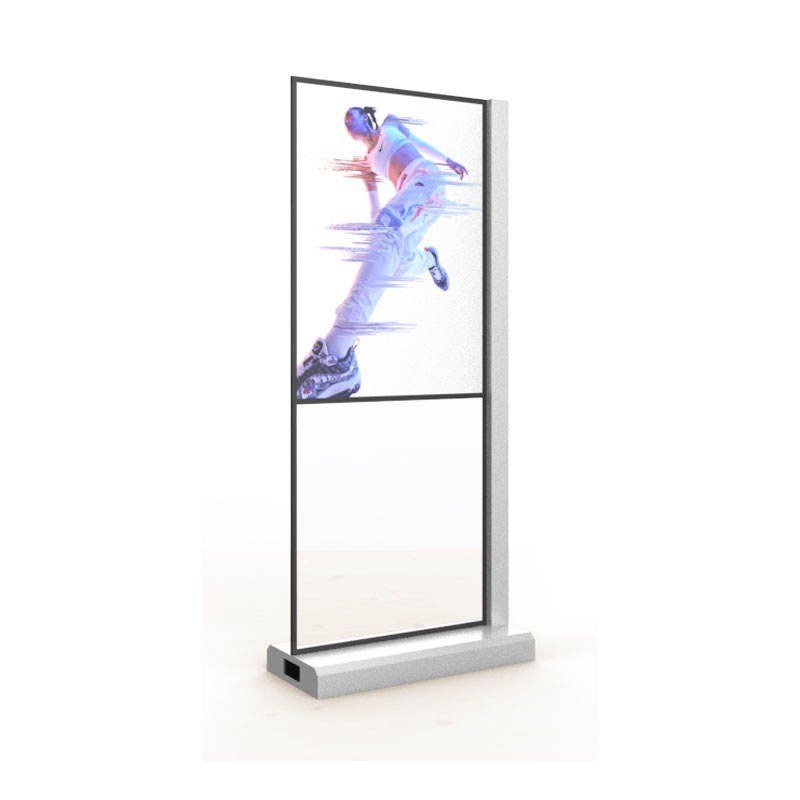

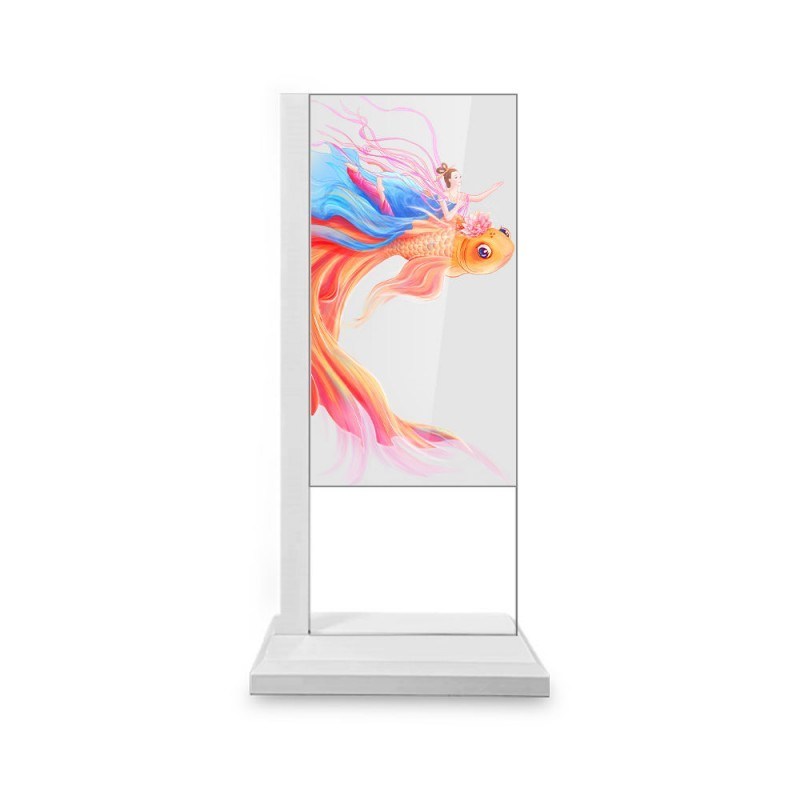

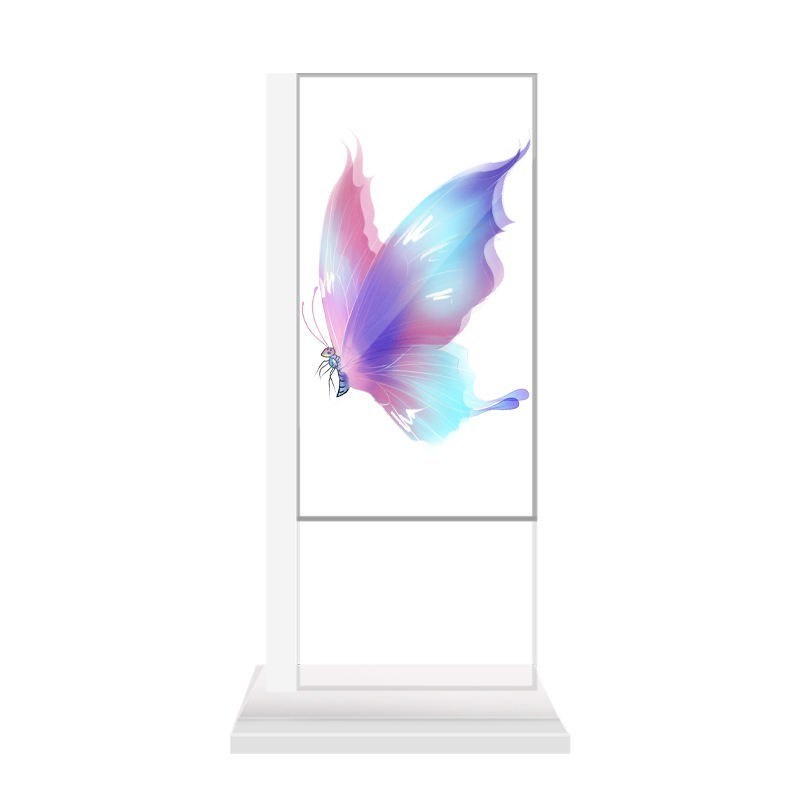

The 55 Inch High Quality OLED Transparent TV Screen with Brilliant Colors and Outstanding Display Performance is a next-generation solution designed for luxury retail, exhibitions, museums, corporate showrooms, and smart commercial environments. It utilizes advanced transparent OLED display technology to deliver an immersive transparent OLED screen experience where digital content appears to float in mid-air while still allowing full visibility of objects behind the display.
As a professional OLED display manufacturer, this product is engineered for high-end transparent digital signage applications that combine visual impact, interactivity, and architectural aesthetics.
True-to-Life Visual Performance with Transparency
This transparent OLED screen is based on self-emissive OLED technology, meaning each pixel produces its own light without requiring a backlight layer. This allows ultra-thin design, deep blacks, and highly accurate color reproduction while maintaining see-through transparency.
Typical industry-standard features include:
This creates a “floating visual layer” effect that significantly enhances product storytelling and customer engagement.
| 55-inch Transparent OLED Display (Vertical Stand Model) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| transmittance | 43% |
| Max Resolution | 1920x1080(FHD) |
| Aspect Ratio | 16:9 |
| Brightness | 200-600cd/㎡ |
| Contrast Ratio | 200000:1 |
| Viewing angle(up/down/left/right) | R/L 120(min) U/D 120(min) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 10bit(R),1.07 billon colors |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | 1781.8x772.2x323MM Refer to the structural dimension drawings. |
| Package size | Air box 1792*978*387MM |
| Installation Method | Base Installation |
| Net weight | 69.2KG/132KG |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
The 55-inch transparent OLED display is widely used in:
Its transparent design allows physical products to remain visible while digital content enhances storytelling.
As a professional OLED display manufacturer, we provide full OEM and ODM customization services for global B2B clients.
Customization options include:
We support distributors and system integrators with complete transparent digital signage solutions for commercial deployment.
![]()
![]()
![]()
![]()
![]()
