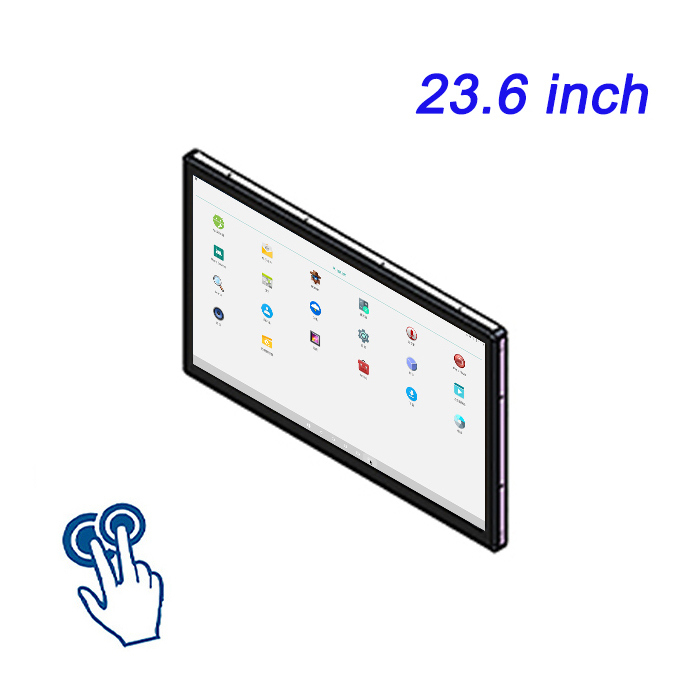

The Capacitive LCD Monitor Touch Screen Display breaks the limitations of traditional mechanical buttons through its highly sensitive touch and industrial-grade reliability, serving as a "fingertip control hub" for smart manufacturing, smart logistics, medical diagnostics, and other scenarios. It redefines human-machine interaction efficiency in industry through precise touch.
Military-Grade Touch and All-Weather Protection
The 10-point capacitive touchscreen is protected by 6H hardness tempered glass, supporting gloved, wet-hand, and sharp tool operation. It achieves a touch response ≤3ms with ±0.05mm accuracy and a mis-touch rate below 0.1%.
The IP65-rated body features an aluminum alloy frame and an anti-corrosion ABS back cover, having passed -30℃~70℃ temperature cycle tests and 20G vibration impact certification, adapting to harsh environments like cold chain sorting lines and welding robot stations.
Intelligent Scenario Empowerment
Smart Factory: 15-27 inch 4K screens display equipment OEE (Overall Equipment Effectiveness) and real-time video monitoring in split-screen mode, with gesture swiping to switch production line data dashboards.
Medical Imaging: 10-point touch allows doctors to simultaneously zoom CT images and mark lesions, while the anti-glare design suits operating room shadowless lamp conditions.
Logistics Dispatch: Built-in RFID modules enable quick AGV path assignment via touch drag-and-drop, with 800-nit high-brightness screens ensuring outdoor visibility.
Hardware-Software Integration and Agile Development
Equipped with Intel/Rockchip dual platforms and pre-installed Windows IoT/Android systems, it supports:
Industrial Protocols: Direct Profinet and EtherCAT connectivity to PLCs, with touch command latency <10ms
Software Ecosystem: Integrated configuration software and edge computing frameworks, supporting local deployment of predictive maintenance algorithms
Deep Customization: Open SDK for touch gesture programming (e.g., three-finger screenshot, circle-drawing alarm), with UI themes adaptable to medical white/industrial black, etc.
From semiconductor cleanrooms to port crane control rooms, the Capacitive LCD Monitor Touch Screen Display sets an interaction benchmark for Industry 4.0 upgrades with its "fingertip precision" and "military-grade endurance." It simplifies complex operations into taps and swipes, advancing human-machine collaboration toward greater intelligence and intuition.
| LCD Panel Parameters |
Screen Size |
23.6 Inch |
| Display Area |
522 mm.(Height) X 294(Width)mm. |
| Aspect Ratio |
16 : 9 |
| LCD Type |
a-Si TFT-LCD Monitor |
| Maximum Resolution |
1920 X 1080 |
| Display Color |
16.7m , 72% NTSC |
| Brightness |
250cd/m² |
| Contrast Ratio |
1000 : 1 |
| Viewing Angle (Up/Down/Left/Right) |
89°/89°/89°/89° (Type)(CR≥10) |
| Response Time |
14ms |
| LCD Panel Lifespan (Hours) |
60,000(Hour.) |
| Field Frequency |
100Hertz |
| PCAP Touchscreen Panel Parameters |
Touch Pattern |
Projected Capacitive Touchscreen Monitor |
| Touch Points |
10 Points |
| Cover Glass |
Morse Glass Size 7 Physically reinforced to prevent explosion |
| Glass 3 mm. Optical mount to reduce parallax |
| Glass Transmission |
>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% |
| Response Speed |
< 6ms |
| Touch Accuracy |
More than 90% of the touch area ±2 mm |
| Touch Method |
Inch Stylus |
| Output Format |
Coordinate Output |
| Click Time |
Unlimited |
| Smallest Touch Size |
5 mm |
| Long-lasting Durability |
Yes, Available |
| Touch Interface |
USB |
| Operating Temperature and Humidity |
Below 10℃ ~ +50℃, ≤ 85%RH |
| Storage Temperature and Humidity |
Less than 20℃ ~ +60℃, ≤ 90%RH |
| Audio parameters |
Audio system |
Stereo |
| Speaker size |
≈ 99 x 45 x 20 mm |
| Impedance |
8 Ohm |
| Power |
2 x 5 Watt |
| Loudness |
> 80 Decibel |
| Interface |
4-pin connector |
Configuration PCB Android Built-in
(Choose one of two) |
CPU |
Quad-Core RK3288, 1.8GHz |
Quad-Core RK3568,2.0GHz |
| GPU |
Mali-T764 |
Mali-G52 |
| RAM |
2GB |
4GB |
| ROM |
32GB |
32GB |
| Android System |
Android 10.0 |
Android 11.0 |
| Ethernet |
1 x RJ45, Ethernet 1,000 Mbps |
1 x RJ45, Ethernet 1,000 Mbps |
| Wireless Internet |
2.4Gigahertz |
2.4Gigahertz/5Gigahertz, Wi-Fi 6 |
| Bluetooth |
4.2 |
5 |
| Interface |
USB2.0 x 2 |
USB2.0 x 2 |
| HDMI IN x 1 |
| Power |
Power Supply |
Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss |
≤ 45 Watt |
| Standby Mode Power Loss |
< 1 Watt |
| Features |
Operating Temperature |
0℃ ~ 50℃ |
| Storage Temperature |
Below 10℃ ~ +60℃ |
| Package Size |
Device Dimensions |
564.4 X 340.4 X 55.7mm. |
| Net Weight |
8 Kilogram |
| Package Size |
54 X 42 X 15Centimeter |
| Gross Package Weight per Unit |
9 Kilogram |
