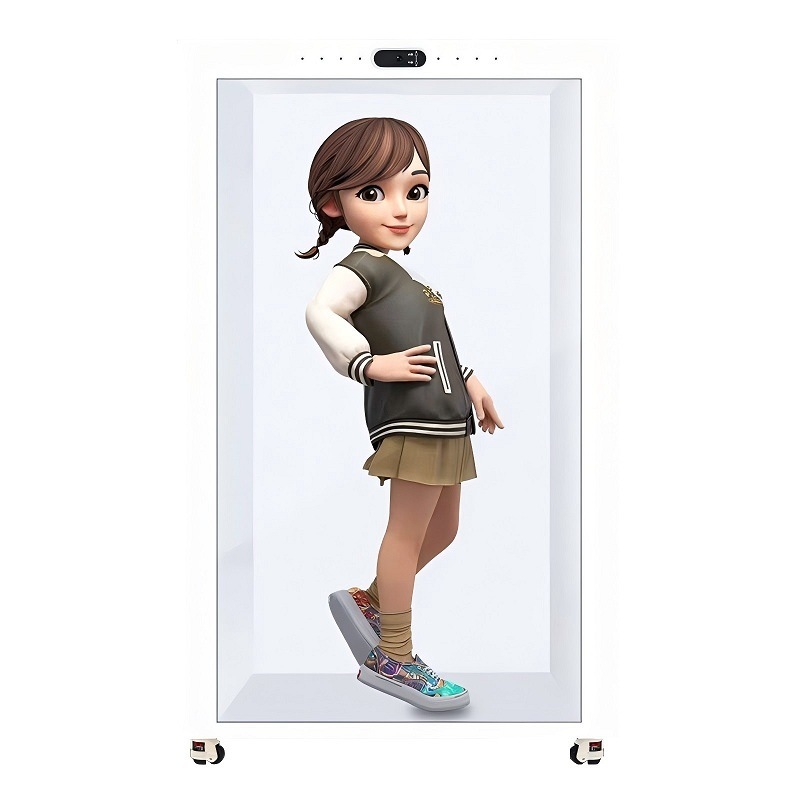

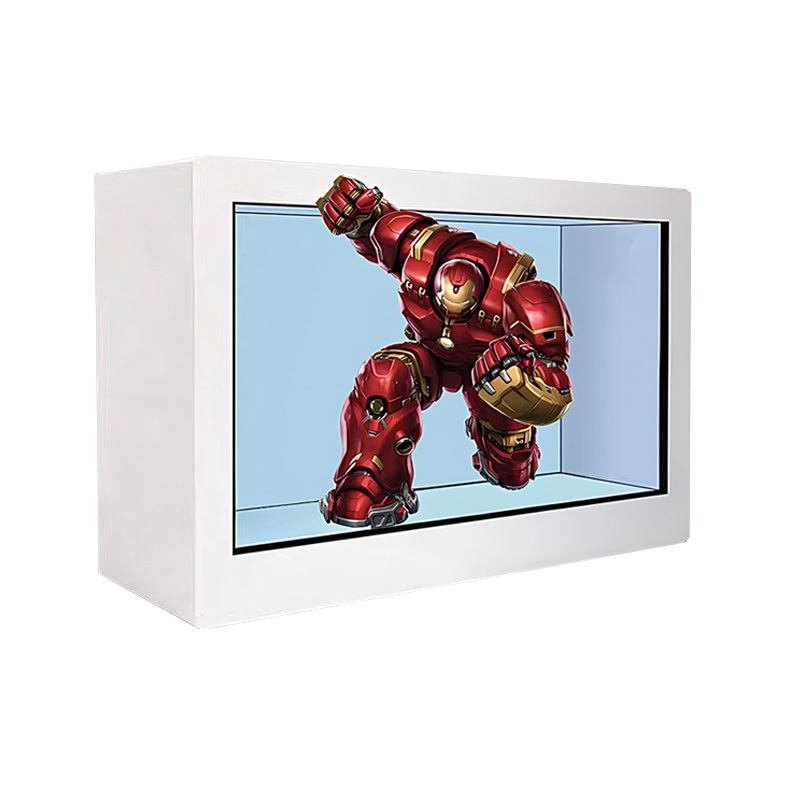

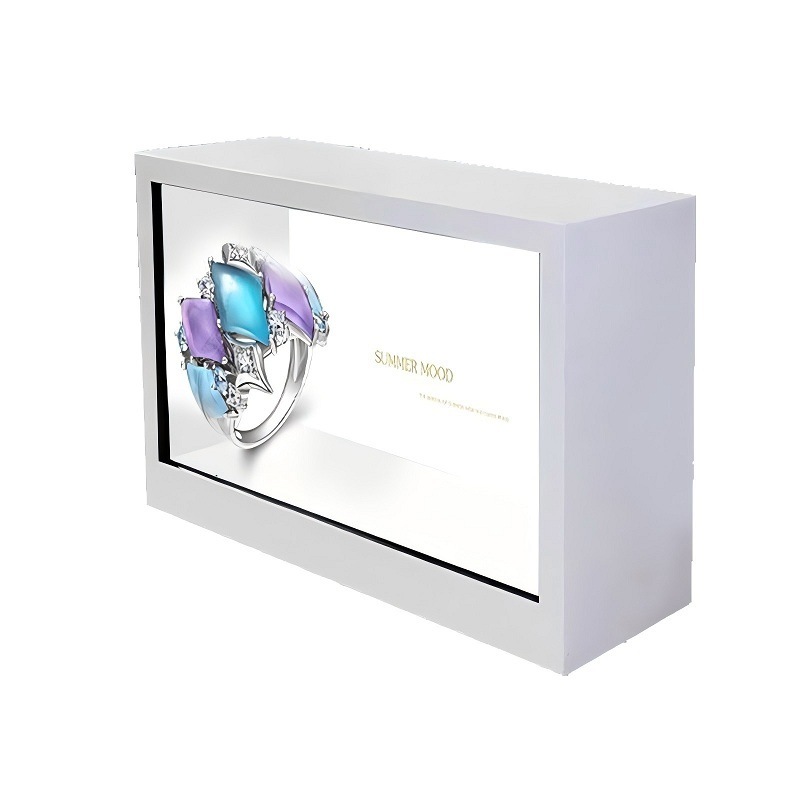

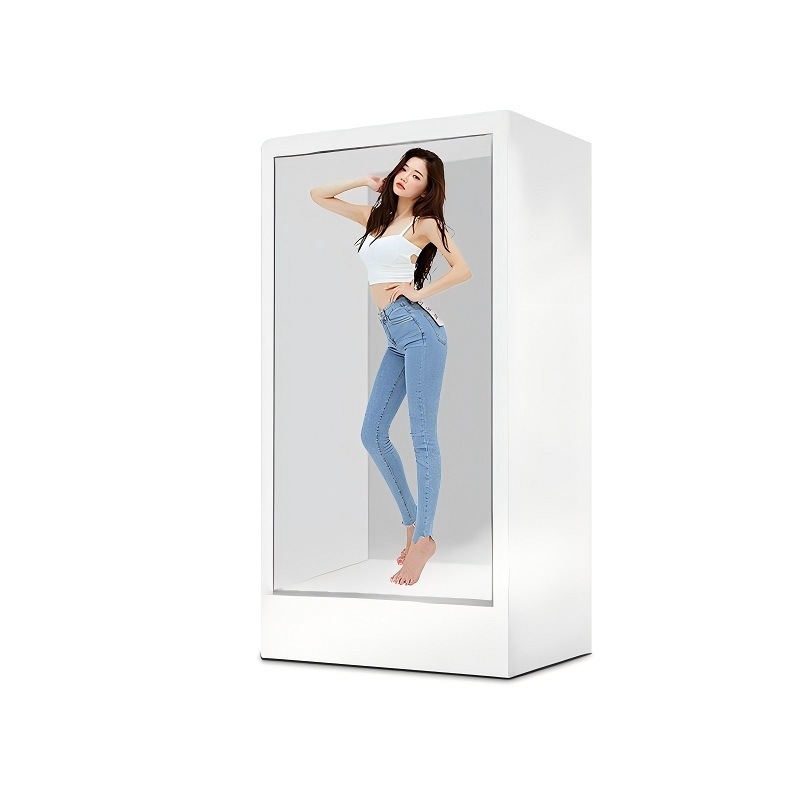

55 inch High-Brightness see through lcd panel Wall-Mounted Floor-Standing 3D Touch Digital Signage Display IP65 for Elevator

Brightness Is a Site Decision, Not a Standalone Number

Elevator lobbies and public corridors often combine ceiling light, glass, polished stone and changing daylight. Those surfaces create reflections that can weaken a transparent image. A high-brightness 55-inch transparent LCD display cabinet is intended for locations where a standard indoor presentation may lack visual presence, but the correct result still depends on placement and background.

Photograph the proposed position at its brightest operating time and test a representative screen if possible. High brightness cannot compensate for direct sun, an uncontrolled bright background or poor content contrast, and it increases the need for considered thermal design.

Choose Wall-Mounted or Floor-Standing Around Access

A wall-mounted cabinet can preserve floor space in a lobby, while a floor-standing version may simplify installation and create usable product depth. The choice should follow wall structure, circulation width, service access and the object being displayed—not appearance alone.

Request a drawing that shows anchoring points, total weight, centre of gravity, door movement, cable entry and maintenance clearance. Public installations should not create sharp projections, obstruct accessible routes or interfere with elevator controls and safety signage.

What an IP Rating Must Actually Cover

The source title refers to IP65, but an IP rating is meaningful only when tied to a tested enclosure and stated test standard. Ask whether the rating applies to the complete cabinet, the front surface or a specific module. Request supporting documentation and confirm that doors, ventilation, connectors and touch components are included in the claimed protection scope.

Do not interpret IP65 as permission for outdoor use without separate confirmation of temperature, sunlight, corrosion, drainage and local installation requirements. This product is best evaluated as a project-specific public-area cabinet.

Content for People Who Are Already Moving

Lobby viewers rarely stop for a long presentation. Use one message per scene, large type and a loop that makes sense from any entry point. The cabinet can hold a real sample, building model or branded object while the screen supplies directions, campaign information or a brief product explanation.

Touch should be included only if users can stand safely without blocking circulation. For frequent public contact, define cleaning, touch recovery and a non-interactive fallback loop.

Commissioning in the Actual Lobby

Check visibility from each approach path, including reflections from doors and adjacent lighting. Confirm mounting stability, screen temperature, ventilation, content scheduling, restart behaviour and staff access. A facility manager should know how to isolate power and report a fault.

Send ZXTLCD the site photographs, mounting preference, ambient-light conditions, required protection level, object dimensions and operating schedule. Final brightness, IP scope, touch option and enclosure construction must appear in the approved quotation.

Public Installation FAQ

Is the cabinet suitable outdoors?

Not automatically. Outdoor suitability requires confirmed environmental ratings and thermal, sunlight and weatherproof design.

Does wall mounting reduce maintenance access?

It can, unless the service path is designed into the mount and cabinet drawing.

Is touch recommended beside an elevator?

Only where users can interact without obstructing circulation or safety functions.

High Brightness Changes Maintenance Planning

Higher-output display and lighting configurations can place more heat inside a closed structure. Ask the supplier to state ventilation openings, fan service, temperature limits and required clearance in the final design. The facility team should keep vents clear and inspect dust accumulation as part of routine maintenance. If the cabinet is near an elevator, coordinate service timing and access with building management so work does not disrupt circulation. A brightness schedule may also be useful: the unit does not need to operate at maximum output during dim periods if the selected controller supports appropriate adjustment.

Request a Cabinet Proposal

Send the object dimensions and weight, installation drawing, viewing distance, required touch or playback configuration, cabinet finish, access method and delivery destination. These details allow ZXTLCD to confirm a project-specific transparent showcase rather than quote a screen with an undefined enclosure.
