Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-TLCD550HA

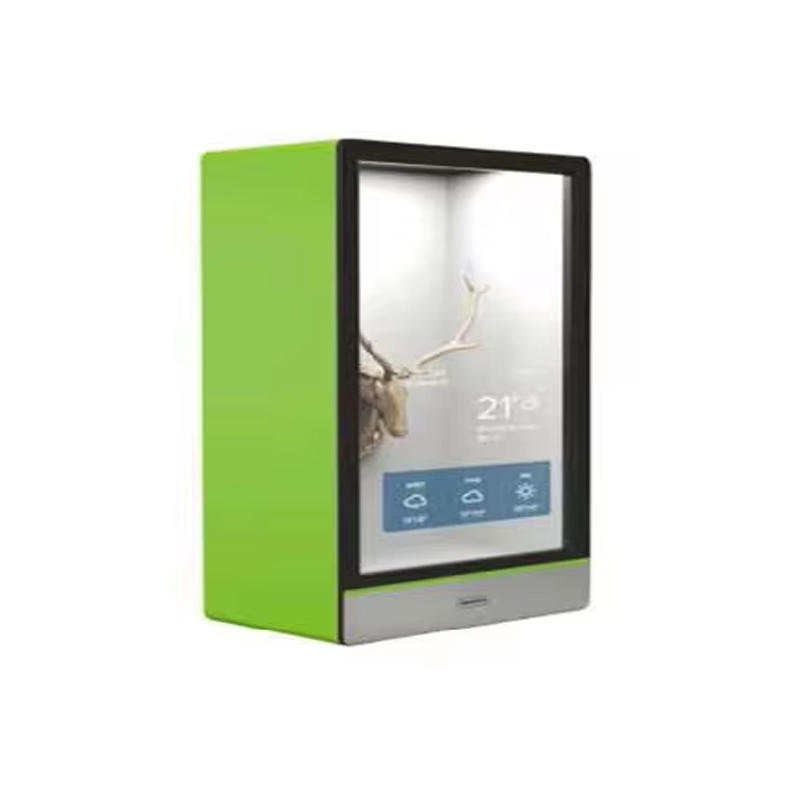

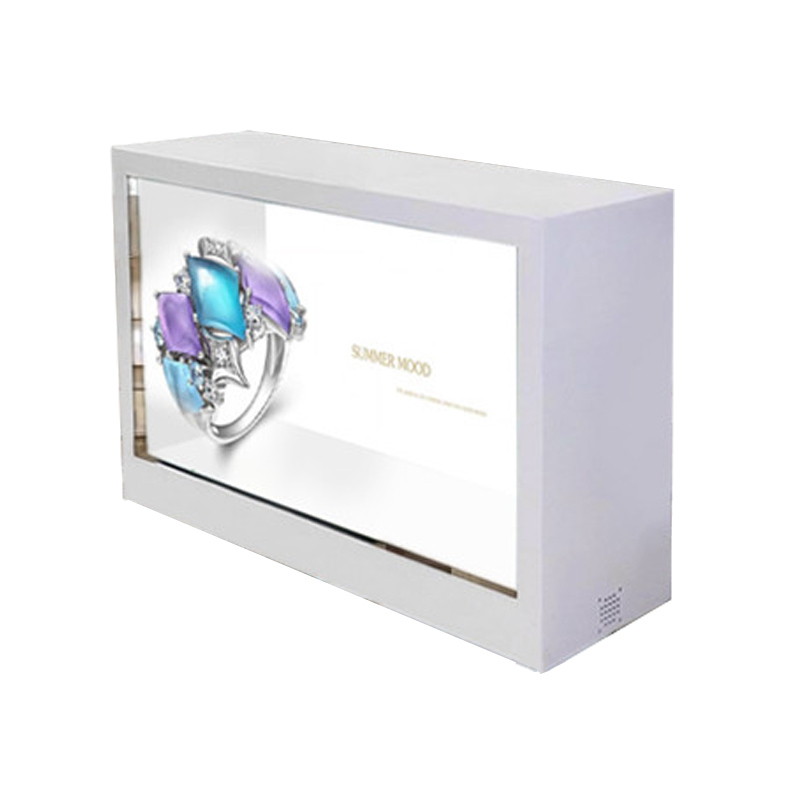

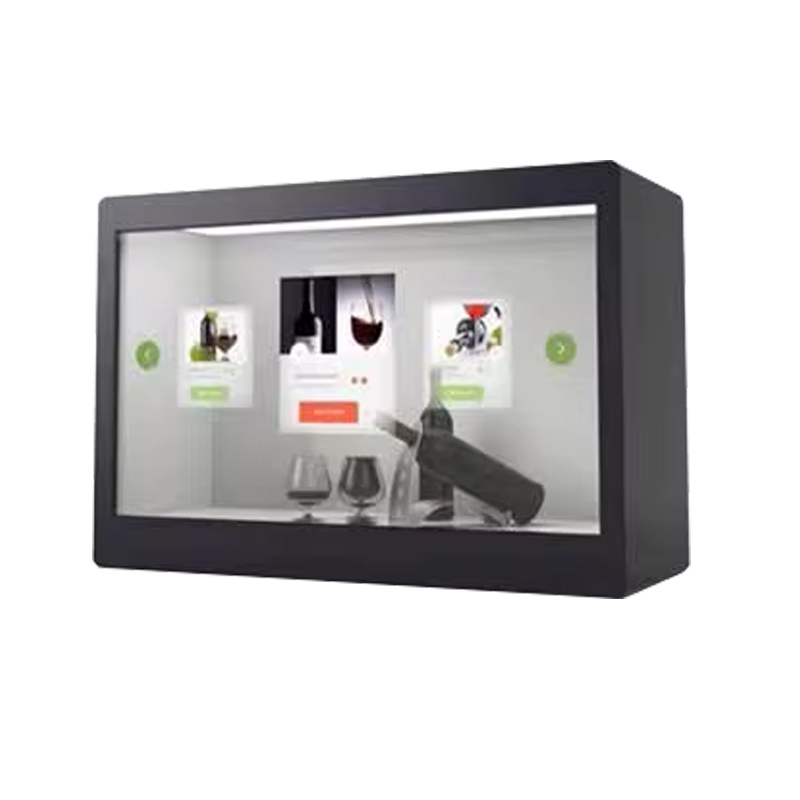

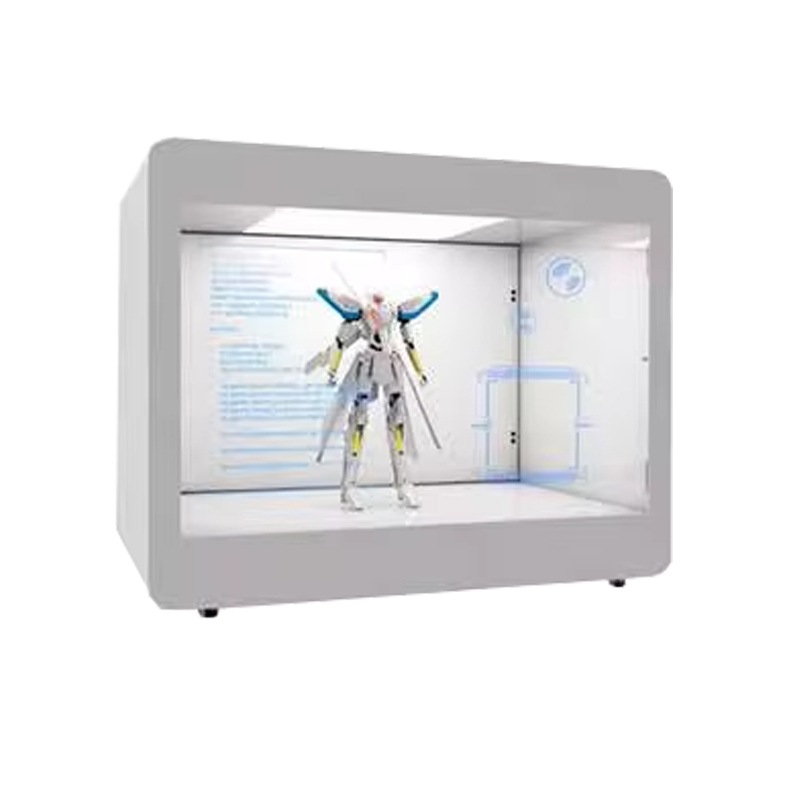

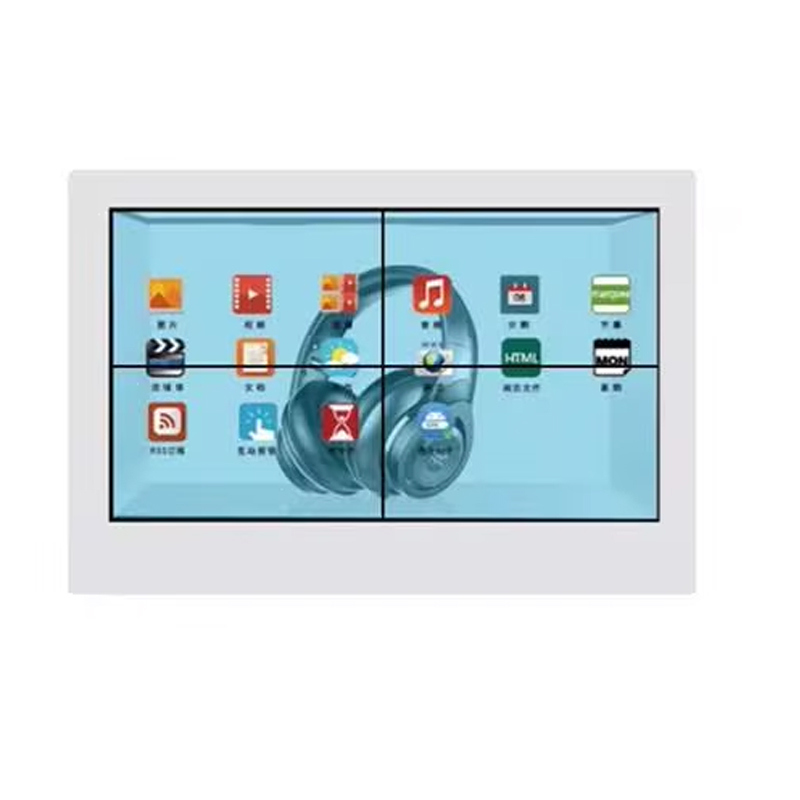

In a premium store, customers often want context before they want assistance. A 55-inch interactive transparent LCD showcase can introduce a collection, explain craftsmanship or compare variations while the real piece remains secured behind the screen. The display does not replace a sales associate. It prepares a better conversation by helping the visitor identify what interests them.
That role makes the unit especially relevant to watches, jewelry, cosmetics, limited editions and design objects. The screen can move from a quiet attract state to deeper material only after a touch. From a distance, the presentation remains elegant; at close range, it becomes a guided catalogue connected to the merchandise in the cabinet.
Transparent media can quickly become noisy. Premium content should use a controlled palette, measured typography and pauses that allow the object to breathe. A single line describing a movement, stone, ingredient or design reference is usually more effective than a wall of specifications. Animation can reveal one detail at a time and then clear the viewing area.
The cabinet background is part of the brand system. Dark finishes support luminous screen graphics, while internal lighting should model the product without creating distracting reflections on the glass. Material samples and a content test should be reviewed together; approving the enclosure and film independently often produces a mismatch on site.
The menu should reflect questions customers naturally ask: Which sizes are available? What distinguishes this edition? How is the piece made? Can I see another finish? Each answer should be short enough to read while standing. A request-assistance button, QR handoff or product reference number can connect the self-guided experience to the human service process.
Avoid deep navigation. Three or four clear routes are easier to maintain and reduce the chance of a customer becoming trapped in an interface. After a period of inactivity, the screen should return to a composed brand image. If the unit will be used in several countries, language selection belongs on the opening layer rather than inside a settings menu.
| 55-inch Interactive Transparent LCD Showcase | ||
| Display Panel | Screen Size | 55 inches |
| Panel Type | a‑Si TFT IPS Transparent LCD Panel | |
| Panel Model | HNT5501 | |
| Native Resolution | 1920 × 1080 pixels (Full HD) | |
| Sub‑Pixel Pitch | 0.210 × 0.630 mm (H × V) | |
| Pixel Format | RGB Vertical Stripe | |
| Pixel Pitch | 0.630 × 0.630 mm (H × V) | |
| Active Display Area | 1209.6 × 680.4 mm (H × V) | |
| Panel Shape | Flat Rectangular Panel | |
| Aspect Ratio | 16:9 | |
| Panel Transmittance | >75% | |
| Contrast Ratio | 1300:1 (Typical) | |
| Viewing Angle | 89°/89°/89°/89° (Minimum), CR ≥10 | |
| Display Mode | IPS, Normally Black, Transmissive | |
| Optimum Viewing Direction | All Viewing Angles | |
| Response Time | 8 ms (Typical, Gray‑to‑Gray) | |
| Display Colors | 1.07 Billion Colors, 8‑bit + Hi‑FRC | |
| Color Gamut | 72% | |
| Panel Input Voltage | DC 12V, 5A | |
| Refresh Rate | 60 Hz | |
| Panel Signal Interface | LVDS | |
| Input Interfaces | HDMI, VGA, USB and Audio Input | |
| Operating Temperature | -20°C to 50°C | |
| Storage Temperature | -30°C to 60°C | |
| Operating Humidity | 10%–90% RH | |
| Storage Humidity | 5%–90% RH | |
| Power Supply | AC 100–240V, 50/60 Hz | |
| Power Consumption | <200W | |
| Standby Power Consumption | <3W | |
| Installation Options | Desktop, Floor‑Standing or Interactive Version | |
| Product Dimensions | Refer to the Mechanical Drawing | |
| USB Plug‑and‑Play Player | Operating System | Standalone Plug‑and‑Play System; No Windows OS Required |
| Start‑Up Mode | Automatically Starts Loop Playback After Power‑On | |
| Input Ports | 1 × USB 2.0, 1 × HDMI | |
| Default Storage Medium | USB Flash Drive | |
| Optional Storage Medium | SD Card | |
| Content Update | Automatically Copies Content from USB | |
| OSD Languages | English and Chinese | |
| Supported Video Format | MP4 | |
| Supported Audio Format | MP3 | |
| Supported Image Format | JPG | |
| Supported Text Format | TXT | |
| Audio Output | Built‑In Power Amplifier | |
| Playback Modes | Single‑File Repeat or All‑Files Loop Playback | |
| Android Media Player | CPU | Quad‑Core Cortex‑A17, Up to 1.8 GHz |
| GPU | Mali‑T764 | |
| Operating System | Android 7.1 | |
| RAM | 2GB DDR3 | |
| Internal Storage | 16GB eMMC | |
| External Storage | SATA, USB, SD Card or CF Card | |
| Output Resolution | 1920 × 1080, Full HD | |
| Playback Modes | Loop Playback, Scheduled Playback and Transition Effects | |
| Network Connectivity | Ethernet and Wi‑Fi; 3G Optional | |
| Remote Control | Infrared Remote Control Supported | |
| Memory Card Support | SD and CF Cards | |
| Supported Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and More | |
| Supported Image Formats | BMP, JPEG, PNG and GIF | |
| Supported Network Protocols | TCP/IP, PPPoE, ICMP, DHCP, DNS, FTP and HTTP | |
| USB 2.0 Ports | 2 × USB Host Ports for Mouse, Keyboard and Other Peripheral Devices | |
| RJ45 Ethernet | 1 × RJ45 Port, 10/100 Mbps | |
| Wireless Network | 2.4 GHz Wi‑Fi, IEEE 802.11n, Up to 150 Mbps | |
| TF Card Slot | 1 × TF/MicroSD Card Slot | |
| PC – Entry‑Level | CPU | Intel 1037U, Dual‑Core, Dual‑Thread, 1.8 GHz |
| Motherboard | Mini‑ITX Architecture, Intel Bay Trail SoC Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics with Dynamic Video Memory Technology (DVMT) | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| PC – Standard | CPU | 3rd Generation Intel Core i3, Dual‑Core, Four‑Thread, 1.8 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| PC – Advanced | CPU | 3rd Generation Intel Core i5, Dual‑Core, Four‑Thread, 1.7 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| PC – Premium | CPU | 7th Generation Intel Core i7, Dual‑Core, Four‑Thread, 2.7 GHz, 15W |
| Motherboard | Mini‑ITX Architecture | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Infrared Touch Frame | Touch Technology | Infrared Touch |
| Integration Method | Seamlessly Integrated, Embedded Design | |
| Reported Touch Resolution | 32768 × 32768, Driver‑Free | |
| Activation Force | No Pressure Required | |
| Light Transmittance | >92% | |
| Multi‑Touch Response Time | 10–15 ms | |
| Single‑Touch Response Time | 7 ms | |
| Minimum Touch Object Size | 4 × 4 mm | |
| Touch Object Size Recognition | Supported | |
| Touch Interface | USB | |
| Touch Scan Rate | ≥110 Hz | |
| Communication Interface | USB 2.0 Full‑Speed | |
| Power Supply | 1 × USB | |
| Operating Voltage | DC 5.0V ±5% | |
| Average Current | ≤200 mA | |
| Power Consumption | ≤1.0W | |
| LED Service Life | 60,000 Hours | |
| Fault Tolerance | Remains Operational with Less Than 10% Non‑Adjacent Sensor Failure | |
| Operating Humidity | Up to 90% RH at 0°C to 40°C, Non‑Condensing | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -20°C to 60°C | |
| ESD Protection | EN 61000‑4‑2:2008, Level 3; 4 kV Contact Discharge and 8 kV Air Discharge | |
| Ambient Light Resistance | Excellent | |
| Firmware Upgrade | USB Firmware Upgrade | |
| Multi‑Touch OS Support | Wind 10, Win 8, Win 7 and Android | |
| Single‑Touch OS Support | Win XP, macOS and Linux | |
| Projected Capacitive Touchscreen | Touch Technology | Projected Capacitive Touch |
| Input Method | Finger or Stylus | |
| Number of Touch Points | 10‑Point Multi‑Touch | |
| Activation Force | 10–60 g | |
| Touch Durability | ≥35 Million Touches | |
| Minimum Pressure | <10 g | |
| Surface Hardness | ≥7H | |
| Storage Conditions | -15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH | |
| Operating Humidity | 10%–90% RH at 40°C, Non‑Condensing | |
| Response Time | <10 ms | |
| Light Transmittance | >85% | |
| Touchscreen Structure | 1.1 mm Glass + 0.125 mm Upper ITO Film + 0.125 mm Lower ITO Film | |
| Position Durability | 50 Million Touches at the Same Position | |
| Standard Packing List | Power Cable | 1 |
| Warranty Card | 1 | |
| Remote Control | 1 | |
| Cabinet Key | 1 | |
| Certificate of Conformity | 1 | |
A showcase is also furniture. Ask how staff open it, where keys are managed, how valuable items are fixed, and whether the merchandise can be changed without touching the screen electronics. Power, player and network components should be separated from the product area where practical. Service access must be possible without dismantling the store fixture.
Cleaning instructions matter because fingerprints and reflections directly affect the visual result. Define which surfaces customers touch, which products are safe for coated glass and who checks the unit before opening. For high-value merchandise, physical security requirements should be agreed with the retailer and incorporated into the customized enclosure.
The published 55-inch Interactive Transparent LCD Showcase , an A-Si TFT-IPS transparent panel with resolution options of 1920 × 1080 or 3840 × 2160, transparency above 75%, multi-language OSD and an 8 ms typical response time. Desktop, floor-standing and interactive configurations are listed, with a metal-and-glass cabinet and customizable color.
For quotation comparison, request the exact touch technology, internal dimensions, door and lock arrangement, panel resolution, media player, speakers if required, cooling method and finish sample. A useful supplier drawing should show the screen aperture, product zone, maintenance access and cable entry—not only the outside dimensions.
![]()
Yes, but the content must clearly indicate which information belongs to each physical item. A single hero product usually creates the cleanest premium presentation.
It depends on viewing distance, content detail and the selected panel. Confirm the final resolution before artwork production.
Provide product dimensions, security needs, installation style, touch workflow, finish, playback method and delivery location.
Share the installation drawing, physical product dimensions, viewing distance, content plan, interaction method, player preference and delivery destination. ZXTLCD can use these details to confirm the display configuration, cabinet structure and integration scope for your project.
![]()
![]()
![]()
