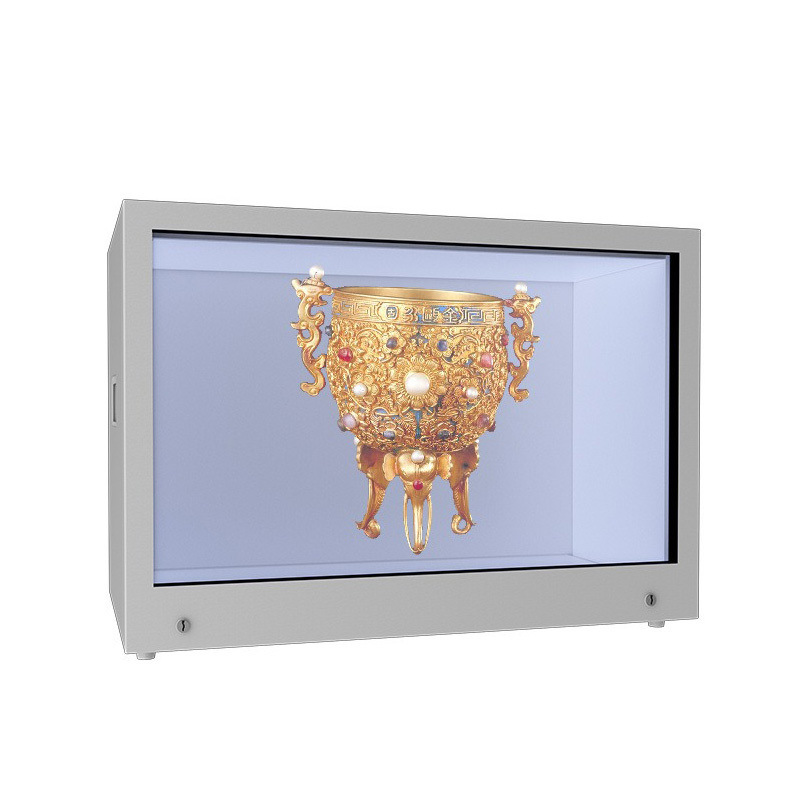

49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price

49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price

49 inch transparent LCD display

transparent touch screen advertising monitor

showcase LCD display box

Place of Origin:

ShenZhen, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-TLCD490HU

Contact Us
Request A Quote
Product Details
Screen Size:
49 Inch
Resolution:
1920 X 1080 / 3840 X 2160
Panel Type:
A-Si TFT-IPS Transparent Panel
Pixel Layout:
RGB Vertical Bar
Panel Transparency:
Above 75%
Display Color:
16.7M/1.07B (8-bit / 8-bit + Dithering)
Color Gamut:
71% NTSC
Panel Operating Voltage:
100V-240V
Input Voltage:
AC 100~240V, 50hz-60hz
Working Frequency:
60Hz
Protype:
Desktop / Floor Standing / Interactive(Optional)
Highlight:

49 inch transparent LCD display

,

transparent touch screen advertising monitor

,

showcase LCD display box

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
wooden case, carton, flight cases are optional
Delivery Time
3-5 working days
Payment Terms
L/C,T/T,MoneyGram,Western Union
Supply Ability
2000 pcs per month
Product Description

49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price


Turn Browsing Into a Guided Product Walkthrough


Showroom visitors often examine a product before they are ready to speak with staff. A 49-inch transparent touchscreen showcase cabinet can answer the first questions while the real item remains in view. The customer can select materials, features or use cases and then carry a clearer request into the sales conversation.


This is especially useful where one sample represents a broader range—electronics, watches, components, cosmetics or design accessories.


Match the Screen Journey to Sales Questions


Ask sales staff which questions recur every day. Build those into a short opening menu rather than copying the company website. A practical structure may include “See How It Works,” “Compare Models,” “Choose a Finish” and “Talk to an Advisor.”

Keep answers visual and brief. Long specification lists can be sent to a phone through a QR code or opened only when requested. The transparent layer should continue to reveal the product during most of the journey.


Make the Cabinet Easy to Re-Merchandise


Showrooms change samples, campaigns and pricing. Define adjustable product supports, concealed power for live devices and a staff-only access door. If the object must remain secured, agree on lock and fixing requirements during cabinet design.

Internal lighting needs repeatable positions so a new sample does not create unexpected shadows or wash out screen graphics. Provide staff with an object-placement reference for content alignment.


49 inch transparent screen display Box
General Display Screen Size 49 inches
Panel Type a‑Si TFT IPS Transparent LCD Panel
Panel Model HNT4901
Native Resolution 1920 × 1080 pixels (Full HD)
Pixel Format RGB Vertical Stripe
Sub‑Pixel Pitch 0.18642 × 0.55926 mm (H × V)
Pixel Pitch 0.4902 × 0.4902 mm (H × V)
Active Display Area 1074 × 604 mm (H × V)
Panel Shape Flat Rectangular Panel
Aspect Ratio  16:9
Panel Transmittance >75%
Contrast Ratio 1200:1 (Typical)
Viewing Angle 89°/89°/89°/89° (Minimum), CR ≥10
Display Mode IPS, Normally Black, Transmissive
Optimum Viewing Direction All Viewing Angles
Response Time 6 ms (Typical, Gray‑to‑Gray)
White Chromaticity Wx: 0.281; Wy: 0.288
Display Colors 16.7 Million Colors, 8‑bit + Hi‑FRC
Color Gamut 68% NTSC, CIE 1931
Panel Input Voltage DC 12V, 5A
Refresh Rate 60 Hz
Panel Signal Interface LVDS
Input Interfaces HDMI, VGA, USB and Audio Input
Operating Temperature -20°C to 50°C
Storage Temperature -30°C to 60°C
Operating Humidity 10%–90% RH
Storage Humidity 5%–90% RH
Power Supply AC 100–240V, 50/60 Hz
Power Consumption <200W
Standby Power Consumption <3W
Installation Options Desktop, Floor‑Standing or Interactive Version
Product Dimensions Refer to the Mechanical Drawing
USB Plug‑and‑Play Player Operating System Standalone Plug‑and‑Play System; No Windows OS Required
Automatic Playback Automatically Starts Loop Playback After Power‑On
Input Ports 1 × USB 2.0, 1 × HDMI
Default Storage Medium USB Flash Drive
Optional Storage Medium SD Card
Content Update Automatically Copies Content from USB
OSD Languages English and Chinese
Supported Video Format MP4
Supported Audio Format MP3
Supported Image Format JPG
Supported Text Format TXT
Audio Output Built‑In Power Amplifier
Playback Modes Single‑File Repeat or All‑Files Loop Playback
Android Media Player CPU Quad‑Core Cortex‑A17, Up to 1.8 GHz
GPU Mali‑T764
Operating System Android 7.1
RAM 2GB DDR3
Internal Storage 16GB eMMC
External Storage SATA, USB, SD Card or CF Card
Output Resolution 1920 × 1080, Full HD
Playback Modes Loop Playback, Scheduled Playback and Transition Effects
Network Connectivity Ethernet and Wi‑Fi; 3G Optional
Remote Control Infrared Remote Control Supported
Memory Card Support SD and CF Cards
Supported Video Formats WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and More
Supported Image Formats BMP, JPEG, PNG and GIF
Supported Network Protocols TCP/IP, PPPoE, ICMP, DHCP, DNS, FTP and HTTP
USB 2.0 Ports 2 × Host Ports for Mouse, Keyboard and Other Devices
RJ45 Ethernet 1 × RJ45 Port, 10/100 Mbps
Wireless Network 2.4 GHz Wi‑Fi, IEEE 802.11n, Up to 150 Mbps
TF Card Slot 1 × TF/MicroSD Card Slot
Built‑in Windows PC – Entry CPU Intel 1037U, Dual‑Core, Dual‑Thread, 1.8 GHz
Motherboard Mini‑ITX Architecture, Intel Bay Trail SoC Chipset
Memory Kingston 4GB DDR3 1600 MHz
Storage 120GB SSD
Graphics Integrated Intel HD Graphics with Dynamic Video Memory Technology
Power Supply Integrated 12V Power Supply
Network Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi
Built‑in Windows PC – Standard CPU 3rd Generation Intel Core i3, Dual‑Core, Four‑Thread, 1.8 GHz, 17W
Motherboard Mini‑ITX Architecture, Intel HM76 Chipset
Memory Kingston 4GB DDR3 1600 MHz
Storage 120GB SSD
Graphics Integrated Intel HD Graphics 4000
Power Supply Integrated 12V Power Supply
Network Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi
Built‑in Windows PC – Advanced CPU 3rd Generation Intel Core i5, Dual‑Core, Four‑Thread, 1.7 GHz, 17W
Motherboard Mini‑ITX Architecture, Intel HM76 Chipset
Memory Kingston 4GB DDR3 1600 MHz
Storage 120GB SSD
Graphics Integrated Intel HD Graphics 4000
Power Supply Integrated 12V Power Supply
Network Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi
Built‑in Windows PC – Premium CPU 7th Generation Intel Core i7, Dual‑Core, Four‑Thread, 2.7 GHz, 15W
Motherboard Mini‑ITX Architecture
Memory Kingston 4GB DDR3 1600 MHz
Storage 120GB SSD
Graphics Integrated Intel HD Graphics
Power Supply Integrated 12V Power Supply
Network Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi
Infrared Touch Frame Touch Technology Infrared Touch
Integration Method Seamlessly Integrated, Embedded Design
Touch Resolution 32768 × 32768, Driver‑Free
Activation Force No Pressure Required
Light Transmittance >92%
Multi‑Touch Response Time 10–15 ms
Single‑Touch Response Time 7 ms
Minimum Touch Object Size 4 × 4 mm
Touch Object Size Recognition Supported
Touch Interface USB
Touch Scan Rate ≥110 Hz
Communication Interface USB 2.0 Full‑Speed
Power Supply 1 × USB
Operating Voltage DC 5.0V ±5%
Average Current ≤200 mA
Power Consumption ≤1.0W
LED Service Life 60,000 Hours
Fault Tolerance Remains Operational with Less Than 10% Non‑Adjacent Sensor Failure
Operating Humidity Up to 90% RH at 0°C to 40°C, Non‑Condensing
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
ESD Protection EN 61000‑4‑2:2008, Level 3; 4 kV Contact Discharge and 8 kV Air Discharge
Ambient Light Resistance Excellent
Firmware Upgrade USB Firmware Upgrade
Multi‑Touch OS Support Win 10, Win 8, Win 7 and Android
Single‑Touch OS Support Win XP, macOS and Linux
Projected Capacitive Touch Touch Technology Projected Capacitive Touch
Input Method Finger or Stylus
Number of Touch Points 10‑Point Multi‑Touch
Activation Force 10–60 g
Touch Durability ≥35 Million Touches
Minimum Pressure <10 g
Surface Hardness ≥7H
Storage Conditions -15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH
Operating Humidity 10%–90% RH at 40°C, Non‑Condensing
Response Time <10 ms
Light Transmittance >85%
Touchscreen Structure 1.1 mm Glass + 0.125 mm Upper ITO Film + 0.125 mm Lower ITO Film
Position Durability 50 Million Touches at the Same Position
Packing List Power Cable 1
Warranty Card 1
Remote Control 1
Cabinet Key 1
Certificate of Conformity 1


Price Depends on the Complete Configuration


A transparent LCD cabinet price cannot be compared accurately from screen size alone. Resolution, touch method, player or PC, cabinet size, finish, glass, lighting, speakers, locks, packing and quantity all affect the quotation.


Request an itemized configuration and approved drawing. Confirm whether software, content, remote management, installation and freight are included or buyer-supplied.


Measure More Than Touch Count


Useful measures include completed product comparisons, assistance requests, QR handoffs, uptime and how often staff must reset the unit. Avoid collecting unnecessary personal data. Review the interaction with sales teams after launch and remove screens that visitors do not use.


For an inquiry, send product dimensions, showroom layout, preferred user journey, touch option, playback platform and brand finish.


Showroom FAQ


Can the cabinet show live products that need power?


Yes, if internal power, heat and cable safety are included in the design.


Can it compare several models?


Yes. Keep one physical reference visible and make digital comparisons easy to understand.


Why request an approved drawing?


It defines the cabinet, object area, access and electronics more reliably than a general product photo.


49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price 0


Connect Self-Service to Human Service


A showroom interface should end with a useful handoff. It can display a model code, create a QR summary or invite the visitor to request an advisor. Sales staff should see what the customer explored without requiring the visitor to repeat every choice, but any data transfer must be intentional and privacy-conscious. Train staff to use the cabinet during a consultation as well as leave it in self-service mode. Review common abandoned paths after launch. If visitors repeatedly open a feature and then seek help, improve that explanation; if a menu is never selected, remove it. The cabinet should evolve with real showroom questions.


Final Buying Checkpoint


The most useful showroom metric is often whether visitors reach a better conversation, not how many times the glass is touched. Ask staff whether enquiries become more specific and whether the cabinet reduces repeated explanations. Pair that feedback with uptime and interaction data. This keeps optimization focused on sales usefulness instead of adding animation merely to increase activity.


Request a Cabinet Proposal


Send the object dimensions and weight, installation drawing, viewing distance, required touch or playback configuration, cabinet finish, access method and delivery destination. These details allow ZXTLCD to confirm a project-specific transparent showcase rather than quote a screen with an undefined enclosure.


49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price 1

49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price 2

49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price 3

49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price 4


49 Inch Transparent Touch Screen Advertising Monitor Showcase LCD Display Box transparent lcd technology price 5
