Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-TLCD320WCT
The Jewelry Must Win the Visual Competition

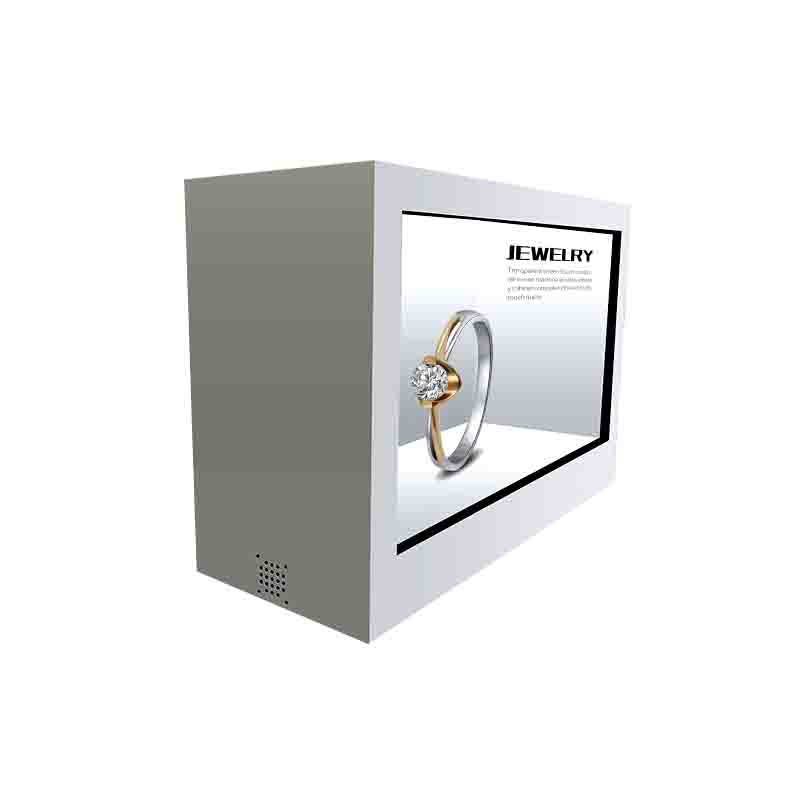

A transparent screen can add provenance, material detail and collection storytelling, but the ring or watch inside the cabinet remains the reason a customer stops. This 32-inch touch transparent LCD jewelry showcase cabinet should therefore be composed as jewelry furniture first and a digital interface second.
Use the screen to reveal one meaningful detail at a time: a stone origin, movement, designer sketch or limited-edition number. Then clear the image so the product can be viewed without interference.
Light the Metal and Stone, Not the Glass
Jewelry needs precise light, but uncontrolled brightness creates reflections and weakens the digital layer. Test beam angle, color temperature and background finish with the actual materials. Adjustable lighting helps when merchandise changes.
Avoid bright white scenic surfaces behind the transparent panel. A dark, refined interior often gives luminous graphics better presence while preserving sparkle on the physical piece.
Touch as a Private Consultation Tool
The interface can let a customer compare finishes, select a language or request assistance without exposing the full inventory. Keep controls discreet and shallow. A staff-guided mode may be more appropriate than unattended browsing for high-value collections.
Any client data, appointment request or QR handoff needs a clear purpose and privacy treatment. The screen should reset after each visitor.
| 32-inch transparent display cabinet | ||
| Display Panel | Screen Size | 32 inches |
| Panel Type | a‑Si TFT LCD Transparent Panel | |
| Panel Model | HNT3201 | |
| Native Resolution | 1920 × 1080 pixels (Full HD) | |
| Sub‑Pixel Pitch | 0.12125 × 0.36375 mm (H × V) | |
| Pixel Format | RGB Vertical Stripe | |
| Pixel Pitch | 0.36375 × 0.36375 mm (H × V) | |
| Active Display Area | 698 × 392 mm (H × V) | |
| Panel Shape | Flat Rectangular Panel | |
| Aspect Ratio | 16:9 | |
| Panel Transmittance | >75% | |
| Contrast Ratio | 1400:1 (Typical) | |
| Viewing Angle | 89°/89°/89°/89° (Minimum), CR ≥10 | |
| Display Mode | IPS, Normally Black, Transmissive | |
| Optimum Viewing Direction | All Viewing Angles | |
| Response Time | 8 ms (Typical, Black‑to‑Gray / Blue‑to‑White) | |
| Display Colors | 16.7 Million Colors, 8‑bit | |
| Panel Input Voltage | DC 12V, 5A | |
| Refresh Rate | 60 Hz | |
| Input Interfaces | HDMI, VGA, USB and Audio Input | |
| Operating Temperature | -20°C to 80°C | |
| Storage Temperature | -30°C to 90°C | |
| Operating Humidity | 10%–90% RH | |
| Storage Humidity | 5%–90% RH | |
| Power Supply | AC 100–240V, 50/60 Hz | |
| Rated Power Consumption | <20W | |
| Standby Power Consumption | <3W | |
| Installation Options | Desktop, Floor‑Standing or Interactive Version | |
| Standard Product Dimensions | 796 × 500 × 251.5 mm | |
| Customised Dimensions | Available; Refer to the Approved Product Drawing | |
| USB Plug‑and‑Play Player | Operating System | Standalone Plug‑and‑Play System; No Windows OS Required |
| Start‑Up Mode | Automatically Starts Loop Playback After Power‑On | |
| Input Ports | 1 × USB 2.0, 1 × HDMI | |
| Default Storage Medium | USB Flash Drive | |
| Optional Storage Medium | SD Card | |
| Content Update | Automatically Copies Content from USB | |
| OSD Languages | English and Chinese | |
| Supported Video Format | MP4 | |
| Supported Audio Format | MP3 | |
| Supported Image Format | JPG | |
| Supported Text Format | TXT | |
| Audio Output | Built‑In Power Amplifier | |
| Playback Modes | Single‑File Repeat or All‑Files Loop Playback | |
| Android Media Player | CPU | Quad‑Core Cortex‑A17, Up to 1.8 GHz |
| GPU | Mali‑T764 | |
| Operating System | Android 7.1 | |
| RAM | 2GB DDR3 | |
| Internal Storage | 16GB eMMC | |
| External Storage | SATA, USB, SD Card or CF Card | |
| Output Resolution | 1920 × 1080, Full HD | |
| Playback Modes | Loop Playback, Scheduled Playback and Transition Effects | |
| Network Connectivity | Ethernet and Wi‑Fi; 3G Optional | |
| Remote Control | Infrared Remote Control Supported | |
| Memory Card Support | SD and CF Cards | |
| Supported Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and More | |
| Supported Image Formats | BMP, JPEG, PNG and GIF | |
| Supported Network Protocols | TCP/IP, PPPoE, ICMP, DHCP, DNS, FTP and HTTP | |
| USB 2.0 Ports | 2 × USB Host Ports for Mouse, Keyboard and Other Peripheral Devices | |
| RJ45 Ethernet | 1 × RJ45 Port, 10/100 Mbps | |
| Wireless Network | 2.4 GHz Wi‑Fi, IEEE 802.11n, Up to 150 Mbps | |
| TF Card Slot | 1 × TF/MicroSD Card Slot | |
| Windows PC – Entry‑Level | CPU | Intel 1037U, Dual‑Core, Dual‑Thread, 1.8 GHz |
| Motherboard | Mini‑ITX Architecture, Intel Bay Trail SoC Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics with Dynamic Video Memory Technology (DVMT) | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Standard | CPU | 3rd Generation Intel Core i3, Dual‑Core, Four‑Thread, 1.8 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Advanced | CPU | 3rd Generation Intel Core i5, Dual‑Core, Four‑Thread, 1.7 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Premium | CPU | 7th Generation Intel Core i7, Dual‑Core, Four‑Thread, 2.7 GHz, 15W |
| Motherboard | Mini‑ITX Architecture | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Infrared Touch Frame | Touch Technology | Infrared Touch |
| Integration Method | Seamlessly Integrated, Embedded Design | |
| Reported Touch Resolution | 32768 × 32768, Driver‑Free | |
| Activation Force | No Pressure Required | |
| Light Transmittance | >92% | |
| Multi‑Touch Response Time | 10–15 ms | |
| Single‑Touch Response Time | 7 ms | |
| Minimum Touch Object Size | 4 × 4 mm | |
| Touch Object Size Recognition | Supported | |
| Touch Interface | USB | |
| Touch Scan Rate | ≥110 Hz | |
| Communication Interface | USB 2.0 Full‑Speed | |
| Power Supply | 1 × USB | |
| Operating Voltage | DC 5.0V ±5% | |
| Average Current | ≤200 mA | |
| Power Consumption | ≤1.0W | |
| LED Service Life | 60,000 Hours | |
| Fault Tolerance | Remains Operational with Less Than 10% Non‑Adjacent Sensor Failure | |
| Operating Humidity | Up to 90% RH at 0°C to 40°C, Non‑Condensing | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -20°C to 60°C | |
| ESD Protection | EN 61000‑4‑2:2008, Level 3; 4 kV Contact Discharge and 8 kV Air Discharge | |
| Ambient Light Resistance | Excellent | |
| Firmware Upgrade | USB Firmware Upgrade | |
| Multi‑Touch OS Support | Wind 10, Win 8, Win 7 and Android | |
| Single‑Touch OS Support | Win XP, macOS and Linux | |
| Projected Capacitive Touchscreen | Touch Technology | Projected Capacitive Touch |
| Input Method | Finger or Stylus | |
| Number of Touch Points | 10‑Point Multi‑Touch | |
| Activation Force | 10–60 g | |
| Touch Durability | ≥35 Million Touches | |
| Minimum Pressure | <10 g | |
| Surface Hardness | ≥7H | |
| Storage Conditions | -15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH | |
| Operating Humidity | 10%–90% RH at 40°C, Non‑Condensing | |
| Response Time | <10 ms | |
| Light Transmittance | >85% | |
| Touchscreen Structure | 1.1 mm Glass + 0.125 mm Upper ITO Film + 0.125 mm Lower ITO Film | |
| Position Durability | 50 Million Touches at the Same Position | |
| Standard Packing List | Power Cable | 1 |
| Warranty Card | 1 | |
| Remote Control | 1 | |
| Cabinet Key | 1 | |
| Certificate of Conformity | 1 | |
Security and Replenishment
Confirm lock type, glazing, hinges, product fixing and staff-side access with the retailer’s security team. Electronics should be separated from the jewelry bay so service does not expose merchandise. Define how staff replace items and realign them with the media.
A standard commercial cabinet is not automatically a certified safe. Security level must be specified for the site and value of goods.
Approval With the Real Collection
Review a finish sample and full-size content test using representative jewelry. Check reflections from customer and staff positions, touch reach, door access, cleaning and overnight shutdown. Quote requests should include product dimensions, security requirements and brand materials.
FAQ
Can the cabinet replace a jewelry safe?
No. Security construction must be specified separately for the risk and store procedure.
Can several rings be shown?
Yes, if physical and digital zones remain unambiguous.
What content works best?
Short, restrained stories that point to craftsmanship without covering the jewelry.
![]()
Collection Changes and Content Alignment
Jewelry collections rotate, so the cabinet should not be locked to a single ring position forever. Create several approved plinth layouts and matching media templates. Each template should show staff exactly where to place the piece and which content file belongs to it. This protects alignment without requiring the creative agency to visit every time merchandise changes.
Maintain an inventory code inside the staff area, not on the customer-facing scene. The code can link the physical item, media version and sales reference. Before opening, staff should confirm that the displayed product and digital description match—especially material, stone, price and edition claims.
For international stores, localize units, currency and legal wording while preserving the visual restraint of the master design. Translation should be reviewed by the brand team, not inserted automatically at the last moment.
Discuss Your Showcase Project
Provide the displayed object dimensions and weight, installation drawing, cabinet finish, access and security needs, touch or player configuration, quantity and destination. ZXTLCD can confirm the enclosure, transparent panel and integration scope for the project.
![]()
![]()
![]()
![]()
