Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED550W

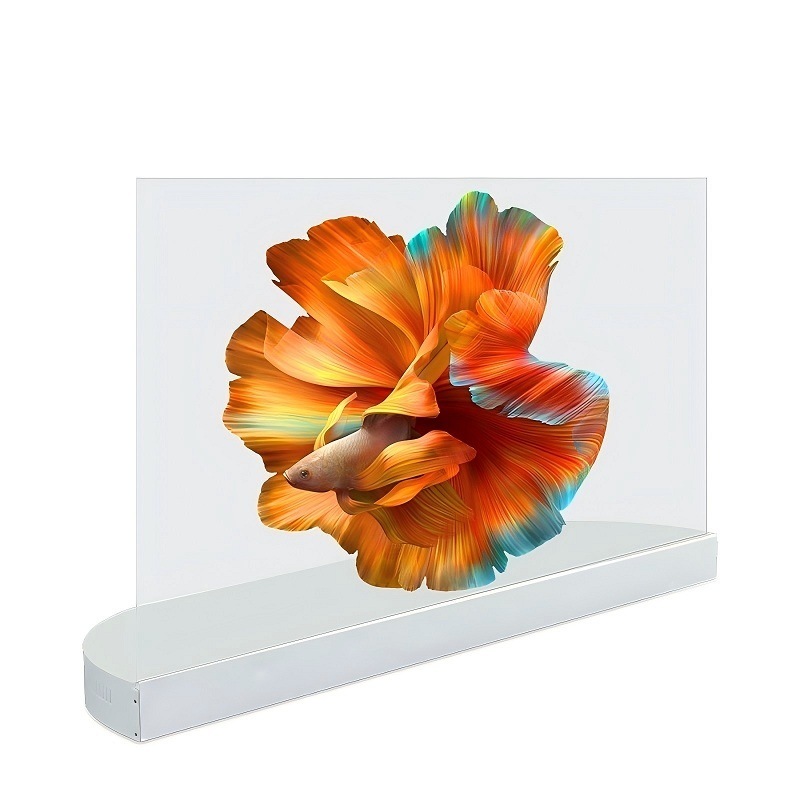

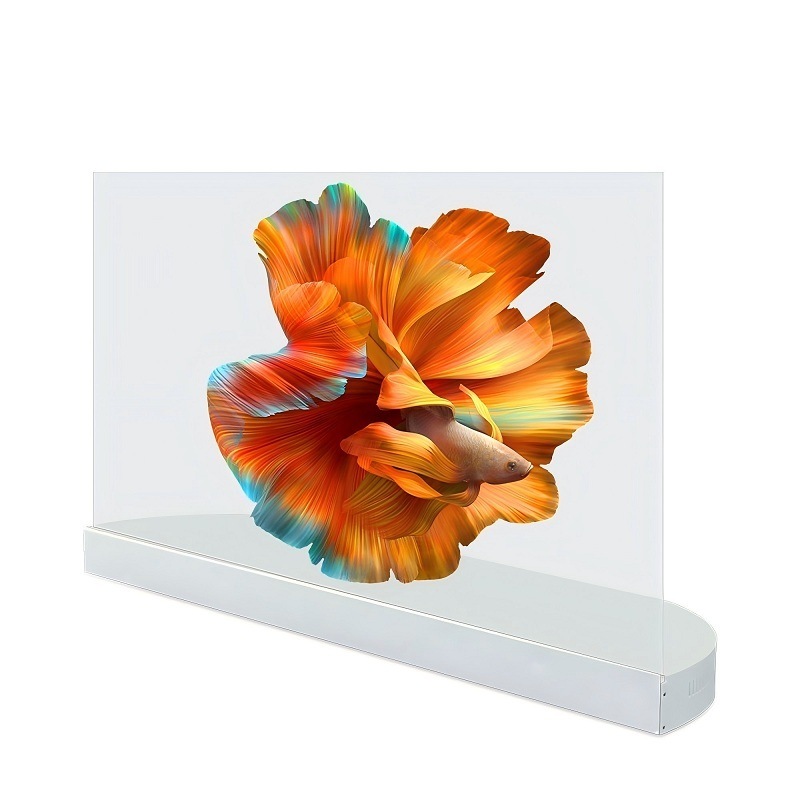

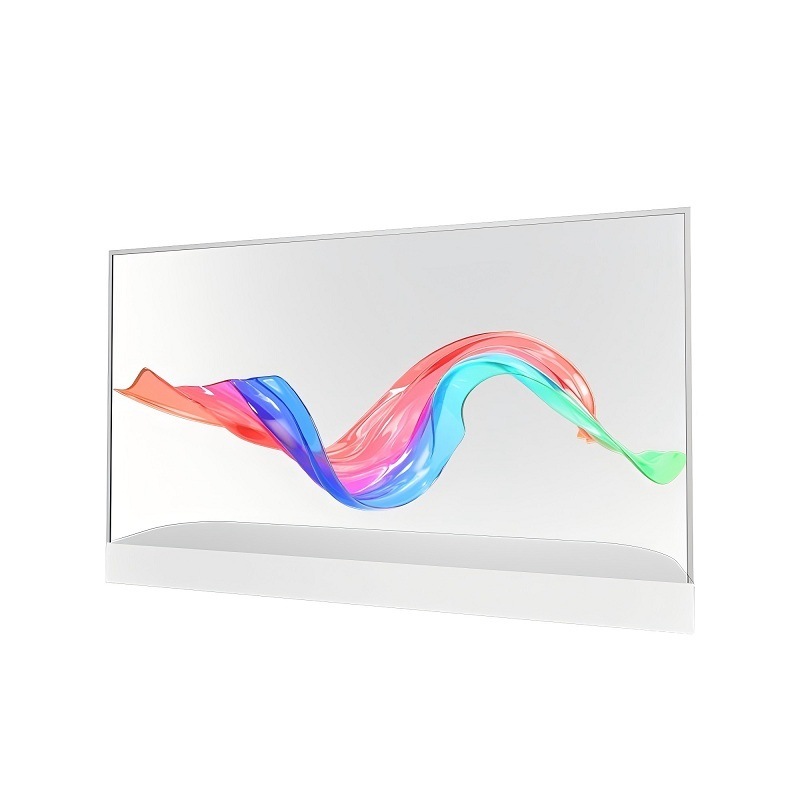

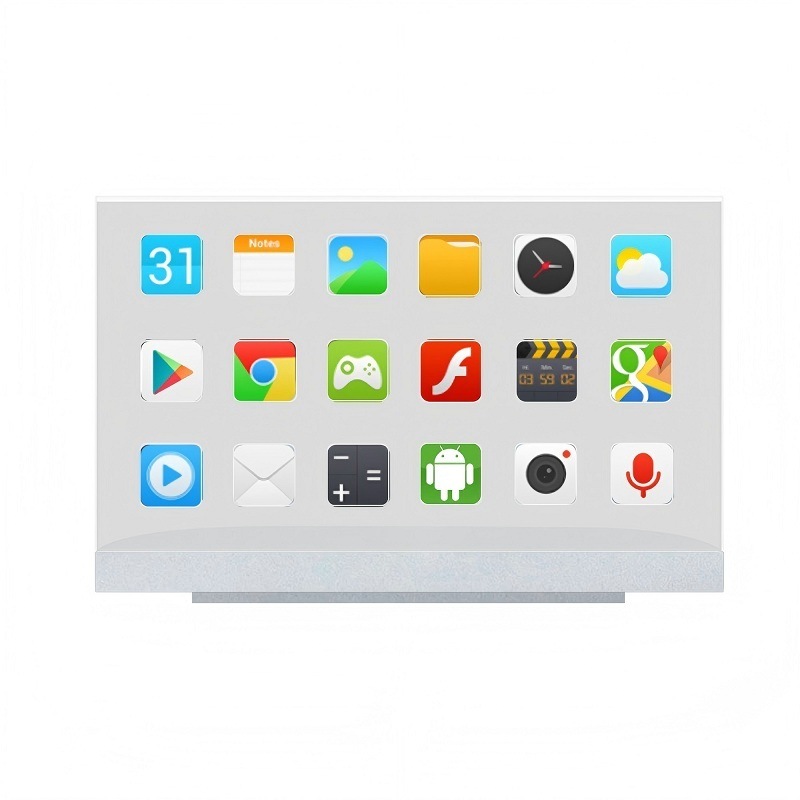

A transparent OLED showcase is not simply a screen placed in front of a product. It is a display system that must protect the physical item, present digital information clearly, and keep the viewing experience clean from different angles. For retail brands, museums, exhibition companies, and showroom designers, the 55 inch touchscreen transparent OLED display showcase offers a way to combine product display and digital storytelling in one structure.
The main value of this solution is visibility. In a traditional showcase, product information is usually placed on a printed card, a separate monitor, or a nearby tablet. That often separates the object from the explanation. With a transparent OLED showcase, videos, specifications, brand stories, and interactive menus can appear directly in front of the product while the item remains visible behind the glass-like display.
| Transparent OLED — 55 inch Desktop Model(ZXTLCD-OLED550D) | |||
| Parameters | |||
| Panel |
Size | 55 inches | |
| Type | OLED panel technology | ||
| Light transmittance | 43% | ||
| Dynamic contrast ratio | 200000:1 | ||
| Aspect ratio | 16:9 | ||
| Resolution | 1920*1080 | ||
| Viewing angle | R/L 120(min) U/D 120(min) | ||
| Brightness | 600/200 cd/m² (Center 1point,typ) | ||
| Number of pixels(HxVx3) | 6220800 | ||
| Color gamut | 90% | ||
| Lifespan (typical value) | 30,000 hours | ||
| Operating time | 18 hours/7 days (dynamic images only) | ||
| Orientation | Landscape orientation | ||
| Refresh rate | 120Hz | ||
| Interfaces | Input | HDM IInterfaces*1 | |
| USB Interfaces*1 | |||
| Function | Touch control | None/Capacitive (optional) | |
| Features | Transparent display, pixel-level self-controlling backlight, ultra-fast response | ||
| Power/Environment | Power supply | Operating power supply: AC100-240V, 50/60Hz | |
| Environment | Temperature: 0-40°C, Humidity: 10%-80% | ||
| Dimension | Display size | 990 × 680.4 mm | |
| Panel size |
1209.6 × 680.4 mm |
||
| Overall dimensions |
1247.6 × 783.4 mm |
||
| Power Consumption | Typical value | 190W | |
| DPM | 3W | ||
| Power off | 0.5W | ||
| Packaging | Stand | Main unit box, cover plate, base | |
| Accessories | Remote control, power cord | ||
![]()
For engineering buyers and display planners, the key question is not only whether the screen looks impressive. The more important question is whether the screen helps the product communicate better. A luxury watch, a cosmetic set, a consumer electronics device, a cultural artifact, or a prototype model may all require different content logic. Some projects need subtle animated labels. Others need touch menus, product comparisons, usage videos, or step-by-step feature explanations.
This is where the 55 inch format becomes useful. It provides enough space for clear digital content while still working as a showcase front or integrated display surface. The touch function can support interactive product browsing, category selection, specification pages, or guided storytelling. When planned correctly, the customer does not feel they are using a separate screen; they feel the product itself is becoming more informative.
A transparent OLED showcase should be evaluated as a complete display environment. Cabinet depth, internal lighting, cable routing, ventilation, access doors, media player location, and maintenance space all affect the final result. If the lighting inside the cabinet is too strong or poorly positioned, the digital layer may lose contrast. If the structure is not planned well, service access can become difficult after installation.
Another point buyers often underestimate is content maintenance. A showcase may look excellent on opening day, but the business value depends on whether staff can update product information, campaign messages, and interactive content without rebuilding the whole system. For retail chains, this can be especially important because the same showcase concept may need to support different products across multiple locations.
This product is best suited for projects where presentation quality matters as much as screen performance. Buyers should prepare information about product size, cabinet dimensions, lighting environment, preferred interaction style, content format, and maintenance requirements. A good transparent OLED showcase is not defined by the panel alone; it is defined by how well the display, structure, content, and commercial space work together.
Project note: Share your product size, display environment, and interaction requirements to plan a suitable transparent OLED showcase structure.
![]()
![]()
