Place of Origin:
ShenZhen, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OF430ZD

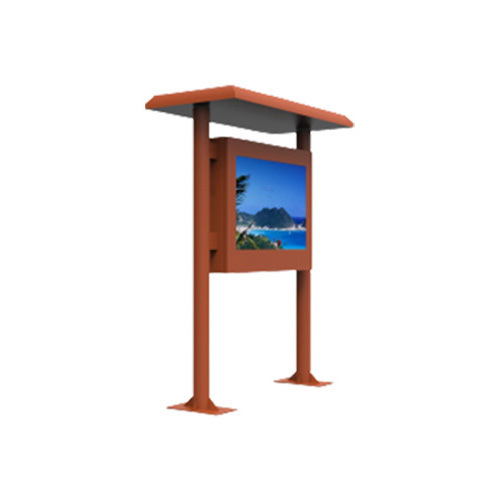

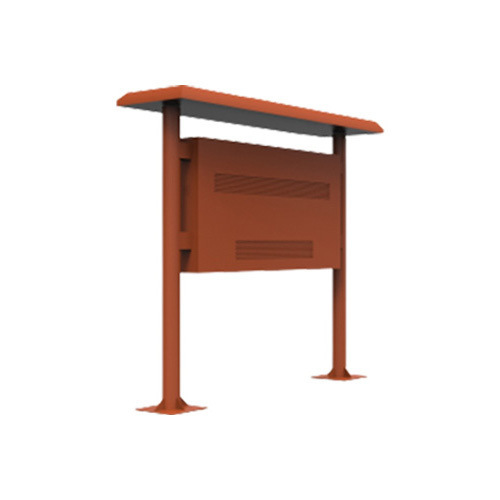

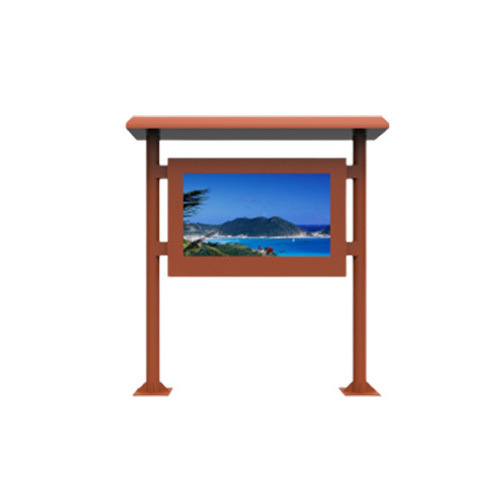

ZXTLCD Outdoor Digital Signage for Outdoor Entertainment and Leisure Venues
The customization options of ZXTLCD allowed him to match the displays to different areas within the venue, creating a visually cohesive experience. Adding touch screen functionality, he invited visitors to interact with games and contests, creating moments of joy and connection.
ZXTLCD Outdoor Digital Signag's resilience against the elements made it a reliable companion for outdoor environments. Rain or shine, it withstood the weather, ensuring uninterrupted operation and peace of mind for the event operator.
With ZXTLCD Outdoor Digital Signage, He revolutionized his venue, delivering unforgettable experiences and captivating visitors. Join him and experience the simplicity, engagement, and durability that ZXTLCD Outdoor Digital Signage brings to outdoor entertainment and leisure venues. It's time to elevate your events and leave a lasting impression.
| 43寸单机版户外一体机(风冷款)规格书(英文版) | ||
| Specications | ||
| The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
| Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
| LCD Panel | Screen Size | 43 inch |
| Display area | 530mm(H) X 938mm(V) | |
| Aspect Ratio | 9:16 | |
| LCD Type | TFT-LCD | |
| Max Resolution | 1080 X 1920 | |
| Display color | 16.7M | |
| Brightness | 1500 cd/㎡ ~ 2000cd/㎡ | |
| Contrast Ratio | 1000:1 | |
| Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
| Response Time | 6ms | |
| Field Frequency | 60Hz | |
| Buit-in Media Player | Ads updated type | USB copy by manual operation |
| RAM | 2GB | |
| Flash memory card | 16GB | |
| Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
| Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio format | MP3, WMA | |
| Photo format | BMP, JPEG, PNG, GIF etx | |
| Interface | HDMI | 1 |
| USB | 2 | |
| SD cassette | TF(Micro SD )card, scalable 32G | |
| ECU | Switch power supply | Industrial Power supply |
| Waterproof speaker | High quality waterproof 10W speaker | |
| Thunder Preventer | The tree-level lightning protection | |
| Leakage protective device | Defend Electricity Leakage | |
| Timer | Set up on/off time on day/week/month | |
| Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
| Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
| Environment | Working temperature | below 40℃ ~ + 55℃ |
| Working humidity | 5% ~ 95% | |
| Working Voltage | AC 100 ~240v , 50Hz | |
| Max Power Consumption | 280W | |
| The dimension of machine | To be determined | |
| Outer Package size and Gross weight | ||
