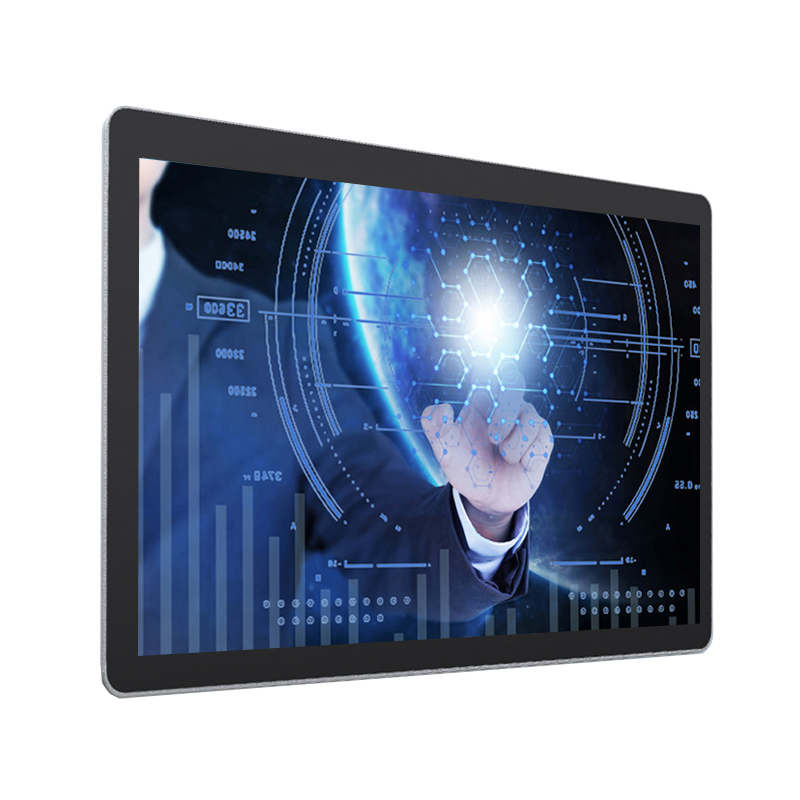

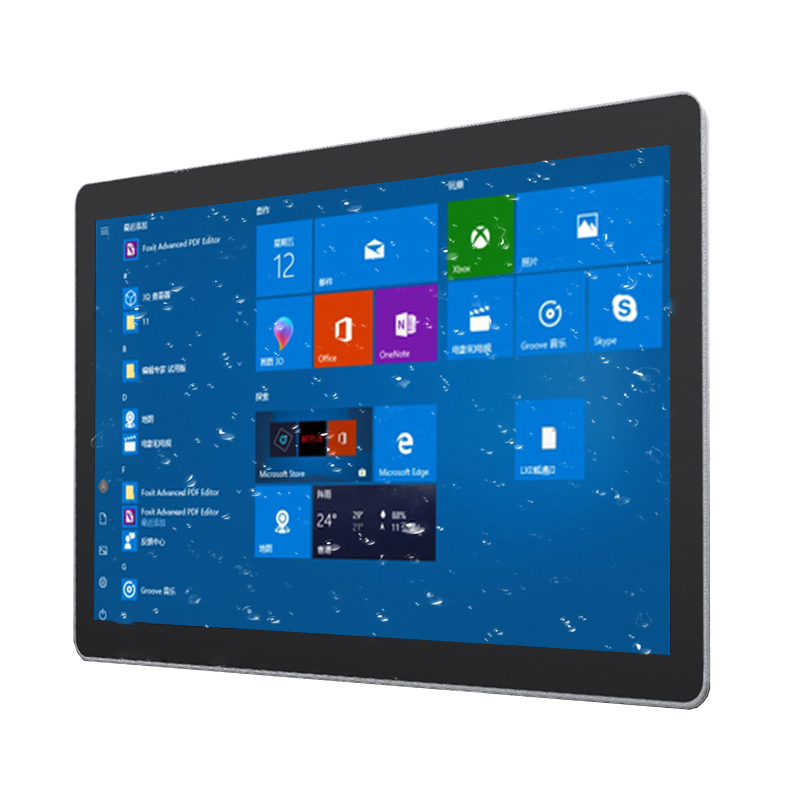

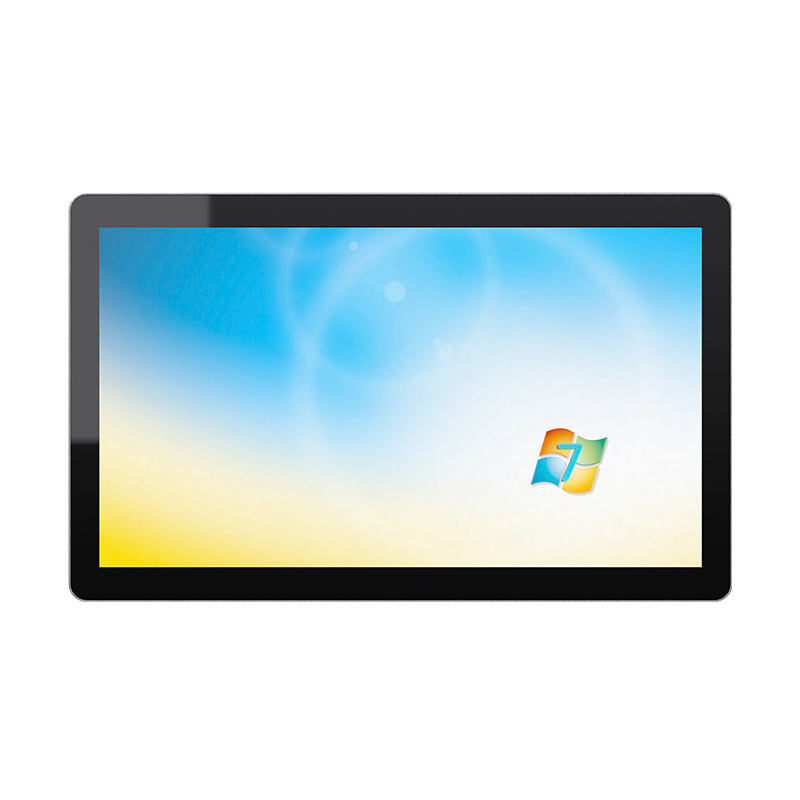

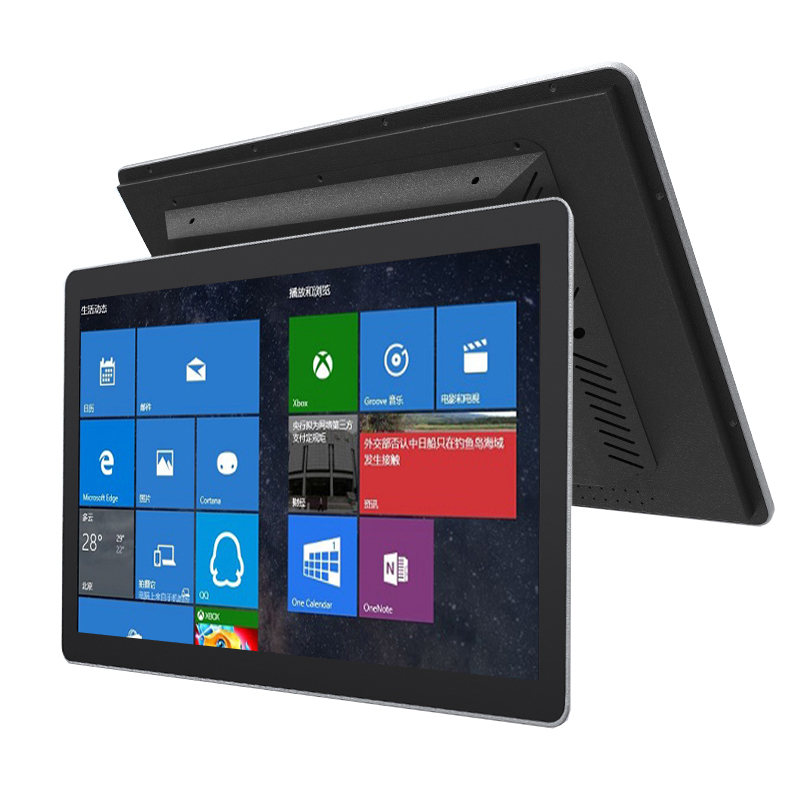

The Industrial CNC Control Panel Ultra-Thin Embedded Displays for Space-Constrained Designs

Industrial CNC control panels, the "nerve center" of modern CNC machine tools, are evolving from simple command input terminals into integrated platforms for data interaction, process optimization, and status monitoring. Amidst the sparks and precise coordinate systems of metal cutting, these panels serve as a crucial communication interface between operators and machine tools, acting as a key driver for the implementation of Smart Manufacturing.

The Industrial CNC Control Panel: A Real-Time Monitoring Hub

The inherent multi-protocol compatibility of industrial CNC control panels allows machine tool status monitoring to transcend hardware limitations:

EtherCAT/Modbus Dual Protocol Parsing: This functionality enables the synchronous collection of data such as spindle load and feed axis position error.  During the machining process, vibration spectrum curves are generated in real time, providing early warnings of potential tool wear risks.

Data Visualization: Utilizing 3D rendering to transform G-code instructions into tool path simulations, operators can visually compare theoretical trajectories with actual machining deviations (accuracy up to 0.001mm).

Edge Computing: Equipped with an ARM Cortex-A72 processor, the control panel directly runs thermal error compensation algorithms, reducing positioning errors caused by ambient temperature fluctuations to within ±2μm.

The Robust Protection System of Industrial CNC Control Panels

The reliability design of industrial CNC control panels directly addresses common challenges in machine tool workshops:

Anti-vibration Structure: Featuring an all-magnesium-aluminum alloy body and internal shock absorption brackets, the control panel can withstand 5G vibration acceleration, ensuring continuous operation on stamping production lines for 12 months without component desoldering.

Enhanced triple protection: Featuring a surface nano-coating with IP65 certification, the control panel is resistant to cutting fluid immersion and metal dust intrusion. The internal circuit board is potted for enhanced protection, ensuring an insulation resistance greater than 10GΩ even in 100% humidity environments.

Wide operating temperature range:  The LCD screen maintains a consistent 8ms response time and a backlight brightness automatic adjustment range of 1500:1 within a temperature range of -20℃ to 60℃.

From precision mold machining to heavy equipment manufacturing, industrial CNC control panels, with their robust performance and intelligent interaction capabilities, redefine the value proposition of machine tool control. More than just a translator between operator and machine, it acts as a chemical reactor where data flow and metal cutting converge—tempering the precision and efficiency of smart manufacturing within millimeters.

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
