Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
As crucial interactive terminals in industrial automation, Fully Enclosed TouchScreen are widely used in production line control, equipment monitoring, warehouse management, and other applications due to their flexible configuration and high adaptability. Their core value lies in enabling stable human-machine interaction and data connectivity in harsh environments through modular design.
Fully Enclosed TouchScreen utilize a unibody cold-rolled steel frame or a die-cast aluminum alloy chassis, balancing strength and lightweight requirements. The cold-rolled steel version is suitable for heavy-duty industrial environments with high vibration and impact, such as stamping equipment control. The aluminum alloy version is better suited for lightweight applications like mobile inspection.
The screen is available in multiple options:
Capacitive touchscreen: Supports 10-point touch and glove operation, making it suitable for precision environments such as cleanrooms and laboratories. Resistive touchscreen: Scratch-resistant and supports stylus operation, making it suitable for anti-mistouch requirements in oily environments. Non-touch display: Intended for monitoring terminals used solely for data display.

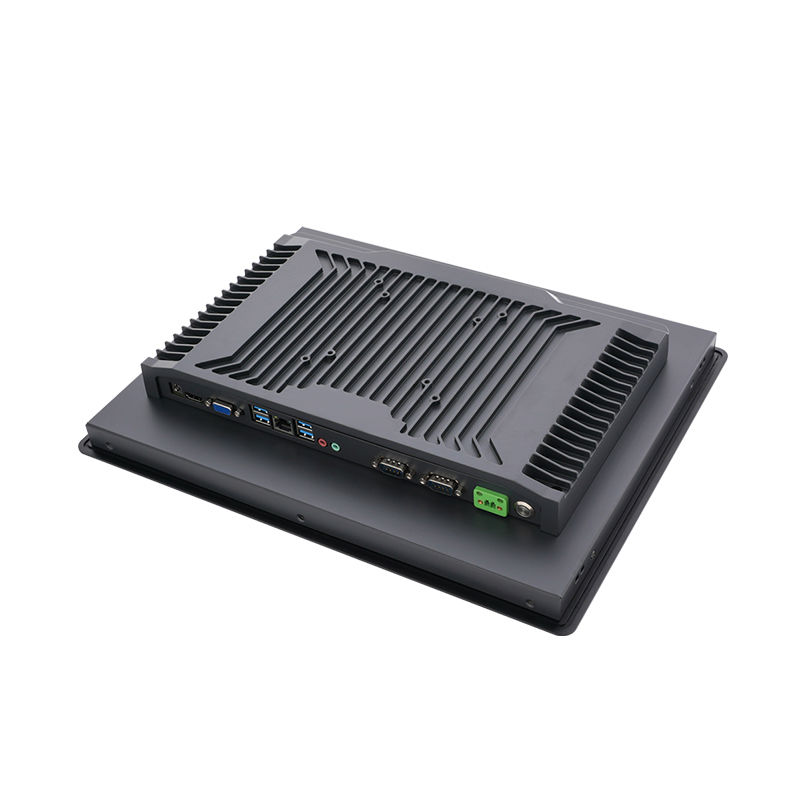

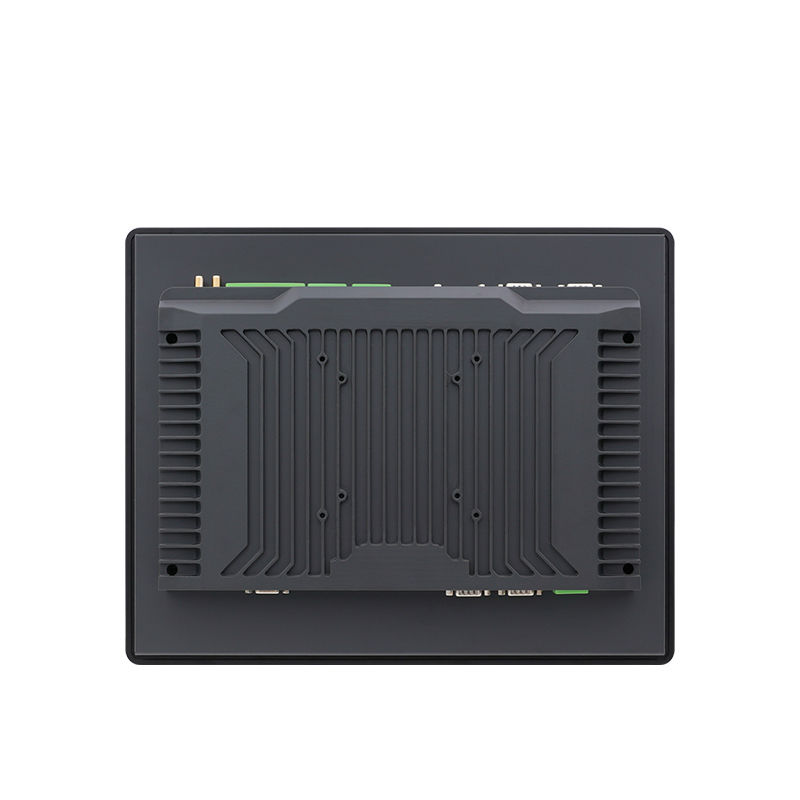

The unit is IP65-rated, featuring a dust-proof and waterproof front surface capable of withstanding high-pressure air gun cleaning. The fanless cooling system utilizes a three-dimensional groove structure on the aluminum alloy backplane to achieve natural convection, ensuring continuous operation in temperatures ranging from -20°C to 60°C. Ranging in size from 7 to 32 inches, these devices support various deployment methods, including embedded (panel cutout installation), wall-mounted (VESA standard bracket), desktop (adjustable angle base), and suspended (boom installation).
On an automotive assembly line, a 15-inch capacitive touchscreen device embedded in the control cabinet allows operators to adjust tightening gun torque parameters through a customized interface. These adjustments are then synchronized to 12 stations in real time via the Profinet protocol. In warehousing scenarios, workers using 15-inch resistive touchscreen tablets equipped with scanning modules can perform inventory checks while wearing cut-resistant gloves. Data is transmitted directly to the WMS system via Wi-Fi.
The environmental adaptability of industrial panel PCs is evident in outdoor energy station monitoring: a 21.5-inch non-touch screen device, wall-mounted in the substation control room, utilizes an IPS hard screen to display the power grid load curve clearly, even in strong light. The wide-temperature motherboard ensures stable operation, even at temperatures as low as -15°C. Some manufacturers offer customized appearances, such as rounded corner chassis for food processing lines, to eliminate cleaning dead ends. Ultra-thin screens (thickness ≤ 35mm) can be customized for AGV trolleys to minimize space requirements on mobile carriers.
System compatibility is a key advantage, with support for Windows IoT, Linux, and Android operating systems. Certain models even offer dual-system functionality. In smart factories, Windows-based devices run SCADA software to synchronously control PLCs and vision inspection cameras. The Linux version is used for edge computing nodes, where it directly processes sensor data and generates predictive maintenance reports.
The communication interface offers flexible configuration: standard features include dual Gigabit Ethernet ports, four USB 3.0 ports, and an RS-485 serial port. Expansion slots allow for optional components such as a 4G/5G module, PoE power supply, or GPIO control card.
From miniature handheld terminals to large control panels, Fully Enclosed TouchScreen leverage a modular design to address the diverse requirements of industrial settings. Like Lego bricks, they strike a balance between stability and flexibility through the versatile combination of hardware and software, acting as a universal bridge between physical devices and digital systems.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
