Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLEDV055

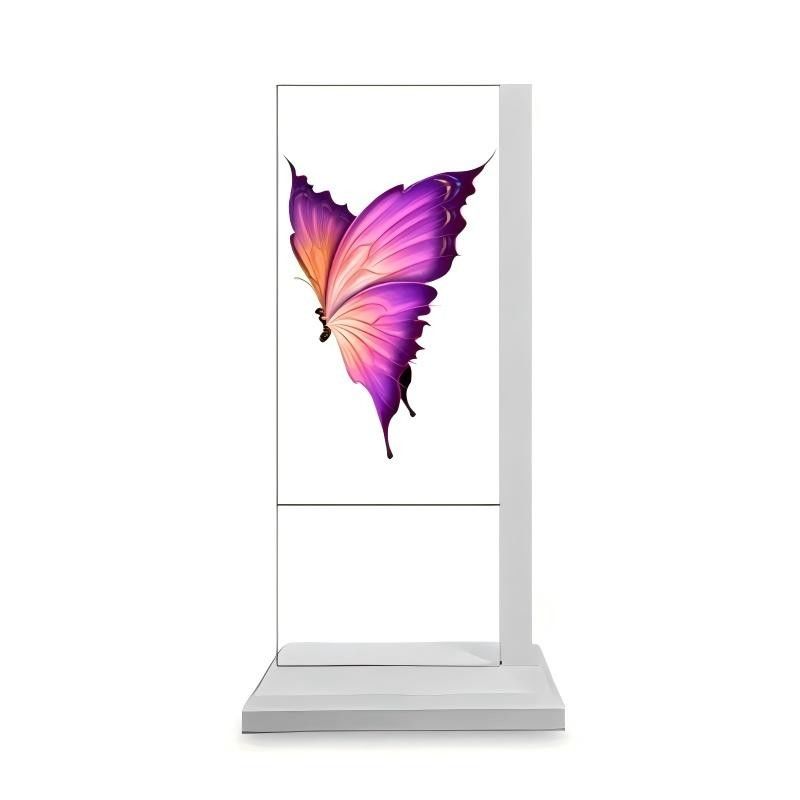

The 55-Inch Smart Transparent OLED Jewelry Showcase combines physical product presentation with digital storytelling in one premium display. Designed for jewelry stores, luxury boutiques, museums, exhibitions, and branded retail spaces, it allows customers to view real products while dynamic information appears directly in front of them.
Unlike a conventional LCD screen that blocks the background, the Transparent OLED Jewelry Showcase preserves visibility through the display. Product details, brand stories, animations, promotional content, and interactive guidance can be presented without hiding the jewelry or merchandise inside the cabinet.
The 55-Inch Smart Transparent OLED Jewelry Showcase is ideal for displaying jewelry, watches, cosmetics, electronics, collectibles, and other premium products. Its transparent screen helps brands create an engaging visual experience while keeping the physical product at the center of attention.
Customers can see the displayed item and related digital content at the same time. This makes it possible to communicate product origins, craftsmanship, materials, specifications, promotional messages, and brand stories without installing a separate digital signage screen.
The transparent OLED panel maintains a clear visual relationship between the digital image and the physical object behind it. Dark areas of the content can visually recede, while bright graphics, text, and animations remain prominent.
This layered presentation helps the display feel integrated into the showcase rather than placed in front of it. For luxury retail environments, the result is a cleaner and more refined presentation that supports the product instead of competing with it.
The Transparent OLED Jewelry Showcase uses self-luminous OLED display technology. Each pixel produces its own light, allowing the screen to display color and contrast without the visual weight of a conventional backlit LCD panel.
Because the screen does not require a traditional backlight, digital content can appear over the jewelry, product, or designed interior behind the panel. This makes transparent OLED especially suitable for close-range commercial displays where product visibility, visual depth, and brand atmosphere must work together.
The value of the technology is not transparency alone. It is the ability to combine physical merchandise with selective digital information in a single viewing area.
| 55-inch Transparent OLED Display (Vertical Stand Model) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| transmittance | 43% |
| Max Resolution | 1920x1080(FHD) |
| Aspect Ratio | 16:9 |
| Brightness | 200-600cd/㎡ |
| Contrast Ratio | 200000:1 |
| Viewing angle(up/down/left/right) | R/L 120(min) U/D 120(min) |
| Response Time | 0.1ms(Gray To Gray) |
| Display color | 10bit(R),1.07 billon colors |
| Onboard interface | |
| port | HDMI IN*1, DP IN*1, RJ45(RS232) IN*1, RJ45(RS232) OUT*1,USB*1 |
| Touch Method | |
| Capacitive Touch screen(Optional) | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | 100-240V~, 50/60Hz |
| Total System Power Consumption | ≈85W System Not Included |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| working humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass+Metal |
| external dimensions | TBD |
| Package size | Air box 1792*978*387MM |
| Installation Method | Base Installation |
| Net weight | TBD |
| Accessories | |
| Power Cord,Remote Control | |
| other | |
| After-Sales Service | 1-Year Warranty |
The content plan for the 55-Inch Smart Transparent OLED Jewelry Showcase should define which information remains consistent and which content changes regularly. The playback system can be planned around campaign loops, product introductions, brand-controlled visual layers, and promotional storytelling.
Transparent OLED content should use short text, clear hierarchy, strong contrast, and sufficient open space. Overly dense layouts or busy backgrounds can reduce the see-through effect and make product information harder to read.
Content may include:
Before installation, the content should be tested with the actual products and lighting conditions inside the showcase.
![]()
![]()
