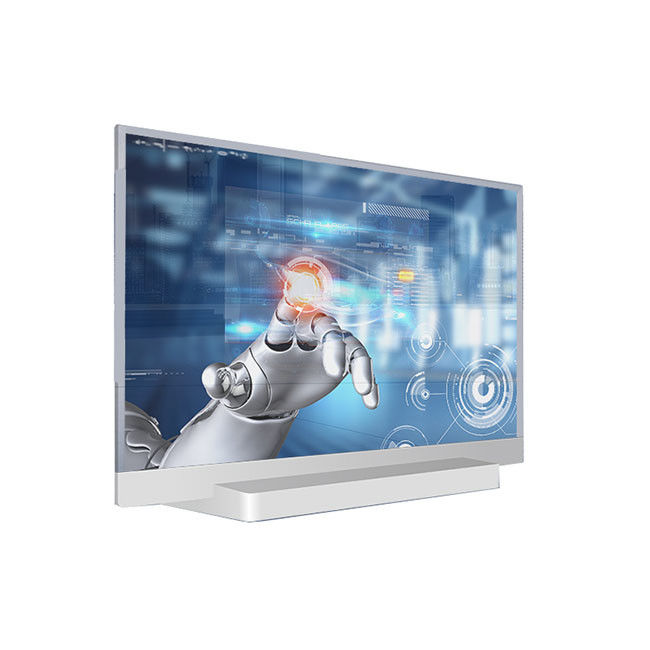

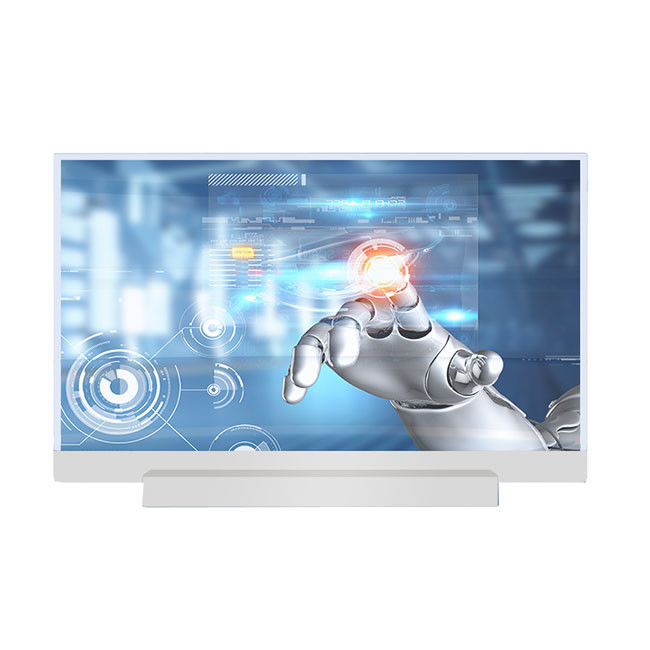

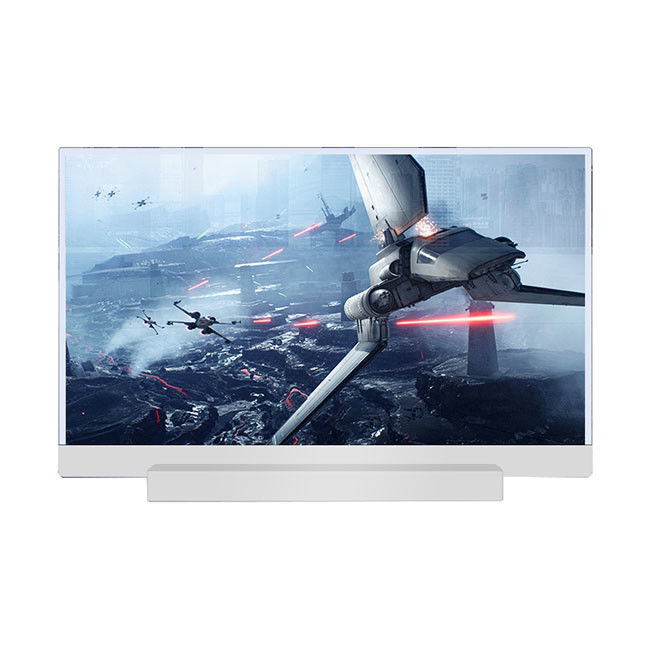

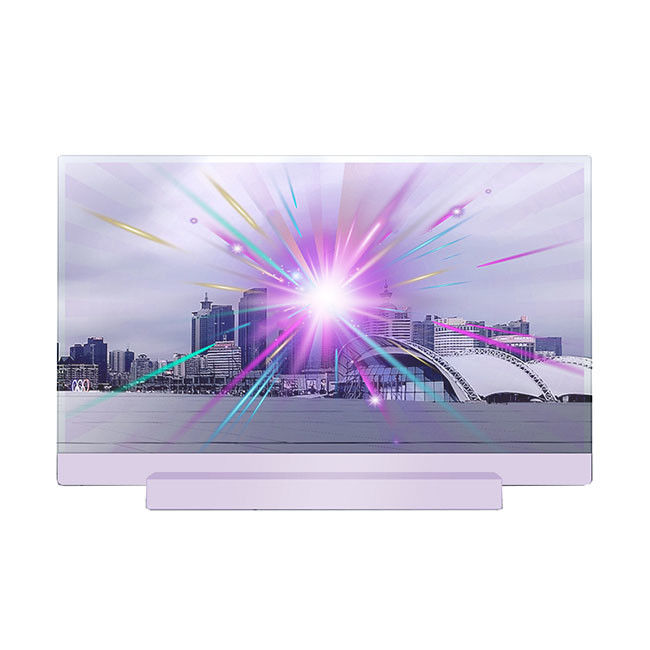

77 Inch See-Through Advertising Screen Transparent OLED Desktop Advertising Machine
Large-Format Transparent OLED Display for Futuristic Desktop Advertising
The 77 Inch See-Through Advertising Screen Transparent OLED Desktop Advertising Machine is a premium large-format commercial display designed for high-end retail environments, museums, exhibition halls, brand showrooms, and interactive marketing spaces. It integrates advanced transparent OLED display technology with a desktop-style installation structure, creating a futuristic transparent OLED screen experience where digital content appears to float in mid-air while physical objects remain visible behind the screen.
As a professional OLED display manufacturer, we develop high-performance transparent digital signage solutions that combine immersive visual presentation with modern interactive advertising capabilities.
Ultra-Large Transparent OLED Screen with Self-Emissive Technology
77-Inch High Transparency Floating Visual Effect
This transparent OLED screen uses self-emissive OLED pixels, eliminating the need for a backlight system. Each pixel independently emits light, allowing for deep contrast, vivid colors, and a true see-through display effect.
Key display features include:
- 77-inch ultra-large transparent OLED panel
- 4K UHD resolution (3840 × 2160)
- Approx. 38%–45% transparency effect
- Ultra-high contrast ratio up to 1:200,000 (typical OLED performance range)
- Wide 178° viewing angle
- 10-bit color depth (1.07 billion colors)
- Slim desktop advertising structure
- Optional touch interaction support
The display creates a “floating content” experience, making advertising and product storytelling significantly more engaging than traditional screens.
| 77-inch OLED transparent screen embedded model(ZXTLCD-OD013) |
| LCD Panel Parameters |
| Screen Size |
77 inch |
| Panel type |
Transparent OLED |
| Resolution |
3840*2160 |
| Brightness |
200-600cd/㎡ Automatic adjustment |
| Contrast Ratio |
200000:1 |
| Viewing angle(up/down/left/right) |
178°(H)/178°(V) |
| Onboard interface |
| Input Interface |
Type-c*1 USB*2 HDMI*2 RJ45*1 WIFI*2 Bluetooth*1 TOUCH USB*1 |
| Output interface |
RS232 |
| Touch Method |
| Capacitive Touch screen |
Default 10 points Capacitive Touch |
| Power Specifications |
| Power supply |
DC 20V |
| Total System Power Consumption |
＜40W |
| Machine Operating Parameters |
| running time |
7*12h |
| Screen life |
30000h |
| Operating temperature |
0℃~40℃ |
| Operating Humidity |
20%~80% |
| structure |
| Material |
Aluminum+Tempered Glass+Metal |
| external dimensions |
1743.4*353*1088.77(mm) |
| Overall dimensions |
1874*584*11340mm (flight case) |
| Installation Method |
Desktop base |
| Net weight / Gross weight |
100KG/160KG |
| Accessories |
| Power cord, remote control, certificate of conformity, warranty card, instruction manual |
| other |
| After-Sales Service |
1-Year Warranty |
Desktop Advertising Machine Design for Premium Interaction
Unlike wall-mounted signage, this desktop advertising machine is designed for close-range interaction and premium presentation.
Design advantages include:
- Desktop installation for retail counters and exhibitions
- Stable structural base for large 77-inch panel
- Eye-level product storytelling effect
- Space-enhancing transparent visual design
- Ideal for luxury brand environments
This makes it especially effective for high-value product presentation and experiential marketing.
OEM & ODM Support from OLED Display Manufacturer
As a professional OLED display manufacturer, we provide full OEM and ODM customization services for global B2B clients.
Customization options include:
- Android / Windows system integration
- Touch and non-touch configurations
- Custom desktop structure and enclosure design
- CMS remote content management system
- Branding and logo customization
- HDMI / USB / LAN / RS232 interfaces
- Software UI and interactive system integration
We support distributors and system integrators with complete transparent digital signage solutions tailored for commercial deployment.
FAQ
What is a transparent OLED display?
A transparent OLED display is a self-emissive screen that allows viewers to see through the panel while displaying digital content.
What is special about the 77-inch desktop model?
It combines ultra-large size with a desktop advertising structure for immersive close-range product presentation.
Does it support interactive content?
Yes, it can support touch interaction depending on configuration.
Where is it commonly used?
It is widely used in retail, exhibitions, museums, and high-end commercial marketing environments.
Conclusion
The 77 Inch See-Through Advertising Screen Transparent OLED Desktop Advertising Machine delivers a powerful combination of scale, transparency, and visual innovation. As a professional OLED display manufacturer, it provides advanced transparent OLED display technology and scalable transparent digital signage solutions that help brands create immersive, high-impact advertising experiences in modern commercial spaces.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
