30 Inch Transparent OLED Panel 4K Clear OLED Display For Interactive Menus

30 Inch Transparent OLED Panel 4K Clear OLED Display For Interactive Menus

translucent oled 4k

4k clear digital display

15.6 inch translucent oled

Place of Origin:

Guangdong, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-OD006

Contact Us
Request A Quote
Product Details
Screen Size:
30 Inch
Type Of Backlight:
OLED Self-luminous
Resolution:
1366×768
Panel Transparency:
43%
Brightness:
600nits (center 1 Point.typ.)
Audio System:
Built-in 10 W X 2 Speakers
Touchscreen Type:
Projected Capacitive Touch Screen
Touch Points:
10 Points
Onboard Interface:
1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype:
Desktop / Interactive(Optional)
Highlight:

translucent oled 4k

,

4k clear digital display

,

15.6 inch translucent oled

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
wooden case, carton, flight cases are optional
Delivery Time
10-15 working days
Payment Terms
T/T,MoneyGram,Western Union
Supply Ability
2000 pcs per month
Product Description

30 Inch Transparent OLED Panel 4K Clear OLED Display For Interactive Menus


30-Inch 4K Transparent OLED Panel for Menus should be treated as a project tool, not as another screen on a specification list. For a system integrator, the useful question is where the transparent layer changes the decision experience. In this case, the answer is Transparent Menu Board. The product solves the problem of adding digital information without hiding the object, space, or background that gives the installation its value. That is why 30-Inch Transparent OLED Panel belongs in projects where visual depth is part of the buying conversation.


Commercial Applications

The commercial setting for 30-Inch 4K Transparent OLED Panel for Menus is OEM integration, custom fixtures, embedded retail structures, and technical display builds. The 30-inch format changes the brief because the viewer compares the media layer with a real object, route, fixture, or interior.

Content and Background Planning

For Transparent Menu Board, the first mockup should show the background and the content together, not as separate approvals. That discipline helps the system integrator avoid a common mistake: buying a transparent display before deciding what the transparency is meant to reveal.

OLED Display Technology

The technical reason to choose OLED is the way the image is created. Self-emissive pixels allow the display to show color and contrast without the visual weight of a conventional backlit panel. For a 30-inch transparent format, that matters because the panel is often placed close to a product, a visitor, or a designed interior.

Transparency and Visual Context

The screen should not erase the context around it. OLED gives the project team a cleaner way to layer content over real materials, provided the media is designed with transparency in mind. For 30-Inch 4K Transparent OLED Panel for Menus, that technical value should be judged through transparent menu board, not as a generic transparent-screen effect.

Site Approval

For site approval, 30-Inch 4K Transparent OLED Panel for Menus needs more than a front-view rendering. The review should cover frame tolerance, enclosure design, heat path, controller placement, and service access.

Power, Signal and Ventilation

Although the front view of a 30-inch transparent OLED may look light, the build still needs a path for power, signal, ventilation, and service. For Transparent Menu Board, the mounting method should protect the panel, keep the visible area clean, and allow a technician to reach the system without disturbing the surrounding display environment.



30-inch desktop splicing transparent device(ZXTLCD-OD006)
LCD Panel Parameters
Screen Size 30 inch
Panel type Transparent OLED
Resolution 1366*768
Brightness 200-600cd/ Automatic adjustment
Contrast Ratio 135000:1
Viewing angle(up/down/left/right) 178°/178
Onboard interface
Input Interface USB*1(Touch) + HDMI*1  +TYPE-C(powered by)
Output interface Camera + Microphone
Touch Method
Capacitive Touch screen Default 10 points Capacitive Touch
Power Specifications
Power supply DC 20V
Total System Power Consumption 40W
Machine Operating Parameters
running time 7*12h
Screen life 30000h
Operating temperature  0~40
Operating Humidity 20%~80%
structure
Material Tempered Glass+Metal
external dimensions TBD
Overall dimensions TBD
Installation Method Desktop base
Net weight / Gross weight 8.5KG/12.7KG(Honeycomb box)
Accessories
Power cord, HDMI port, USB port, remote control, certificate of conformity and warranty card, instruction manual
other
After-Sales Service 1-Year Warranty


Content Workflow

The content workflow for 30-Inch 4K Transparent OLED Panel for Menus should be designed for the team that will update it. The playback method should support source compatibility, playback resolution, data handoff, input switching, and system ownership.

Content Design and Updates

Media should be written with short lines, clear hierarchy, and enough open area for the see-through effect to survive. For 30-Inch Transparent OLED Panel, procurement should include questions about update frequency, file formats, remote access, approval rights, and who owns the final content after the installation team leaves.

Viewing Environment

The visual result of 30-Inch 4K Transparent OLED Panel for Menus depends heavily on the room around it. The result depends on background material, fixture lighting, transparency expectations, and contrast under real store conditions. Transparent OLED is usually most convincing indoors, yet every site has its own reflection pattern and background density.

On-Site Testing

A useful test for Transparent Menu Board should include the intended content, the real approach distance, and the surrounding materials. If readability drops, the fix may be content contrast, lighting adjustment, or a better position rather than a different product.

Touch Integration

Touch integration should be planned as a user path, not as an added feature. The interface for 30-Inch 4K Transparent OLED Panel for Menus should match the visitor's expected interaction time: quick selection for public traffic, deeper menus for consultants, and simplified controls for exhibition use.

Touch Performance Checks

The team should check touch accuracy, response time, button size, language switching, cleaning routines, and public-use behavior before the final UI is approved.

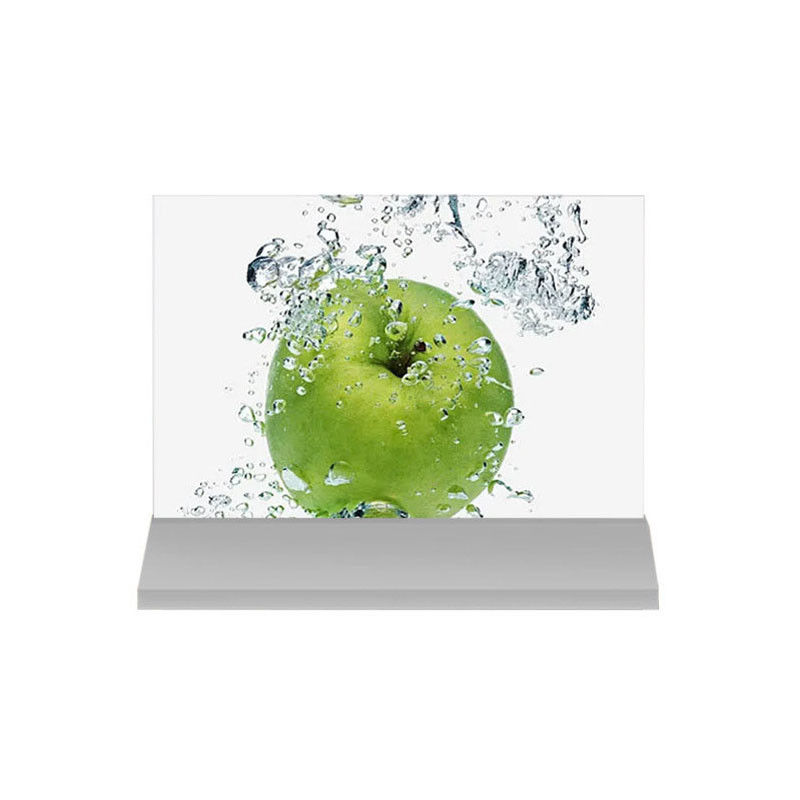

30 Inch Transparent OLED Panel 4K Clear OLED Display For Interactive Menus 0


Service Access

For 30-Inch 4K Transparent OLED Panel for Menus, service access is part of the design value. The recurring work includes module replacement planning, controller labeling, thermal checks, and access without dismantling the build. The project file should state how the surface is cleaned, where the controller sits, who can restart or update the software, and what access remains if the display is built into a wall, counter, cabinet, or moving structure.

Maintaining the Transparent Effect

For Transparent Menu Board, this matters because the transparent effect loses value quickly when fingerprints, inaccessible controls, or unplanned heat become daily problems.

Content Role

The value of 30-Inch 4K Transparent OLED Panel for Menus is strongest when the buyer can define the content role. It is a stronger choice when transparency supports the project story, the site can control the viewing environment, and the team has a clear content owner.

Checks Before Ordering

Before ordering, confirm installation drawings, media workflow, brightness expectations, touch requirements, and service access. If those points are aligned, 30-Inch Transparent OLED Panel gives the buyer a display layer that belongs to the space rather than a screen placed in front of it.

Project Coordination

For 30-Inch 4K Transparent OLED Panel for Menus, the buyer should involve mechanical, electrical, and content teams at the same time. A transparent OLED panel is rarely a drop-in part; it needs a controlled enclosure, clean cabling, proper thermal thinking, and content that respects the transparency.

Early Coordination

Early coordination reduces redesign work later.

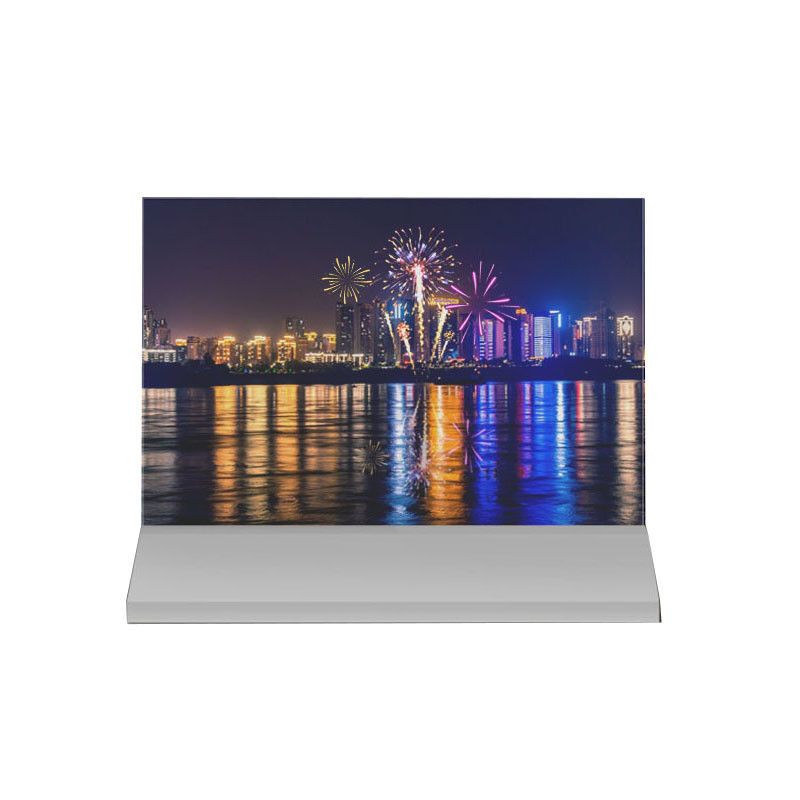

30 Inch Transparent OLED Panel 4K Clear OLED Display For Interactive Menus 1

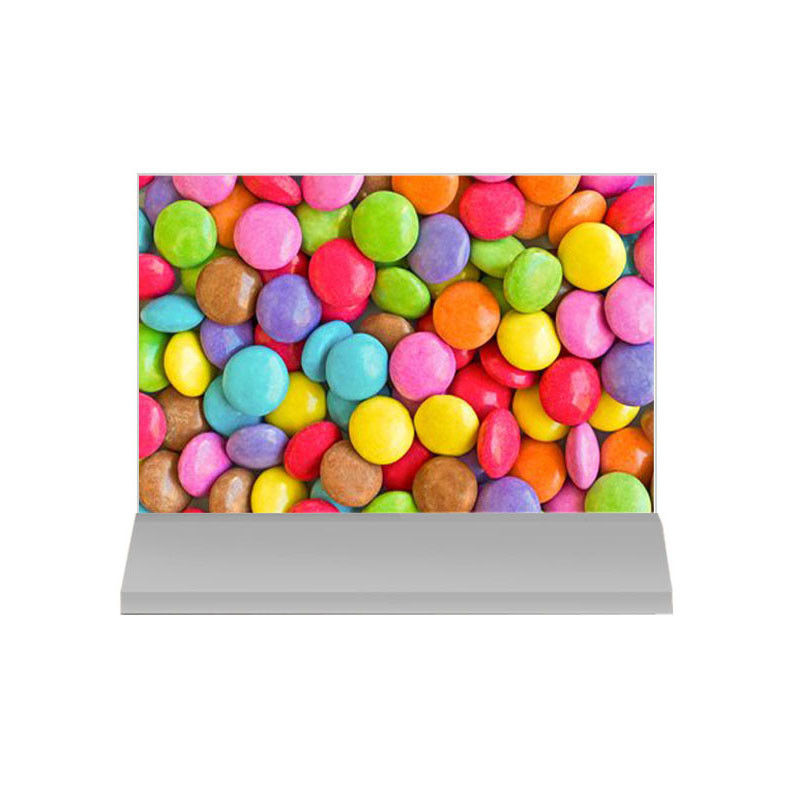

30 Inch Transparent OLED Panel 4K Clear OLED Display For Interactive Menus 2

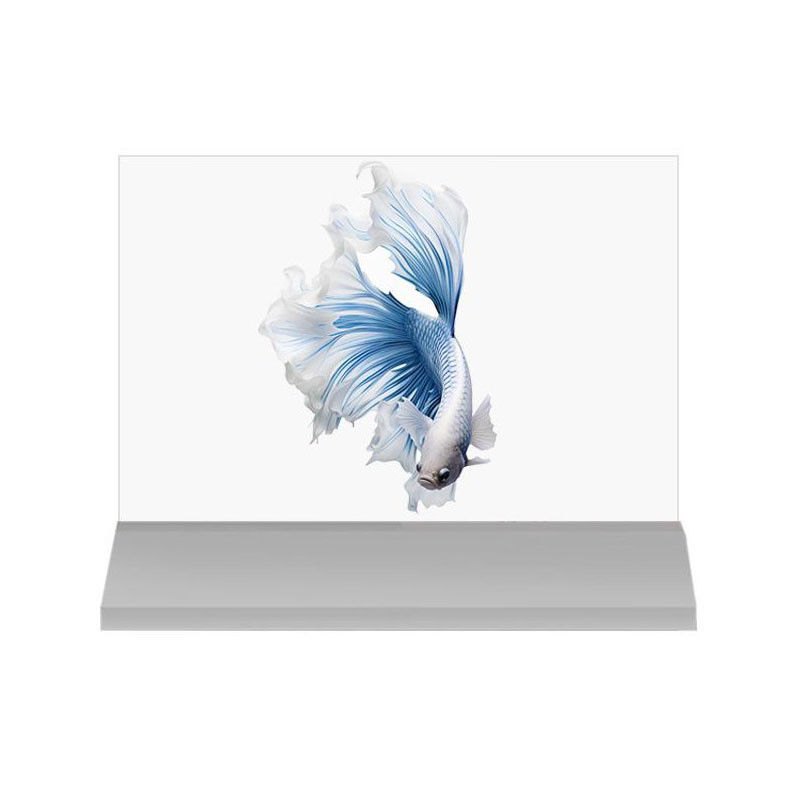

30 Inch Transparent OLED Panel 4K Clear OLED Display For Interactive Menus 3
