Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK052

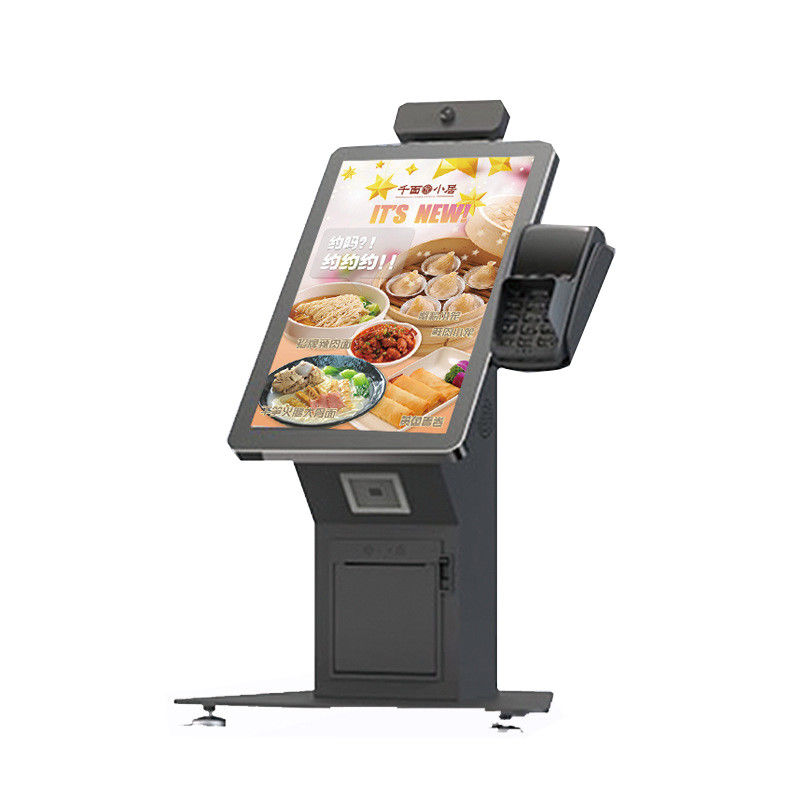

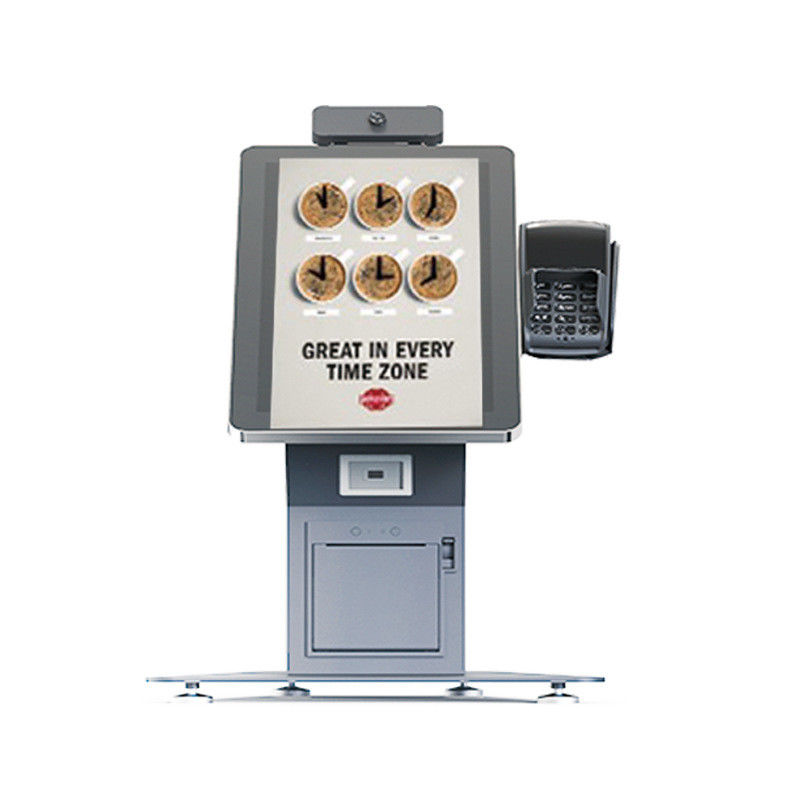

The 15.6-inch desktop smart ordering terminal, with its compact design and intelligent functions, has become a powerful tool for transformation in milk tea shops, bakeries, and community fast-food restaurants.
![]()
Addressing the limited front-desk space in small catering establishments, the 15.6-inch desktop interactive terminal achieves a perfect balance between space utilization and user experience with its golden screen ratio. Its ultra-narrow bezel design reduces the size by 25% compared to traditional devices, allowing for flexible integration into cash registers, bar counters, or independent stands. It supports 0°-90° tilt adjustment, adapting to standing or sitting operating scenarios.
Built-in dual-screen display functionality allows the main screen to display the ordering interface to customers, while the secondary screen allows staff to view order details, enabling "one machine, two roles" collaboration.
The device is IP65 certified, resisting common contaminants such as water splashes and flour dust. Equipped with an industrial-grade capacitive touchscreen, it allows for precise operation even while wearing gloves. Its wide operating temperature range of -10℃ to 50℃ ensures stability in special environments such as breakfast shops and beverage stations. The modular interface design supports external devices such as barcode scanners and receipt printers, meeting diverse operational needs.
![]()
Generally, the 15.6-inch desktop smart terminal only supports manual touchscreen ordering, with the order record synchronized to the restaurant's logistics system. However, some customized models integrate AI voice interaction and visual recognition technology, simultaneously supporting touch, voice, and barcode scanning ordering modes.
For example, if a customer says "one cup of pearl milk tea with less ice and half sugar," the system automatically recognizes the taste preference and generates an order, reducing the ordering time to less than 15 seconds. Staff can monitor the status of six orders in real time via a secondary screen, and the intelligent scheduling system automatically optimizes queuing logic based on food preparation progress, reducing customer waiting anxiety.
![]()
The back-end management system deeply integrates with the supply chain data chain. When the inventory of a certain raw material falls below a threshold, it automatically triggers a procurement alert and simultaneously adjusts the availability status of the front-end menu. The built-in energy consumption monitoring module analyzes peak and off-peak operating times and intelligently activates sleep modes, helping merchants save over 20% on electricity costs.
![]()
![]()
The 15.6-inch desktop smart ordering machine, with its combination of lightweight hardware and intelligent software, provides small and medium-sized catering enterprises with a cost-effective digital transformation solution. From saving 40% of front-end space to reducing labor costs by 30%, from reducing ordering errors to strengthening supply chain management, this device is becoming a standard configuration for refined operations in the catering industry. With the integration of edge computing and IoT technologies, its value as a "store data collection terminal" will be further unleashed, driving the evolution of catering services towards a smarter and more efficient direction.
| LCD Panel Parameters | Screen Size | 15.6 inch | |
| Display area | 344.16(H) X 193.59(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 450 X 310 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
