Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK045

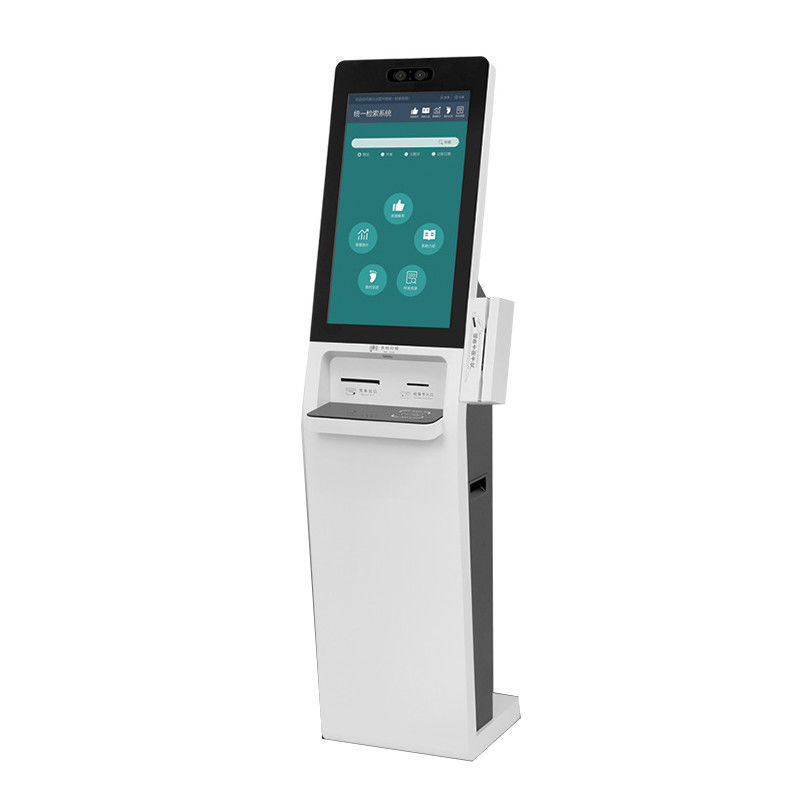

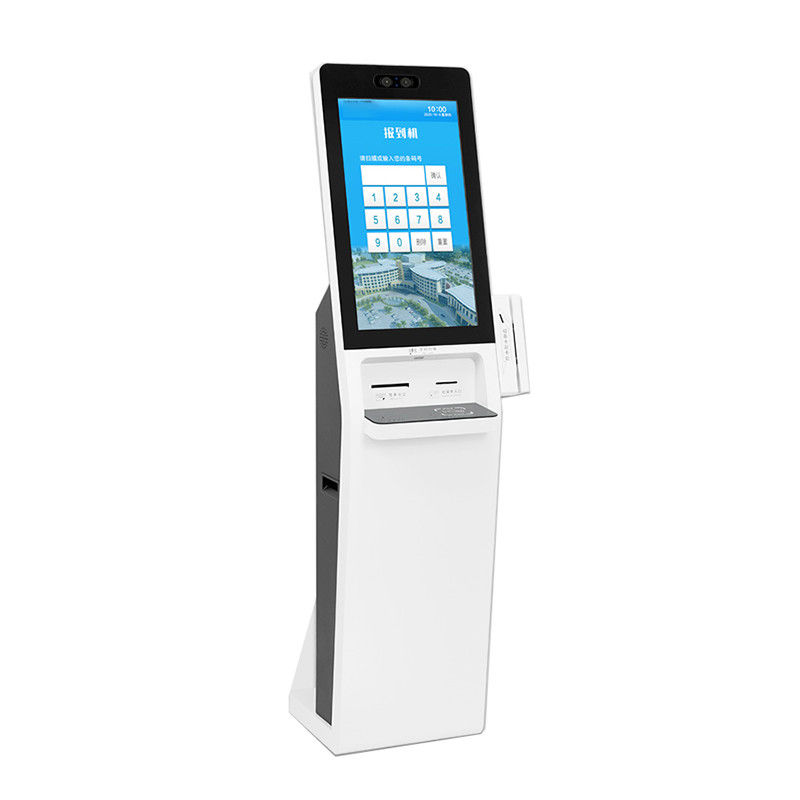

In the modern catering industry, improving service efficiency and customer satisfaction is a constant goal for every restaurant. The 23.6-inch restaurant ordering system, with its moderate screen size, powerful hardware features, and flexible application scenarios, has become an important tool for optimizing restaurant operations.
![]()
The 23.6-inch restaurant ordering system uses a 1080P high-definition capacitive display screen, providing a clear, detailed, and precise visual experience. This moderate screen size avoids being too bulky and taking up too much space, while ensuring the clarity of menu content and advertising displays. The screen surface features an anti-glare coating and anti-fingerprint treatment, maintaining a clear image even in complex lighting environments and resisting stains, keeping it always clean.
The device's design pays attention to detail, with a narrow bezel design maximizing the screen-to-body ratio and enhancing overall aesthetics. Furthermore, the body is made of high-quality aluminum alloy, which not only has excellent heat dissipation performance but also effectively resists impacts and wear during daily use. This robust and durable design allows the device to operate stably for extended periods in various commercial environments.
![]()
To meet diverse usage needs, the 23.6-inch restaurant ordering terminal is equipped with abundant hardware interfaces and expansion functions. The device features a built-in high-performance processor and large-capacity memory, ensuring smooth system operation and rapid response. Whether during peak hours or daily use, it can quickly process orders and provide a smooth user experience.
The terminal supports multiple peripheral interfaces, such as USB, HDMI, and Ethernet, facilitating connection to printers, scanners, payment terminals, and other devices to further enhance its functionality. For example, by connecting a thermal printer, customers can directly print receipts after placing their orders; by connecting a QR code scanner, membership cards or coupons can be quickly identified, improving customer convenience.
The 23.6-inch restaurant ordering terminal supports multiple installation methods, allowing for flexible placement according to different site requirements. Common installation methods include freestanding, wall-mounted, and desktop embedded types, suitable for restaurants of different sizes and types. For example, in small restaurants or cafes, a desktop-mounted design can be chosen to save valuable counter space; while in large hotels or banquet halls, a freestanding or wall-mounted design can be used for convenient customer access.
The device is equipped with an adjustable stand at the bottom, allowing the screen height and angle to be adjusted according to the user's height and usage habits, providing a more comfortable interactive experience. Furthermore, the terminal supports a modular design, facilitating future expansion and upgrades, such as adding payment modules, advertising carousels, or other peripherals, further enhancing its flexibility and practicality.
![]()
The 23.6-inch restaurant ordering terminal, with its ingenious design, is an ideal choice for improving restaurant operational efficiency and service quality. Whether in upscale restaurants, fast-food chains, or other venues requiring efficient ordering services, the 23.6-inch restaurant ordering terminal offers significant advantages for businesses seeking to improve customer experience and operational efficiency, helping them enter a new era of intelligent operation.
| LCD Panel Parameters | Screen Size | 23.6 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
