Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK038
In today's catering industry, where efficiency and experience are paramount, the 15.6-inch Self Service Ordering System Restaurant has become an ideal choice for the digital transformation of small and medium-sized restaurants, thanks to its precise positioning and versatile configuration. Unlike ordinary equipment, this machine prioritizes practicality, redefining the value boundaries of traditional ordering machines through deep hardware and software synergy.
![]()

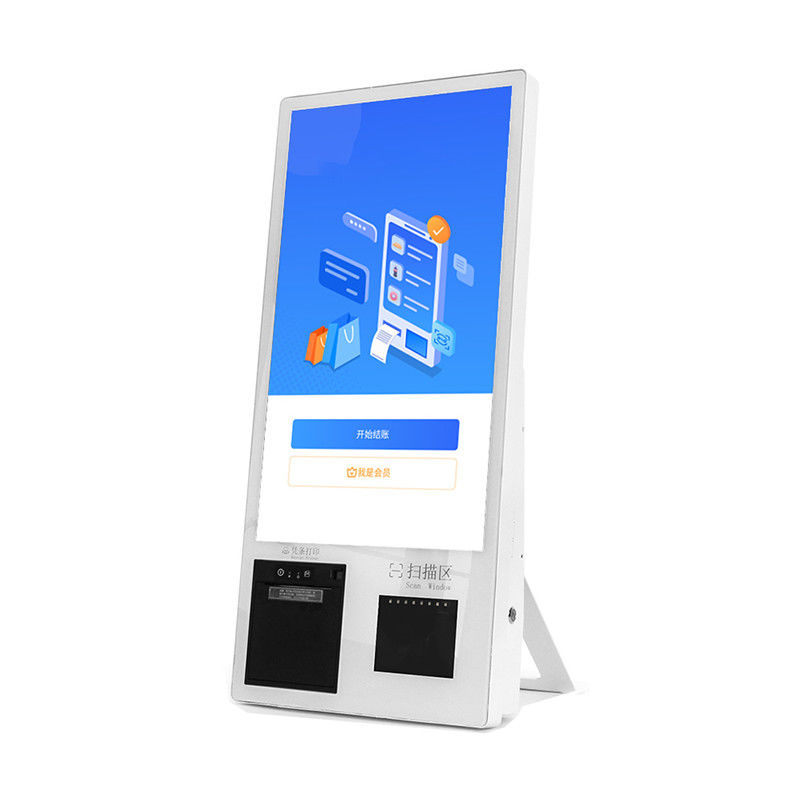

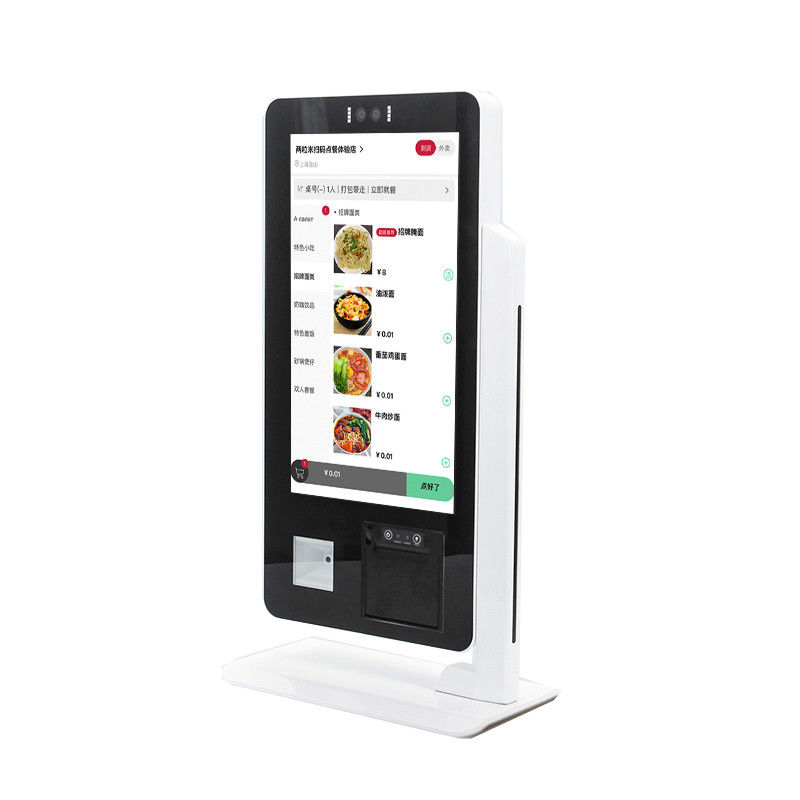

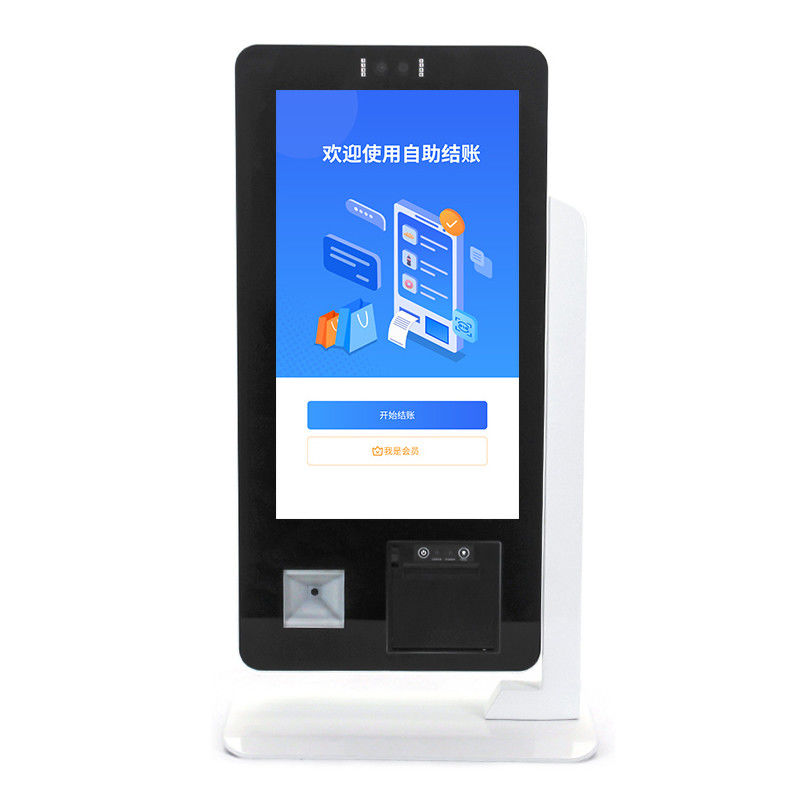

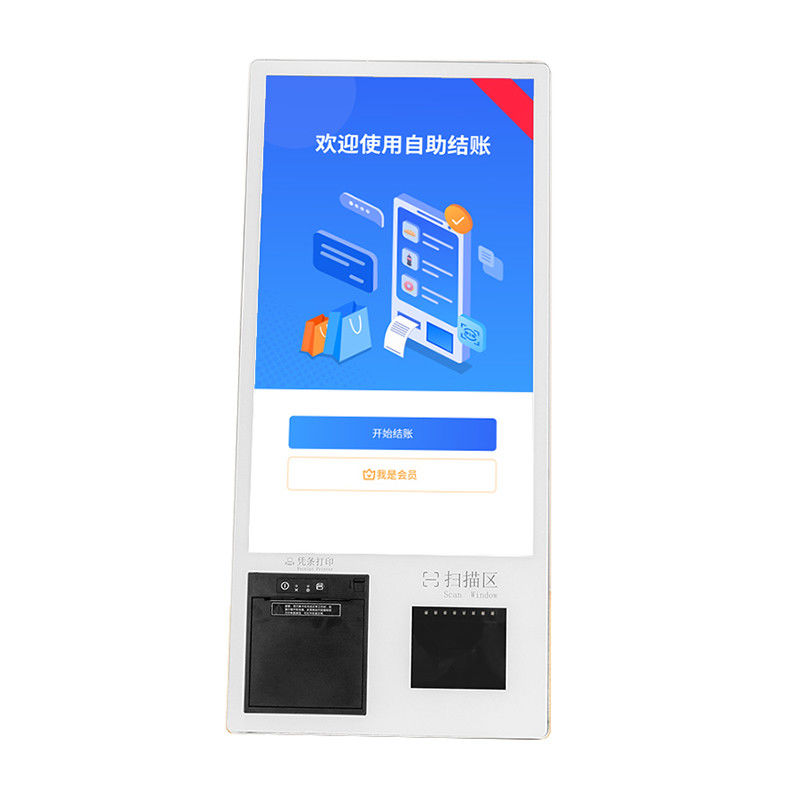

The 15.6-inch Self Service Ordering System Restaurant features a 15.6-inch high-definition touchscreen as the core interactive element. It utilizes capacitive touch technology, supporting 10-point touch response. The screen surface is covered with a stain-resistant and oleophobic coating, allowing for easy wiping away of fingerprints or oil stains.
The body uses a baked enamel finish, undergoing 72 hours of salt spray testing and 100,000 fingerprint rub tests to form a dense protective layer. The matte texture not only enhances the device's aesthetics but also effectively prevents fingerprint residue, making it particularly suitable for hygiene-conscious hot pot restaurants and light meal restaurants.
![]()

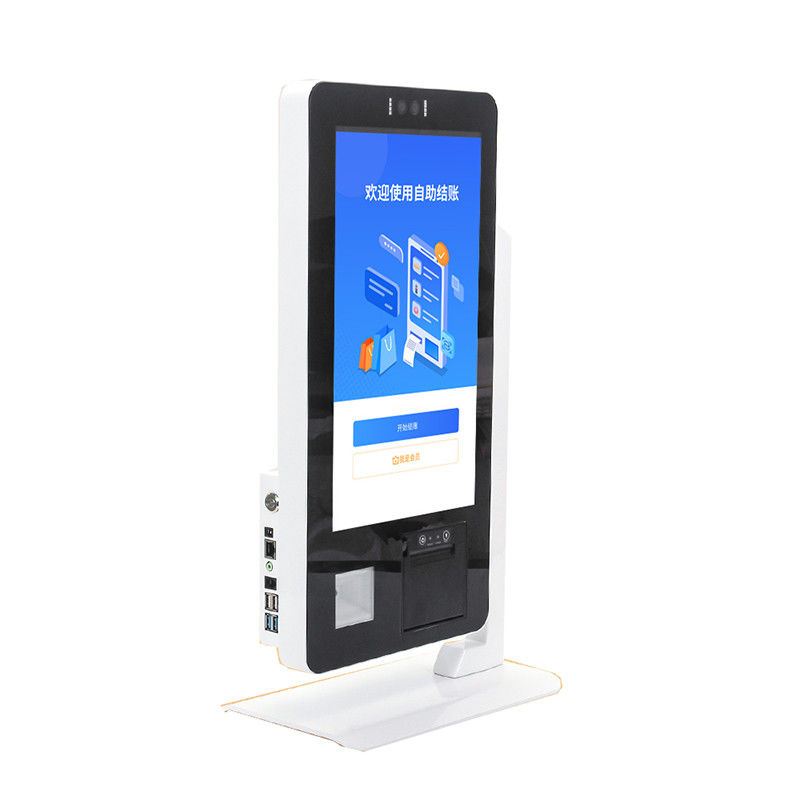

The device features a USB 3.0 port, an HDMI 2.0 port, an RJ45 Ethernet port, and an SD card slot on the back, supporting external printers, barcode scanners, POS machines, and other devices. An operations manager at a chain milk tea shop mentioned that connecting to a large-screen TV via the HDMI interface further expanded the menu display area, significantly improving peak-hour traffic efficiency.
Internally, it is equipped with an industrial-grade motherboard and a wide-voltage power supply module, capable of adapting to voltage fluctuations of 110V-240V, maintaining stable operation even with over 12 hours of daily operation.
![]()
Remote Screen Management: Through a cloud platform, shop owners can view the real-time operating status of the 15.6-inch Self Service Ordering System Restaurant, update menu content, or adjust promotional strategies. For example, a dessert shop can push out limited-time discount packages with a single click before holidays.
Remote operation eliminates the need for on-site debugging, significantly reducing labor costs.
Intelligent Split-Screen Function: The screen can be freely divided into multiple areas. For example, the upper half can display a dynamic menu, the lower half can display real-time order progress, and the left side can be used to set up a member points entry. A coffee shop used the split-screen function to improve ordering efficiency by 30%, allowing customers to complete payment and food pickup without frequently switching interfaces.
Automatic Timed On/Off: Supports setting automatic start and stop during business hours. During off-peak hours, the device enters sleep mode, reducing power consumption by 60%. A community convenience store reported that the automatic shutdown function at night not only saves electricity but also reduces potential safety hazards caused by forgetting to turn off the device.
![]()
Fast Food Restaurants: In high-turnover scenarios, the combination of intelligent split-screen and fast printing functions allows waiters to handle ordering, payment, and queue management simultaneously, processing over 2,000 orders per day at its peak.
Themed Restaurants: Dynamic menus and video playback functions create an immersive dining experience. For example, children's restaurants use cartoon animations to guide children in ordering independently, which parents say is "fun and reduces the burden of communication."
![]()
The value of a 15.6-inch Self Service Ordering System Restaurant for restaurants lies not in the size of its screen, but in its design logic that precisely addresses the pain points of the catering industry. From its stain-resistant paint finish to its split-screen intelligent management, from its durable architecture to its cloud services, it serves as both a "toolbox" for efficient operations and an "interactive window" for enhancing customer experience. For restaurants seeking cost-effectiveness and practicality, such equipment may be the perfect starting point for digital transformation.
| LCD Panel Parameters | Screen Size | 15.6 inch | |
| Display area | 344.16(H) X 193.59(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 450 X 310 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
