Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications

1920x1080 self order kiosk

1920x1080 self ordering kiosk

Place of Origin:

Guangdong, China

Brand Name:

ZXTLCD

Certification:

CE/Rohs/FCC

Model Number:

ZXTLCD-SOK036

Request A Quote

Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications

Product Details

Resolution:

4K Ultra HD

Frame:

Aluminum Alloy

Mic:

8 Array Mic

Operating System:

Android, Optional Windows Dual OS

Writing Method:

Pen/finger Touch

Resolution:

1920x1808

Resolution:

1920x1080

Highlight:

1920x1080 self order kiosk

1920x1080 self ordering kiosk

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiable

Packaging Details

wooden case, carton, flight cases are optional

Delivery Time

3-5 working days

Payment Terms

L/C,T/T,MoneyGram,Western Union

Supply Ability

2000 pcs per month

Touchscreen Self Ordering Kiosk Dual Side Display Restaurant Ordering Kiosk

Get Best Price

Hygienic Self Ordering Kiosk 21.5in 1920x1080 Square Self Service Kiosk

Get Best Price

1920*1080 Restaurant Self Ordering Kiosk 27in Self Service Ordering Kiosk

Get Best Price

Solar Powered Food Ordering Kiosk 18.5" Self Ordering Kiosk For Restaurants

Get Best Price

+8613538090527

info@seethrulcd.com

86--13538090527

Contact Now

Product Description

Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications

Name: Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications
Brand: Shenzhen ZXT LCD Technology Co.,Ltd
SKU: ZXTLCD-SOK036
Availability: InStock

The Modular Self-Ordering Kiosk offers unparalleled flexibility with its customizable hardware, allowing businesses to tailor the kiosk to their specific needs. Whether adding a barcode scanner, card reader, or additional display, this kiosk adapts to various applications, from retail to hospitality.

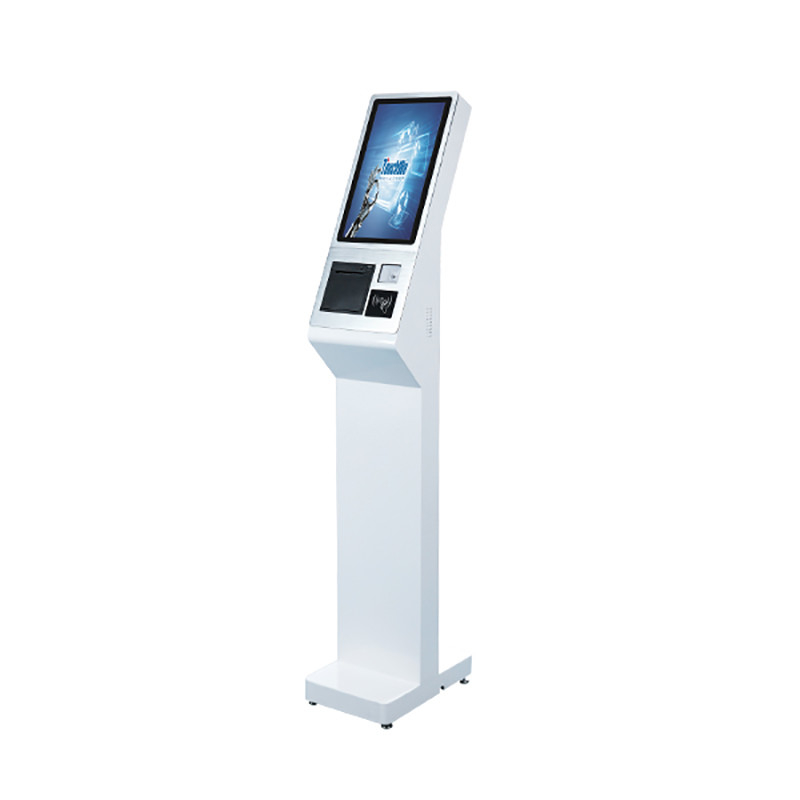

Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications 0

Its modular design ensures easy upgrades and maintenance, while the high-re

solution touchscreen and intuitive interface provide a seamless user experience. With advanced connectivity options and cloud-based software, this kiosk is a future-proof solution for businesses seeking versatility.

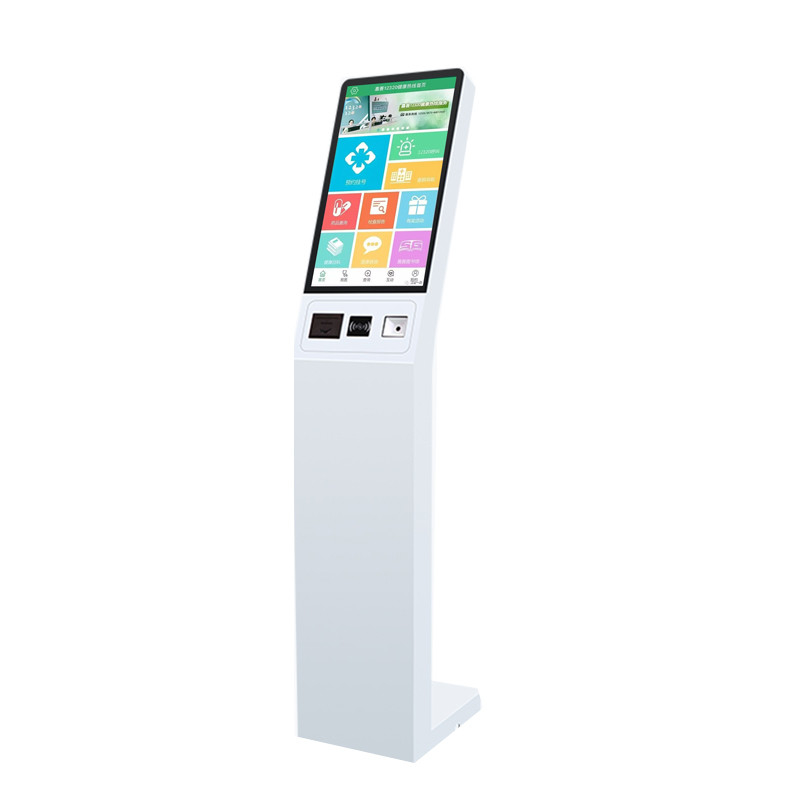

Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications 1

Modular touchscreen display;Customizable hardware for versatile applications;High-resolution display for clear visuals;Intuitive interface for smooth operation;Advanced connectivity options (Wi-Fi, Bluetooth, Ethernet);Cloud-based software for real-time updates;Easy upgrades and maintenance;Energy-efficient design

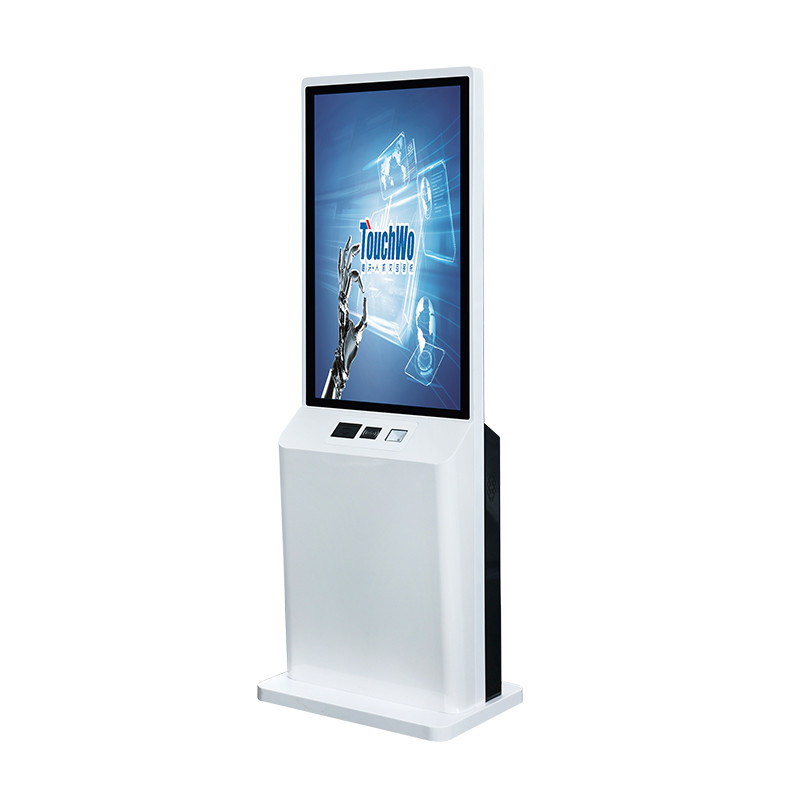

Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications 2

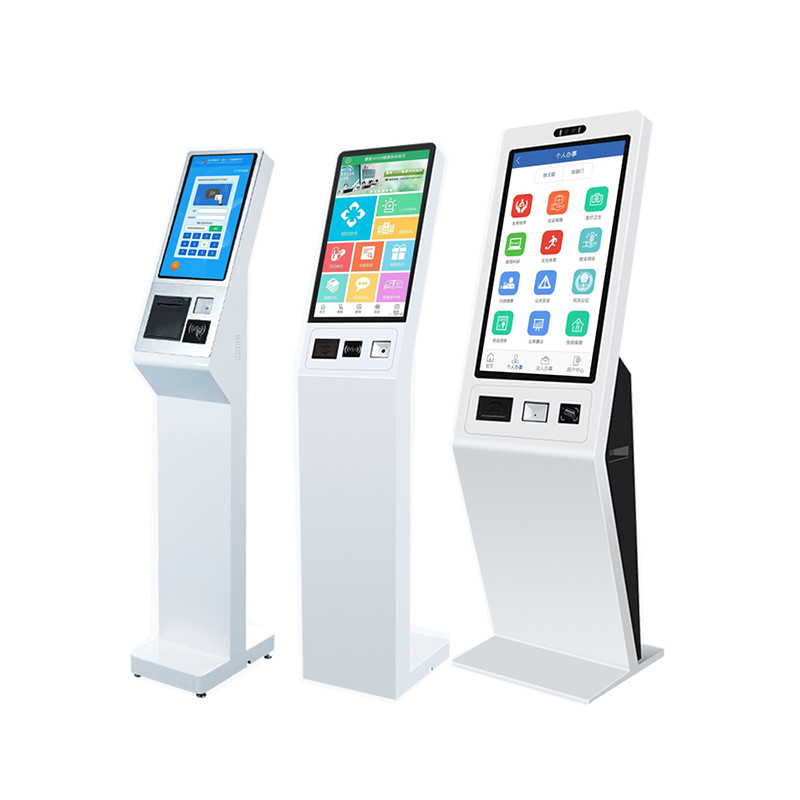

Modular Self-Ordering Kiosk with Customizable Hardware for Versatile Applications 3

LCD Panel Parameters	Screen Size	15.6 inch
	Display area	344.16(H) X 193.59(V)mm
	Aspect Ratio	16 : 9
	LCD Type	a-Si TFT-LCD
	Max Resolution	1920 X 1080
	Display color	16.7M , 72% NTSC
	Brightness	350 cd/㎡
	Contrast Ratio	3000 :1
	Viewing angle(up/down/left/right)	89/89/89/89 (Typ.)(CR≥10)
	Response Time	20ms
	LCD Panel Life(hrs)	60,000(hrs)
	Field Frequency	60Hz
PCAP Touchscreen Panel Parameters	Touch style	Projected Capacitive Touch screen
	Touch points	10 points
	Cover Glass	Physical toughened Morse magnitude 7 explosion-proof
		Anti-microbial protection and Shatterproof Protection
		Optically bonded 3mm glass for low parallax
	The glass transmittance	>88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
	Response speed	< 6ms
	Accuracy of touch	More than 90% of the touch area ±2mm
	Touch ways	Fingers, touch pen
	Output format	The coordinate output
	Clicks time	Unlimited
	The smallest touch size	5mm
	Long resistance	Yes available
	Touch Interfaces	USB
	Operating temperature & Humidity	below10℃ ~ +50℃, ≤ 85%RH
	Storage temperature & Humidity	below20℃ ~ +60℃, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC)	CPU	Intel Celeron J1900
	RAM	8GB
	SSD	64GB
	WIFI	150Mbps 802.11n wifi integate
	Network port	RJ45, 10M/100M Adaptive Ethernet
	Interface	2 * RJ45 GB Ethernet
	Interface	2 * RS232 Serial Port
	operating system	Win10 or win11 optional
Onboard interface	HDMI input	1
	VGA input	1
	DVI input	1
	USB Type B or Any USB Type optional	1
Parts(Built-in)	QR/Barcode Reader	Can recognize 1D barcode and 2D barcode
Parts(Built-in)	Receipt Printer	80mm Thermal printer with cutter
Power	Power supply	AC 100V~240V, 50/60Hz
	The Max power loss	≤ 45w
	Standby power loss	< 1W
Features	Operating temperature	0℃ ~ 50℃
Features	Storage temperature	below10℃ ~ +60℃
Accessories	The length of Power Cable	1.5m
	The length of HDMI Cable	2m
	The length of USB-A to USB-B Cable	1.5m
Versatile Mounting Solution	Wall Mounted	with walll mount bracket
Versatile Mounting Solution	Stand Holder(Optional)	Movable, can be with wheels on the base, height is adjustable
Package size	Machine body size	Customized
	Net weight	Customized
	Unit Package size	450 X 310 X 110mm
	The Gross weight of Unit Package	50kg

Perfect for outdoor markets, construction sites, and businesses in harsh climates.

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
