Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK032

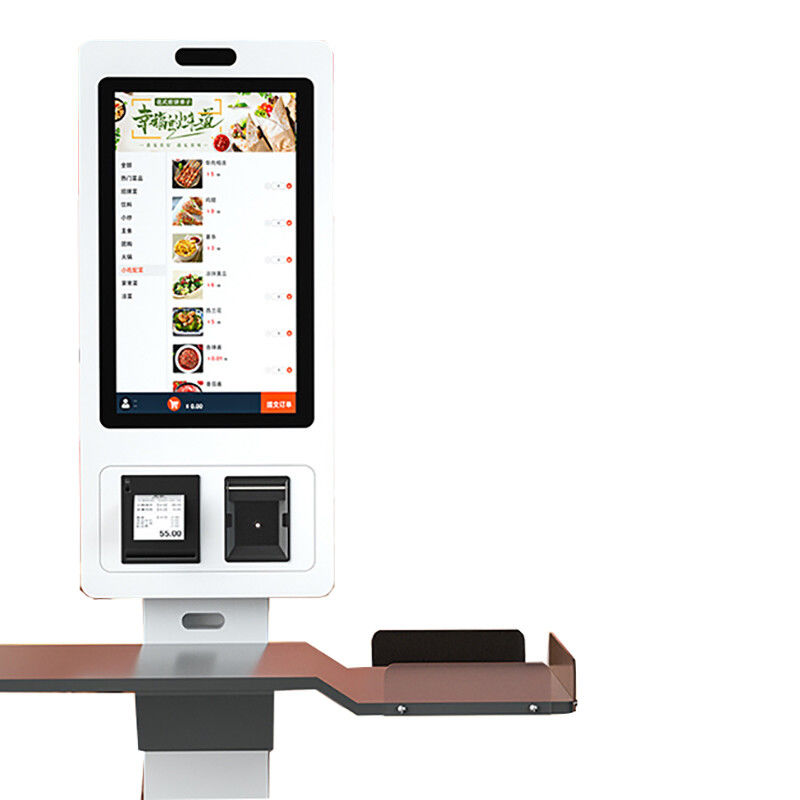

Driven by both rising labor costs and the upgrading of consumer experience, the catering industry is accelerating its move towards intelligent and self-service models. The 32-inch Fast Food Self Service, with its four core values of saving labor, reducing errors, facilitating checkout, and increasing order rates, is transforming from an "auxiliary tool" into a core engine reshaping store operation models, helping businesses build a more efficient, economical, and customer-friendly new ecosystem for catering services.
The 32-inch Fast Food Self Service is not simply a hardware replacement, but a comprehensive efficiency solution:
Saving Labor Costs: Customers independently complete the entire process of browsing, ordering, and paying, freeing front-desk staff from repetitive ordering and checkout tasks. This allows them to focus on more important customer service, cleaning, or marketing work, optimizing staff allocation and saving costs.
Effectively Reduces Errors: The digital ordering process avoids misunderstandings, typos, or memory errors caused by human communication. Order information is transmitted directly and accurately to the kitchen, significantly reducing customer complaints and cost losses caused by incorrect or missed orders.
Convenient and Efficient Checkout: Integrating multiple online payment methods (QR code scanning, facial recognition, etc.), the payment process is completed instantly, with funds arriving in real time, greatly improving checkout efficiency and fund security, and shortening customer waiting time.
Exquisite Menu Display: The high-definition touchscreen can display optimized and beautifully designed menu images, dynamic videos, and even 3D models, making it more attractive than traditional paper menus. This effectively stimulates customer appetite, increasing order rates and average order value.
High-Definition Touchscreen: Provides a smooth and intuitive interactive interface.
Receipt Printer: Automatically prints a pickup slip or consumption details after order confirmation.
Scanning Device: Used for QR code payment, membership code verification, and coupon verification.
The 32-inch Fast Food Self Service can flexibly adapt to different catering formats, forming an efficient operational loop:
1. Fast Food Restaurant – Number-Based Pickup Mode
Process: Customers order and pay via self-service → System sends order to kitchen and prints receipt (including pickup number) → Kitchen prepares food → System calls the number or screen prompts → Customer picks up food using the number.
Advantages: Orderly and avoids crowding, especially suitable for peak hours.
2. Full-Service Restaurant – Table Delivery Mode
Process: Customers order and pay at their tables via QR code or fixed terminal → Order and table number are sent to kitchen and server's handheld terminal → Kitchen prepares food → Server accurately delivers food to the table.
Advantages: Improves table utilization, reduces server back-and-forth communication, and improves delivery accuracy.
3. Unmanned/Lightly Staffed Restaurants — Self-Service Pickup Mode
Process: Customers order and pay independently → Orders are sent to the kitchen and the smart pickup locker is assigned a compartment → The kitchen prepares the food and places it in the corresponding compartment → Customers receive a pickup notification (SMS/Mini Program) and then open the locker to pick up their food.
Advantages: Achieves fully contactless operation, maximizing labor savings and providing flexible pickup times.
| LCD Panel Parameters | Screen Size | 32 inch | |
| Display area | 698(H) X 391.8(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 832 X 530 X 150mm | ||
| The Gross weight of Unit Package | 50kg | ||
The widespread adoption of 32-inch Fast Food Self Service marks a crucial transformation in the catering industry, moving from "service dependence" to "experience-driven." It's not just about applying technology, but also about reconstructing operational thinking. Embracing self-service ordering means choosing a more efficient, intelligent, and competitive path to future development.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
