Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK030

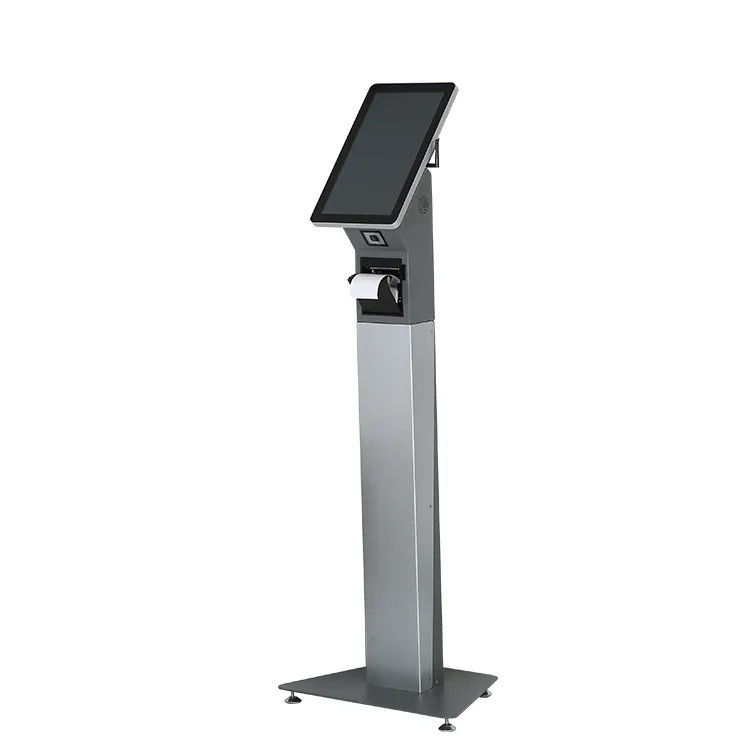

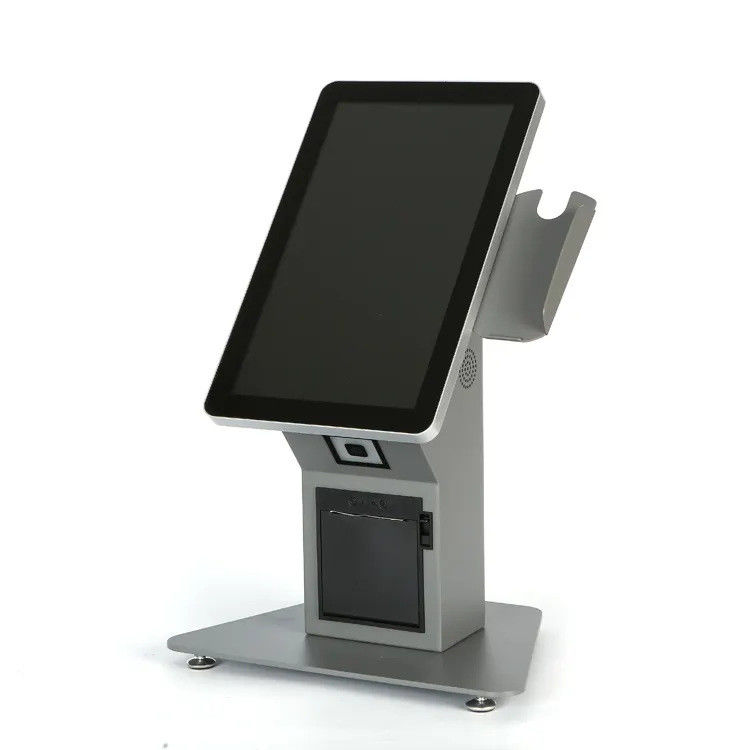

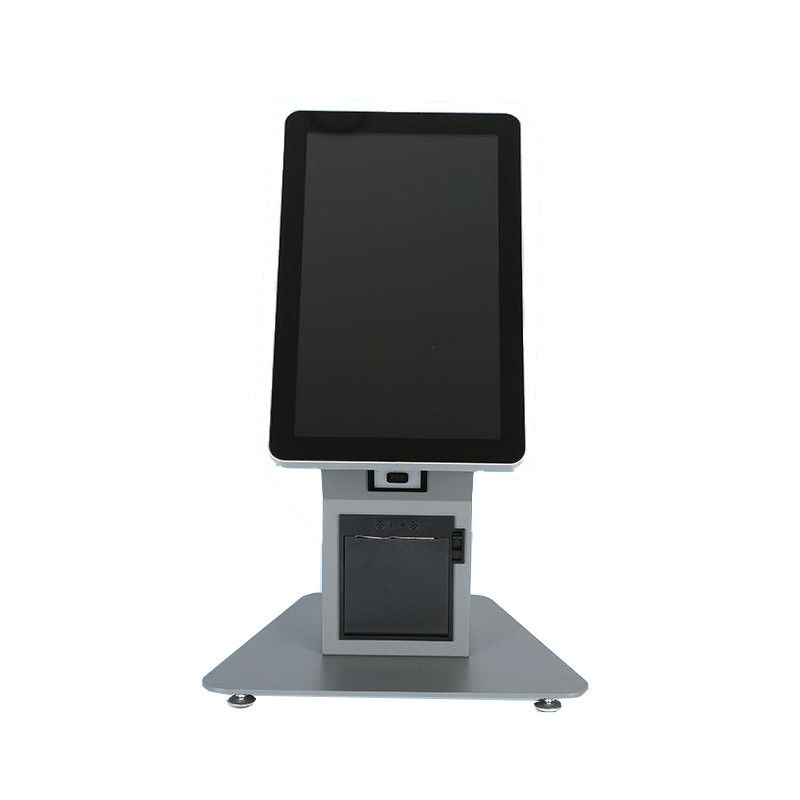

In today's catering service industry, where efficiency and intelligence are increasingly valued, a self-service machine integrating ordering, payment, printing, and network connectivity has become standard equipment for stores. Our Self Order Kiosk Fast Food, leveraging the strength of a source manufacturer, offer stable production capacity, modular design, and full-scenario adaptability, providing catering and retail merchants with a reliable, efficient, and flexible digital upgrade solution.
As a source manufacturer, ZXTLCD possesses a mature production system and large-scale inventory capabilities, ensuring stable equipment quality and timely supply. From core components to complete machine assembly, strict quality control is implemented throughout the entire process, providing merchants with products that offer competitive prices and reliable after-sales support, facilitating rapid deployment and continuous operation.
The device highly integrates multiple essential functions for restaurant operations, constructing a complete service loop:
High-Definition Capacitive Touchscreen:Provides a sensitive and smooth touch interaction experience with a clear and intuitive interface, guiding customers to easily complete ordering;
Built-in 80mm High-Speed Printer:Instantly prints receipts or kitchen order slips after order confirmation, eliminating the need for external equipment and saving space and wiring;
High-Definition Camera:Supports facial recognition, photo evidence collection, and future visual interaction expansion;
QR Code Scanner:Quickly recognizes payment codes, membership codes, and product barcodes, improving checkout and verification efficiency;
Intelligent Settlement System:Supports multiple payment methods including QR code payment, card payment, and digital RMB, ensuring secure and fast transactions;
Network Capabilities:Equipped with dual-mode WiFi and 4G connectivity, ensuring stable communication in complex network environments, supporting takeout order taking, data synchronization, and remote management.
Its functional design caters to the diverse operational needs of the catering industry:
Dine-in Self-service Ordering: Customers independently select, customize, and pay for their meals, reducing queuing and communication costs;
Takeout Order Processing: Directly connects to or displays takeout platform orders, supporting barcode scanning for order processing and food preparation management;
Fast Checkout and Settlement: Suitable for retail scenarios including product barcode scanning, price inquiry, and checkout.
| LCD Panel Parameters | Screen Size | 21.5 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
This Self Order Kiosk Fast Food is not just a piece of hardware, but a comprehensive solution for catering businesses to reduce costs, increase efficiency, and achieve digitalization. With the reliability of direct supply from the manufacturer, highly integrated functional design, and flexible product form, it can quickly integrate into various business scenarios, helping businesses optimize service processes, improve operational efficiency, confidently respond to market changes, and steadily enter a new stage of smart operation.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
