Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK024

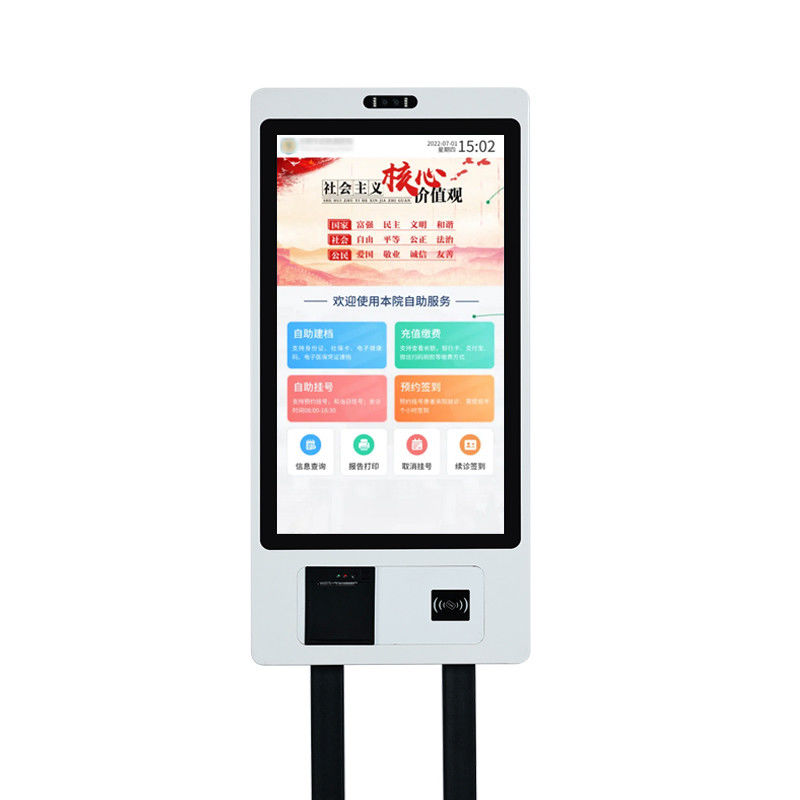

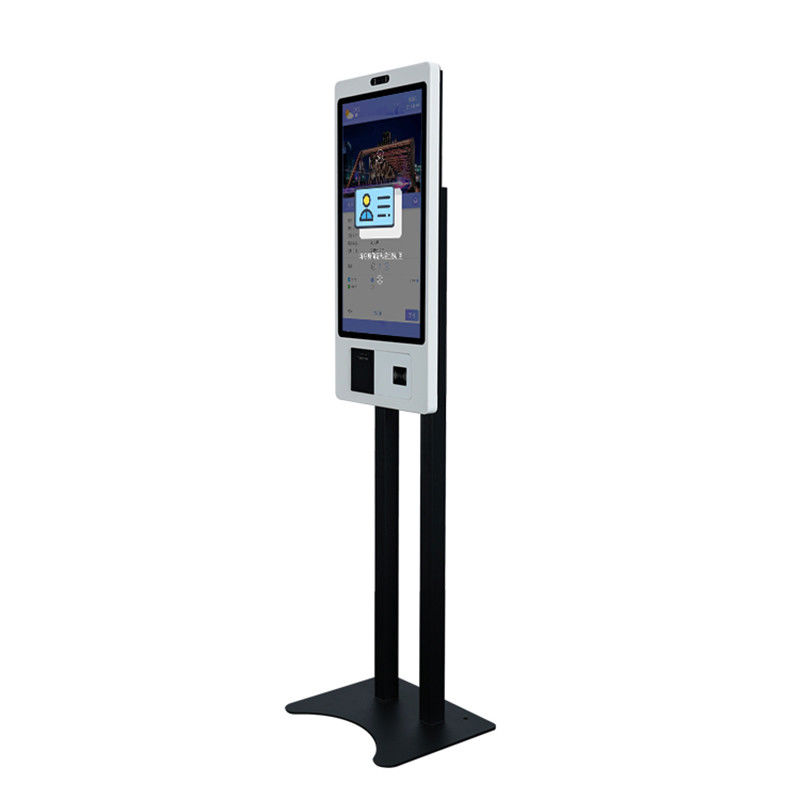

Self-service ordering machines are no longer just tools for improving efficiency in the catering industry; they have become indispensable intelligent nodes in the digital transformation of many industries such as healthcare, transportation, and retail. With advancements in touch technology and improvements in hardware quality, the new generation of self-service ordering machines is profoundly changing the way public services are provided, thanks to their superior interactive experience and high adaptability to various scenarios.
The devices are equipped with high-channel capacitive touchscreens independently developed by a professional capacitive screen manufacturer. Their touch accuracy reaches 99.5%, achieving zero-latency and highly sensitive fingertip response. This precise, "point-and-click" control stems from in-depth research into user needs and continuous technological refinement. Whether quickly swiping through menus or precisely clicking on small options, users experience a smooth and responsive interactive experience, significantly reducing the learning curve and frustration for users. This makes them particularly suitable for long-term, stable service in high-traffic, frequently used public places.
We insist on using brand-new original factory A-grade LCD screens, eliminating the use of disassembled or second-hand screens and other potentially hazardous components. Each screen undergoes rigorous screening to ensure no bright spots or dark patches, and accurate and uniform color reproduction. Combined with multi-layer optical protection technology, the screen provides 1080P Full HD resolution while boasting high brightness and excellent viewing angles. Even in complex public environments such as airports and hospital lobbies, information display remains clear and sharp, ensuring effective delivery of service information and a professional brand image.
The value of self-service ordering kiosks lies in their powerful scene adaptability and modular expansion capabilities, successfully empowering multiple industries:
Smart Healthcare Scenarios
In hospital settings, the terminal integrates multiple functional modules, becoming a "one-stop" portal for patient services:
Self-Service Registration and Guidance: Patients can independently complete appointment registration, department search, and route guidance.
Outpatient Payment and Check-in: Supports multiple payment methods including medical insurance cards, bank cards, and QR code scanning. Check-in is automatically completed after payment.
Report Inquiry and Printing: Self-service inquiry and printing of test reports are available via ID card scanning or barcode scanning.
Intelligent Triage Management: Integrates with hospital queuing and calling systems to optimize the patient flow and reduce crowding.
The equipment supports comprehensive modular customization. Hardware modules can be flexibly added or adjusted according to the specific business processes of different industries. For example:
Medical Industry: Add medical insurance card readers, thermal report printers, and document scanners.
Transportation Industry: Integrate passport readers, boarding pass printers, and baggage tag printers.
Retail/Catering Industry: Configure barcode scanners, banknote counters, customer display screens, and kitchen printers.
Through an open hardware architecture and software interfaces, we can provide tailored solutions for various industries, ensuring seamless integration of terminal devices with existing business systems and truly meeting the needs of complex and diverse scenarios.
| LCD Panel Parameters | Screen Size | 32 inch | |
| Display area | 698(H) X 391.8(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||

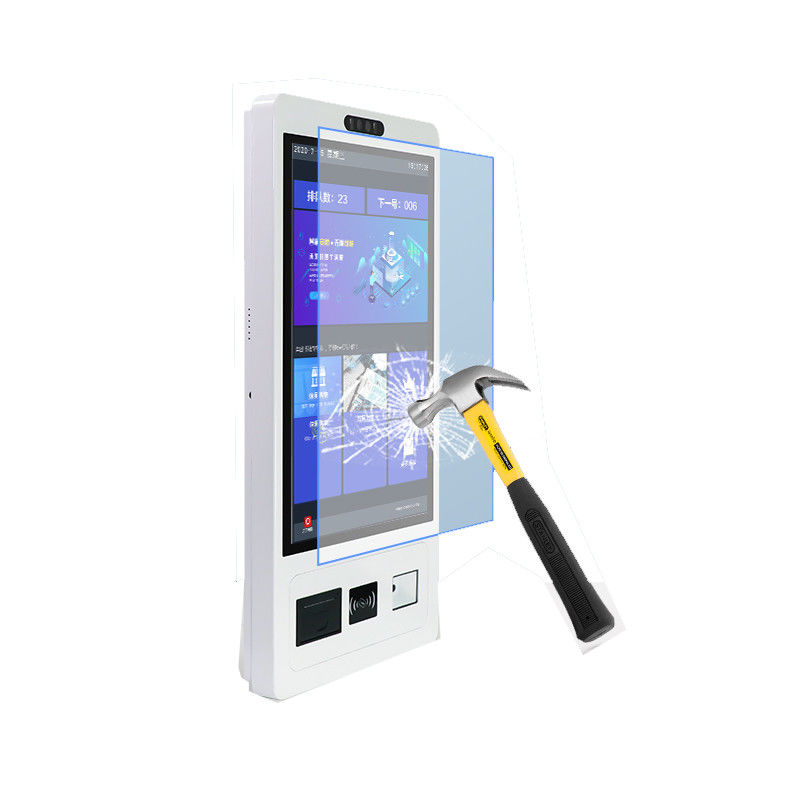

| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 832 X 530 X 150mm | ||
| The Gross weight of Unit Package | 50kg | ||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
