Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK009
In an era where catering and retail businesses strive to maximize space efficiency, how can service capabilities and brand image be multiplied without increasing floor space? Ultra-thin dual-sided Kiosk Self Ordering, with their innovative front and rear dual-screen design, all-metal ultra-thin body, and multimedia audio-visual system, provide a revolutionary and efficient solution for space-constrained businesses such as fast food, tea shops, and snack stalls, truly achieving "one machine, two uses, doubled efficiency."
![]()

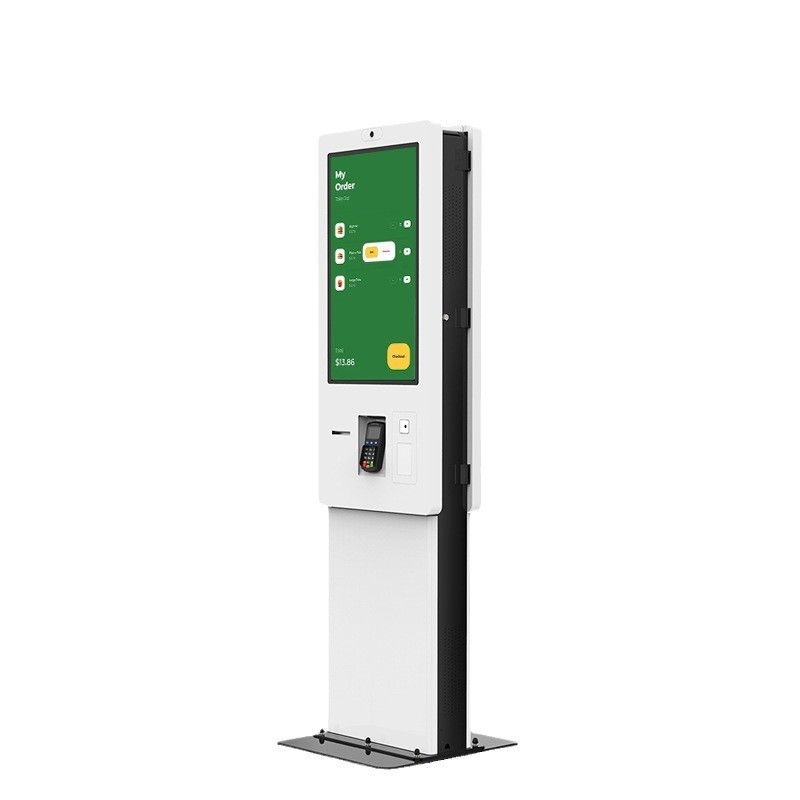

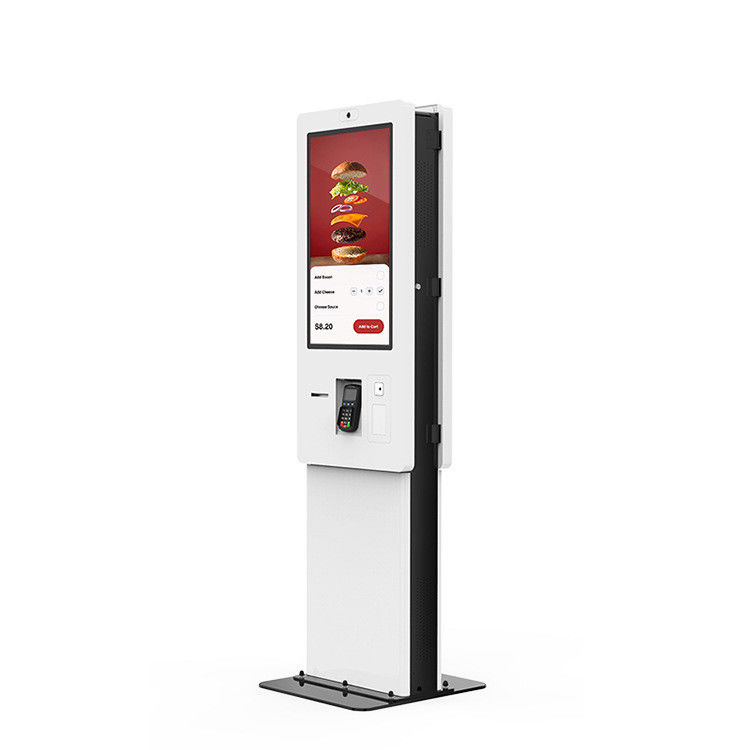

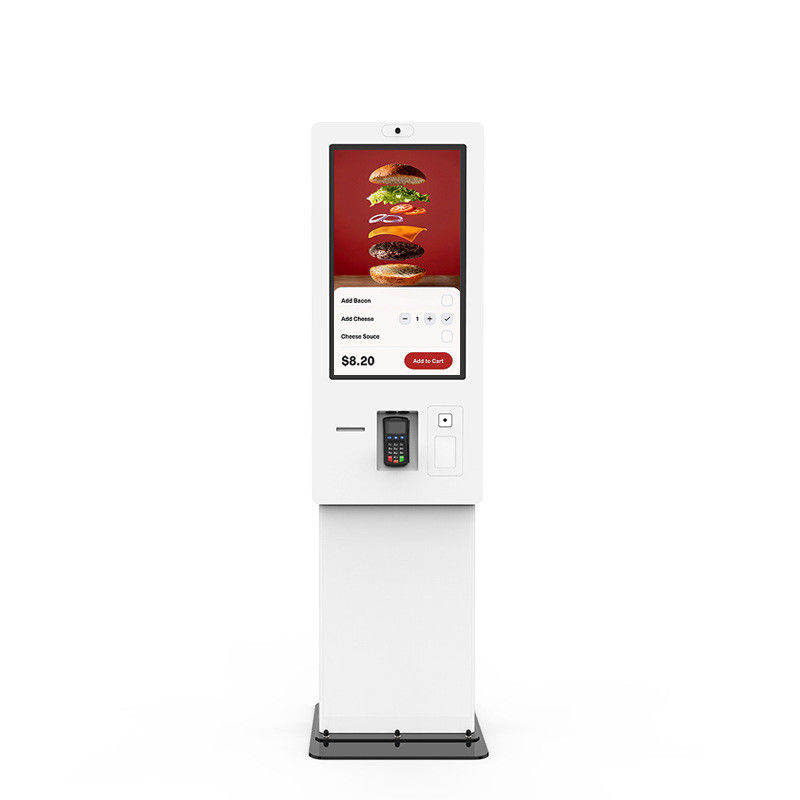

This Kiosk Self Ordering adopts a revolutionary front and rear dual-screen structure. The front faces the customer for self-service ordering, payment, and information browsing; the back faces the staff or serves as a second service surface, used for order confirmation, kitchen information display, promotional playback, or ordering from another customer. This design directly doubles the functionality and display area of a single device, significantly improving the service capacity and space utilization of the location without occupying additional space. It is especially suitable for fast food windows, tea bars, snack stalls, and other scenarios with extremely high requirements for operational efficiency and spatial layout.
![]()
Robust and Aesthetically Pleasing: All-Metal Ultra-Thin Structure, Stable and Space-Saving

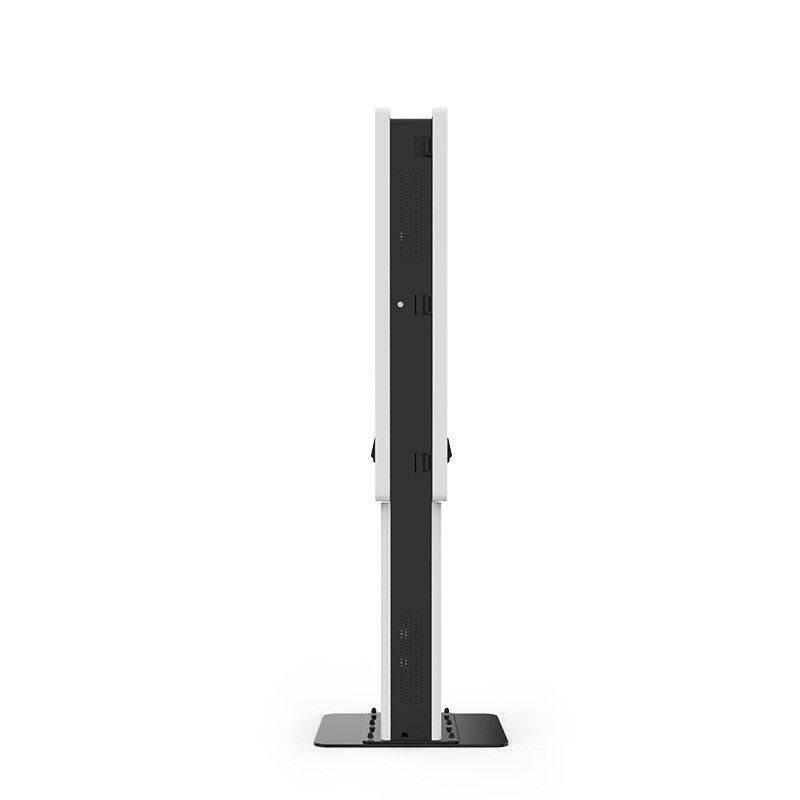

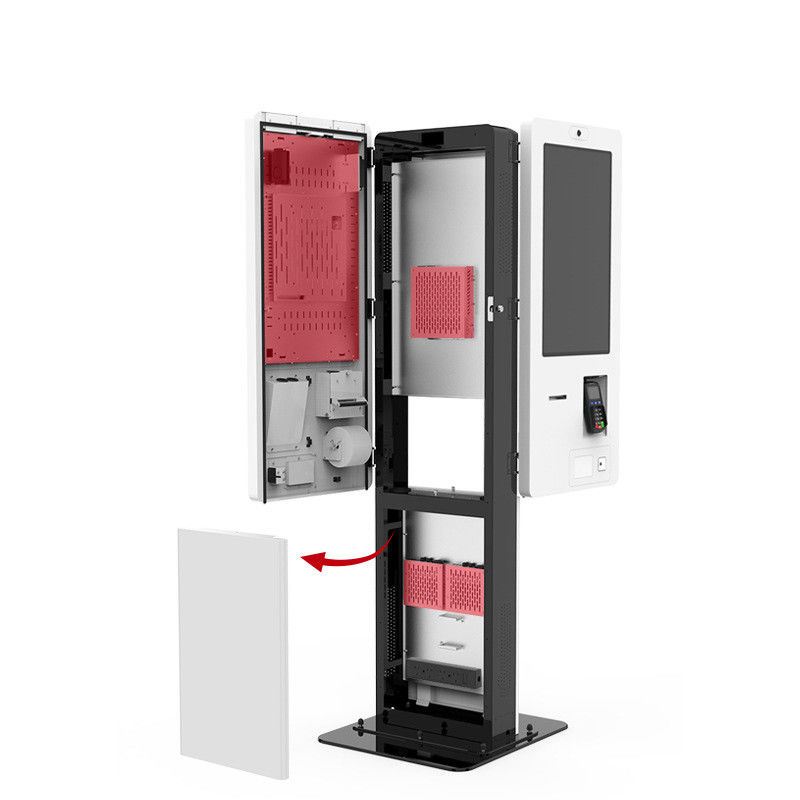

The unit features an all-metal unibody structure, balancing industrial strength with minimalist aesthetics. Its ultra-thin, floor-standing design ensures stability and safety while minimizing floor space, easily integrating into various narrow or unique space layouts. It doesn't obstruct customer flow and becomes a visually appealing and practical focal point within the store.
![]()
The unit is equipped with a 1000P high-definition commercial display screen, delivering clear, detailed images and true-to-life colors. Combined with 10-point capacitive touch technology, the touch response is sensitive and smooth, ensuring an efficient and comfortable operating experience for both customers and staff. Users can flexibly choose between 27-inch or 32-inch screen versions based on their available space and budget.
![]()
The unit integrates left and right dual-channel speakers, supporting playback of over 30 multimedia formats. During non-ordering hours or standby mode, brand promotional videos, product advertisements, promotional information, or background music can be played on the front and rear screens. The rich audio-visual output not only enhances the customer's waiting experience but also effectively elevates the store's brand image and atmosphere, transforming a simple transaction point into a mini-stage for brand communication.
| LCD Panel Parameters | Screen Size | 32 inch | |
| Display area | 698(H) X 391.8(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 832 X 530 X 150mm | ||
| The Gross weight of Unit Package | 50kg | ||
The ultra-thin double-sided Kiosk Self Ordering is more than just an ordering device; it's a systemic innovation in space efficiency, service flow, and brand experience. It overcomes physical limitations with its dual screens, integrates into diverse environments with its ultra-thin design, and enhances brand perception with its multimedia capabilities. This helps businesses build a differentiated operational advantage in a fiercely competitive market by applying cutting-edge technology, achieving a dual improvement in efficiency and image.
