Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK008

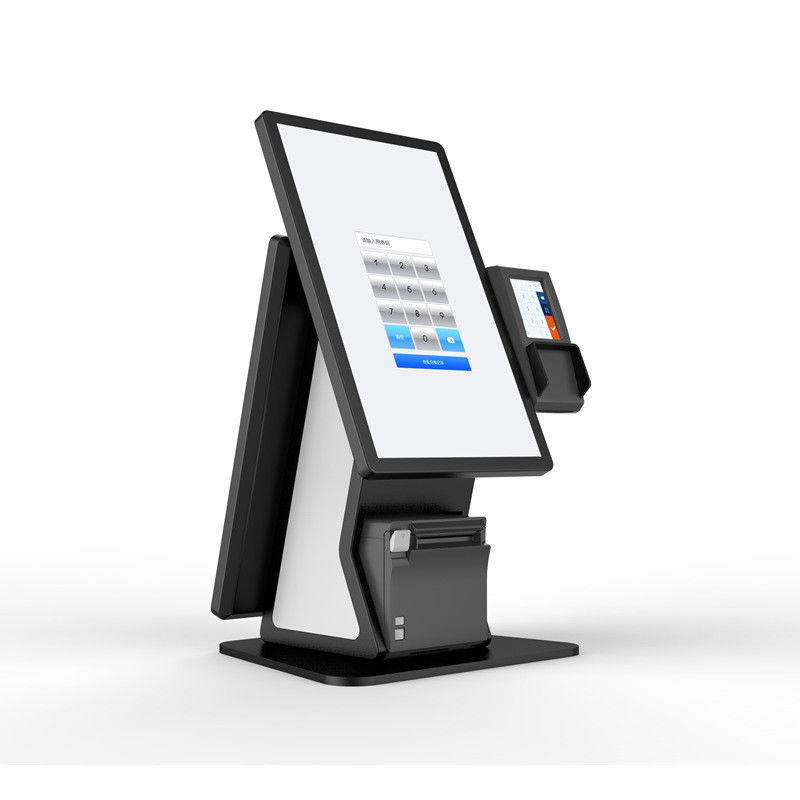

In the wave of digitalization in the catering industry, Desktop Automated Fast Food Kiosk have become crucial for improving efficiency and optimizing the customer experience. As their "armor" and "face," the shell not only affects the product's appearance but also directly impacts its durability, safety, and brand image. We focus on providing highly customized metal shell solutions, creating a robust and aesthetically pleasing "outer garment" for your self-service ordering and POS machines.
Flexible Customization: ZXTLCD understands that standard sizes cannot meet all needs, therefore offering fully customizable size services to perfectly adapt to the internal structures of different hardware models.
Diverse Materials: Utilizing high-quality cold-rolled steel, aluminum alloy, galvanized steel, and other metal materials, we ensure robustness and durability while effectively protecting internal precision components, and also address requirements for lightweight design and heat dissipation.
Classic Color Schemes: Offering two classic mainstream color options—white and black—we easily blend into the design styles of various catering spaces, showcasing professionalism and simplicity.
We offer more than just casings; we provide a complete customization service to help you create uniquely competitive products.
Brand Customization
You can easily integrate your brand logo and visual elements into our casings. From casing to packaging, we provide comprehensive branding services to strengthen brand awareness and help you expand into broader markets.
Functional Customization
You simply provide your specific requirements, and our experienced engineering team will handle the rest.
Whether it's special openings, interface layouts, heat dissipation structures, or internal bracket designs, we can precisely achieve them, ensuring the casing perfectly matches your functional needs—truly a "tailor-made" solution.
Service Customization
With years of industry experience, we deeply understand the differentiated needs of different markets for metal casings and brackets. We offer a one-stop service from design advice to marketing support, helping your products quickly gain market share.
Our customized metal casing solutions are highly versatile and suitable for numerous industries requiring durable, professional equipment:
Food and Beverage Industry (Core Applications): Self-service ordering machines, cash registers, kitchen display terminals, etc.
Commercial & Retail: Shopping mall information kiosks, vending machines, retail POS terminals.
Public Services: Hospital self-service registration and payment machines, government service hall inquiry and processing kiosks, bank self-service terminals.
Education & Entertainment: School information inquiry machines, stadium ticketing terminals, amusement park self-service equipment.
Enterprises & Professional Fields: Office information display screens, exhibition equipment, construction site industrial control computer protection, etc.
| LCD Panel Parameters | Screen Size | 18.5 inch | |
| Display area | 409.8(H) X 230.4(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 520 X 345 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
Choosing ZXTLCD's custom metal casing means choosing reliability, professionalism, and flexibility. Let us protect the "core" of your smart devices with a robust metal casing, while adding luster to your brand image. Whether you are a startup or a well-known brand, we can be your trusted hardware partner.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
