Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK215PTY

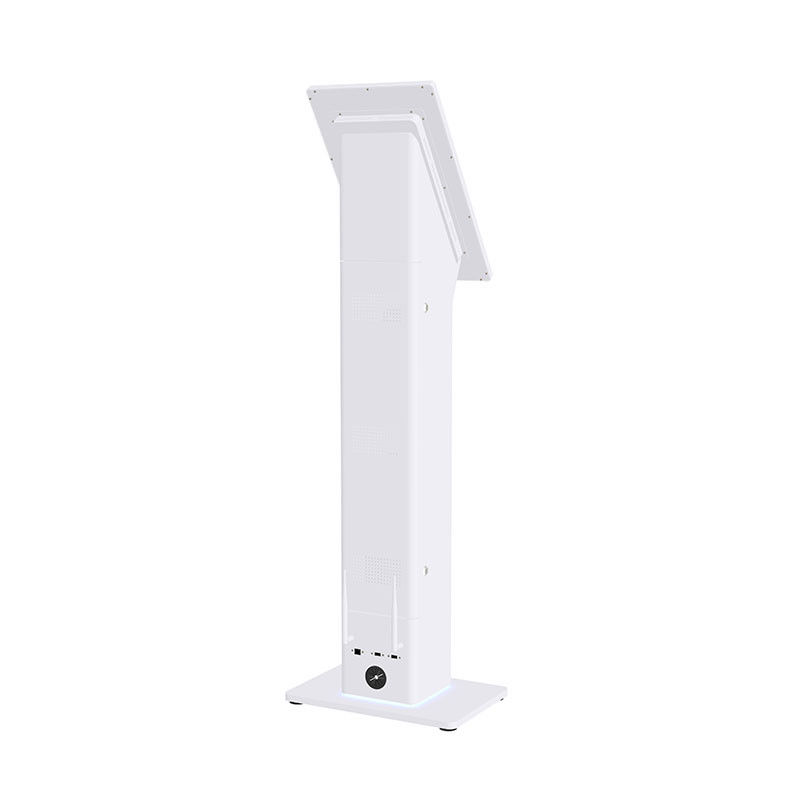

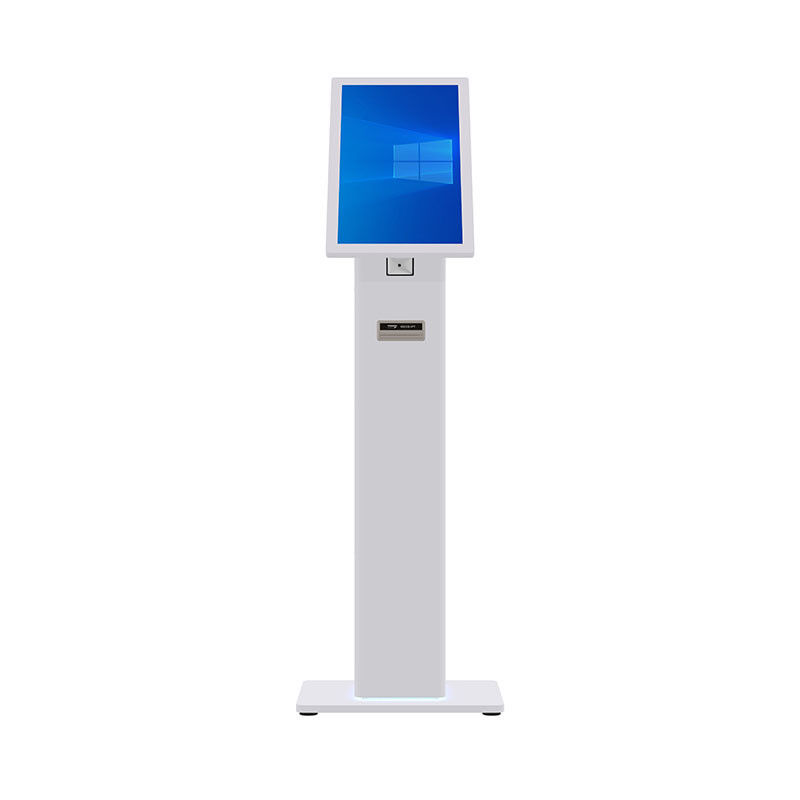

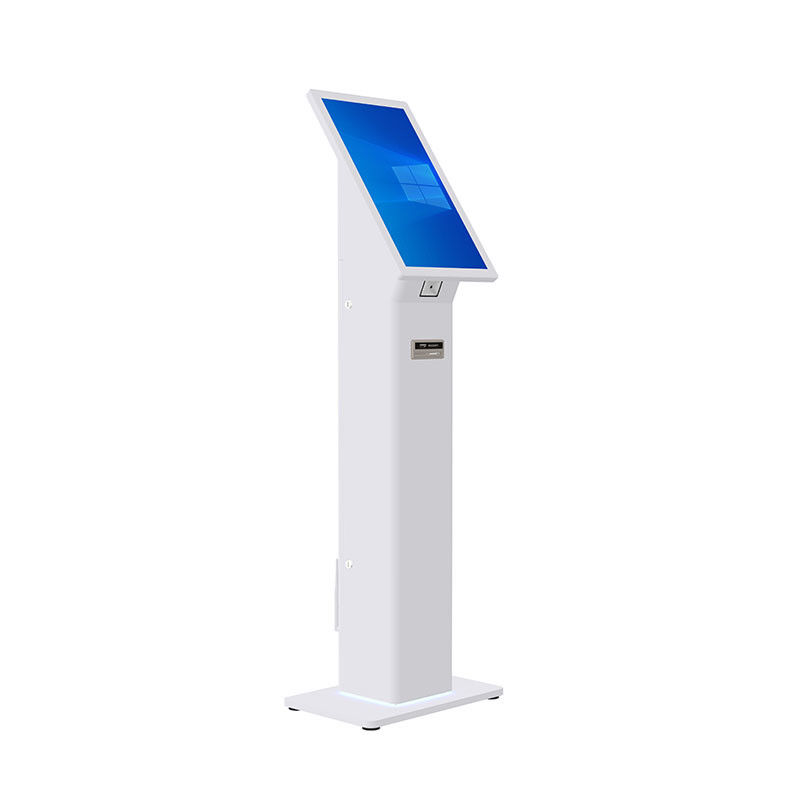

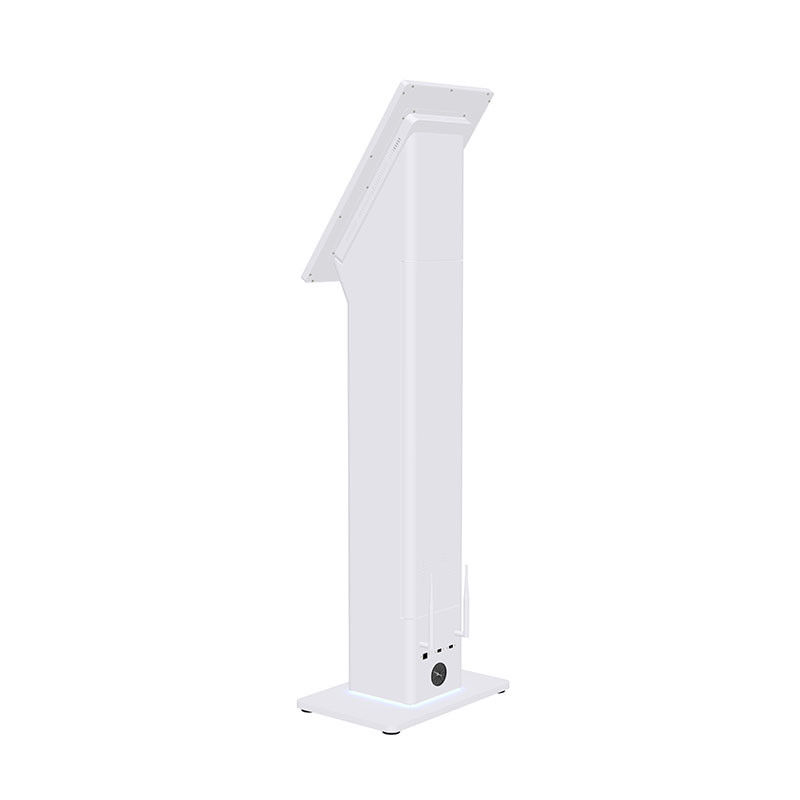

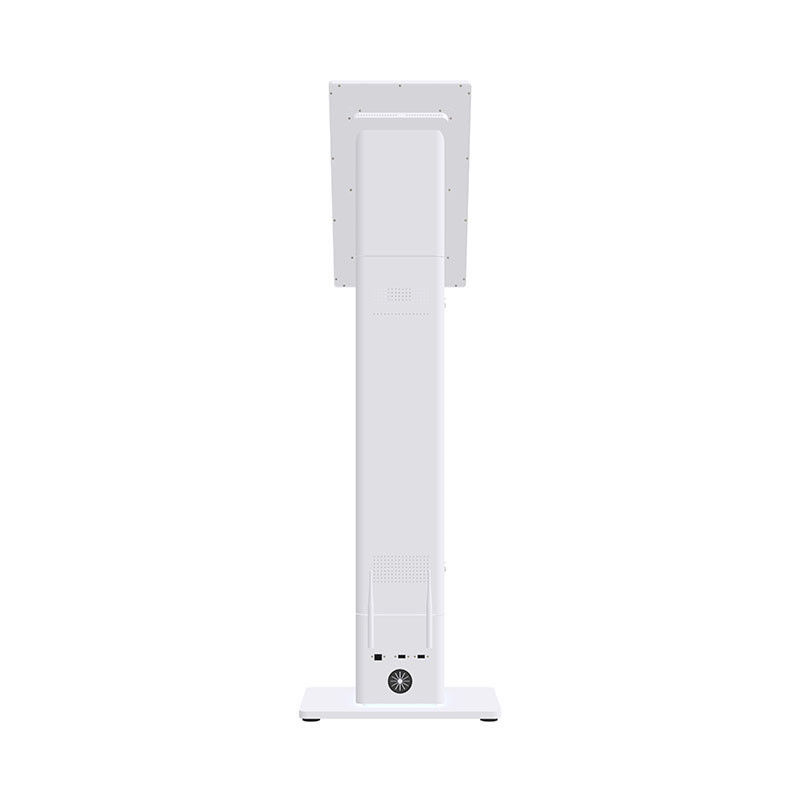

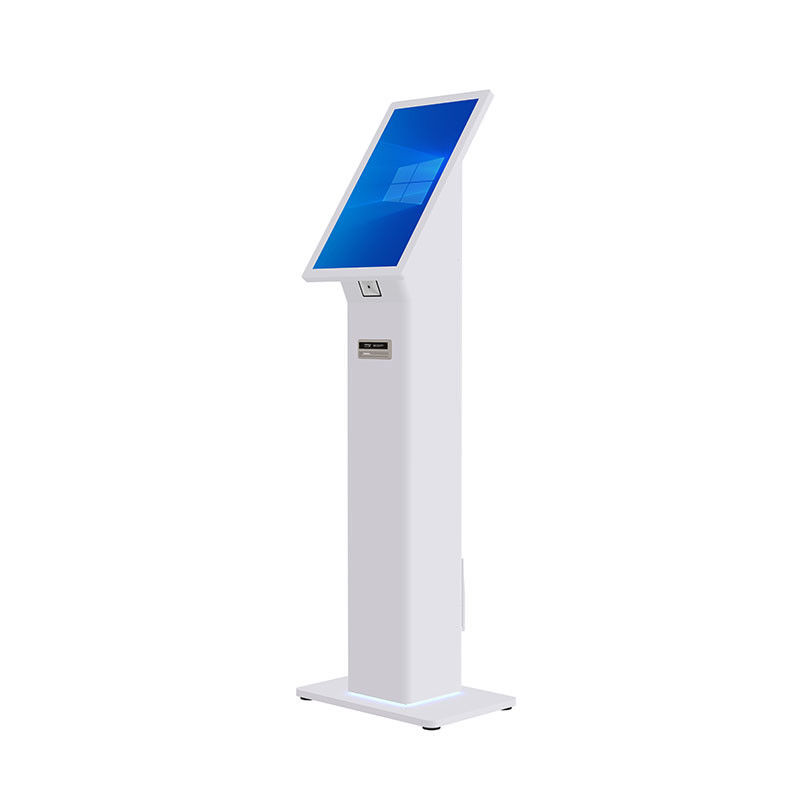

In the process of digital transformation in the catering and retail industries, a reliable, flexible, and easy-to-deploy self-service ordering terminal has become an important tool for improving operational efficiency and optimizing customer experience. This article introduces a 21.5-inch Restaurant Self Service Ordering Kiosk, which, with its modular customization capabilities, durable hardware design, and applicability to various scenarios, provides a mature and feasible intelligent upgrade option for businesses of different formats.
The device is equipped with a 10-point capacitive touchscreen, using new LCD display technology, which not only ensures excellent visual clarity and touch sensitivity but also boasts a long service life and stability. The screen responds quickly, supports multi-touch and gesture operation, allowing customers to smoothly complete operations such as browsing menus, selecting products, and adjusting specifications, greatly improving the efficiency and user-friendliness of the front-end interaction.
The 21.5-inch Restaurant Self Service Ordering Kiosk enables seamless data flow from the customer end to the kitchen/preparation end:
* Real-time Order Generation: After the customer completes their selection and payment, the system instantly generates an order;
* Automatic Receipt Printing: The device's built-in or external printer simultaneously prints a receipt as proof of purchase;
* Simultaneous Kitchen Order Issuance: Order information is simultaneously sent to the kitchen display system or food preparation terminal, allowing staff to begin preparation immediately, significantly reducing waiting time and improving service efficiency.
The device supports deep module and function customization, allowing merchants to flexibly select functional modules according to their actual business needs:
QR Code Scanner: Supports customer QR code payment, member identification, and coupon verification;
Network Camera: Used for security monitoring, customer flow analysis, or visual interaction applications;
Printer: Built-in or external thermal printer for real-time output of receipts or labels;
NFC Card Reader: Supports contactless reading and writing of IC cards, membership cards, and identity recognition.
In addition, we can provide an SDK development kit to support merchants or third-party technical teams in in-depth secondary development, achieving seamless integration with existing management systems, membership systems, supply chain platforms, etc., to meet highly personalized business process integration needs.
The 21.5-inch Restaurant Self Service Ordering Kiosk features a compact design and flexible deployment, suitable for a wide range of business scenarios:
Catering: Fast food restaurants, cafes, restaurants, for self-service ordering, payment, and queuing;
Retail: Convenience stores, supermarkets, pharmacies, for self-checkout, product inquiry, and price display;
Service Industry: Hotels, cinemas, exhibition halls, for self-service check-in, ticket purchase, and information inquiry.
| LCD Panel Parameters | Screen Size | 21.5 inch | |
| Display area | 476.5(H) X 268(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 585 X 380 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
The 21.5-inch Restaurant Self Service Ordering Kiosk is not just a hardware device, but a business-centric, flexibly configurable intelligent service terminal solution. Through reliable hardware, efficient processes, open modules, and broad scenario adaptability, it helps merchants quickly achieve service digitization and intelligent operation while controlling costs, making it a reliable partner for SMEs and chain brands moving towards smart operations.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
