Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK185ATT

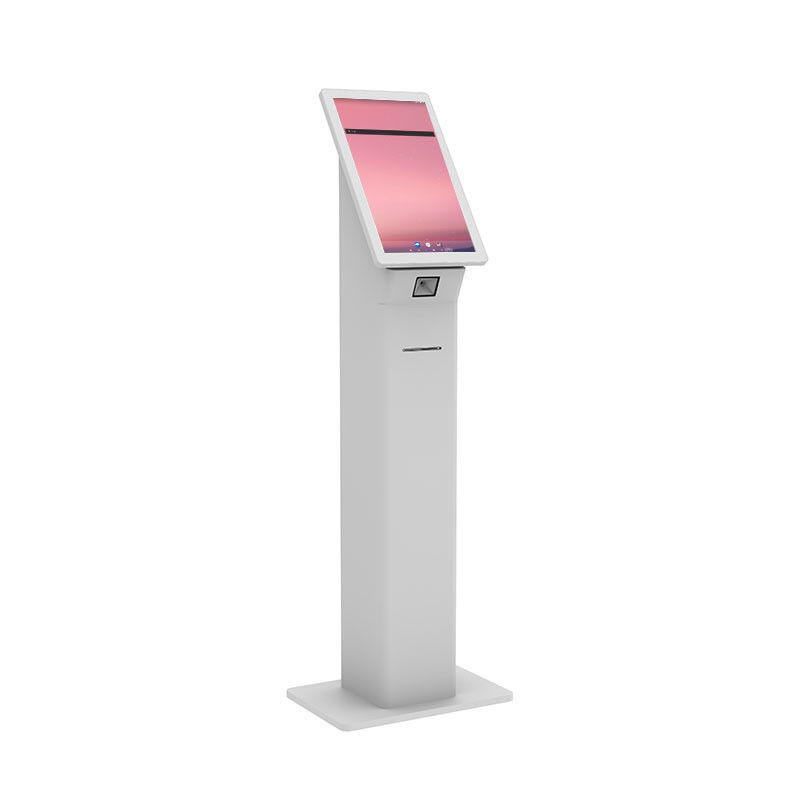

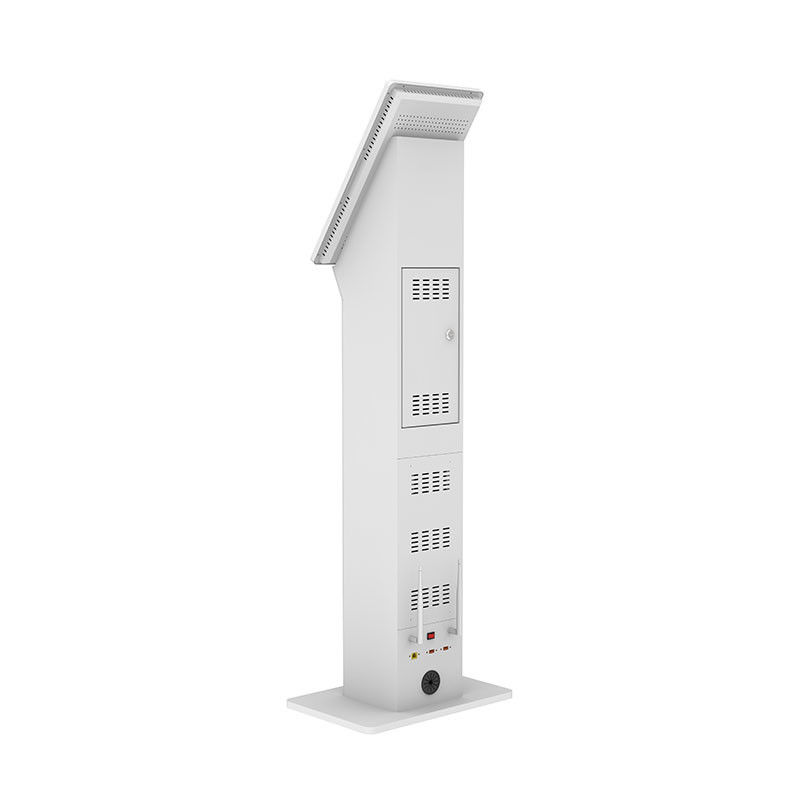

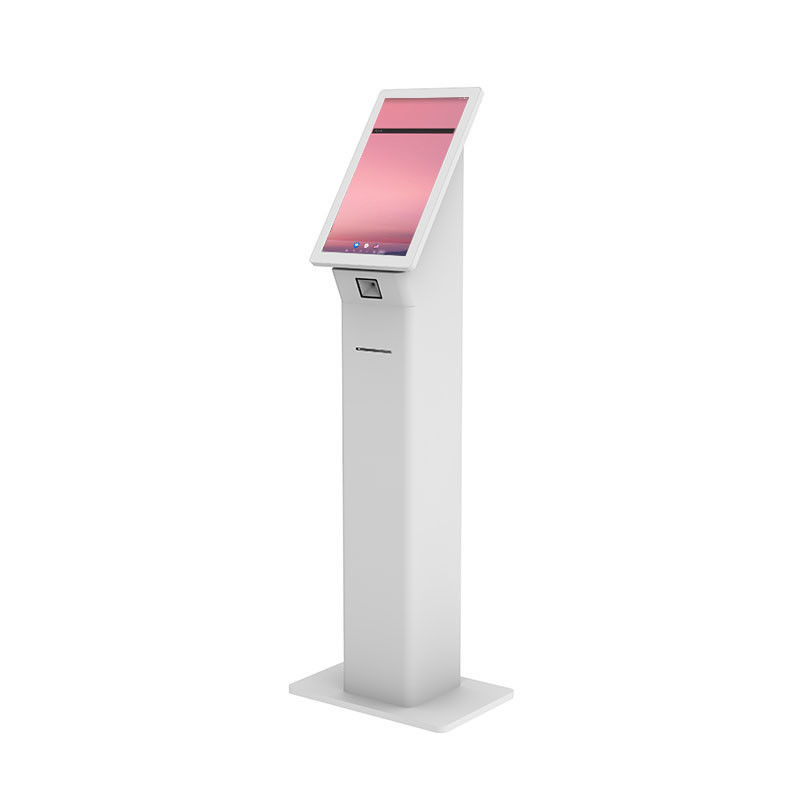

In canteens and restaurants, peak-hour congestion, complex menu choices, and efficient payment processes have long hampered service experience. The 21.5-inch Mcdonald Self Order terminal for canteens and restaurants, with its large screen and fully intelligent end-to-end system, addresses these challenges through hardware innovation and system empowerment. It not only resolves the congestion problems of traditional manual counters but also enables catering businesses to precisely control labor costs and operational efficiency, becoming a key tool for the digital transformation of the group catering and fast-food industries.
This 21.5-inch Mcdonald Self Order Terminal for cafeterias and restaurants deeply integrates an AI ordering system, using intelligent algorithms to automate the entire chain of management from ordering to order allocation, preparation, delivery, and data processing:
Adaptive Order Allocation System: Real-time analysis of order details and kitchen capacity automatically allocates standardized dishes to fast-service lines;
Dynamic Inventory Monitoring: When the remaining quantity of a dish falls below 8%, the system automatically grays it out and pushes an emergency replenishment order to the supply chain system;
Healthy Diet Analysis: Based on users' historical ordering data, it generates individual nutritional intake reports to help the cafeteria optimize the nutritional structure of the menu.
After deploying this terminal in the cafeteria of a large technology company, kitchen staff allocation was optimized by 40%, and food waste rate decreased by 72%. The system is also integrated with WeChat/DingTalk, allowing employees to view real-time queue heatmaps for each food service line and plan their meal times independently. In formal dining establishments, the equipment supports "intelligent table management": after customers in private rooms scan a QR code to order, the order is automatically synchronized to the service screen and food delivery system. Waiters then deliver the food according to dynamic instructions, completely eliminating manual order tracking and the risk of serving to the wrong table.
process.
Enterprise parks with tens of thousands of employees:Seamlessly integrated with a unified card system, supporting staggered ordering by time slot and department; during peak periods, a single machine can handle over 1000 orders per hour.
Community canteens:Equipped with a "voice guidance + visual assistance" age-friendly mode, the interface font can be enlarged to 200%, and dialect voice feedback is supported.
Chain restaurant groups:Headquarters manages the menu, prices, and marketing activities of stores nationwide through a cloud-based platform, ensuring standardized operations and rapid response.
Government agency restaurants:Utilizing an "identity recognition + tiered meal standard" system, automatically matching appropriate subsidized meal packages and consumption permissions based on employee identity.
From large-scale corporate canteens to convenient community catering points, the 21.5-inch Mcdonald Self Order terminal in canteens and restaurants is reshaping the catering service ecosystem with its dual advantages of "industrial-grade reliability + systematic intelligence." Currently, leading service providers in the industry have launched flexible solutions of "zero equipment investment + service subscription," allowing catering companies to choose functional modules and cooperation models as needed, truly achieving a lightweight start to digital upgrades. In the future, with the continuous deepening of functions such as IoT sensing, intelligent nutritional meal planning, and supply chain collaboration, this terminal will become the intelligent core connecting the front, middle, and back ends of the catering industry, driving the industry into a new development stage driven by data, prioritizing efficiency, and emphasizing user experience.
| LCD Panel Parameters | Screen Size | 18.5 inch | |
| Display area | 409.8(H) X 230.4(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 520 X 345 X 110mm | ||
| The Gross weight of Unit Package | 50kg | ||
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
