Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-SOK185PTT

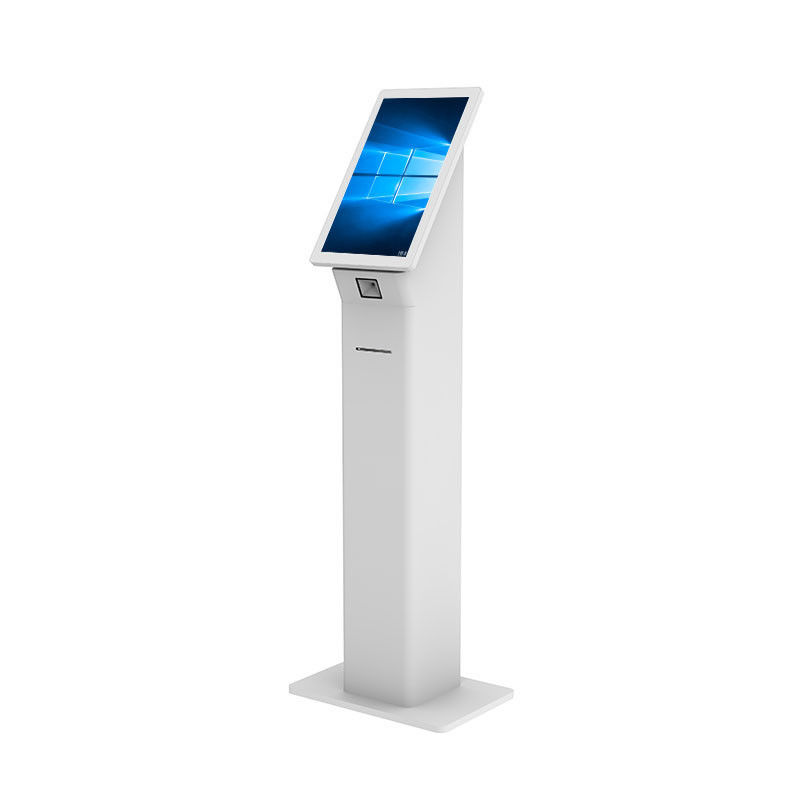

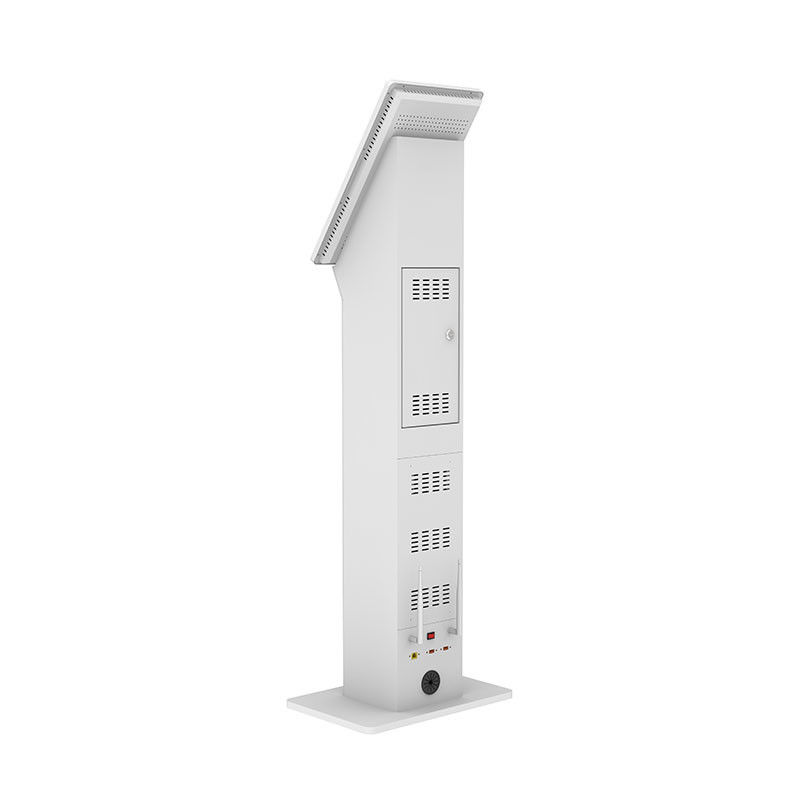

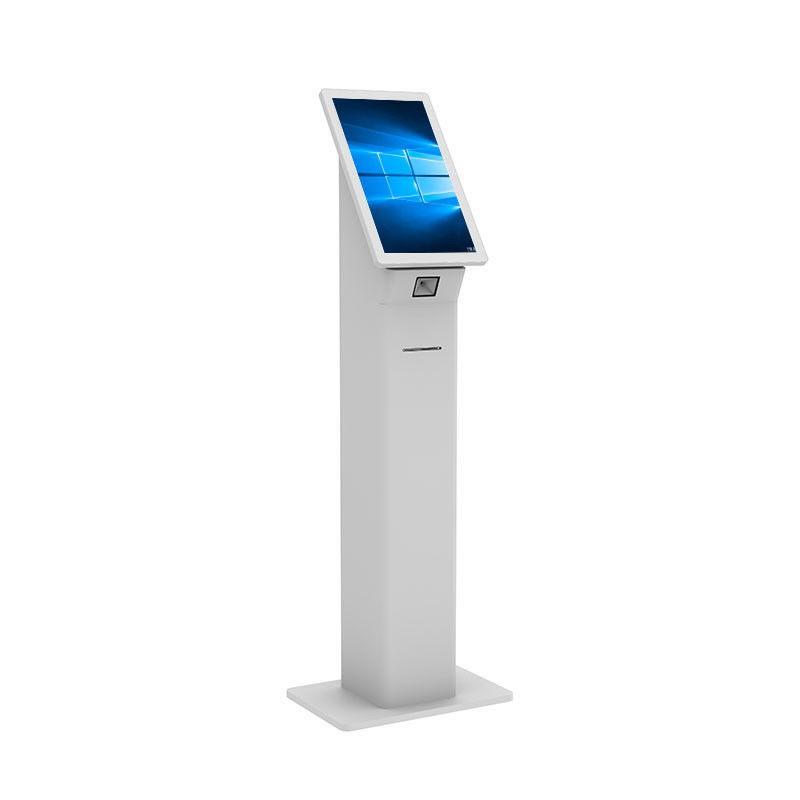

In the wave of intelligentization in the catering industry, the 18.5-inch Pillar Mcdonald Self Service is becoming an "efficiency core" in various catering scenarios due to its excellent environmental adaptability and end-to-end intelligent capabilities. This device breaks through the physical limitations of traditional manual services, achieving seamless collaboration between ordering, payment, marketing, and management through integrated hardware and software, building an intelligent channel for merchants from customer reach to operational efficiency improvement.
Targeting high-intensity, high-frequency usage scenarios, the 18.5-inch Pillar Mcdonald Self Service has undergone comprehensive optimization in design and performance. The body adopts an integrated industrial structure design, combined with a high-strength tempered glass panel and impact-resistant frame, supporting over 4,000 touch operations per day. Built-in industrial-grade control chips and an intelligent temperature control system ensure continuous and stable operation in a wide temperature range of -15℃ to 60℃, making it particularly suitable for complex scenarios such as outdoor dining areas, night markets, and open-air markets.
Chain Restaurant Brands: Supports headquarters in real-time distribution of menu items, prices, and promotional strategies via a cloud platform, enabling synchronized menu updates across stores nationwide;
Community Senior Citizen Canteens: Integrates an age-friendly interface with "voice navigation + haptic feedback + extra-large icons," significantly reducing the digital learning curve for seniors;
International Tourist Restaurants: Built-in intelligent language recognition system supports real-time translation of 12 languages, meeting the barrier-free ordering needs of tourists from multiple countries;
Hospital and Healthcare Institution Restaurants: Can connect to a nutrition management system, automatically recommending compliant dietary plans based on the user's health condition.
The core value of the 18.5-inch Pillar Mcdonald Self Service lies in extending intelligent catering services from high-end commercial scenarios to broader public service scenarios such as communities, industrial parks, and public canteens. Its modular architecture supports flexible expansion, allowing catering operators to integrate functions such as intelligent inventory alerts, consumer data analysis, and interactive marketing in stages according to their actual needs. Currently, leading service providers in the industry have launched "device-as-a-service" models, allowing merchants to introduce a complete intelligent ordering system at a cost as low as a few hundred yuan per month, truly achieving low-threshold and highly flexible deployment of catering digitalization.
| LCD Panel Parameters | Screen Size | 18.5 inch | |
| Display area | 410(H) X 230(V)mm | ||
| Aspect Ratio | 16 : 9 | ||
| LCD Type | a-Si TFT-LCD | ||
| Max Resolution | 1920 X 1080 | ||
| Display color | 16.7M , 72% NTSC | ||
| Brightness | 350 cd/㎡ | ||
| Contrast Ratio | 3000 :1 | ||
| Viewing angle(up/down/left/right) | 89/89/89/89 (Typ.)(CR≥10) | ||
| Response Time | 20ms | ||
| LCD Panel Life(hrs) | 60,000(hrs) | ||
| Field Frequency | 60Hz | ||
| PCAP Touchscreen Panel Parameters | Touch style | Projected Capacitive Touch screen | |
| Touch points | 10 points | ||
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | ||
| Anti-microbial protection and Shatterproof Protection | |||
| Optically bonded 3mm glass for low parallax | |||
| The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | ||
| Response speed | < 6ms | ||
| Accuracy of touch | More than 90% of the touch area ±2mm | ||
| Touch ways | Fingers, touch pen | ||
| Output format | The coordinate output | ||
| Clicks time | Unlimited | ||
| The smallest touch size | 5mm | ||
| Long resistance | Yes available | ||
| Touch Interfaces | USB | ||
| Operating temperature & Humidity | below10℃ ~ +50℃, ≤ 85%RH | ||
| Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | ||
| Mini PC Parameters (Fan-less Industrial PC) | CPU | Intel Celeron J1900 | |
| RAM | 8GB | ||
| SSD | 64GB | ||
| WIFI | 150Mbps 802.11n wifi integate | ||
| Network port | RJ45, 10M/100M Adaptive Ethernet | ||
| Interface | 2 * RJ45 GB Ethernet | ||
| 2 * RS232 Serial Port | |||
| operating system | Win10 or win11 optional | ||
| Onboard interface | HDMI input | 1 | |
| VGA input | 1 | ||
| DVI input | 1 | ||
| USB Type B or Any USB Type optional | 1 | ||
| Parts(Built-in) | QR/Barcode Reader | Can recognize 1D barcode and 2D barcode | |
| Receipt Printer | 80mm Thermal printer with cutter | ||
| Power | Power supply | AC 100V~240V, 50/60Hz | |
| The Max power loss | ≤ 45w | ||
| Standby power loss | < 1W | ||
| Features | Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | below10℃ ~ +60℃ | ||
| Accessories | The length of Power Cable | 1.5m | |
| The length of HDMI Cable | 2m | ||
| The length of USB-A to USB-B Cable | 1.5m | ||
| Versatile Mounting Solution | Wall Mounted | with walll mount bracket | |
| Stand Holder(Optional) | Movable, can be with wheels on the base, height is adjustable | ||
| Package size | Machine body size | Customized | |
| Net weight | Customized | ||
| Unit Package size | 110 X 330 X 515mm | ||
| The Gross weight of Unit Package | 50kg | ||
In the future, with the further integration of AI visual recognition, behavioral analysis, and intelligent recommendation technologies, the 18.5-inch Pillar Mcdonald Self Service will continue to evolve into an "intelligent service node" in catering scenarios, not only improving operational efficiency but also becoming a key hub connecting customers, dishes, and data, driving the entire industry towards a smarter, more human-centered, and more sustainable direction.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
