Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-TLCD980VU

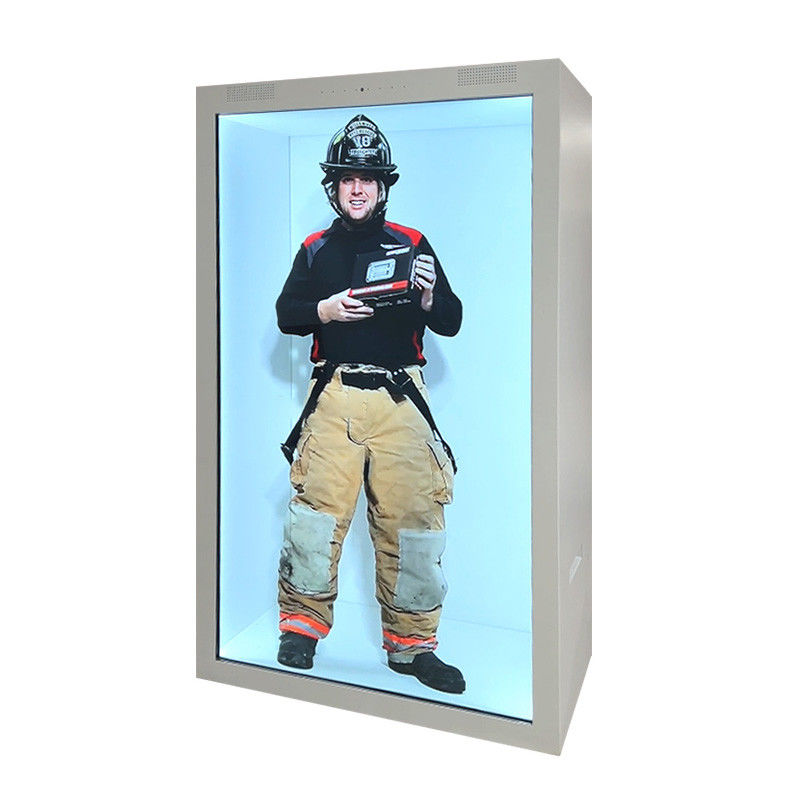

The Future at Your Fingertips｜see through lcd: Your Customized Holographic Interactive Experience Center
When technology merges with aesthetics, transparency is no longer just “invisibility”—it becomes a window connecting reality and the future. This see through lcd is not only a space for product presentation but also a deeply customizable, intelligently interactive holographic display platform, opening up new dimensions of brand expression and user experience for you.
Utilizing advanced holographic display technology, it supports 2K/4K HD and 3D display, with crystal-clear, dynamic visuals and lifelike details. Whether it's product structure breakdowns, dynamic demonstrations, or immersive scene construction, everything can be presented with stunning visual impact.
Touch Interaction: Users can operate directly on the cabinet surface for information lookup, scene switching, and interactive experiences.
Remote Management: Through built-in WiFi / Bluetooth, it supports remote content updates and device control, offering convenience and efficiency.
Multi-Interface Expansion: Equipped with HDMI, USB, LAN, and other ports for easy connection to various external devices and systems.
Pickup Microphone: Supports 10-meter long-distance pickup, suitable for voice interaction, conference presentations, and other scenarios.
Infrared/Capacitive Sensing: Automatically activates display content when someone approaches, saving energy and operating intelligently.
We offer multi-dimensional customization options to help you create a unique display solution:
Appearance Color: Matches corporate VI or spatial tones
Mobile Casters: Facilitates flexible adjustment of display positioning
Brand Logo: Can be embedded with corporate logos to enhance brand image
Power and Interfaces: Customizable plug types and interface layouts based on actual usage scenarios
|
LCD Panel |
Type of Display | TFT-LCD |
| Panel Size | 98 inch (LG A+ original industrial panel) | |
| Display Ratio | 16:9 | |
| Resolution | 1920x 1080 | |
| Brightness | 350cd/m2 | |
| Contrast Ratio | 3000:1 | |
| Viewing Angle | H:178° V:178° | |
| Panel Life | Above 60000 hours | |
| Response Time | 6ms | |
|
Android OS (Optional) |
CPU | RK3368, eight-core 1.5 GHz |
| RAM | 2GB | |
| ROM | 8GB | |
| WIFI | WIFI module+WIFI Antenna | |
| Multi media system | Available | |
|
Windows OS (Optional) |
CPU | Intel i3,i5,i7 |
| RAM | 4GB | |
| Built-in storage capacity | 128GB SSD | |
| WIFI | WIFI module+WIFI Antenna | |
| Multi media system | Available | |
|
File formate |
Video | AVI/MOV/MP4/5GP/MPG/VOB/DAT/TS |
| Image | JPG/JPEG/PNG/BMP ETC | |
| Audio | MP3/ACC/WMA ETC | |
| Scrolling Text | ROL(UNICODE) | |
| Input/output interface | USB,HDMI,VGA,RJ45 | |
|
Main Hardware |
Shell Material | Metal shell + Aluminum Alloy frame + toughened glass |
| Speaker | 2*10W built-in stereo speakers | |
| Heat Dispersion | Built-in DC fans | |
|
Power |
Standby | ≤3W |
| Working | 30W-180W | |
| Power supply | AC 110V - 240V, 50/60HZ | |
| Storage Temperature | -7℃ to 65℃ | |
| Normal Working Temperature | -5℃ to 65℃ |
Transparency is more than just seeing.
It is about dialogue, perception, and creation.
Let every display become an immersive brand conversation.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
