Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-TLCD850VC
Eyewear Is Both Product and Personal Choice

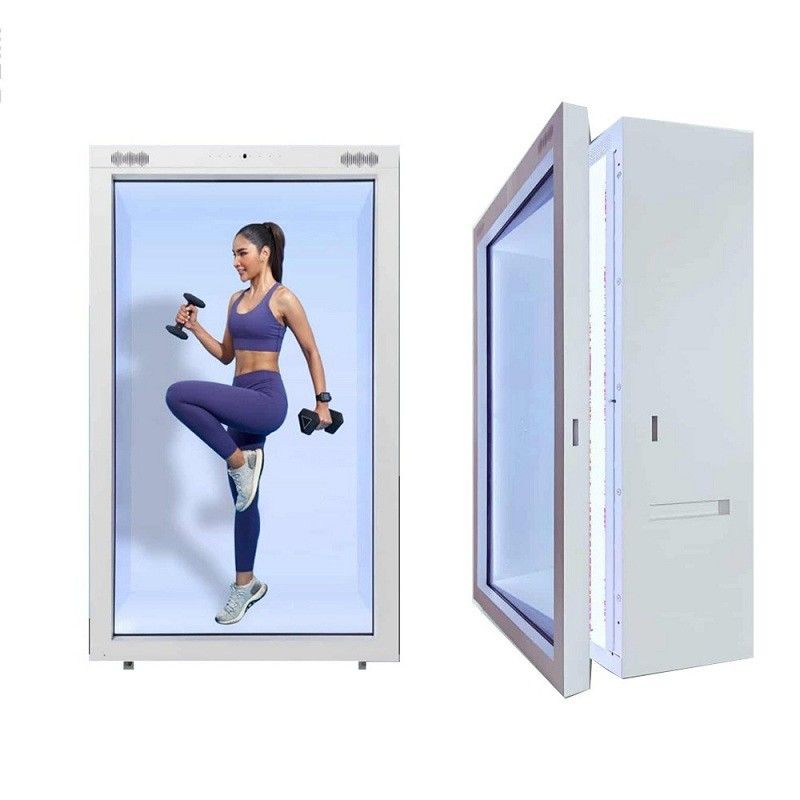

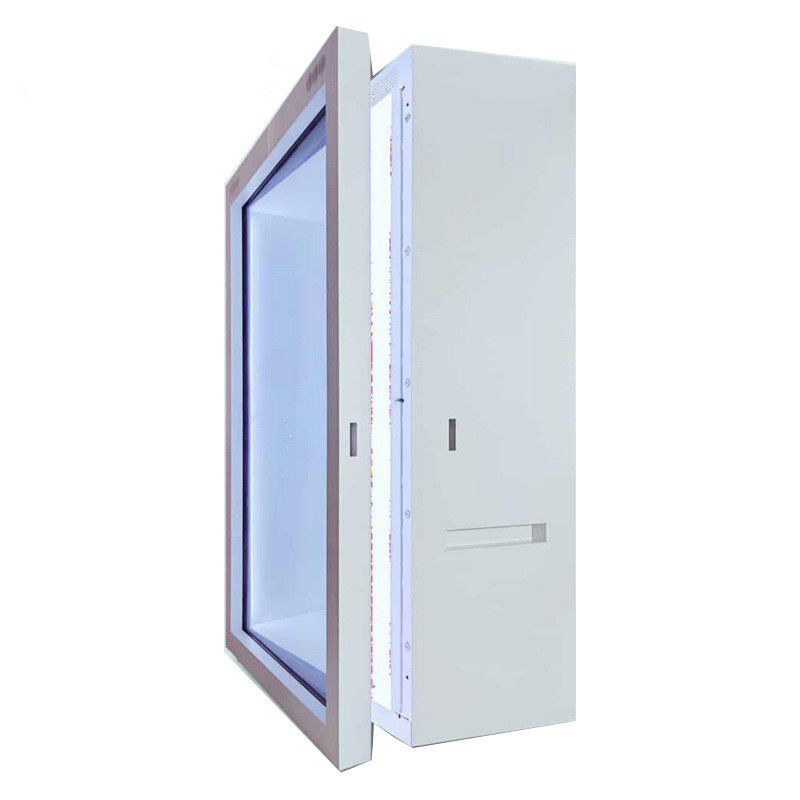

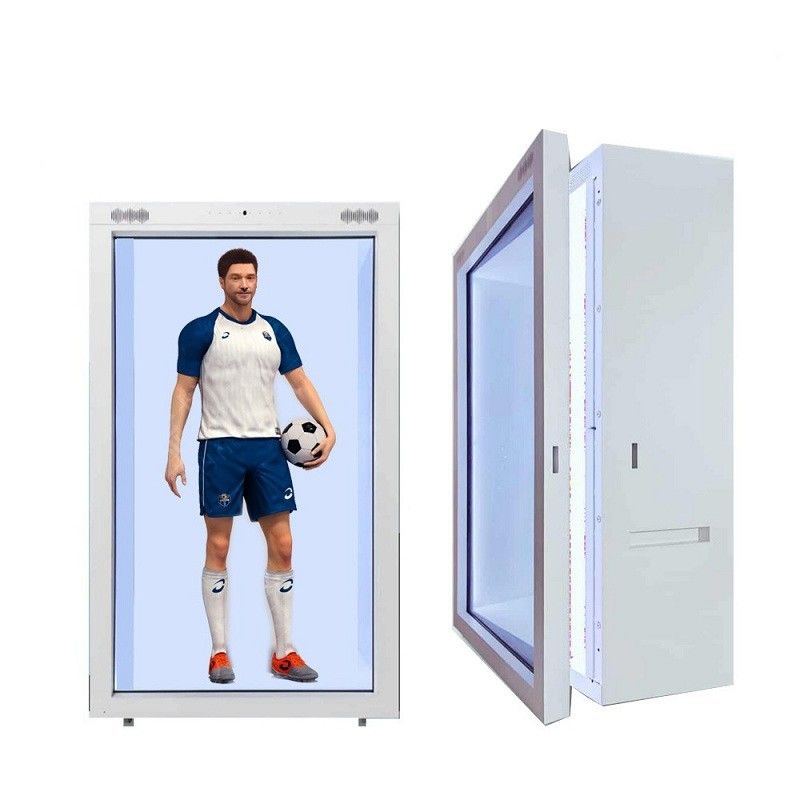

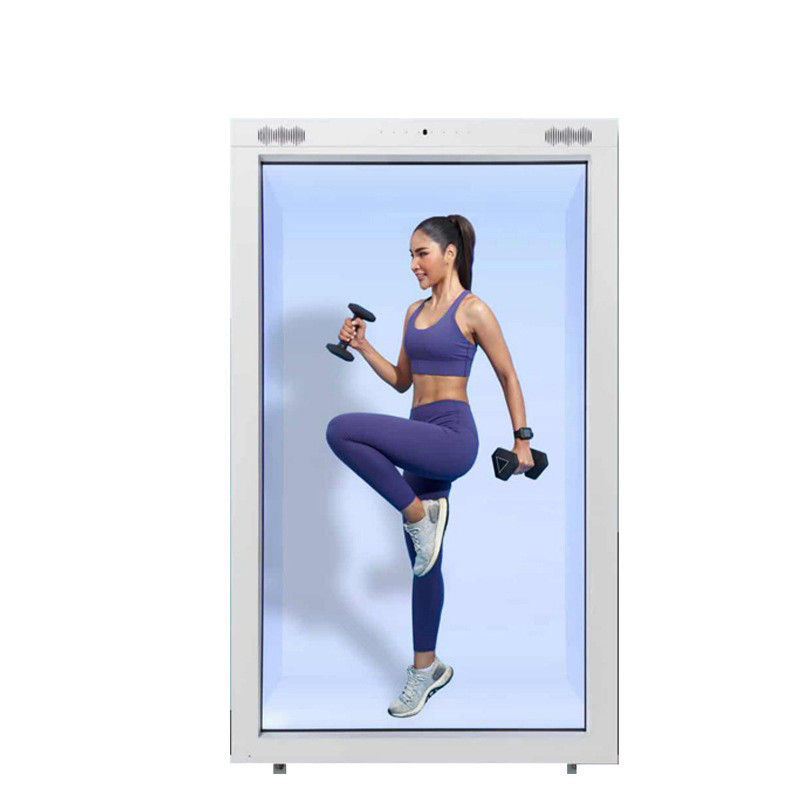

Customers compare frame shape, material, fit, lens function and brand identity. An 85-inch touch transparent LCD showcase cabinet can secure a hero collection while letting visitors explore those decisions on a large visual surface.
The cabinet should not attempt to replace mirror fitting. Its role is to introduce the range, explain technology and guide the customer toward a focused consultation.
Organize Frames as a Collection
Use physical spacing and digital zones to distinguish frame families. Keep enough empty area that silhouettes remain visible. Touch can filter by material, style or use case, but a visitor should always know which on-screen description belongs to which displayed frame.
If inventory changes frequently, use adjustable mounts and a repeatable alignment guide for staff.
Explain Lens Benefits Visually
Lens coatings and progressive designs are difficult to judge from a static label. Short animation can show glare reduction, transition behaviour or field-of-view concepts while a real frame remains visible. Avoid medical or performance claims that exceed approved product evidence.
Captions and simple comparisons work better than long technical tables in a standing retail environment.
| 86 inch AI Virtual Digital Human 3D Interactive Hologram | ||
| Display Panel | Screen Size | 86 inches |
| Panel Type | a‑Si TFT IPS Transparent LCD Panel | |
| Panel Model | HNT8601 | |
| Native Resolution | 2160 × 3840 pixels (4K UHD) | |
| Sub‑Pixel Pitch | 0.4935 × 0.1645 mm (H × V) | |
| Pixel Format | RGB Vertical Stripe | |
| Pixel Pitch | 0.4935 × 0.4935 mm (H × V) | |
| Active Display Area | 1065.96 × 1895.04 mm (H × V) | |
| Panel Shape | Flat Rectangular Panel | |
| Aspect Ratio | 16:9 | |
| Panel Transmittance | >75% | |
| Contrast Ratio | 4200:1 (Typical) | |
| Viewing Angle | 89°/89°/89°/89° (Minimum), CR ≥10 | |
| Display Mode | IPS, Normally Black, Transmissive | |
| Optimum Viewing Direction | All Viewing Angles | |
| Response Time | 8 ms (Typical, Gray‑to‑Gray) | |
| Display Colors | 16.7 Million / 1.07 Billion Colors, 8‑bit / 8‑bit + Dithering | |
| Color Gamut | 71% NTSC | |
| Panel Input Voltage | AC 110–220V | |
| Refresh Rate | 60 Hz | |
| Panel Signal Interface | LVDS | |
| Input Interfaces | HDMI, VGA, USB and Audio Input | |
| Operating Temperature | -20°C to 80°C | |
| Storage Temperature | -30°C to 90°C | |
| Operating Humidity | 10%–90% RH | |
| Storage Humidity | 5%–90% RH | |
| Power Supply | AC 100–240V, 50/60 Hz | |
| Power Consumption | <480W | |
| Standby Power Consumption | <3W | |
| Installation Options | Desktop, Floor‑Standing or Interactive Version | |
| Product Dimensions | Refer to the Mechanical Drawing | |
| USB Plug‑and‑Play Player | Operating System | Standalone Plug‑and‑Play System; No Windows OS Required |
| Start‑Up Mode | Automatically Starts Loop Playback After Power‑On | |
| Input Ports | 1 × USB 2.0, 1 × HDMI | |
| Default Storage Medium | USB Flash Drive | |
| Optional Storage Medium | SD Card | |
| Content Update | Automatically Copies Content from USB | |
| OSD Languages | English and Chinese | |
| Supported Video Format | MP4 | |
| Supported Audio Format | MP3 | |
| Supported Image Format | JPG | |
| Supported Text Format | TXT | |
| Audio Output | Built‑In Power Amplifier | |
| Playback Modes | Single‑File Repeat or All‑Files Loop Playback | |
| Android Media Player | CPU | Quad‑Core Cortex‑A17, Up to 1.8 GHz |
| GPU | Mali‑T764 | |
| Operating System | Android 7.1 | |
| RAM | 2GB DDR3 | |
| Internal Storage | 16GB eMMC | |
| External Storage | SATA, USB, SD Card or CF Card | |
| Output Resolution | 1920 × 1080, Full HD | |
| Playback Modes | Loop Playback, Scheduled Playback and Transition Effects | |
| Network Connectivity | Ethernet and Wi‑Fi; 3G Optional | |
| Remote Control | Infrared Remote Control Supported | |
| Memory Card Support | SD and CF Cards | |
| Supported Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and More | |
| Supported Image Formats | BMP, JPEG, PNG and GIF | |
| Supported Network Protocols | TCP/IP, PPPoE, ICMP, DHCP, DNS, FTP and HTTP | |
| USB 2.0 Ports | 2 × USB Host Ports for Mouse, Keyboard and Other Peripheral Devices | |
| RJ45 Ethernet | 1 × RJ45 Port, 10/100 Mbps | |
| Wireless Network | 2.4 GHz Wi‑Fi, IEEE 802.11n, Up to 150 Mbps | |
| TF Card Slot | 1 × TF/MicroSD Card Slot | |
| PC – Entry‑Level | CPU | Intel 1037U, Dual‑Core, Dual‑Thread, 1.8 GHz |
| Motherboard | Mini‑ITX Architecture, Intel Bay Trail SoC Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics with Dynamic Video Memory Technology (DVMT) | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| PC – Standard | CPU | 3rd Generation Intel Core i3, Dual‑Core, Four‑Thread, 1.8 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| PC – Advanced | CPU | 3rd Generation Intel Core i5, Dual‑Core, Four‑Thread, 1.7 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| PC – Premium | CPU | 7th Generation Intel Core i7, Dual‑Core, Four‑Thread, 2.7 GHz, 15W |
| Motherboard | Mini‑ITX Architecture | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Infrared Touch Frame | Touch Technology | Infrared Touch |
| Integration Method | Seamlessly Integrated, Embedded Design | |
| Reported Touch Resolution | 32768 × 32768, Driver‑Free | |
| Activation Force | No Pressure Required | |
| Light Transmittance | >92% | |
| Multi‑Touch Response Time | 10–15 ms | |
| Single‑Touch Response Time | 7 ms | |
| Minimum Touch Object Size | 4 × 4 mm | |
| Touch Object Size Recognition | Supported | |
| Touch Interface | USB | |
| Touch Scan Rate | ≥110 Hz | |
| Communication Interface | USB 2.0 Full‑Speed | |
| Power Supply | 1 × USB | |
| Operating Voltage | DC 5.0V ±5% | |
| Average Current | ≤200 mA | |
| Power Consumption | ≤1.0W | |
| LED Service Life | 60,000 Hours | |
| Fault Tolerance | Remains Operational with Less Than 10% Non‑Adjacent Sensor Failure | |
| Operating Humidity | Up to 90% RH at 0°C to 40°C, Non‑Condensing | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -20°C to 60°C | |
| ESD Protection | EN 61000‑4‑2:2008, Level 3; 4 kV Contact Discharge and 8 kV Air Discharge | |
| Ambient Light Resistance | Excellent | |
| Firmware Upgrade | USB Firmware Upgrade | |
| Multi‑Touch OS Support | Win 10, Win 8, Win 7 and Android | |
| Single‑Touch OS Support | Win XP, macOS and Linux | |
| Projected Capacitive Touchscreen | Touch Technology | Projected Capacitive Touch |
| Input Method | Finger or Stylus | |
| Number of Touch Points | 10‑Point Multi‑Touch | |
| Activation Force | 10–60 g | |
| Touch Durability | ≥35 Million Touches | |
| Minimum Pressure | <10 g | |
| Surface Hardness | ≥7H | |
| Storage Conditions | -15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH | |
| Operating Humidity | 10%–90% RH at 40°C, Non‑Condensing | |
| Response Time | <10 ms | |
| Light Transmittance | >85% | |
| Touchscreen Structure | 1.1 mm Glass + 0.125 mm Upper ITO Film + 0.125 mm Lower ITO Film | |
| Position Durability | 50 Million Touches at the Same Position | |
| Standard Packing List | Power Cable | 1 |
| Warranty Card | 1 | |
| Remote Control | 1 | |
| Cabinet Key | 1 | |
| Certificate of Conformity | 1 | |
Reflection Control Is Especially Important
Mirrors, bright retail lighting and polished frames create multiple reflections. Test cabinet position from the customer route and consultation table. Use controlled internal light and a dark background to protect both screen contrast and frame detail.
Cleaning procedures should address frequent touch and optical-store expectations for pristine glass.
Connect to the Optician
The final interface should offer a clear handoff: product code, saved shortlist, QR summary or request for staff. Any personal or prescription data belongs in an appropriate secure workflow, not an open display application.
Provide collection dimensions, store plan, interaction goals and security needs for cabinet design.
FAQ
Can the cabinet perform virtual try-on?
Only with separate camera and software integration designed and privacy-reviewed for that function.
Can staff change frames?
Yes, with adjustable secure mounts and staff access designed into the cabinet.
Is touch useful for every optical store?
It is useful when it guides choices; otherwise a clean automatic collection story may be better.
![]()
A Customer Journey for an Optical Store
From the aisle, the cabinet introduces a collection and one visual theme. At close range, the visitor selects style, material or lens need. The interface narrows the options and identifies the displayed frames. A final screen produces a shortlist or invites an optician. This sequence respects the boundary between product discovery and professional fitting.
Do not ask for prescription or health information unless the system is specifically designed, secured and governed for that purpose. A public showcase can explain general lens categories without becoming a clinical record system.
Store associates should be able to switch into presentation mode during a consultation. Their feedback is valuable: if digital categories do not match the way customers describe face shape, comfort or use, change the language rather than forcing the sales conversation to follow the software.
Discuss Your Showcase Project
Provide the displayed object dimensions and weight, installation drawing, cabinet finish, access and security needs, touch or player configuration, quantity and destination. ZXTLCD can confirm the enclosure, transparent panel and integration scope for the project.
![]()
![]()
![]()
![]()
