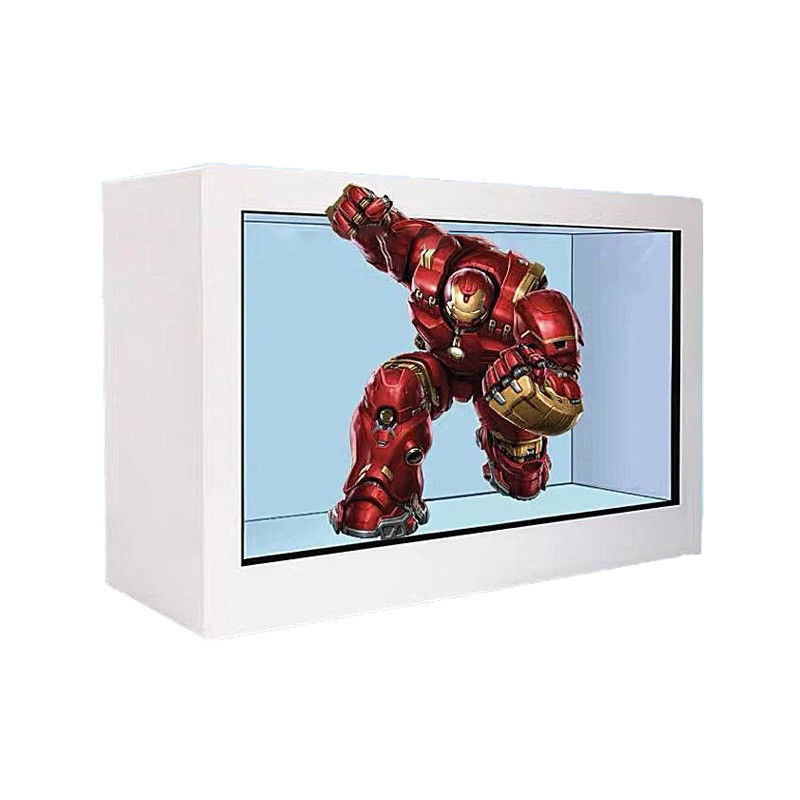

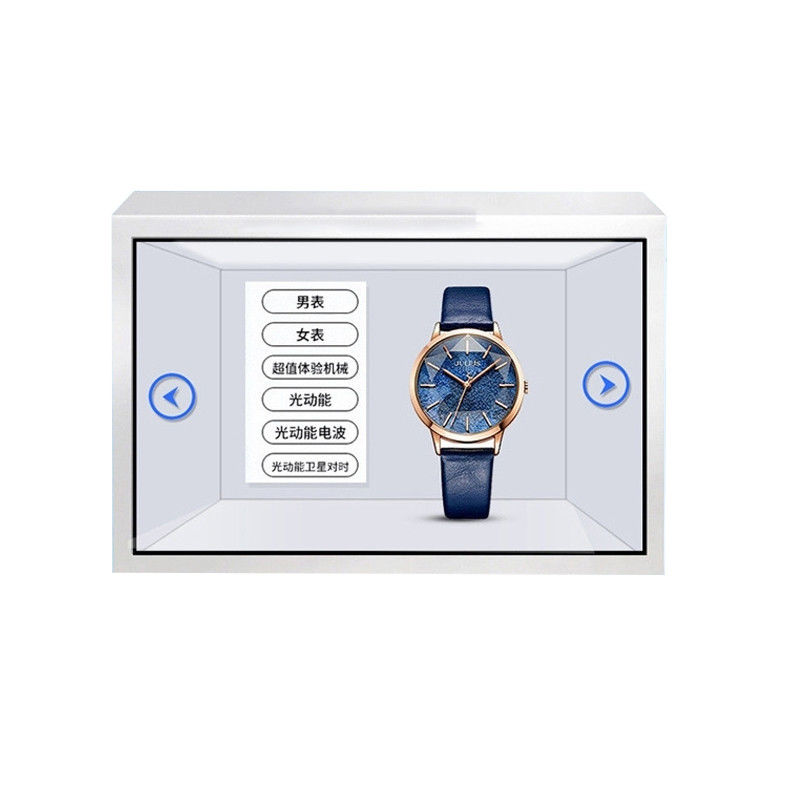

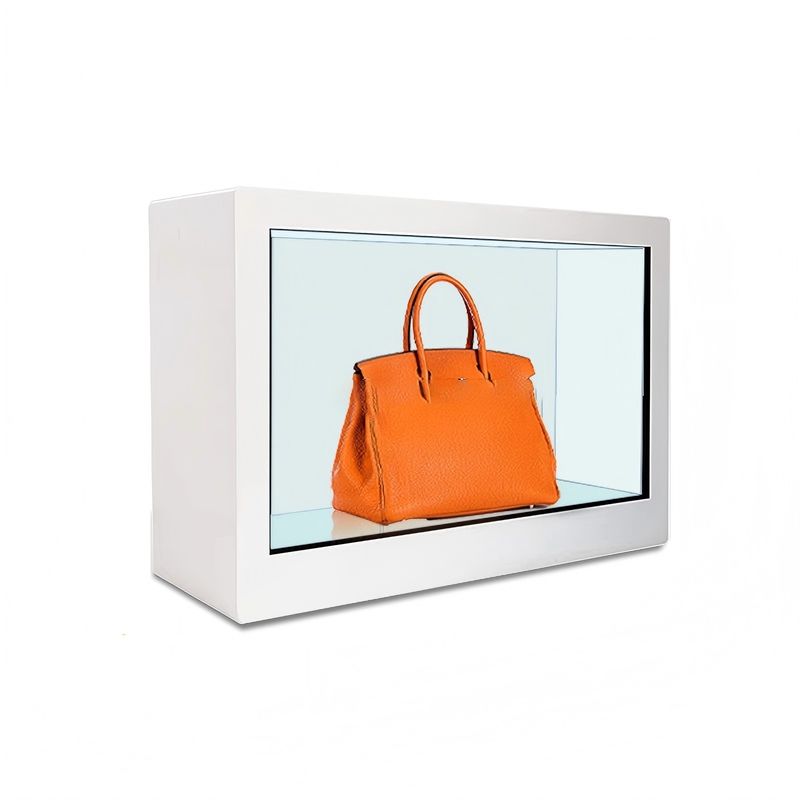

43-Inch 10-Point Infrared Touch Transparent LCD Showcase Cabinet for Retail

43-Inch 10-Point Infrared Touch Transparent LCD Showcase Cabinet for Retail

A 43-inch cabinet creates an approachable interaction point for one product or a compact collection. The infrared touch frame can recognize multiple points across the transparent surface, allowing customers to select features, compare variants or explore a technical model while the real item remains visible behind the content.

Choose IR Touch for Broad Input Options

Infrared systems detect objects crossing a light grid and may support fingers, gloves or opaque pointers. Confirm the actual controller and test the intended input. The frame needs unobstructed edges; trim, labels, dust or objects resting near the beam path can create false touches.

Choose a Ten-Point Application, Not Just a Ten-Point Label

If the software uses only single taps, ten-point hardware provides little added value. Multi-touch can support two-handed gestures or shared exploration, but the application must interpret simultaneous input. Define gestures and concurrency before development.

Choose Controls for the 43-Inch Reach Zone

Keep common controls at a comfortable height and away from the product’s most important view. Use generous targets, visible feedback and a home state. The interface should remain understandable when only one customer is present.

Where This Configuration Fits

For footwear or electronics, a customer may rotate a digital view with two fingers, open one feature and then request another color. In a museum shop, the cabinet may explain a collectible or reproduction. The interaction remains brief and tied to the physical product rather than turning into unrestricted browsing.

Cabinet and Daily Operation

Provide a staff-only route to the IR controller and player. Define cleaning around the frame edges, automatic application reset and a non-touch fallback loop. The product bay should have separate access, lighting, load capacity and locking appropriate to the merchandise.

What to Verify Before Approval

Acceptance should show all specified points, edge accuracy, gestures, glove performance if required, repeated public use and recovery after power interruption. Keep the driver, calibration tool, controller model and wiring diagram with the cabinet record.

Common Questions

Does ten-point touch mean ten people can use it?

No. Practical user count depends on screen size, application and physical access.

Can customers use gloves?

Often with IR touch, but the actual glove and frame should be tested.

Is the touch application included?

Only if explicitly included in the software scope.

Configure This Showcase

Send the product dimensions, expected users, gesture list and computer platform. ZXTLCD can confirm the 10-point IR frame and retail cabinet configuration.
