Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-TLCD430WA

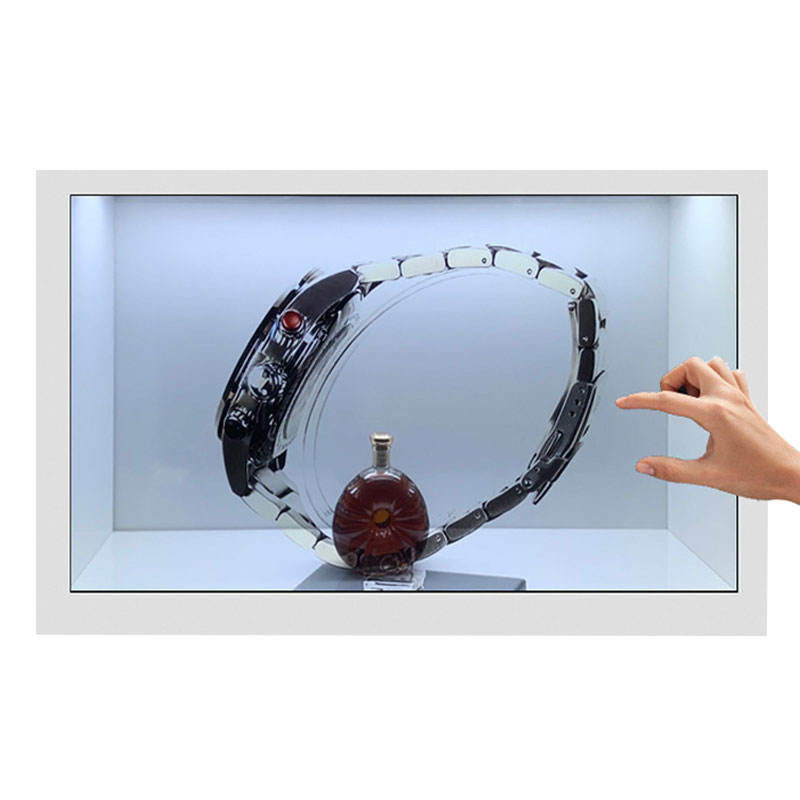

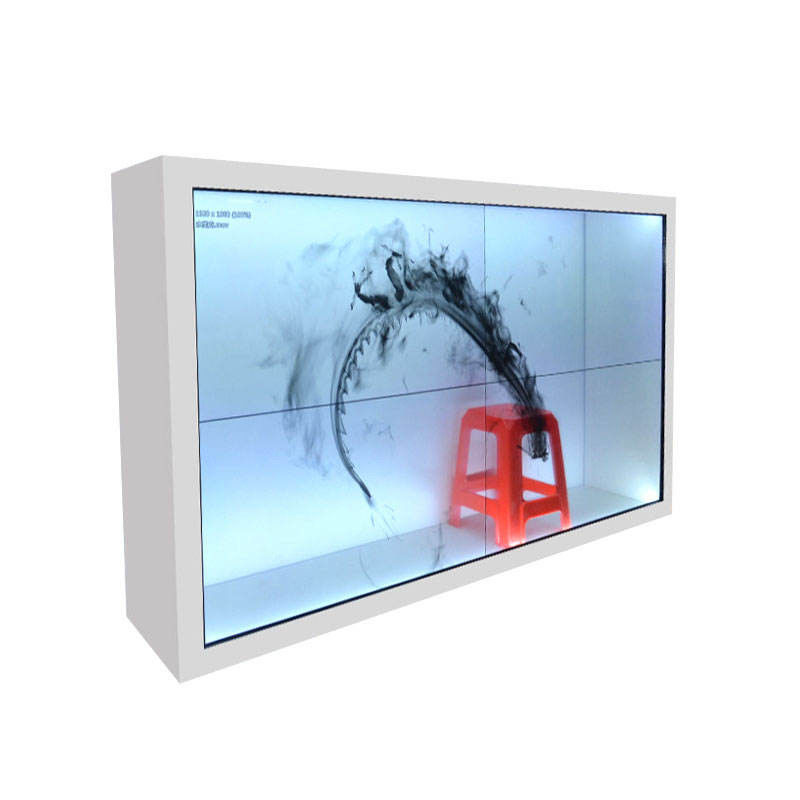

The 43-inch format is large enough for clear product interaction yet compact enough for counters, retail fixtures and exhibition furniture. With an Android player, the transparent showcase can run a dedicated campaign application, local video or controlled web experience while the physical product remains visible inside.
The attract scene has one job: make a passerby understand that the object and digital message belong together. The 43 inch Android transparent LCD advertising showcase can introduce a new package, component or collectible with a short line and restrained motion. A full-screen promotional film would hide the advantage of the transparent cabinet.
Once the visitor touches, the Android application moves into a focused journey—perhaps ingredients, compatible products or a short demonstration. Three useful choices are better than twelve menu tiles. Core media stays local so the campaign remains present even when a remote service is unavailable.
The final screen should not simply say thank you. It can show a product code, open a QR continuation or invite a staff conversation. Any lead form needs a clear purpose and privacy process. The campaign succeeds when the interaction produces a better next step, not when it records the largest possible number of taps.
| 43 inch Infrared Touch Transparent Advertising Display | ||
| Display Panel | Screen Size | 43 inches |
| Panel Type | a‑Si TFT IPS Transparent LCD Panel | |
| Native Resolution | 1920 × 1080 pixels (Full HD) | |
| Sub‑Pixel Pitch | 0.1634 × 0.4902 mm (H × V) | |
| Pixel Format | RGB Vertical Stripe | |
| Pixel Pitch | 0.4902 × 0.4902 mm (H × V) | |
| Active Display Area | 941.184 × 529.416 mm (H × V) | |
| Panel Shape | Flat Rectangular Panel | |
| Aspect Ratio | 16:9 | |
| Panel Transmittance | >75% | |
| Contrast Ratio | 1200:1 (Typical) | |
| Viewing Angle | 89°/89°/89°/89° (Minimum), CR ≥10 | |
| Display Mode | IPS, Normally Black, Transmissive | |
| Optimum Viewing Direction | All Viewing Angles | |
| Response Time | 8 ms (Typical, Gray‑to‑Gray / Black‑to‑White) | |
| Display Colors | 16.7 Million Colors, 8‑bit | |
| Panel Input Voltage | DC 12V, 5A | |
| Refresh Rate | 60 Hz | |
| Panel Signal Interface | LVDS | |
| Input Interfaces | HDMI, VGA, USB and Audio Input | |
| Operating Temperature | -20°C to 50°C | |
| Storage Temperature | -30°C to 60°C | |
| Operating Humidity | 10%–90% RH | |
| Storage Humidity | 5%–90% RH | |
| Power Supply | AC 100–240V, 50/60 Hz | |
| Rated Power Consumption | <20W | |
| Standby Power Consumption | <3W | |
| Installation Options | Desktop, Floor‑Standing or Interactive Version | |
| Product Dimensions | Refer to the Mechanical Drawing | |
| USB Plug‑and‑Play Player | Operating System | Standalone Plug‑and‑Play System; No Windows OS Required |
| Start‑Up Mode | Automatically Starts Loop Playback After Power‑On | |
| Input Ports | 1 × USB 2.0, 1 × HDMI | |
| Default Storage Medium | USB Flash Drive | |
| Optional Storage Medium | SD Card | |
| Content Update | Automatically Copies Content from USB | |
| OSD Languages | English and Chinese | |
| Supported Video Format | MP4 | |
| Supported Audio Format | MP3 | |
| Supported Image Format | JPG | |
| Supported Text Format | TXT | |
| Audio Output | Built‑In Power Amplifier | |
| Playback Modes | Single‑File Repeat or All‑Files Loop Playback | |
| Android Media Player | CPU | Quad‑Core Cortex‑A17, Up to 1.8 GHz |
| GPU | Mali‑T764 | |
| Operating System | Android 7.1 | |
| RAM | 2GB DDR3 | |
| Internal Storage | 16GB eMMC | |
| External Storage | SATA, USB, SD Card or CF Card | |
| Output Resolution | 1920 × 1080, Full HD | |
| Playback Modes | Loop Playback, Scheduled Playback and Transition Effects | |
| Network Connectivity | Ethernet and Wi‑Fi; 3G Optional | |
| Remote Control | Infrared Remote Control Supported | |
| Memory Card Support | SD and CF Cards | |
| Supported Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and More | |
| Supported Image Formats | BMP, JPEG, PNG and GIF | |
| Supported Network Protocols | TCP/IP, PPPoE, ICMP, DHCP, DNS, FTP and HTTP | |
| USB 2.0 Ports | 2 × USB Host Ports for Mouse, Keyboard and Other Peripheral Devices | |
| RJ45 Ethernet | 1 × RJ45 Port, 10/100 Mbps | |
| Wireless Network | 2.4 GHz Wi‑Fi, IEEE 802.11n, Up to 150 Mbps | |
| TF Card Slot | 1 × TF/MicroSD Card Slot | |
| Windows PC – Entry‑Level | CPU | Intel 1037U, Dual‑Core, Dual‑Thread, 1.8 GHz |
| Motherboard | Mini‑ITX Architecture, Intel Bay Trail SoC Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics with Dynamic Video Memory Technology (DVMT) | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Standard | CPU | 3rd Generation Intel Core i3, Dual‑Core, Four‑Thread, 1.8 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Advanced | CPU | 3rd Generation Intel Core i5, Dual‑Core, Four‑Thread, 1.7 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Premium | CPU | 7th Generation Intel Core i7, Dual‑Core, Four‑Thread, 2.7 GHz, 15W |
| Motherboard | Mini‑ITX Architecture | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Infrared Touch Frame | Touch Technology | Infrared Touch |
| Integration Method | Seamlessly Integrated, Embedded Design | |
| Reported Touch Resolution | 32768 × 32768, Driver‑Free | |
| Activation Force | No Pressure Required | |
| Light Transmittance | >92% | |
| Multi‑Touch Response Time | 10–15 ms | |
| Single‑Touch Response Time | 7 ms | |
| Minimum Touch Object Size | 4 × 4 mm | |
| Touch Object Size Recognition | Supported | |
| Touch Interface | USB | |
| Touch Scan Rate | ≥110 Hz | |
| Communication Interface | USB 2.0 Full‑Speed | |
| Power Supply | 1 × USB | |
| Operating Voltage | DC 5.0V ±5% | |
| Average Current | ≤200 mA | |
| Power Consumption | ≤1.0W | |
| LED Service Life | 60,000 Hours | |
| Fault Tolerance | Remains Operational with Less Than 10% Non‑Adjacent Sensor Failure | |
| Operating Humidity | Up to 90% RH at 0°C to 40°C, Non‑Condensing | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -20°C to 60°C | |
| ESD Protection | EN 61000‑4‑2:2008, Level 3; 4 kV Contact Discharge and 8 kV Air Discharge | |
| Ambient Light Resistance | Excellent | |
| Firmware Upgrade | USB Firmware Upgrade | |
| Multi‑Touch OS Support | Win 10, Win 8, Win 7 and Android | |
| Single‑Touch OS Support | Win XP, macOS and Linux | |
| Projected Capacitive Touchscreen | Touch Technology | Projected Capacitive Touch |
| Input Method | Finger or Stylus | |
| Number of Touch Points | 10‑Point Multi‑Touch | |
| Activation Force | 10–60 g | |
| Touch Durability | ≥35 Million Touches | |
| Minimum Pressure | <10 g | |
| Surface Hardness | ≥7H | |
| Storage Conditions | -15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH | |
| Operating Humidity | 10%–90% RH at 40°C, Non‑Condensing | |
| Response Time | <10 ms | |
| Light Transmittance | >85% | |
| Touchscreen Structure | 1.1 mm Glass + 0.125 mm Upper ITO Film + 0.125 mm Lower ITO Film | |
| Position Durability | 50 Million Touches at the Same Position | |
| Standard Packing List | Power Cable | 1 |
| Warranty Card | 1 | |
| Remote Control | 1 | |
| Cabinet Key | 1 | |
| Certificate of Conformity | 1 | |
A public cabinet should launch directly into the approved experience, hide Android settings and return home after inactivity. Confirm app compatibility with the supplied Android version, processor, memory and storage. Test video and animation at the final resolution.
Store the primary attract loop and essential information on the player. Network services may add updates or analytics, but the cabinet should not become blank during an outage. Define what data is cached and how failed downloads recover.
Limit the menu to a few product questions and keep controls in a natural reach zone. Use QR handoff for long documents or personal follow-up. Avoid placing the entire product catalogue on one compact screen.
For a packaged product launch, the application may explain ingredients, variants and where to buy. For a component, it may show installation and compatible systems. For a museum retail display, it may connect an object to its story. The content should always correspond to what is physically present.
Tap count alone says little about campaign quality. Useful signals include completed product comparisons, QR continuations, assistance requests and whether shoppers can find the physical item afterward. Combine anonymous interaction data with store observation.
If people stop but never touch, simplify the prompt; if they touch but abandon the second screen, shorten the journey. The Android showcase should improve product understanding and a commercial next step, not collect activity merely because analytics are available.
Can it run any Android app?
No. Each app must be tested against the supplied hardware, OS version and kiosk requirements.
Is internet required?
Not for local playback; connected features may require it.
Can content update remotely?
Yes with a compatible CMS or application and approved network.
Separate the Android board, network and power from the merchandise compartment. Provide staff controls for content selection and restart. Confirm cabinet access, shelf load, lighting and ventilation before final interface design.
Test automatic launch, touch, offline playback, update, power recovery and storage capacity. Record the APK or web release, Android build and player model. For multiple stores, use controlled publishing and avoid default passwords.
Turn the Campaign Brief Into a Working Cabinet
Send the Android application, content-update plan, product dimensions and installation drawing. ZXTLCD can confirm player and cabinet compatibility. The primary configuration is the 43 inch Android transparent LCD advertising showcase.
![]()
![]()
