Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-TLCD320WCT

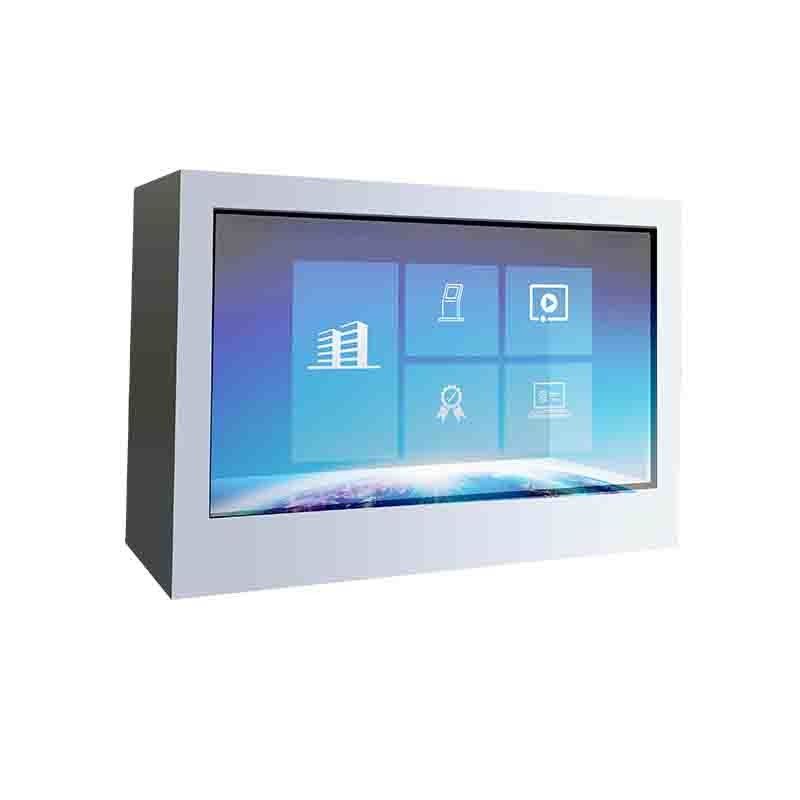

The source wording calls this product a transparent OLED screen, but the stated product family and cabinet construction point to transparent LCD technology. LCD and OLED are not interchangeable terms. This page therefore positions the product accurately as a 32-inch Full HD transparent LCD panel cabinet unless the final data sheet confirms otherwise.
Transparent LCD and transparent OLED are different technologies. Calling one by the other name misleads the buyer about lighting, contrast, structure and cost. The verified configuration described here is a 32 inch Full HD transparent LCD cabinet, using a transmissive LCD approach within a controlled display enclosure.
Its stated 1920 × 1080 resolution is Full HD, not 4K and not Ultra HD. That wording should remain consistent in the page title, H1, specification table, image captions and content brief. Accurate resolution gives the media team a correct canvas and lets procurement compare like with like.
| 32-inch transparent display cabinet | ||
| Display Panel | Screen Size | 32 inches |
| Panel Type | a‑Si TFT LCD Transparent Panel | |
| Panel Model | HNT3201 | |
| Native Resolution | 1920 × 1080 pixels (Full HD) | |
| Sub‑Pixel Pitch | 0.12125 × 0.36375 mm (H × V) | |
| Pixel Format | RGB Vertical Stripe | |
| Pixel Pitch | 0.36375 × 0.36375 mm (H × V) | |
| Active Display Area | 698 × 392 mm (H × V) | |
| Panel Shape | Flat Rectangular Panel | |
| Aspect Ratio | 16:9 | |
| Panel Transmittance | >75% | |
| Contrast Ratio | 1400:1 (Typical) | |
| Viewing Angle | 89°/89°/89°/89° (Minimum), CR ≥10 | |
| Display Mode | IPS, Normally Black, Transmissive | |
| Optimum Viewing Direction | All Viewing Angles | |
| Response Time | 8 ms (Typical, Black‑to‑Gray / Blue‑to‑White) | |
| Display Colors | 16.7 Million Colors, 8‑bit | |
| Panel Input Voltage | DC 12V, 5A | |
| Refresh Rate | 60 Hz | |
| Input Interfaces | HDMI, VGA, USB and Audio Input | |
| Operating Temperature | -20°C to 80°C | |
| Storage Temperature | -30°C to 90°C | |
| Operating Humidity | 10%–90% RH | |
| Storage Humidity | 5%–90% RH | |
| Power Supply | AC 100–240V, 50/60 Hz | |
| Rated Power Consumption | <20W | |
| Standby Power Consumption | <3W | |
| Installation Options | Desktop, Floor‑Standing or Interactive Version | |
| Standard Product Dimensions | 796 × 500 × 251.5 mm | |
| Customised Dimensions | Available; Refer to the Approved Product Drawing | |
| USB Plug‑and‑Play Player | Operating System | Standalone Plug‑and‑Play System; No Windows OS Required |
| Start‑Up Mode | Automatically Starts Loop Playback After Power‑On | |
| Input Ports | 1 × USB 2.0, 1 × HDMI | |
| Default Storage Medium | USB Flash Drive | |
| Optional Storage Medium | SD Card | |
| Content Update | Automatically Copies Content from USB | |
| OSD Languages | English and Chinese | |
| Supported Video Format | MP4 | |
| Supported Audio Format | MP3 | |
| Supported Image Format | JPG | |
| Supported Text Format | TXT | |
| Audio Output | Built‑In Power Amplifier | |
| Playback Modes | Single‑File Repeat or All‑Files Loop Playback | |
| Android Media Player | CPU | Quad‑Core Cortex‑A17, Up to 1.8 GHz |
| GPU | Mali‑T764 | |
| Operating System | Android 7.1 | |
| RAM | 2GB DDR3 | |
| Internal Storage | 16GB eMMC | |
| External Storage | SATA, USB, SD Card or CF Card | |
| Output Resolution | 1920 × 1080, Full HD | |
| Playback Modes | Loop Playback, Scheduled Playback and Transition Effects | |
| Network Connectivity | Ethernet and Wi‑Fi; 3G Optional | |
| Remote Control | Infrared Remote Control Supported | |
| Memory Card Support | SD and CF Cards | |
| Supported Video Formats | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 and More | |
| Supported Image Formats | BMP, JPEG, PNG and GIF | |
| Supported Network Protocols | TCP/IP, PPPoE, ICMP, DHCP, DNS, FTP and HTTP | |
| USB 2.0 Ports | 2 × USB Host Ports for Mouse, Keyboard and Other Peripheral Devices | |
| RJ45 Ethernet | 1 × RJ45 Port, 10/100 Mbps | |
| Wireless Network | 2.4 GHz Wi‑Fi, IEEE 802.11n, Up to 150 Mbps | |
| TF Card Slot | 1 × TF/MicroSD Card Slot | |
| Windows PC – Entry‑Level | CPU | Intel 1037U, Dual‑Core, Dual‑Thread, 1.8 GHz |
| Motherboard | Mini‑ITX Architecture, Intel Bay Trail SoC Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics with Dynamic Video Memory Technology (DVMT) | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Standard | CPU | 3rd Generation Intel Core i3, Dual‑Core, Four‑Thread, 1.8 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Advanced | CPU | 3rd Generation Intel Core i5, Dual‑Core, Four‑Thread, 1.7 GHz, 17W |
| Motherboard | Mini‑ITX Architecture, Intel HM76 Chipset | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Windows PC – Premium | CPU | 7th Generation Intel Core i7, Dual‑Core, Four‑Thread, 2.7 GHz, 15W |
| Motherboard | Mini‑ITX Architecture | |
| Memory | Kingston 4GB DDR3 1600 MHz | |
| Storage | 120GB SSD | |
| Graphics | Integrated Intel HD Graphics | |
| Power Supply | Integrated 12V Power Supply | |
| Network | Realtek 8111E Gigabit Ethernet and 2.4 GHz Wi‑Fi | |
| Infrared Touch Frame | Touch Technology | Infrared Touch |
| Integration Method | Seamlessly Integrated, Embedded Design | |
| Reported Touch Resolution | 32768 × 32768, Driver‑Free | |
| Activation Force | No Pressure Required | |
| Light Transmittance | >92% | |
| Multi‑Touch Response Time | 10–15 ms | |
| Single‑Touch Response Time | 7 ms | |
| Minimum Touch Object Size | 4 × 4 mm | |
| Touch Object Size Recognition | Supported | |
| Touch Interface | USB | |
| Touch Scan Rate | ≥110 Hz | |
| Communication Interface | USB 2.0 Full‑Speed | |
| Power Supply | 1 × USB | |
| Operating Voltage | DC 5.0V ±5% | |
| Average Current | ≤200 mA | |
| Power Consumption | ≤1.0W | |
| LED Service Life | 60,000 Hours | |
| Fault Tolerance | Remains Operational with Less Than 10% Non‑Adjacent Sensor Failure | |
| Operating Humidity | Up to 90% RH at 0°C to 40°C, Non‑Condensing | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -20°C to 60°C | |
| ESD Protection | EN 61000‑4‑2:2008, Level 3; 4 kV Contact Discharge and 8 kV Air Discharge | |
| Ambient Light Resistance | Excellent | |
| Firmware Upgrade | USB Firmware Upgrade | |
| Multi‑Touch OS Support | Wind 10, Win 8, Win 7 and Android | |
| Single‑Touch OS Support | Win XP, macOS and Linux | |
| Projected Capacitive Touchscreen | Touch Technology | Projected Capacitive Touch |
| Input Method | Finger or Stylus | |
| Number of Touch Points | 10‑Point Multi‑Touch | |
| Activation Force | 10–60 g | |
| Touch Durability | ≥35 Million Touches | |
| Minimum Pressure | <10 g | |
| Surface Hardness | ≥7H | |
| Storage Conditions | -15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH | |
| Operating Humidity | 10%–90% RH at 40°C, Non‑Condensing | |
| Response Time | <10 ms | |
| Light Transmittance | >85% | |
| Touchscreen Structure | 1.1 mm Glass + 0.125 mm Upper ITO Film + 0.125 mm Lower ITO Film | |
| Position Durability | 50 Million Touches at the Same Position | |
| Standard Packing List | Power Cable | 1 |
| Warranty Card | 1 | |
| Remote Control | 1 | |
| Cabinet Key | 1 | |
| Certificate of Conformity | 1 | |
RoHS addresses restricted substances; FCC documentation generally addresses radio-frequency emissions. Neither phrase proves every safety or environmental requirement for every customized cabinet. Supporting files should identify the relevant model or configuration, especially when a player, wireless module or power supply changes.
Transparent LCD is transmissive and normally relies on cabinet lighting or backlight design. Transparent OLED is self-emissive and has different optical and mechanical characteristics. Buyers should compare verified panel technology, not a mixed product title.
1920 × 1080 is Full HD. Use that term in the SEO title, H1, specification table and content brief. Confirm active area, panel model and player output before preparing media.
RoHS concerns restricted substances, while FCC concerns radio-frequency emissions. Request the applicable declaration or report and match its model or configuration to the delivered cabinet. These documents do not replace every local safety requirement.
Use transparent LCD consistently in the URL, title, H1, specification, image text and enquiry response. Remove OLED from copied captions and sales templates unless a separate verified OLED product is involved. The same rule applies to Full HD: do not leave 4K or Ultra HD in graphics prepared for this model. Consistency helps search engines understand the page, but more importantly it prevents a buyer from receiving contradictory information between the website, quotation and delivered cabinet.
![]()
No. Based on the stated configuration, it should be described as transparent LCD unless verified OLED hardware is supplied.
Yes.
Confirm the model and configuration scope shown in the supporting documentation.

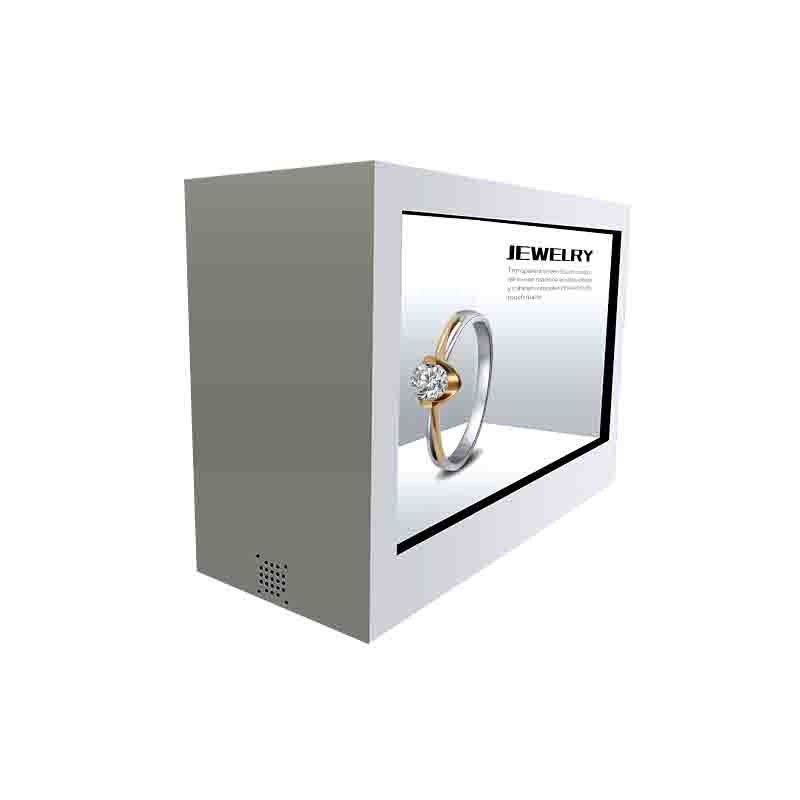

The 32-inch cabinet suits compact products, educational objects and counter displays. Use concise Full HD media, a controlled dark background and internal lighting that reveals the real item. Non-touch local playback can keep the unit simple; touch or Android may be added only as confirmed options.
Check the panel label and approved specification, run a native 1080P test and review documentation before shipment. Record any custom player or wireless module because configuration changes may affect which compliance evidence is applicable.
Request the Verified LCD Configuration
Provide the required technology, cabinet size, destination country and documentation needs. ZXTLCD can confirm the 32-inch LCD configuration and available compliance files. The primary configuration is the 32 inch Full HD transparent LCD cabinet.
![]()
![]()
![]()
