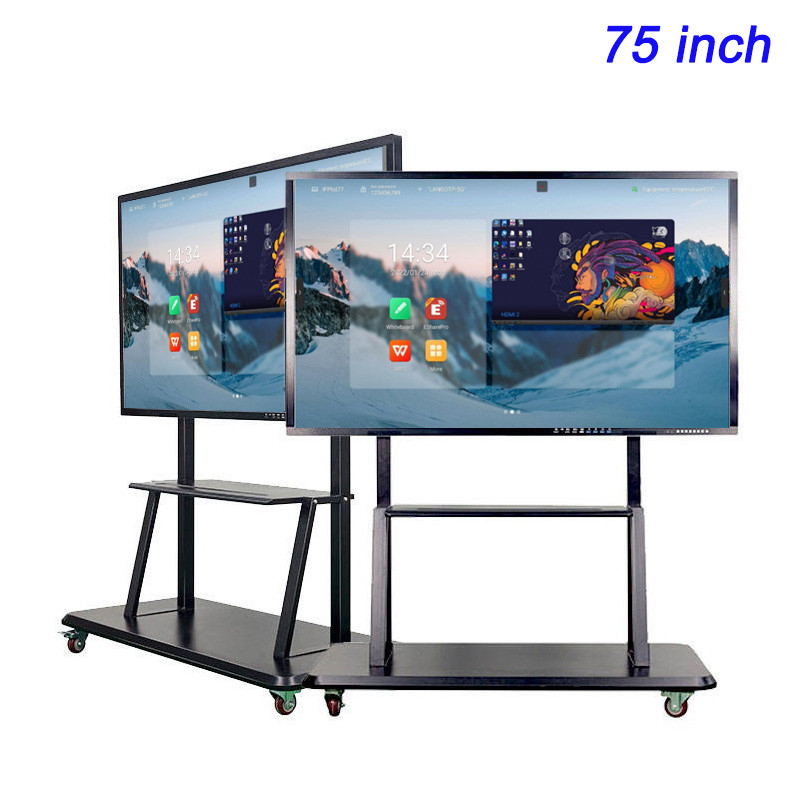

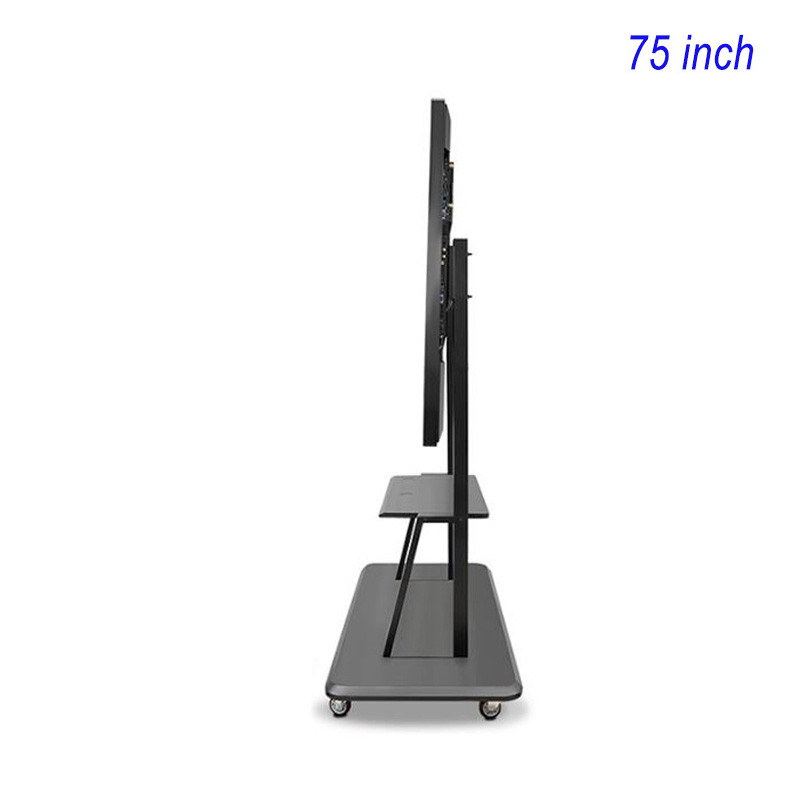

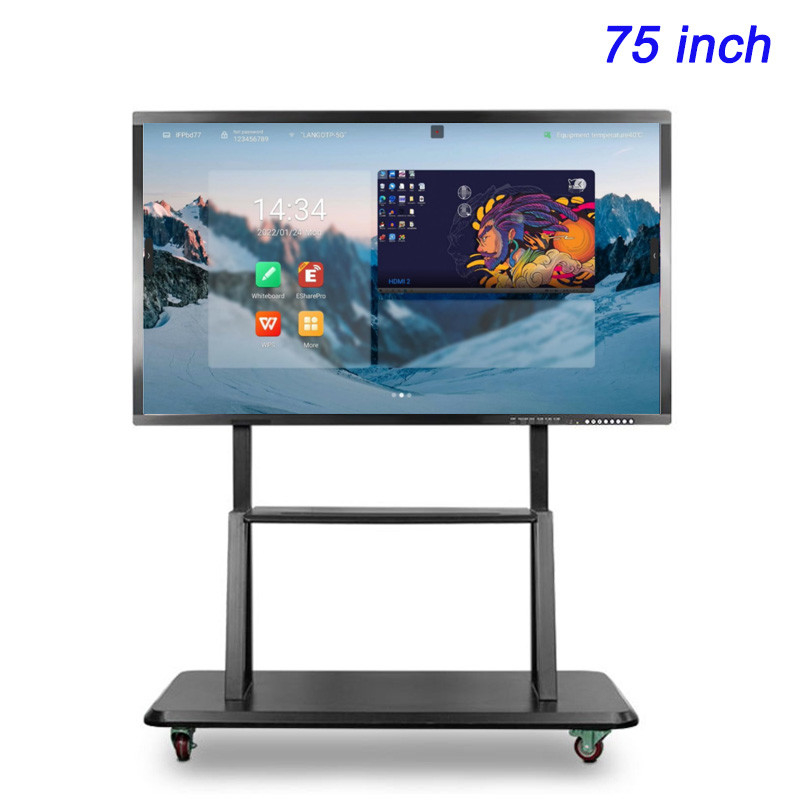

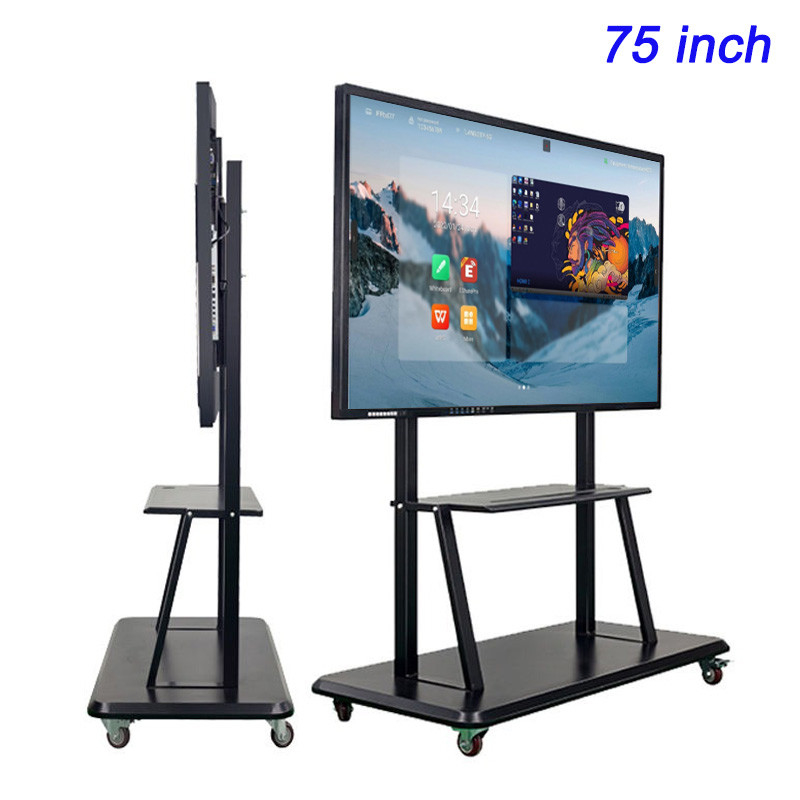

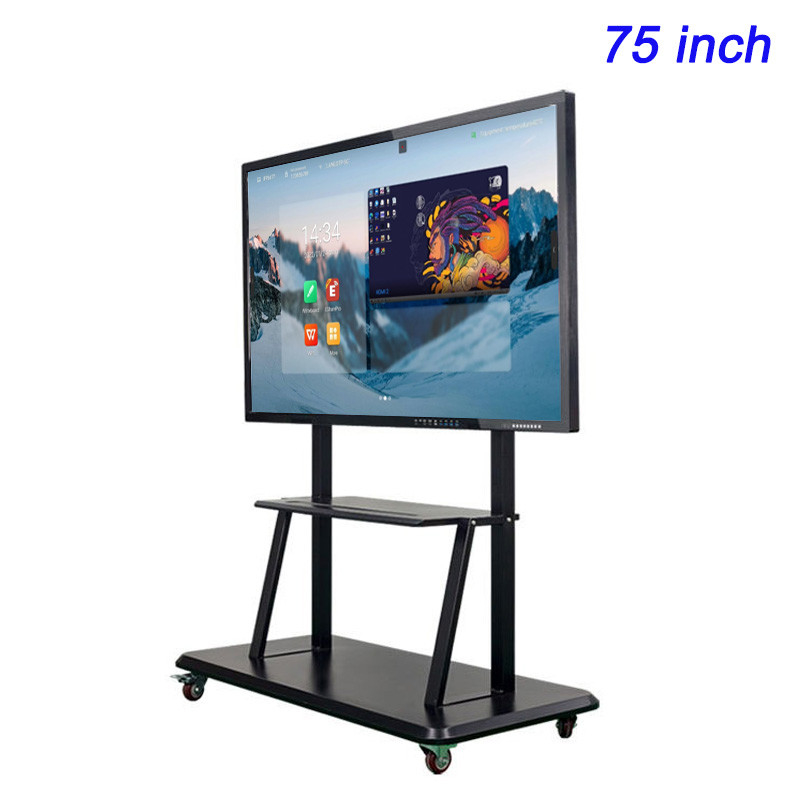

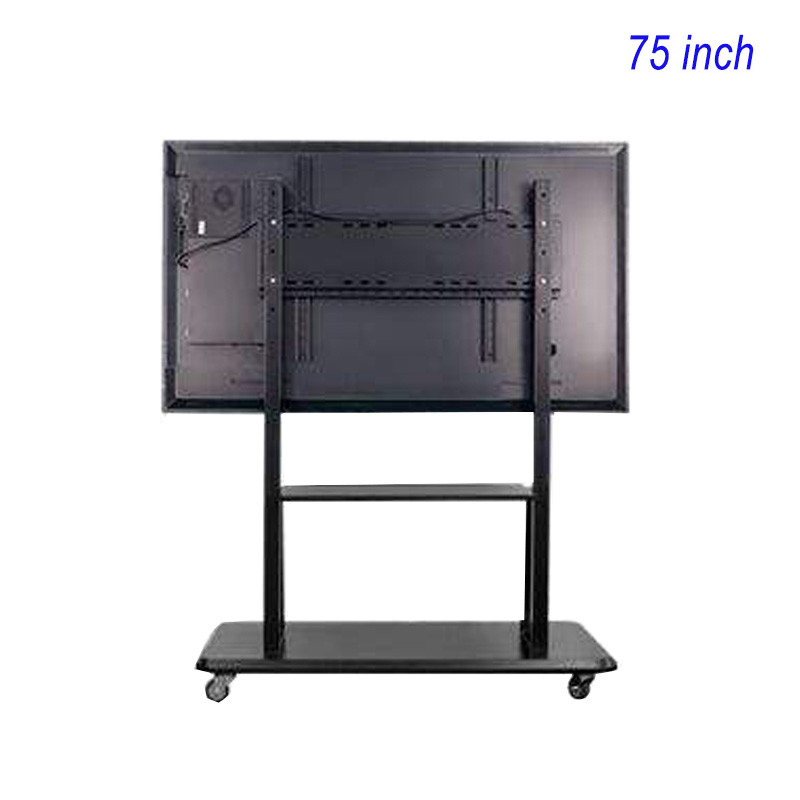

Hot Sale Interactive Touch Screen Smart Whiteboard for Education with Multimedia Software
major function:
1.Intelligent channel identification, automatically jump after inserting the signal source, and prompt the inquiry dialog box.
2.comprehensive safety lock function, provide U disk lock, screen lock, application software lock, touch lock.
file management software, support multiple systems, U disk and other equipment documents for automatic classification, viewing, editing and other operations.
3.channel Settings, support the custom boot channel, support the channel channel name customization. Full channel annotation, support quick setting of writing pen color; annotate multiple pages to preview the annotated page at any time; annotate the page to quickly import the whiteboard software.
4.System optimization software, provide system overview, application software management, system memory optimization; support the monitoring and alarm of system information, ops computer, touch screen, temperature and screen.
5.Side shortcut menu, support calendar, timer, magnifying glass, curtain, camera, calculator, spotlight, compass and other small tools application, support custom addition; support browser, whiteboard, welcome template, file management and other system application software and third-party software custom display function common teaching and training meeting function.
In high school classrooms, the needs and layout are often much different from younger classrooms. High school classrooms tend to be larger, with more students, and the height difference between students and teachers becomes less of an issue. As such, screen size can be increased to 75" or even larger, providing an optimal view for all students, regardless of where they sit.
centralized control, through the external equipment for the whole machine volume, channel, sound, signal source and other functional operation.
For high school classrooms, a fixed-height screen support is usually sufficient, as students and teachers can reach the board easily. If you prefer flexibility and want to move the board around the classroom, consider choosing a free-standing, mobile setup. This will allow you to reposition the board based on different activities or seating arrangements. A fixed-height option is great if the board will always be positioned at the front of the classroom, but the mobile option offers versatility for more dynamic use.
When there is no signal under the channel, the background color can be changed to support gesture functions such as five-finger extinguishing screen and three-finger following.
|
name
|
size
|
75"
|
|
show
|
Display Area HV (mm)
|
1654mm ×931mm
|
|
optimum resolution
|
3840×2160 pixels
|
|
Refresh the frequency
|
60Hz
|
|
luminance
|
300-350cd/m2
|
|
contrast ratio
|
1200:1 / 5000:1 (OC)
|
|
Visual Angle
|
1780(H/V)
|
|
Show color
|
8bit 16.7M/1.07B (10bit)
|
|
backlight
|
DLED
|
|
colour gamut ntsc
|
72%
|
|
life span
|
For 50,000 hours
|
|
surface
|
Body material
|
Aluminum alloy face frame, oxidation sandblasting process
|
|
Front frame color
|
Black [standard], can be customized silver black or other colors
|
|
Front frame glass
|
Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass
|
|
Front box pen slot
|
The two magnetic grooves on the front
|
|
Touch parameters
|
Identification principle
|
Infrared recognition
|
|
Touch embedding mode
|
Built-in integrated type
|
|
The way of writing
|
Finger, touch pen or other 2mm non-transparent object (full screen writing)
|
|
Number of touch points
|
At 20 o'clock
|
|
Touch resolution
|
32767*32767
|
|
Touch precision
|
±1mm
|
|
Single refers to the response speed
|
＜8ms
|
|
Touch number
|
The theoretical number is infinite
|
|
drivers
|
System automatic identification, no drive
|
|
support system
|
windowsXP /7/8/10/11,Android,MacOS,Linux
|
|
working temperature
|
-10~+50 ℃
|
|
communication mode
|
USB 2.0/USB 3.0
|
|
Built-in system
|
scheme
|
Amlogic T982
|
|
CPU
|
Quad-core ARM Cortex-A55
|
|
GPU
|
Mali-G52 MP2(2EE)
|
|
basic frequency
|
1.9GHz
|
|
internal storage
|
4G DDR
|
|
memory
|
32GB (EMMC)
|
|
Wi-Fi
|
2.4GHz/5GHz
|
|
System version
|
Android 13.0
|
|
Front interface
|
Enter the port
|
USB 3.0×3
|
|
HDMI×1
|
|
TOUCH USB×1
|
|
Type-C×1
|
|
Prehole position
|
Auto photosensitive hole 1
|
|
Remote control receives the indicator light 1
|
|
key
|
Eight buttons
|
Switch, volume +, volume-, eye protection, recording screen, home page, setting, touch switch (single button optional)
|
|
The machine interface
|
Enter the port
|
RJ45:×1
|
|
TOUCH USB:×1
|
|
USB3.0:×1
|
|
USB2.0:×1
|
|
RS232:×1
|
|
HDMI IN:×1
|
|
AV IN:×2
|
|
Other ports
|
AV OUT :×1
|
|
Earphone:×1
|
|
SPDIF OUT:×1
|
|
Complete machine power consumption
|
The power of the machine
|
≤340W
|
|
OPS power
|
≤110W
|
|
working voltage
|
100~240V AC, 50/60Hz
|
|
Standby power consumption
|
≤0.5W
|
|
Sound channel stereo
|
2.0
|
|
Dual-channel power
|
20W / 8 Euro 2 speakers
|
|
Built In camera
|
Built-in 48 million camera, 8 array microphones
|
|
work environment
|
service temperature
|
0~40℃
|
|
operation humidity
|
10%~90% RH
|
|
Storage temperature
|
-20~60℃
|
|
Store humidity
|
10%~90% RH
|
|
above sea level
|
5000 Meters
|
|
Size weight
|
Standard bare machine size length * width * height (mm)
|
1707×108×1013
|
|
Camera bare machine size: length * width * height (mm)
|
1707×108×1026
|
|
Overall machine package dimensions length * width * height (mm)
|
1880×210×1150
|
|
VESA stent hole position (mm)
|
400(V)×600(H)
|
|
Wall hanging thickness (mm)
|
30mm
|
|
net weight
|
47KG
|
|
rough weight
|
60KG
|
|
Single outlet wooden box size: length * width * height (mm)
|
19502651310 (with base support)
|
|
Weight (including wooden box)
|
90KG
|
|
Standard list
|
nameplate (neutral)
|
1 (affixed on the back of the whole machine)
|
|
QR code (Neutral)
|
1 (at bottom left of front box)
|
|
Accessory box (neutral)
|
×1
|
|
Power supply line is 1.8M
|
1 (98 inches standard with 3 m)
|
|
Certificate of qualification (neutral)
|
×1
|
|
Warranty Card (Neutral)
|
×1
|
|
Remote control (battery-free)
|
×1
|
|
Touch pen (magnetic suction)
|
×2
|
|
Wall-hanger (neutral)
|
×1
|
|
Optional list
|
HDMI line
|
×1
|
|
TOUCH USB Line
|
×1
|
|
Intelligent page turning pen
|
×1
|
|
Wireless screen casting device
|
×1
|
|
traversing carriage
|
×1
|
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
