23.8 Inch Android Self Service Payment Kiosk Pos Bank Card For Retail Restaurant Hospital

23.8 Inch Android Self Service Payment Kiosk Pos Bank Card For Retail Restaurant Hospital

23.8 inch Android payment kiosk

self service POS kiosk for retail

bank card payment terminal for restaurants

원래 장소:

중국 광둥

브랜드 이름:

ZXTLCD

인증:

CE/Rohs/FCC

모델 번호:

ZXTLCD-SOK320W005

문의하기
조회를 요청하다
제품 상세정보
화면 크기:
32인치
패널 유형:
BOE 오리지널 A+ 등급 IPS
명도:
300 cd/㎡
해결:
1920×1080
시야각:
178°/178°(수직/수직)
전력 소비:
80W
작동 온도:
0°C ~ 50°C
캐비닛 재질:
금속 케이스 + 유리
터치스크린:
10포인트 정전식 터치스크린
NFC 리더/스캐너/QR 리더:
지원, 내장
80mm 감열식 프린터:
지원, 내장
여권 스캐너:
선택 과목
POS 단말기 설치:
예비 공간
전원공급장치:
AC 100~240V, 50hz-60hz
애플리케이션:
환대, 호텔 및 케이터링
가장 밝은 부분:
대화형 자체 주문 키오스크, 대화형 자체 주문 키오스크, 소매 자체 주문 키오스크
강조하다:

23.8 inch Android payment kiosk

,

self service POS kiosk for retail

,

bank card payment terminal for restaurants

지불과 운송 용어
최소 주문 수량
1
가격
협상 가능
포장 세부 사항
나무로 되는 케이스, 판지, 비행 케이스는 선택적입니다
배달 시간
3-5 영업일
지불 조건
L/C,T/T,웨스턴 유니온,머니그램
공급 능력
달 당 2000 PC
제품 설명

23.8 Inch Android Self Service Payment Kiosk Pos Bank Card For Retail Restaurant Hospital


As digital services continue to expand across various industries, the 23.8-inch self-service payment kiosk is gradually extending from the catering sector to diverse fields such as retail and healthcare. This device, centered around a large touchscreen, integrates a bank card payment module and a self-service system to unify information interaction and payment processing, providing users with a more convenient and efficient service experience while helping merchants optimize their operational processes.


Unlike traditional single-function terminals, this type of device emphasizes "centralized payment." Users can complete information inquiries, order confirmations, and payment operations on a single screen without switching between different devices. The system supports multiple payment methods, including bank cards, QR codes, and NFC, and achieves secure settlement through a built-in POS module. Simultaneously, a thermal printing module can instantly output vouchers or receipts, making the entire transaction process more complete and standardized. Related product solutions indicate that these terminals typically integrate scanning, payment, and printing functions to improve overall efficiency and reduce the complexity of external devices.

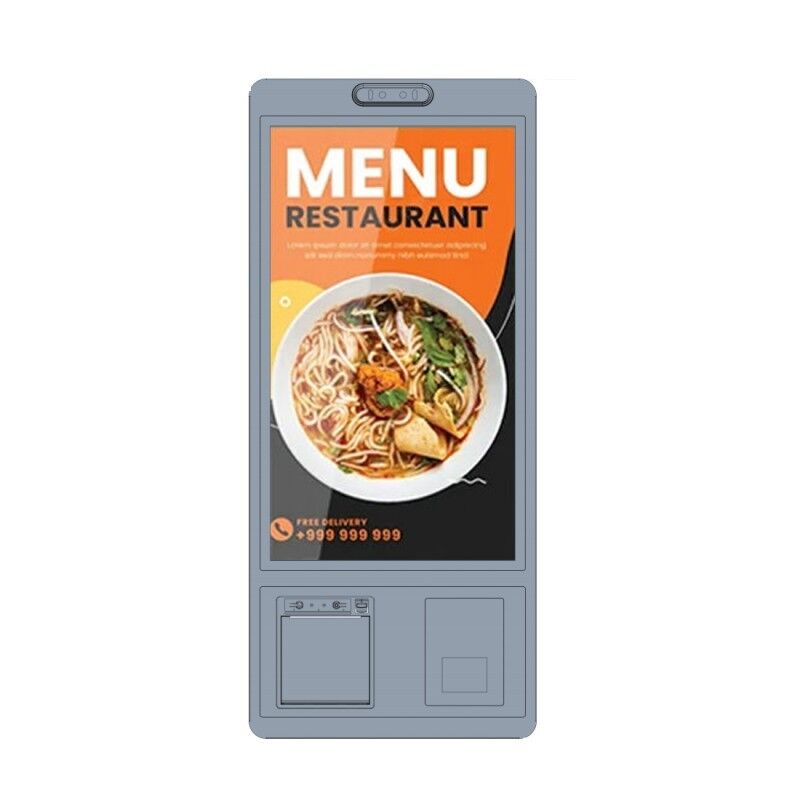

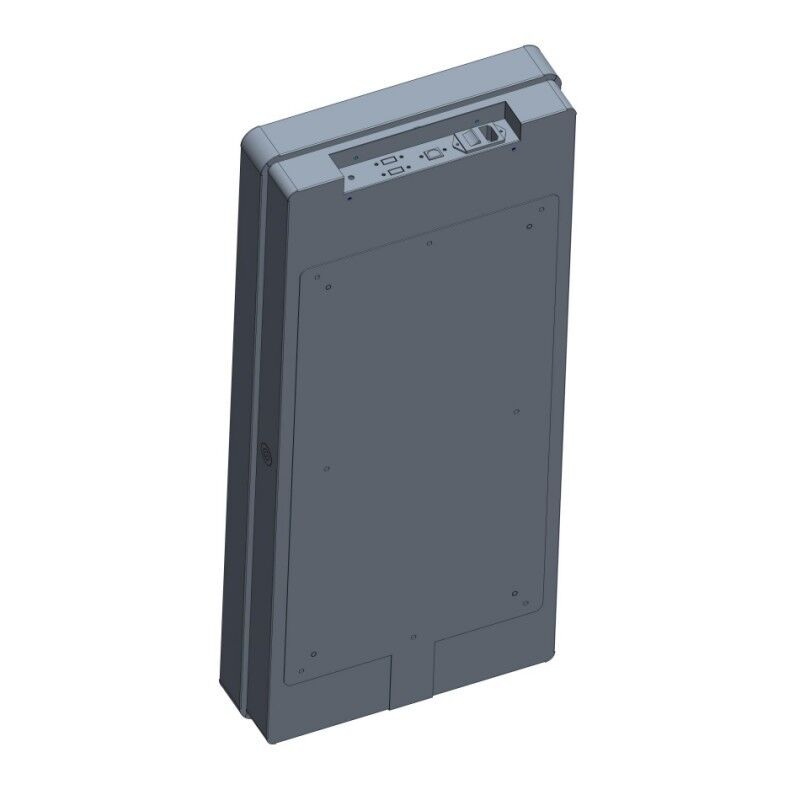

23.8-inch Front-mounted wall-mounted self-service machine
LCD Panel Parameters Screen Size 23.8 inch
Display area 527.04(H) X 296.46(V)mm
Aspect Ratio  16:9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 99% sRGB
Brightness 250 cd/
Contrast Ratio  1000:1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10℃ ~ +50℃, ≤ 85%RH
Storage temperature & Humidity below20℃ ~ +60℃, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0℃ ~ 50℃
Storage temperature  below10℃ ~ +60℃
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  400(H) ×150(W) × 850(D) mm
The Gross weight of Unit Package  Approx. 15–20 kg


In practical applications, this device can be widely deployed in scenarios such as restaurant self-service ordering, shopping mall self-checkout, and hospital self-payment. Through the self-service payment process, customers do not need to queue for human service, thus significantly improving overall efficiency. Simultaneously, all transaction data can be synchronized to the back-end system in real time, providing data support for operational analysis and management decisions.


Overall, the 23.8-inch self-service payment kiosk is no longer just a single payment terminal, but a comprehensive solution integrating "interaction + payment + data management." It connects users and service systems through a unified entry point, improving efficiency while providing a more flexible and scalable infrastructure for the digital upgrade of various industries.

23.8 Inch Android Self Service Payment Kiosk Pos Bank Card For Retail Restaurant Hospital 0


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
